Product Description

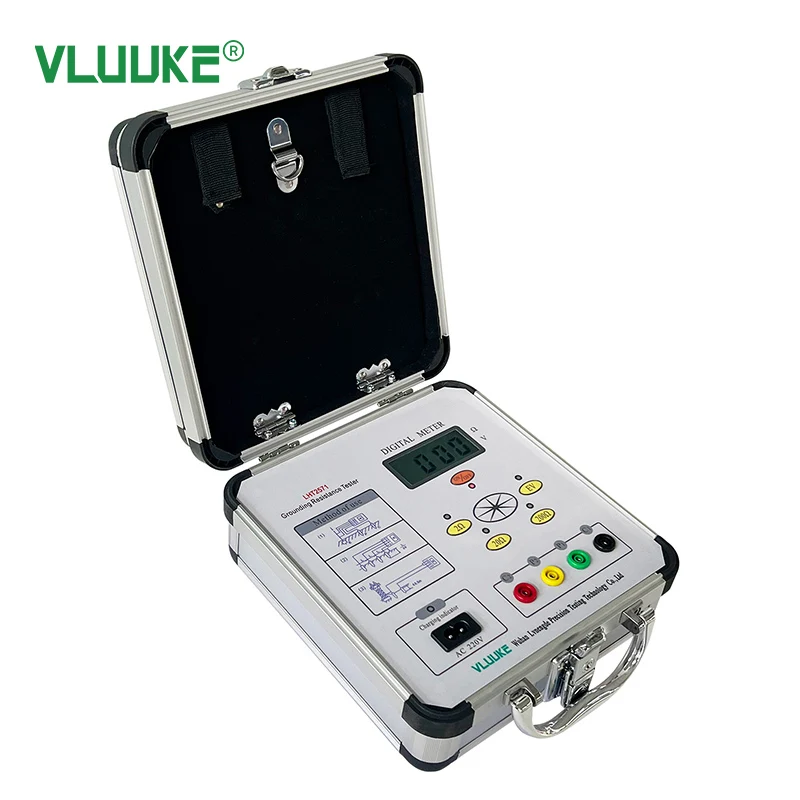

LHT2571 Digital Grounding Resistance Tester Ground Voltage Resistance Tester
LHT2571 Digital Grounding Resistance Tester Ground Voltage Resistance Tester
In this table, the traditional manual power generation mode is abandoned, and the advanced medium and large scale integrated circuit is adopted. The DC/AC transformation technology is applied to combine the measuring mode of three-end knob and four-end knob into a new type of grounding resistance measuring instrument.The working principle is that the DC/AC converter converts DC into AC with low frequency constant current. The circuit consists of auxiliary grounding pole C and measured object E, and AC voltage drop is generated on the measured object. The circuit is sent to AC amplifier by auxiliary grounding pole P for amplification, and then sent to the watch head for display through detection. With the aid of multiplying power switch, three different quantity limit can be obtained: 0 ~ 2 Ω , 0 ~ 20 Ω , 0 ~ 200 Ω .
Technical Index
1. Conditions of useAmbient temperature: 0℃ ~ +45℃ Relative humidity: ≤85%RH
2. Measuring range and constant current value (Root Mean Square) Resistance: 0 ~ 2 Ω (10 mA), 2 ~ 20 Ω (10mA), 20 ~ 200 Ω (1mA)
Voltage: AC 0 ~ 19.99V
3. Measurement accuracy and resolution Accuracy:
0~0.2Ω≤±3%±1d
0.2Ω~199.9Ω≤±1.5%±1d 1~ 19.99V≤±3%±1d
Resolution: 0.001Ω 、0.01Ω 、0. 1Ω 、0.01V
4. Auxiliary grounding resistance and measurement error caused by ground voltage
Auxiliary grounding resistance RC (between C1 and C2)
0～2Ω , 2～20Ω ≤1KΩ 20～200Ω ≤2KΩ
RP（between P1 and P2）<40KΩ Error ≤±5%
Allowable ground voltage (power frequency effective value) ≤5V Error ≤±5%
5. Power supply and power consumption
Maximum power loss ≤2W
DC: 8* 1.5V(AA, R6) battery
Communication: 220V±10% / 50 Hz
6. Volume and weight
Size: 220 mm * 200 mm * 105 mm Weight: ≤1.4 kg
