Product Description

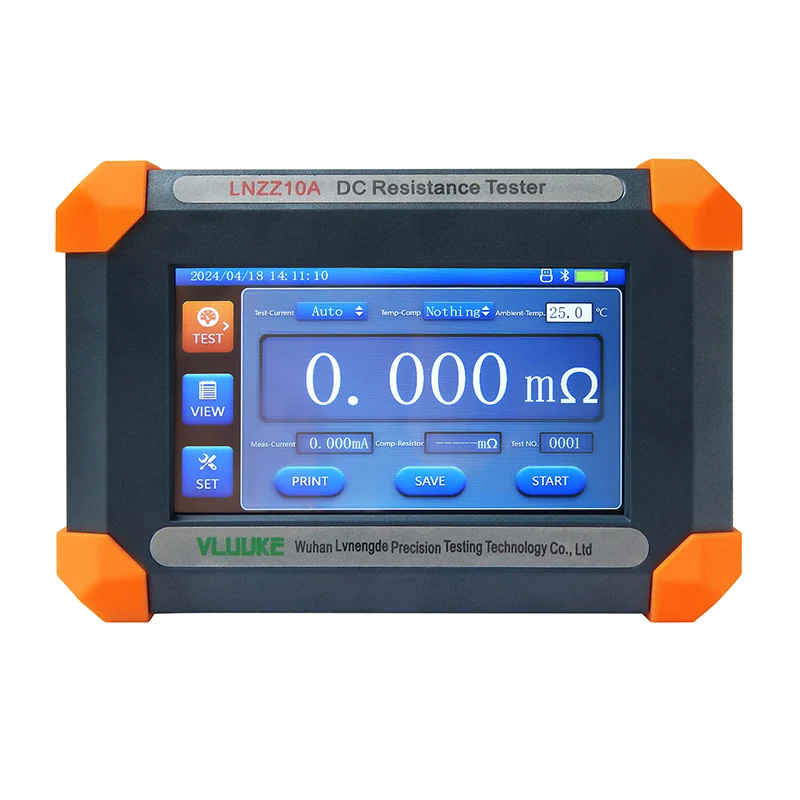

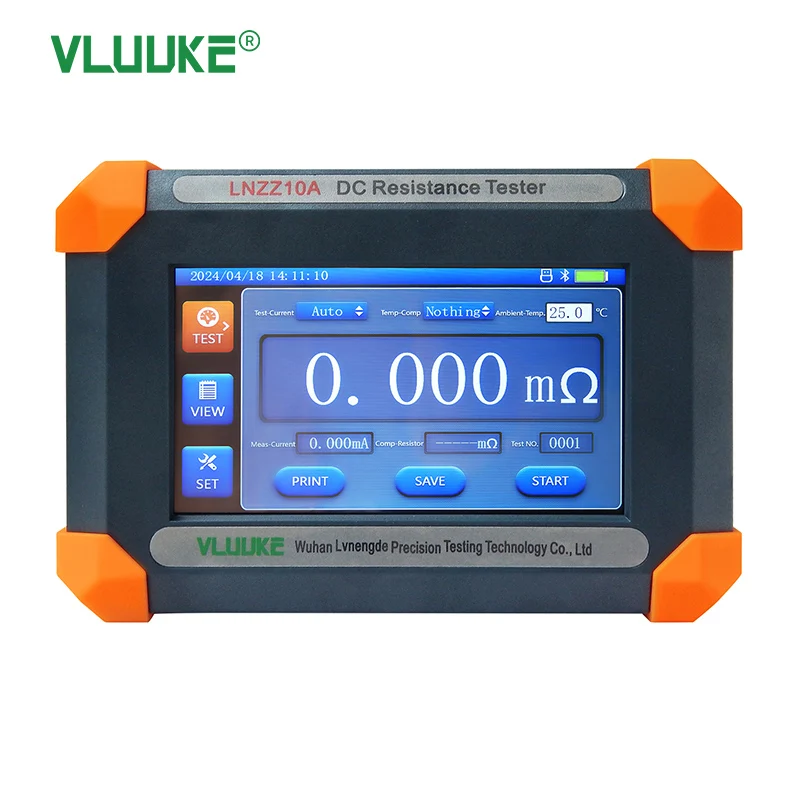

LNZZ10A Digital Transformer DC Winding Resistance Tester Dc Resistance Measurement Equipment
LNZZ10A Digital Transformer DC Winding Resistance Tester Dc Resistance Measurement Equipment
1. The entire machine is controlled by a high-speed microcontroller, with a high degree of automation and easy operation; 2. The instrument adopts new power supply technology, with a wide measurement range; 3. The protection function is complete, which can reliably protect the impact of back electromotive force on the instrument, and the performance is more reliable; 4. Fast response speed, stable instrument measurement data, and automatic data refresh during the instrument testing process; 5. Intelligent power management technology ensures that the instrument always operates at the minimum power state, effectively reducing internal heating and saving energy; 6. The instrument is equipped with a non power-off clock inside; 7. The instrument has an internal power on memory that can permanently store data.
| Output Current | Automatic, 10A, 5A, 1A, 300mA, 100mA, ＜5mA |
| Resolving Power | 0.1μΩ |
| Range | 30 Ω -50K Ω (＜5mA range); 500m Ω -80 Ω (100mA range);100mΩ-25Ω (300mA range); 50mΩ-8Ω (1A level); 1mΩ-0.4Ω (5A level); 0.5mΩ-200mΩ (10A grade) |
| Accuracy | 0.2% FS |
| Working Temperature | 0-40 ° C |
| Working Humidity | ＜90% RH, no condensation |
| Operating Temperature | -20 ° C~+60 ° C |
| Size | 320mm （L）x 270mm （W）x 150mm （H） |
| Weight | 1.35KG |
