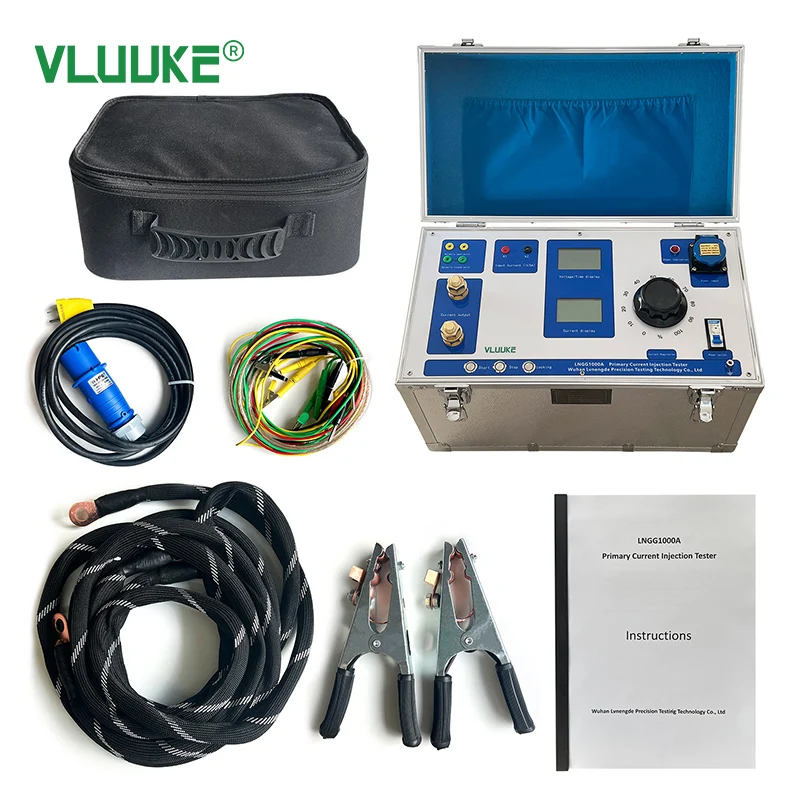

LNGG1000A High Current Generator Primary Current Injection Tester with 1 Year Warranty High Accuracy & IP67 Protection
LNGG1000A High Current Generator Primary Current Injection Tester with 1 Year Warranty High Accuracy & IP67 Protection
LNGG1000A Primary Current Injection Tester(hereinafter referred to as heat flow device), the test equipment developed by our company, it combines the advantages of similar products at home and abroad in one, USES the numerical control technology, strong anti-jamming capability, compared with the generation of heat flow device with low power consumption, large capacity of the lotus root voltage regulator and high permeability core current transformer, has big output power, small volume, light weight, etc. Mainly used for thermal relay, motor protector, contactor, breaker, air switch, switch cabinet, circuit breaker, protection screen verification; It is widely used in the scientific research, production and electrical test field of electric power, railway, petrochemical, metallurgy and mining enterprises.1.The main function （1）output 0 ~ 1000A current （2）the operation time of test equipment can be synchronized （3）Automatic identification of normally open and normally closed contacts （4）can be several serial check at the same time, improve work efficiency （5）directly display the test values of primary current and secondary current for the convenience of test observation and recording. 2.The performance characteristics （1）six and a half display, the national initiative six and a half display, display accuracy is higher, more accurate experimental results （2）Large LCD display, display data more intuitive, faster reading （3）the meter display locking function, especially for the transformer can be more accurate and faster than the test （4）use beautiful and generous PVC panel, make the panel more resistant to dirt and wear （5）The measurement accuracy is 0.1 grade higher （6）large power, small size, with a strong load capacity （7）small size, light weight, volume of similar products only 30% ~ 70%, very convenient to carry.
| Name: | LNGG1000A Primary Current Injection Tester |
| Environmental groups | belong to GB6587.1-86 in "electronic measuring instrument test master plan" Ⅲ group (can be used in outdoor environment) instrument. |
| Input | ac 50Hz, 220V |
| Output single phase 0-3000a ac current; The current can be adjusted smoothly, smoothly and continuously, with the accuracy higher than 0.2. | 0-3000a ac current; The current can be adjusted smoothly, smoothly and continuously, with the accuracy higher than 0.2. |
| The output current is the standard sine wave with small burr, which is better than the standard of power system | 3PF ～60000PF/10KV 60PF～1µF/0.5KV |
| The number is less than 0.3%. | 3PF ～1.5µF/10KV 60PF～30µF/0.5KV |
| Output current mode: | true RMS value is continuously adjustable |
| Output waveform: | standard sine wave |
| Output opening voltage: | 6V |
| Current accuracy: | each current can be adjusted smoothly, steadily and continuously, with the accuracy higher than 0.5. |
| Current stability: | 0.1% |
| Current waveform distortion: | THD 1% |
| Protection Settings: | overcurrent, overvoltage |
| The current action time of the tested element can be measured and the locked action time can be recorded synchronously. Automatic identification of normally open and normally closed contacts. | |
| Measuring time range: | 0.0001s -- -9999.9999s, accuracy: 0.0001s |
| Power: | 5 kva |
