ES3035E+ 10KV Digital Electronic Insulation Resistance Tester with 1 Year Warranty IP67 Protection 0.2 Accuracy 10W Power
ES3035E+ 10KV Digital Electronic Insulation Resistance Tester with 1 Year Warranty IP67 Protection 0.2 Accuracy 10W PowerProduct CharacterDigital insulation resistance meter also known as megohmmeter, high voltage insulation resistance tester, etc., for the insulation resistance test. The instrument has a large LCD screen gray backlight display, data storage, data access, alarm, automatic shutdown and other functions. At the same time, it also has the function of measuring DC voltage, AC voltage, absorption ratio and polarization index of DC voltage.Digital insulation resistance meter consists of medium and large scale integrated circuits. The output power of the watch is large, and the output voltage level is a lot (with 6 voltage levels). DC voltage measurement range is 0 ~ 1000V, AC voltage measurement range is 0 ~ 750V. DC current measurement range is 100pA-6mA. Capacitance measurement range is 10nF-50nF.
SpecificationsFunction | Insulation resistance test, voltage test |
Base conditions | 23°C±5°C,below 75%rh |
Rated voltage(V) | 100;250;500;1000;2500V;5000V |
Test Voltage(V) | rated voltage×(1±10%) |
Insulation Resistance Range(GΩ) | 0.01MΩ~2000GΩ |
Insulation Resistance Resolution | 0.01MΩ |
DC Voltage Range | 0~1000V |
DC Voltage Range Resolution | 0.1V |
AC Voltage Range | 0~750V |
AC Voltage Range | 0.1V |
Output short-circuit Current | ≥5mA(5KV) |
Absorption Ratio and Polarization Index Measurement | Have |
Power Supply | 12.6V rechargeable battery |
Backlight | Controllable gray screen backlight, suitable for use in dim places |
Dispaly mode | 4-bit large LCD display, gray screen backlight |
LCD display size | 108mm×65mm |

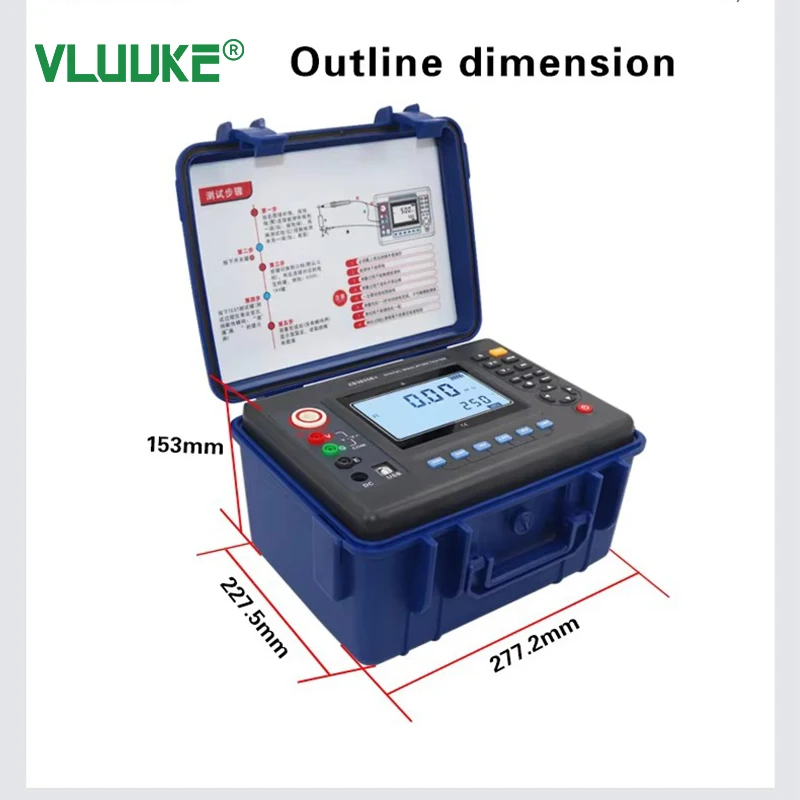

Instrument size | L/W/H:277.2mm×227.5mm×153mm |
USB interface | With USB interface, software monitoring, storage data can be uploaded to the computer, save and print |
Communication Line | USB communication line 1PC |
Test Line | High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter |
Data Storage | 500 groups, “FULL” symbol indicates that storage is full |
Data Review | Data review function: “MR” symbol display |
Overflow Display | Exceed measurement range overflow function: “OL ” symbol display |
Alarm Function | Alarm when the measured value smaller than the alarm setting value |
Power Consumption | Standby: 30mA Max(backlight off) |
Turn on backlight: 42mA Max | |
Measure:300mA Max(backlight off) | |
Instrument weight | 2720g(including battery) |
Automatic shut-down | automatic shutdown after 15 minutes boot |
Insulation Resistance | ≥50MΩ(between Measuring line and housing) |
voltage withstand | AC3kV/50Hz 1min |
Working Temperature and Humidity | -10℃~+50℃<85%RH |
Storage Temperature and Humidity | -15℃~+55℃<90%RH |
Suitable for Safety Regulations | IEC61010-1,IEC1010-2-31,IEC61557-1,5,IEC60529(IP54) pollution grade 2,CAT Ⅲ 300V |
