Product Description

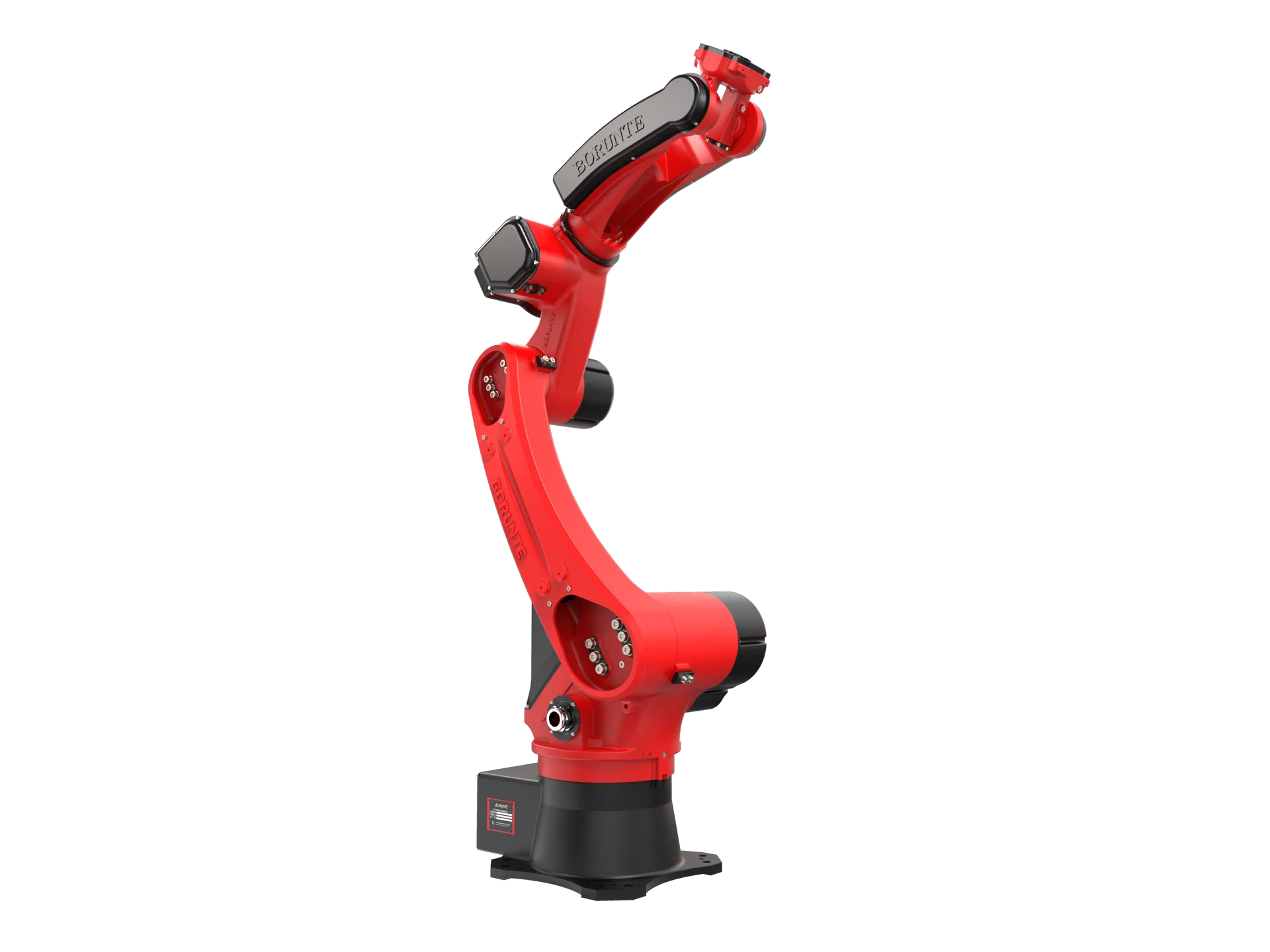

BRTIRWD1506A 6-Axis Welding Robot with PLC & Gearbox IP54 Rated for MIG/MAG/TIG/ARC/LASER Welding 3D Vision 4kW
BRTIRWD1506A 6-Axis Welding Robot with PLC & Gearbox IP54 Rated for MIG/MAG/TIG/ARC/LASER Welding 3D Vision 4kWProduct OverviewProduct details
BRTIRWD1506A is a cutting-edge 6-axis industrial robot engineered for spray painting, coating, and precision material handling in harsh industrial environments. With a 1600mm ultra-long arm span, 6kg payload capacity, and IP54-rated wrist (dust/waterproof), this robot delivers ±0.05mm repeatability for consistent, high-quality finishes in automotive, electronics, and furniture manufacturing. Its compact design and 360°-capable joints enable flexible installation and efficient workflow optimization.  Key Features & Benefits \uD83D\uDD39 High-Performance Spray Automation • 1600mm Arm Reach: Ideal for large surfaces like automotive bodies, appliances, or metal sheets. • ±0.05mm Precision: Achieve uniform coatings with minimal waste, reducing paint consumption by 20-30%. • IP54 Protection: Safely operate in dusty, wet, or chemical-rich environments (e.g., spray booths, chemical plants). \uD83D\uDD39 Enhanced Flexibility • 6 Degrees of Freedom: Navigate complex trajectories for 3D objects (e.g., car bumpers, furniture edges). • Multi-Scenario Compatibility: Seamlessly switch between spraying, dispensing, and assembly tasks. \uD83D\uDD39 Energy Efficiency & Durability • Low Power Consumption: Optimized motor design reduces energy use by 15% vs. traditional spray systems. • Robust Build: High-strength aluminum alloy frame withstands 24/7 operation in demanding conditions.FEATURES AT A GLANCE

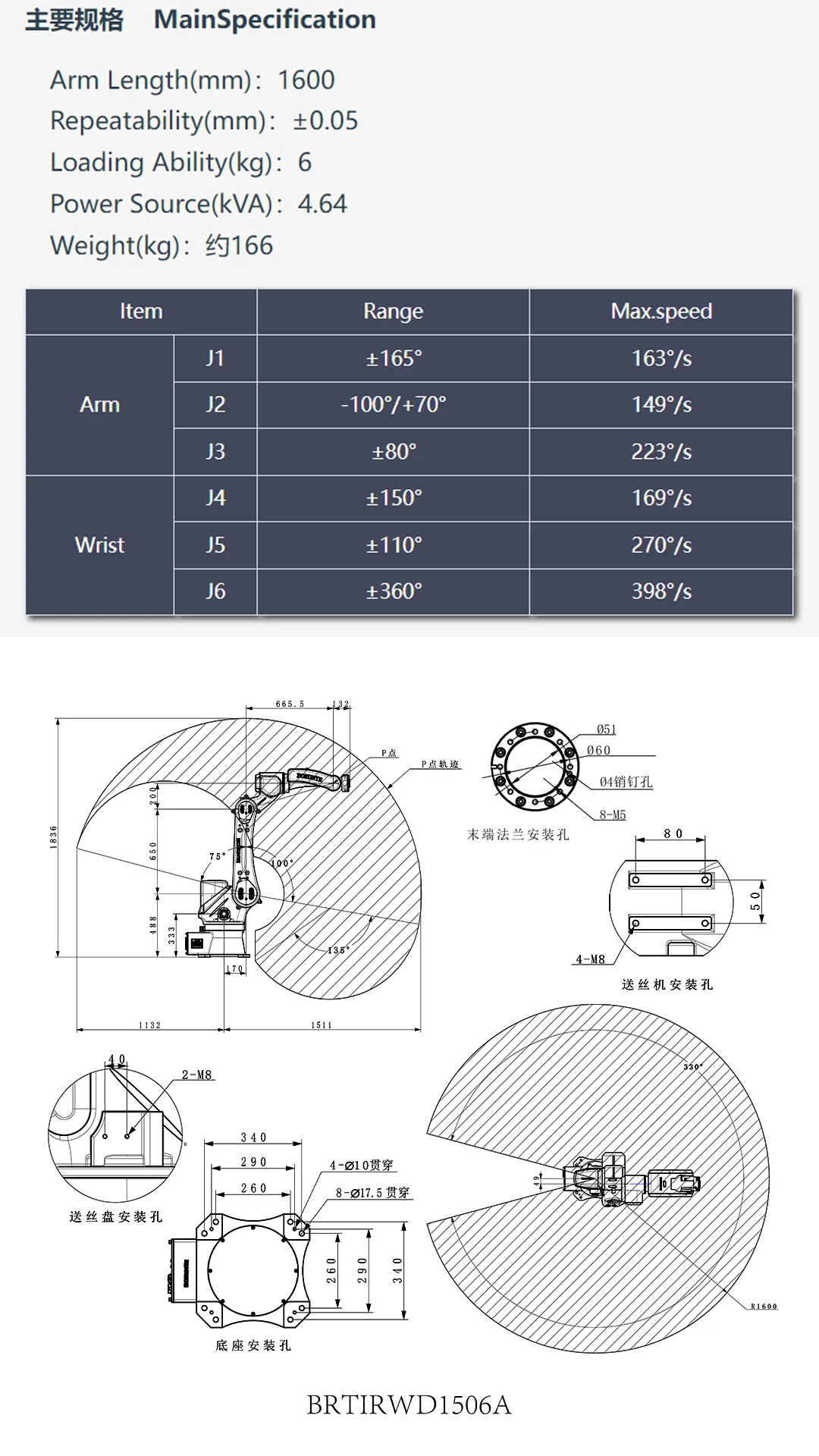

MainSpecification:Arm Length(mm)：1600
Repeatability(mm)：±0.05
Loading Ability(kg)：6
Power Source(kVA)：4.64
Weight(kg)：About 166KGS
Right elevation
Left elevation
Front elevationPRODUCT SPECIFICATIONS| Item | Range | Max.Speed | |
ARM | J1 | ±165° | 163°/s |
| Bucket capacity | J2 | -100°/+70° | 149°/s |
| Operating weight | J3 | ±80° | 223°/S |
Wrist | J4 | ±150° | 169°/s |
| J5 | ±110° | 270°/s | |
| J6 | ±360° | 398°/s |
PRODUCT CONFIGURATION
ELECTRICAL BOX
CONTROL PADSIX-AXIS ROBOTMore Tool
Product packaging
FINE PACKING
The internal fine packaging is sealed with wooden cases in line with export regulations, so as to ensure the quality of goods in transit is completeWhy Choose Us
Customize your solution
On-site implementationEnsure robot, tools working well
Stamping
Materials Loading
Dual robot loading collaborate
Welding
Spray
Polishing
Tracking
Die casting loading
Bending
3D vision scan
Vision grip bottles
Frame painting
3D vision stacking
Laser cutting
Window lifetime testing
Robots collaborate
Box stacking
Silk screen
packing box production
sheet metal polishing
Spot painting
TIG Welding
Laser welding
Thin tube welding
waste transfer
metal heat painting
Gypsum polishing
aloft painting robot
Wheeling hub polishing
Vision stackingAbout Prime Living
