Product Description

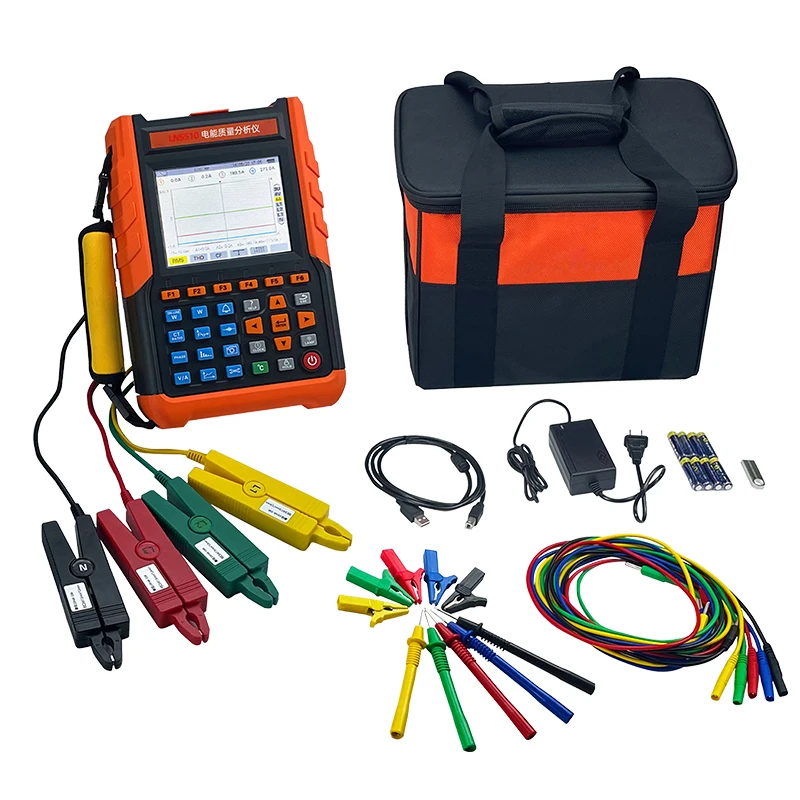

LNS510 Electric Three Phase High Accuracy 0.2 IP67 Protection Aluminum Alloy Tablet Type Intelligent Multifunction Power
LNS510 Electric Three Phase High Accuracy 0.2 IP67 Protection Aluminum Alloy Tablet Type Intelligent Multifunction Power
1. Adopting DSP+ARM dual processor architecture, DSP is responsible for data acquisition and algorithm processing, ARM is responsible for communication protocol and human-machine interface processing. 2. Using two high-precision ADC chips to collect analog signals, the maximum sampling rate can reach 1MSPS, ensuring the accuracy and information integrity of the channel, and ensuring that no transient changes in the power grid are missed, making the instrument more accurate in detecting transient waveforms, sudden rises and drops, instantaneous interruptions, etc. 3. DSP has a working frequency of over 200MHZ, which enables timely monitoring of the power grid and dynamic adjustment of sampling frequency to achieve synchronization between power frequency and sampling frequency.4. Using a 5.6 inch LCD color screen display with a resolution of 640DOTSx480DOTS, the parameters, waveform, phasor, and harmonic ratio of each phase are displayed in different colors, allowing users to more efficiently and intuitively understand the status of power grid parameters. 5. The built-in flash memory can simultaneously store 60 sets of screenshots, 150 sets of transient voltage/current capture waveforms, 12800 sets of alarm logs, and the startup current detection mode can continuously capture 100S of startup current waveforms.6. The built-in 32G memory card is used to store long-term trend curve records, which can simultaneously record 20 electricity parameters (optional). It can be collected and recorded once in 1 second, and can record and store trend curve records for up to 960 days.
