Product Description
BRTIRUS0805A 6-Axis Robot Injection Molding New Condition Part Handling Assembly Polish Precision 0.05mm IP54 Wrist
BRTIRUS0805A 6-Axis Robot Injection Molding New Condition Part Handling Assembly Polish Precision 0.05mm IP54 WristProduct OverviewProduct details

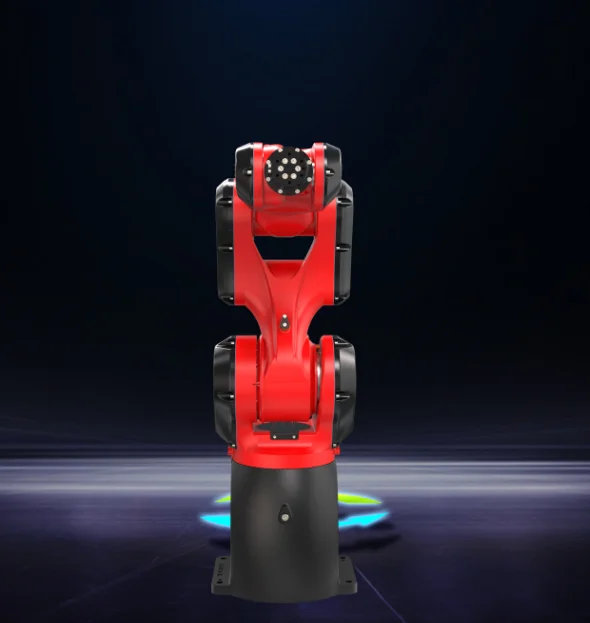

BRTIRUS0805A type robot is a six-axis robot developed by BORUNTE. The whole operation system is simple, compact structure, high position accuracy and has good dynamic performance. The load ability is 5kg, especially suitable for injection molding, taking,stamping, handling, loading and unloading, assembly, etc. It is suitable for injection molding machine range from 30T-250T. The protection grade reaches IP54 at the wrist and IP40 at the body. The repeat positioning accuracy is ±0.05mm.FEATURES AT A GLANCE
MainSpecification:Arm Length(mm)：940Repeatability(mm)：±0.05Loading Ability(kg)：5Power Source(kVA)：3.42Weight(kg)：约53

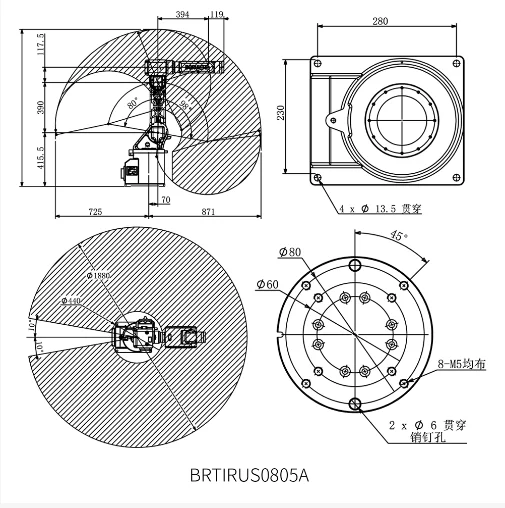

Right elevation
Left elevation
Front elevationPRODUCT SPECIFICATIONS| Item | Range | Max.Speed | |
ARM | J1 | ±170° | 237°/s |
| Bucket capacity | J2 | -98°/+80° | 267°/s |
| Operating weight | J3 | -80°/+95° | 370°/s |
Wrist | J4 | ±180° | 337°/s |
| J5 | ±120° | 600°/s | |
| J6 | ±360° | 588°/s |
PRODUCT CONFIGURATION
ELECTRICAL BOX
CONTROL PADSIX-AXIS ROBOTProduct packaging
FINE PACKING
The internal fine packaging is sealed with wooden cases in line with export regulations, so as to ensure the quality of goods in transit is completeWhy Choose Us
Stamping
Materials Loading
Dual robot loading collaborate
Welding
Spray
Polishing
Tracking
Die casting loading
Bending
3D vision scan
Vision grip bottles
Frame painting
3D vision stacking
Laser cutting
Window lifetime testing
Robots collaborate
Box stacking
Silk screen
packing box production
sheet metal polishing
Spot painting
TIG Welding
Laser welding
Thin tube welding
waste transfer
metal heat painting
Gypsum polishing
aloft painting robot
Wheeling hub polishing
Vision stackingAbout Prime Living
