Product Description

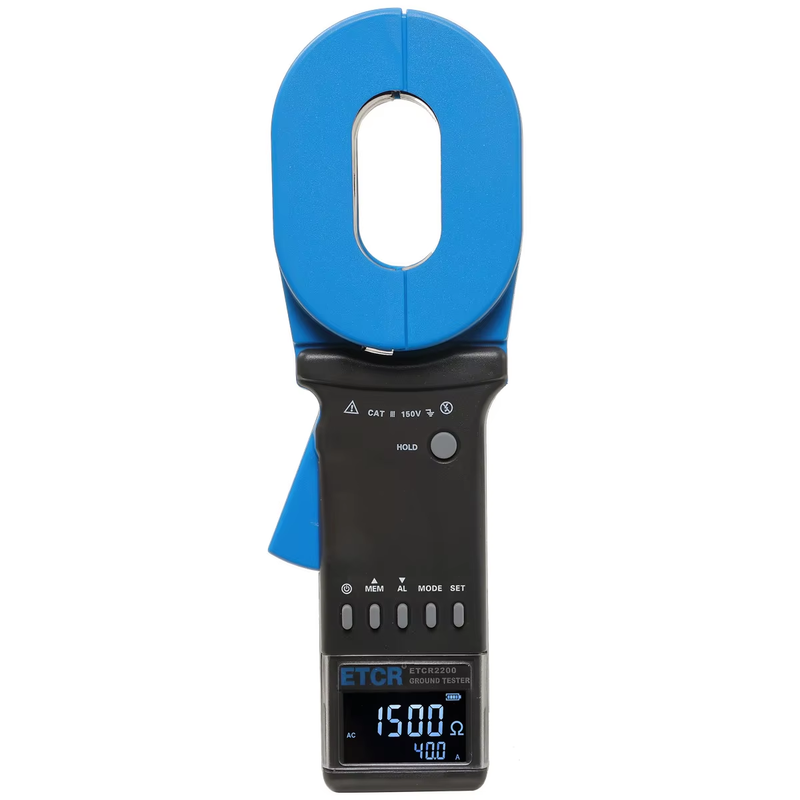

ETCR2200 Excellent Multifunctional Clamp Grounding Resistor Instrument 0.010~1500ohm leakage current measurement 0.00mA~40.0A
ETCR2200 Excellent Multifunctional Clamp Grounding Resistor Instrument 0.010~1500ohm leakage current measurement 0.00mA~40.0AETCR2200 Excellent Multifunctional Clamp Grounding Resistor Instrument 0.010~1500ohm leakage current measurement 0.00mA~40.0ABrief introduction:ETCR2200 excellent multi-functional clamp grounding resistor, grounding resistance and loop resistance measurement (range: 0.010ohm~1500ohm); leakage current measurement (range: 0.00mA~40.0A). When measuring the grounding system with loop, it is not necessary to disconnect the grounding lead-down line or auxiliary electrodes, but to clamp the clamp meter directly on the grounding lead-down line. At this time, the display value of the clamp meter is the comprehensive value of the grounding body resistance and the grounding lead resistance. The measurement method can quickly and safely obtain the measurement results. ETCR2200 excellent multi-functional clamp grounding resistance meter can measure the grounding fault which can not be measured by traditional methods. It can be used in situations where traditional methods can not be measured, and is widely used in the measurement of grounding resistance of various equipment.1. Product ProfileETCR2200 excellent multi-functional clamp grounding resistor, grounding resistance and loop resistance measurement (range: 0.010_~1500_); leakage current measurement (range: 0.00mA~40.0A). When measuring the grounding system with loop, it is not necessary to disconnect the grounding lead-down line or auxiliary electrodes, but to clamp the clamp meter directly on the grounding lead-down line. At this time, the display value of the clamp meter is the comprehensive value of the grounding body resistance and the grounding lead resistance. The measurement method can quickly and safely obtain the measurement results. ETCR clamp grounding resistor can measure grounding faults that can not be measured by traditional methods. It can be used in occasions where traditional methods can not be measured, and it is widely used in measuring grounding resistance of various equipment.ETCR2200 excellent multi-functional clamp grounding resistor instrument has a variety of display mode combinations. It can choose resistance+current, resistance+time, current+time to display on the same screen. It has a larger measuring range, 999 groups of stored data and lower power consumption. It uses nickel-hydrogen rechargeable battery. The supporting monitoring software has on-line real-time monitoring, historical query, software alarm settings, historical data reading, saving and report forms. And other functions. It's a better choice for you to measure grounding resistance.
Resistance range :0.01-1500ohmcurrent range :0.00mA-40.0AResistance Resolution :0.001 OmegaCurrent Resolution :0.05mAdata storage :999 groupInterface :USB interface, software monitoring, data upload computer, dynamic displaySelf checking time :Less than 1s, boot up and quickly enter the test modeWorking current :Less than 50mAOperation button :6 soft keys, direct performanceCommunication line length :1.5m (USB Data Line)Clock function :Display hours and minutesaudible and visual alarm :"Du-Du-Du-Du" alarm sound, press AL key to turn on and off; LCD alarm flashing instructionSetting range of alarm threshold Resistance: 1-1500 Omega;Current: 1-999999mAPower Supply :6VDC (4 Sections 5 NiMH Batteries)Automatic shutdown :The instrument flickers 30S after 5 minutes without operation and then shuts down automatically.Working temperature and humidity : - 20-55 C; 10% RH-90% RHLiquid crystal display :Length and width 47 mm x 28.5 mmJaw size :Long tongs 65 mm *32 mmClamp opening size :Long tongs 28mmCaliper gauge weight :1160g; (including batteries)Caliper gauge dimensions :The length, width and thickness of 285 mm x 85 mm x 56 mmBattery cover plate : Screw fixationFixed modeProtection level :Double insulationStructural characteristics :Clamp CTShift :Fully automatic shiftExternal magnetic field and electric field :<40A/m;<1V/mSingle measurement time :0.5 secondsResistance measurement frequency : > 1KHzMeasured current frequency :50/60Hz Automation
