Product Description

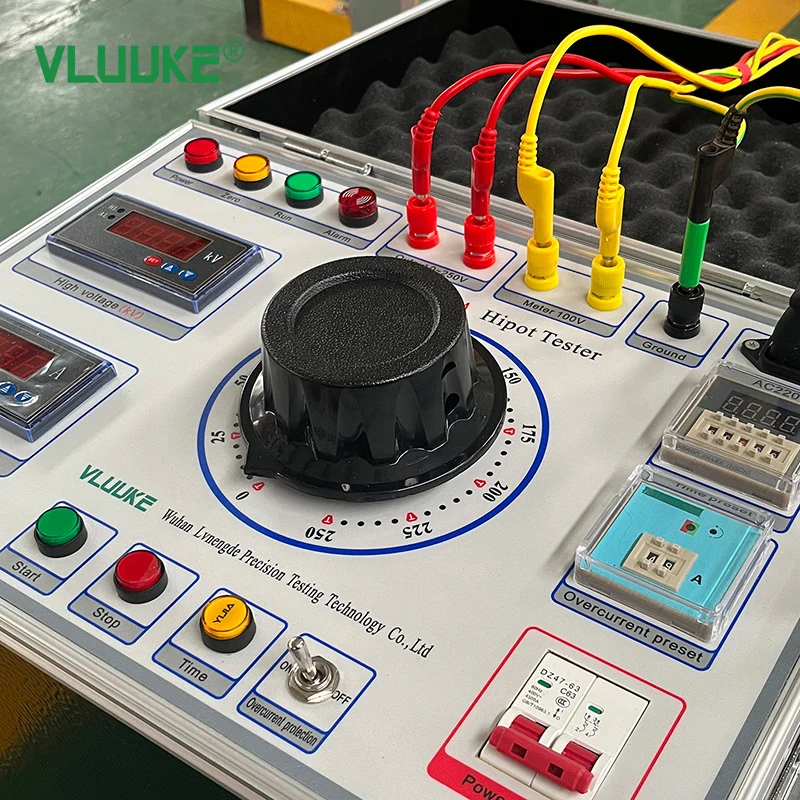

BYQ10kVA Voltage Ultra-low Frequency High Voltage Generator 10kVA/100kV Dry Type Hipot Tester IP67 Protection Accuracy
BYQ10kVA Voltage Ultra-low Frequency High Voltage Generator 10kVA/100kV Dry Type Hipot Tester IP67 Protection Accuracy
Compared with oil-immersed transformers of similar products, this series of transformers, using advanced production equipment,adopt new technology of coil epoxy vacuum pouring and CD iron core, obviously reduce weight and volume. The insulation strength
and moisture resistance are improved in quality, and the magnetic leakage is weakened effectively.
This series of products has the characteristics of light weight, small volume, beautiful shape, stable performance, easy to use
and carry, especially suitable for field operation. It is a new type of AC / DC dual-purpose high-voltage test transformer in
China. This series of generators is suitable for all kinds of high voltage power supply in power system and electric power users
to test the insulation performance of various electrical equipment, DC high voltage and small current of electrical products.
I.General technical indicators1.Output voltage waveform: sine wave.
2.Output waveform distortion rate :≤1%.
3.No-load current and loss: execute according to national standard
4.Inductive withstand voltage level: 1.1Uo/1min.
5.Short circuit impedance of 5 test transformers :4.5%～12%(±10%).
6.Voltage adjustable accuracy is ±1%.
7.Voltage instability is less than 1%.
8.over voltage protection function.
9.Surface temperature rise :<55℃
10.Under the rated capacity, the allowable continuous running time is 0.5 hours
（long time required operating transformer, can be customized）,
11.Intermittent running time:
Below 10kVA, every 2 hours, allow continuous operation for 0.5 hours
Above 15kVA, every 4 hours, allow continuous operation for 0.5 hours
12.At half rated voltage and half rated current, continuous operation is allowed for 4 hours
II.The main technical parameters
1. Rated capacity: 10kVA
2. Rated input voltage: 200V
3. Rated input current: 50A
4. Testing voltage: 100kV
5. Rated output current: 0.1A
6. Instrument voltage: 100V
7. Working time: 0.5 h
8. Weight: 77kg
9. Dimensions: 470X370X980(mm)
