Product Description
6-Axis BRTIRUS0805A Industrial Robot | 5kg Payload High-Precision PLC Motor Gearbox Injection Molding Assembly Robot | IP54
6-Axis BRTIRUS0805A Industrial Robot | 5kg Payload High-Precision PLC Motor Gearbox Injection Molding Assembly Robot | IP54Product OverviewProduct details

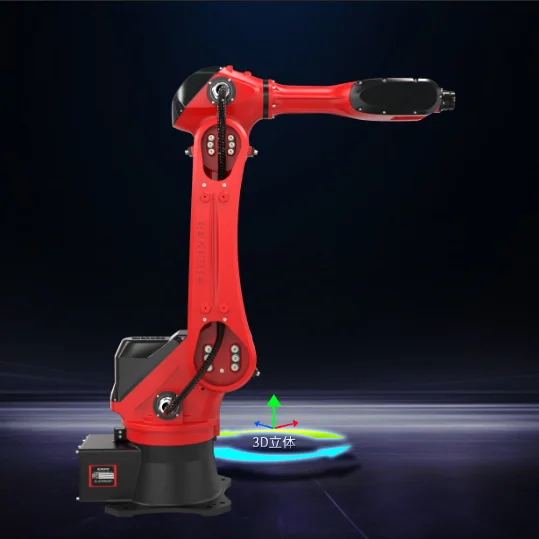

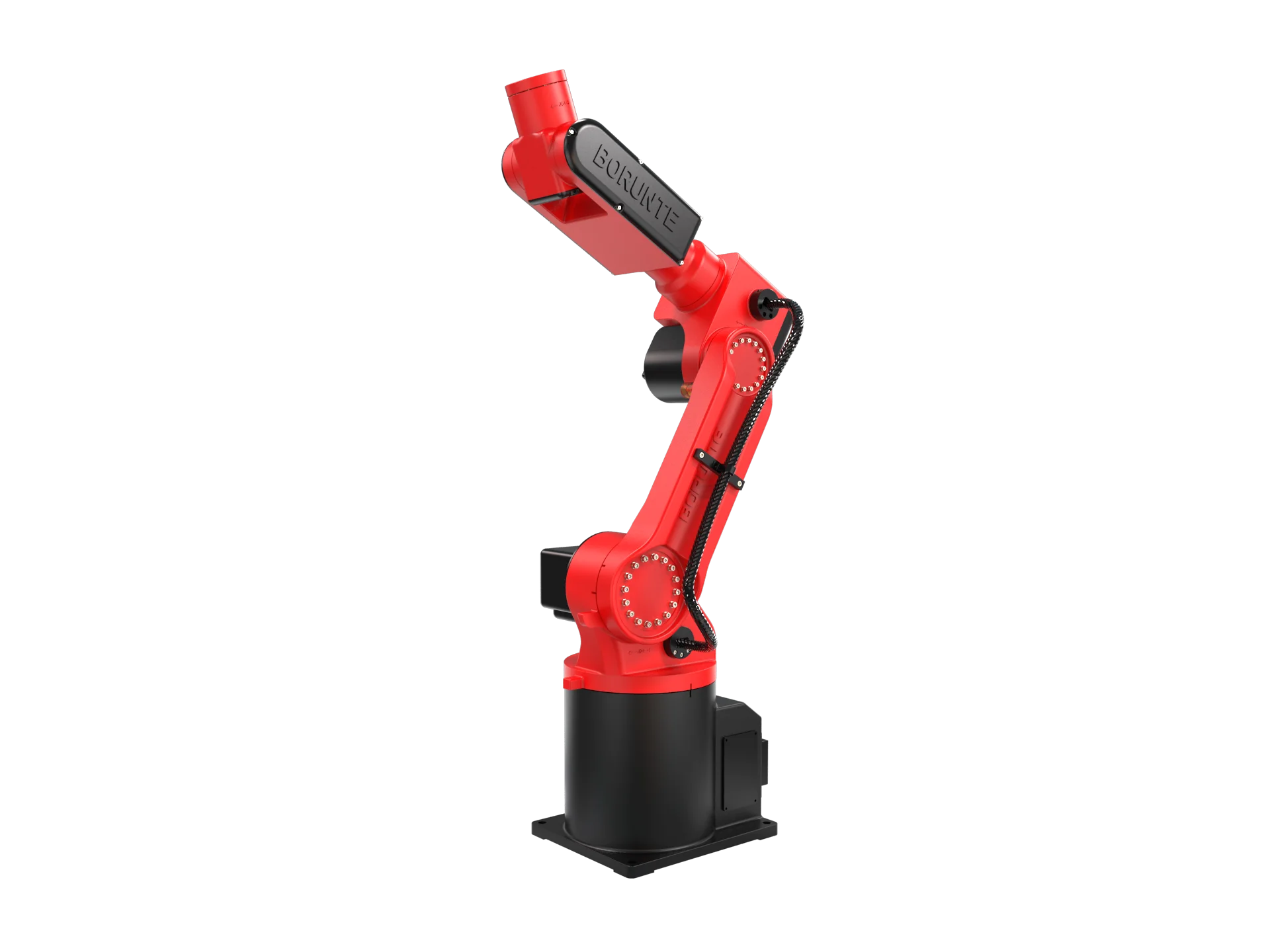

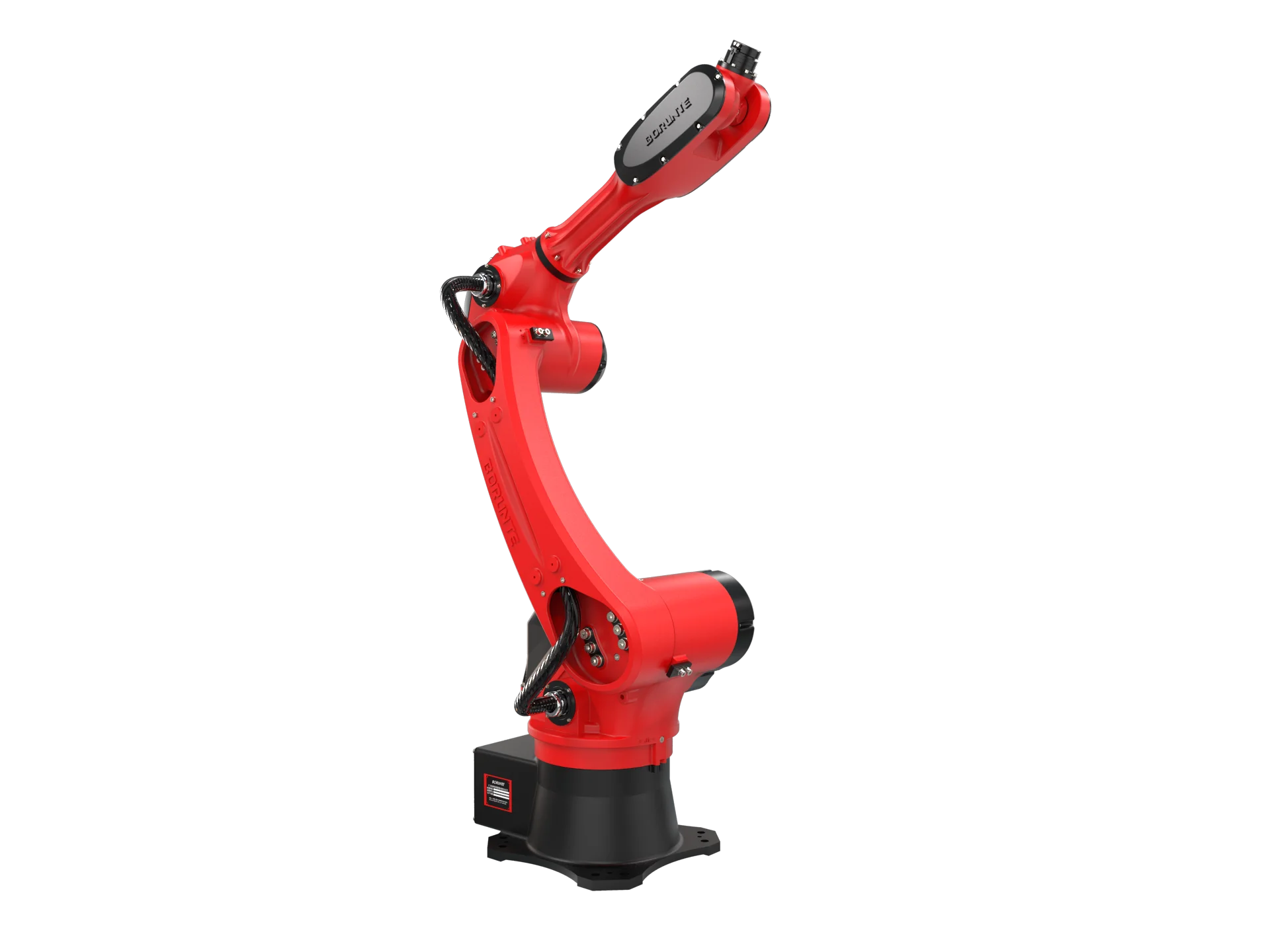

BRTIRUS0805A type robot is a six-axis robot developed by BORUNTE. The whole operation system is simple, compact structure, high position accuracy and has good dynamic performance. The load ability is 5kg, especially suitable for injection molding, taking, stamping, handling, loading and unloading, assembly, etc. It is suitable for injection molding machine range from 30T-250T. The protection grade reaches IP54 at the wrist and IP40 at the body. The repeat positioning accuracy is ±0.05mm. Key Features & Benefits \uD83D\uDD39 High-Performance Spray Automation • 940 mm Arm Reach: Ideal for large surfaces like automotive bodies, appliances, or metal sheets. • ±0.05mm Precision: Achieve uniform coatings with minimal waste, reducing paint consumption by 20-30%. • IP65 Protection: Safely operate in dusty, wet, or chemical-rich environments (e.g., spray booths, chemical plants). \uD83D\uDD39 Enhanced Flexibility • 6 Degrees of Freedom: Navigate complex trajectories for 3D objects (e.g., car bumpers, furniture edges). • Multi-Scenario Compatibility: Seamlessly switch between spraying, dispensing, and assembly tasks. \uD83D\uDD39 Energy Efficiency & Durability • Low Power Consumption: Optimized motor design reduces energy use by 15% vs. traditional spray systems. • Robust Build: High-strength aluminum alloy frame withstands 24/7 operation in demanding conditions.FEATURES AT A GLANCE

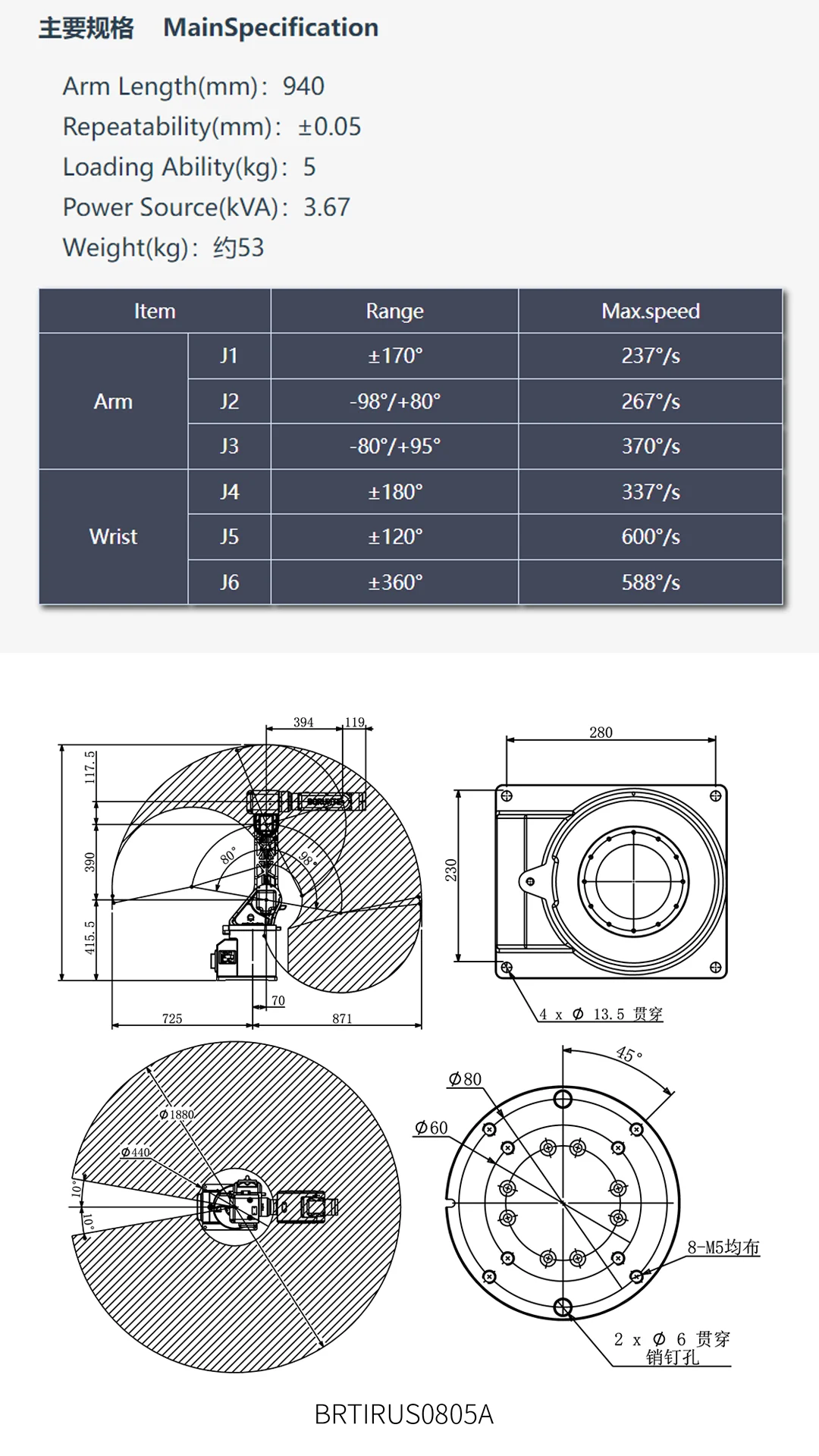

Main Specification:Arm Length(mm)：940
Repeatability(mm)：±0.05
Loading Ability(kg)：5
Power Source(kVA)：3.67
Weight(kg)：About 53 KGS
Right elevation
Left elevation
Front elevationPRODUCT SPECIFICATIONS| Item | Range | Max.Speed | |
ARM | J1 | ±170° | 237°/s |
| Bucket capacity | J2 | -98°/+80° | 267°/s |
| Operating weight | J3 | -80°/+95° | 370°/S |
Wrist | J4 | ±180° | 337°/s |
| J5 | ±120° | 600°/s | |
| J6 | ±360° | 588°/s |
PRODUCT CONFIGURATION
ELECTRICAL BOX
CONTROL PAD
SIX-AXIS ROBOTProduct packaging
FINE PACKING
The internal fine packaging is sealed with wooden cases in line with export regulations, so as to ensure the quality of goods in transit is completeWhy Choose Us

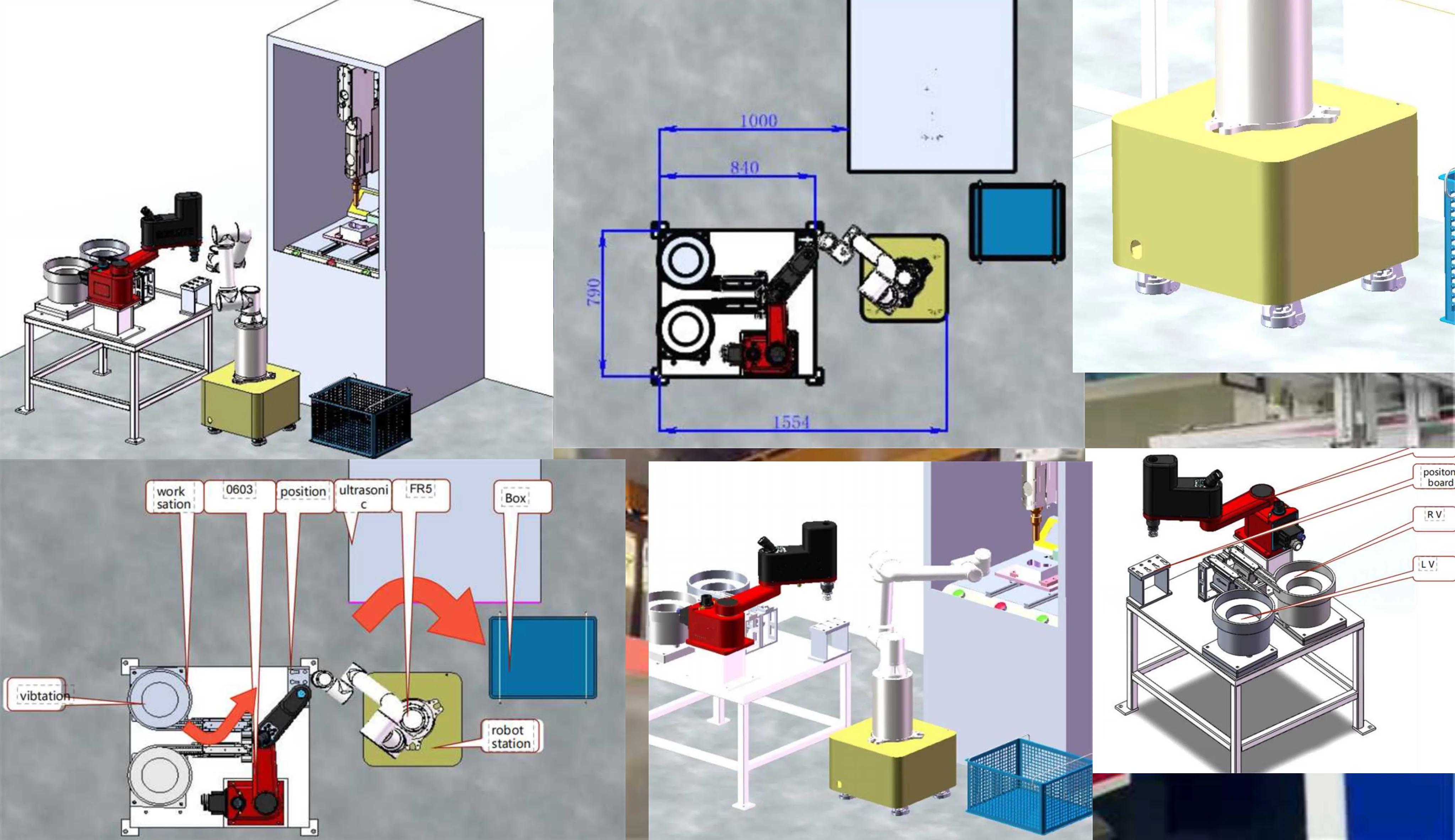

Customize your solution
On-site implementationEnsure robot, tools working well
Stamping
Materials Loading
Dual robot loading collaborate
Welding
Spray
Polishing
Tracking
Die casting loading
Bending
3D vision scan
Vision grip bottles
Frame painting
3D vision stacking
Laser cutting
Window lifetime testing
Robots collaborate
Box stacking
Silk screen
packing box production
sheet metal polishing
Spot painting
TIG Welding
Laser welding
Thin tube welding
waste transfer
metal heat painting
Gypsum polishing
aloft painting robot
Wheeling hub polishing
Vision stackingAbout Prime Living
