Product Description

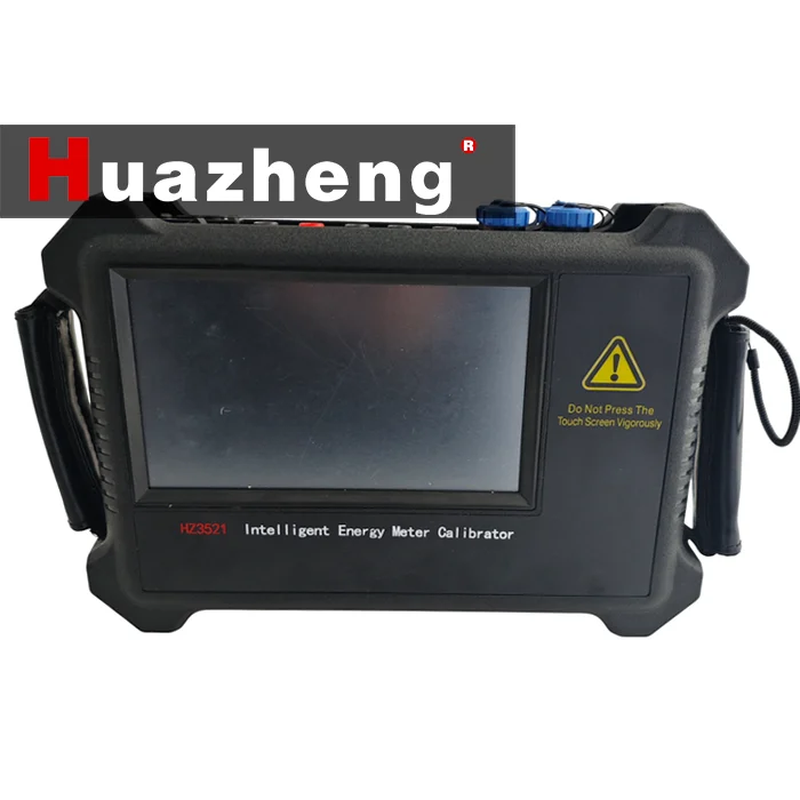

Electric HZ3521 Energy Meter Handheld 3 Phase Electric Energy Meter Field Calibrator
Electric HZ3521 Energy Meter Handheld 3 Phase Electric Energy Meter Field CalibratorHZ3521 Energy meter handheld 3 phase electric energy meter field calibrator
Product Description
| Details : |

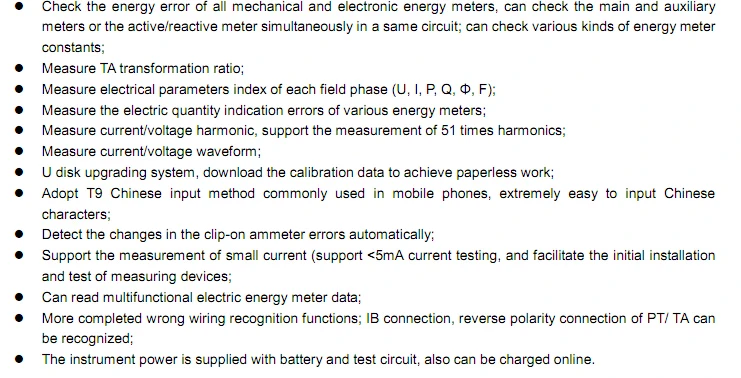

| ² Accuracy classes: 0.05%, 0.1%² Measurement of energy meter errors, display of voltage, current, power, power factor, frequency etc.² Measurement of harmonics of 2nd to 51st² Measurement of clock error (of energy meter)² Measurement of transformation ratio for CT² Communication examination for energy meters² Measurement for register² Detection of wiring failures and calculation of electricity compensation² USB and communication ports available² Self adjusted clamp-on CT’s (KHPEC’s patent) provided² Double of power supply via lithium battery or PT |
| General | ||
| Power supply | AC57~450V, 50~60Hz | |
| Power consumption | About 10VA | |
| Ambient temperature | -20℃--+40℃ (accuracyassured) | |
| Relative humidity (not condensing) | 40%-95% | |
| Dimension(L×W×H, mm) | 249×154×58 | |
| Weight | 1.8Kg | |
| Warm-up time | < 3 minutes | |
| Battery endurance | 4 hours | |
| LCD color display | 5.7”, 320×240 TFT | |
| Communication port | RS 232 | |
| Safety | ||
| Declaration of conformity | CE conformed | |
| Operation reference | ||
| Measuring ranges | ||
| Voltage | AC 30~480V | |
| Current: | Direct connection—1A, 5AVia clamp-on CT’s: 5A, 20A(±0.2%, self adjusted), 100A, 500A, 1000A(±0.5%) | |
| Frequency | 45~65Hz | |
| Phase | -180 º ~+180º | |
| Constant of pulse | 5A: FL=3.6×104P/KWh FH=3.6×107P/KWh Others:FL=36000×5/rated current (P/KWh)FH=3.6×107×5/ rated current (P/KWh) | |
| Harmonic measurement | Range: 2nd ~51stAccuracy: ±0.01% (compared to 100% fundamental wave) | |
| Transformation ratio deviation | < ±0.5% | |
| Voltage deviation | < ±0.01% | |
| Frequency deviation | < ±0.01%(45-55Hz) | |
| Influence of temperature | < ±5ppm/ ℃(typical) | |
| Variation in 24hrs. | <±0.02% (class 0.1) | <±0.01% (class 0.05) |
From the date of purchase within one year instrument, is a product quality problem repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
Company InformationABOUT US
Huazheng, established in 2008, is a enterprise which is engaged in the research, development,
sale and service of transformer tester, transformer oil tester, relay tester, high voltage tester, circuit breaker tester. We are a cooperative supplier of the State Grid of China, and we have also
established cooperative relationships with customers in countries and regions such as USA, Brazil, Chile, Vietnam, Indonesia, Korea, Turkey, Dubai, South Africa, etc.We have obtained ISO and
CE certificates. And developed impeccable inspection organization to make sure all of our
products quality comply with international standards(like IEC/ASTM/EN).
