New Four Axis Pick Place Robot BRTIRPZ1508A Industrial Arm Stacking Palletizing 5300W 220 150kg 1 Year Warranty

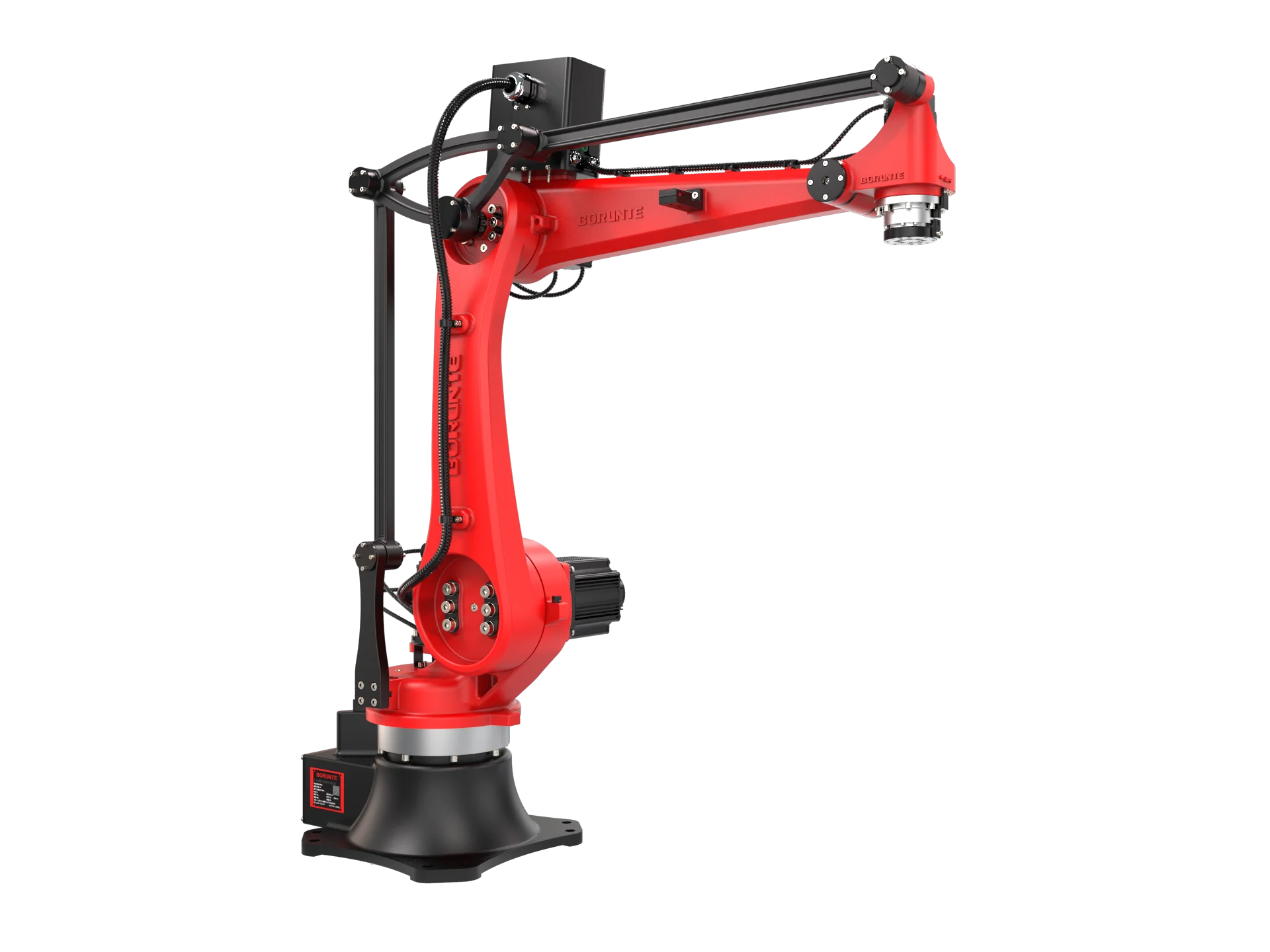

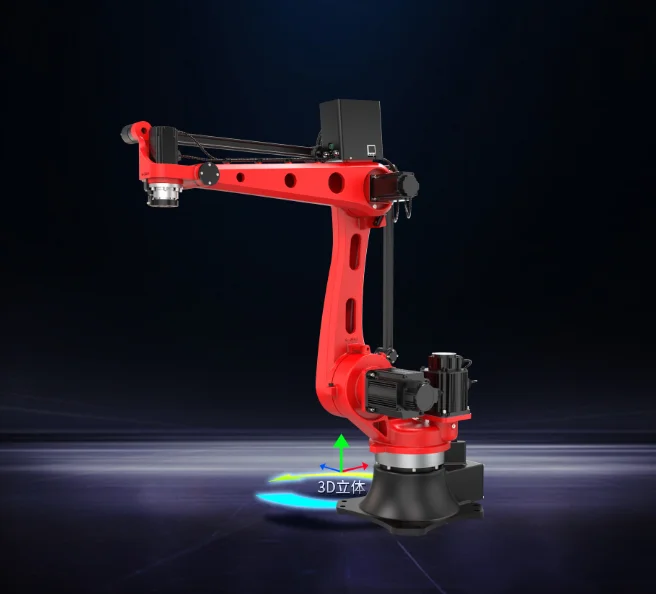

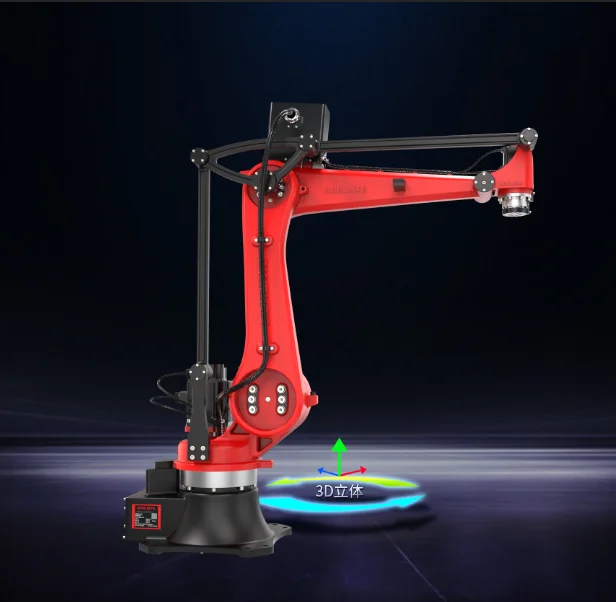

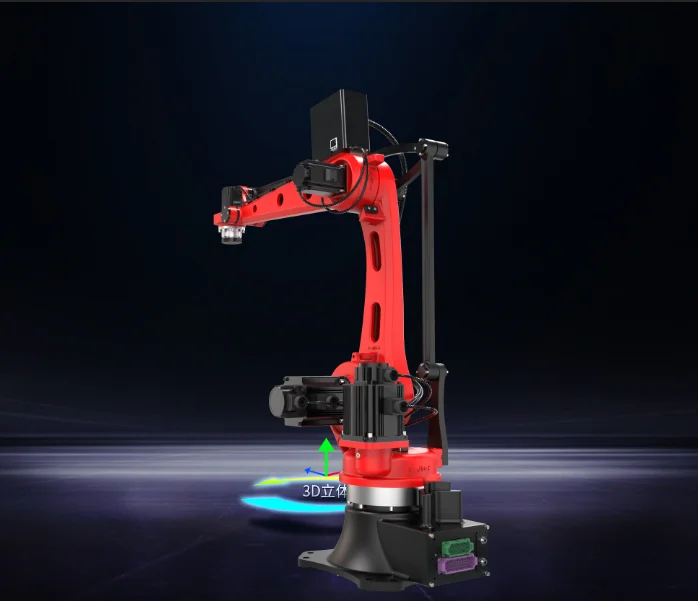

New Four Axis Pick Place Robot BRTIRPZ1508A Industrial Arm Stacking Palletizing 5300W 220 150kg 1 Year WarrantyProduct OverviewProduct detailsBRTIRPZ1508A type robot is a four-axis robot developed by BORUNTE,it applies full servo motor drive with fast response and highposition accuracy. The maximum load is 8kg, the maximum arm length is 1500mm. Compact structure achieves a wide range ofmovements, flexible sports, precise.Suitable for dangerous and harsh environments, such as stamping, pressure casting, heattreatment, painting, plastic molding, machining and simple assembly processes. And in the energy industry, completing thehandling of hazardous materials and others. It is suitable for punching. The protection grade reaches IP40. The repeat positioningaccuracy is ±0.05mm.FEATURES AT A GLANCE
MainSpecification:Arm Length(mm)：1500Repeatability(mm)：±0.05
Loading Ability(kg)：8
Power Source(kVA)：3.42
Weight(kg)：约150

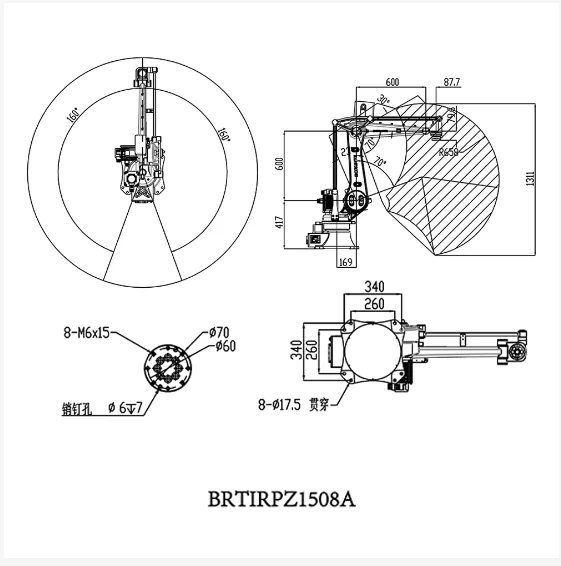

Right elevation
Left elevation
Front elevationPRODUCT SPECIFICATIONS| Item | Range | Max.Speed | |
| ARM | J1 | ±160° | 219.8°/S |
| Bucket capacity | J2 | -70°/+23° | 222.2°/S |
| Operating weight | J3 | -70°/+30° | 272.7°/S |
| Wrist | J4 | ±360° | 412.5°/S |
| R34 | 60°-165° | / |
PRODUCT CONFIGURATION

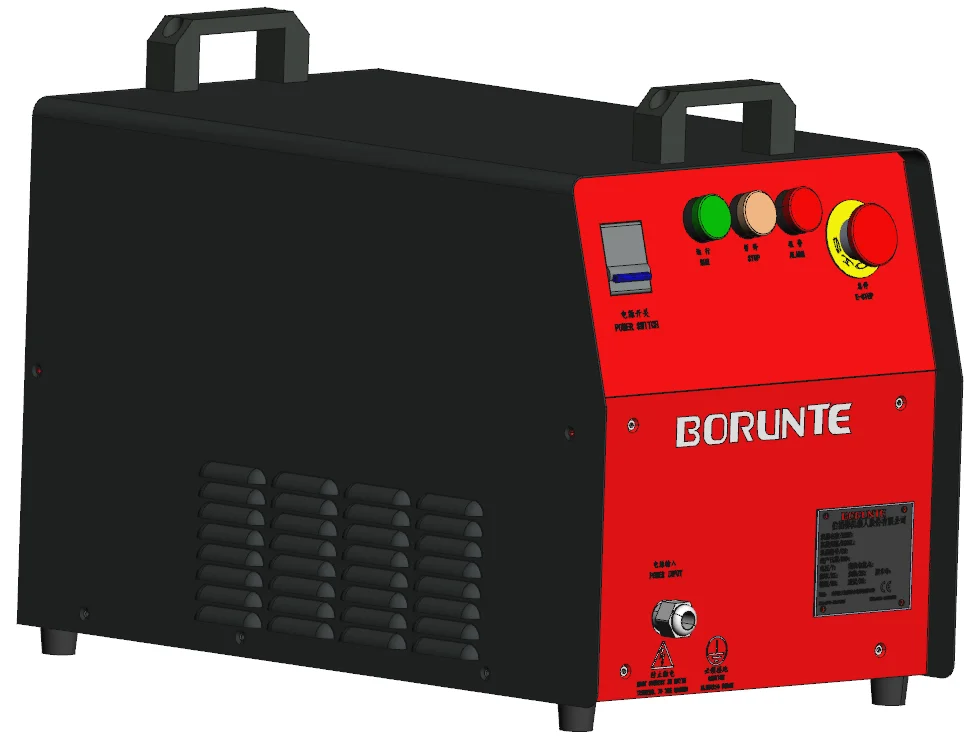

ELECTRICAL BOX

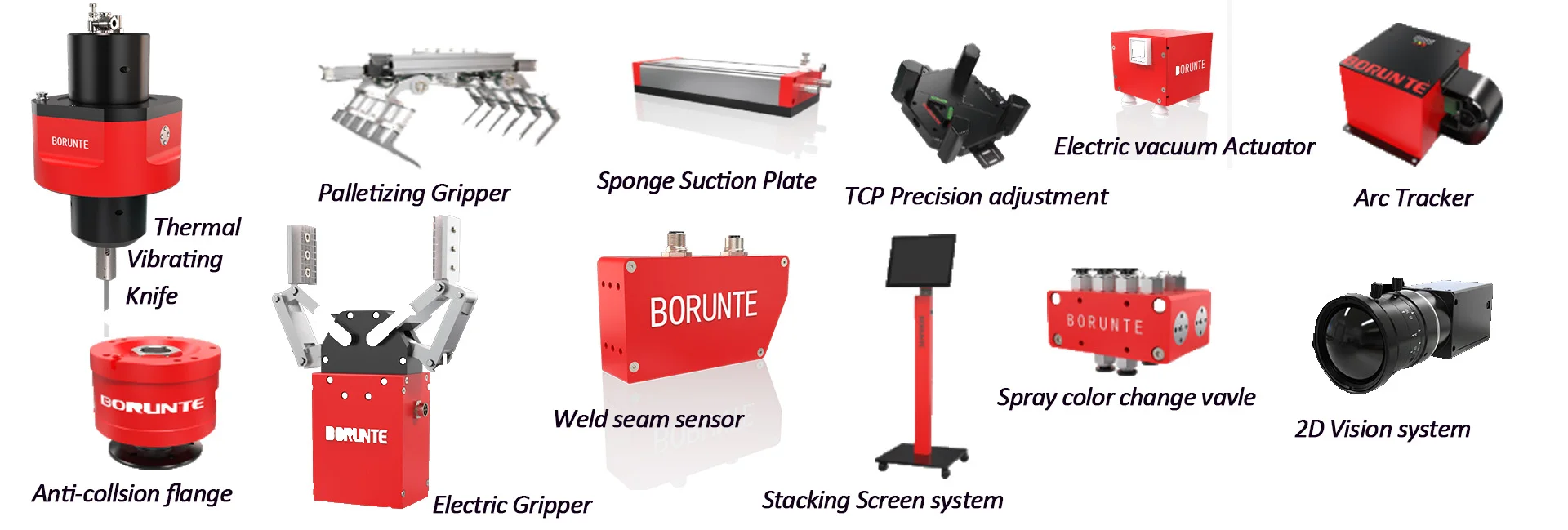

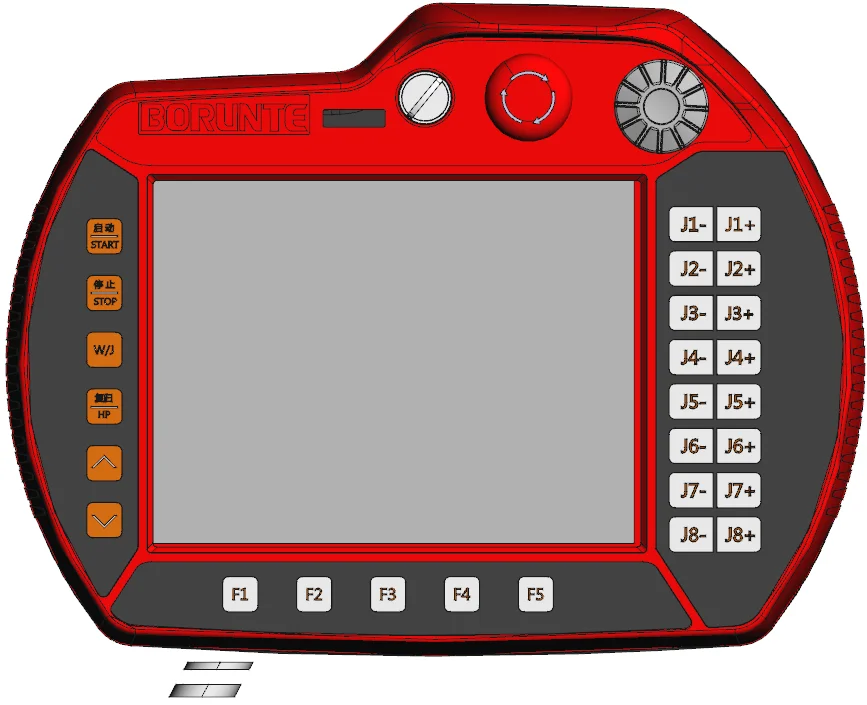

CONTROL PADSIX-AXIS ROBOTMore Tool

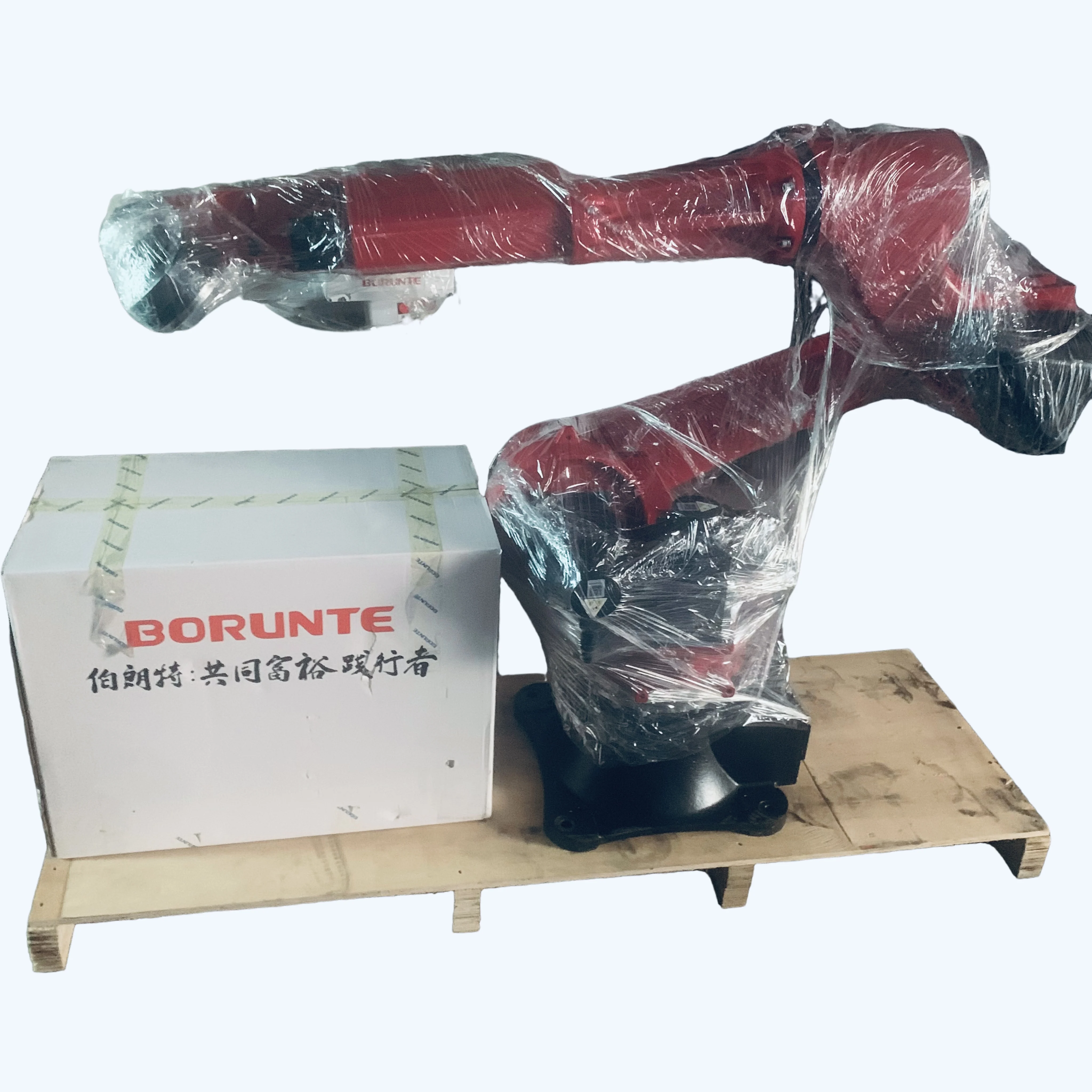

Product packaging

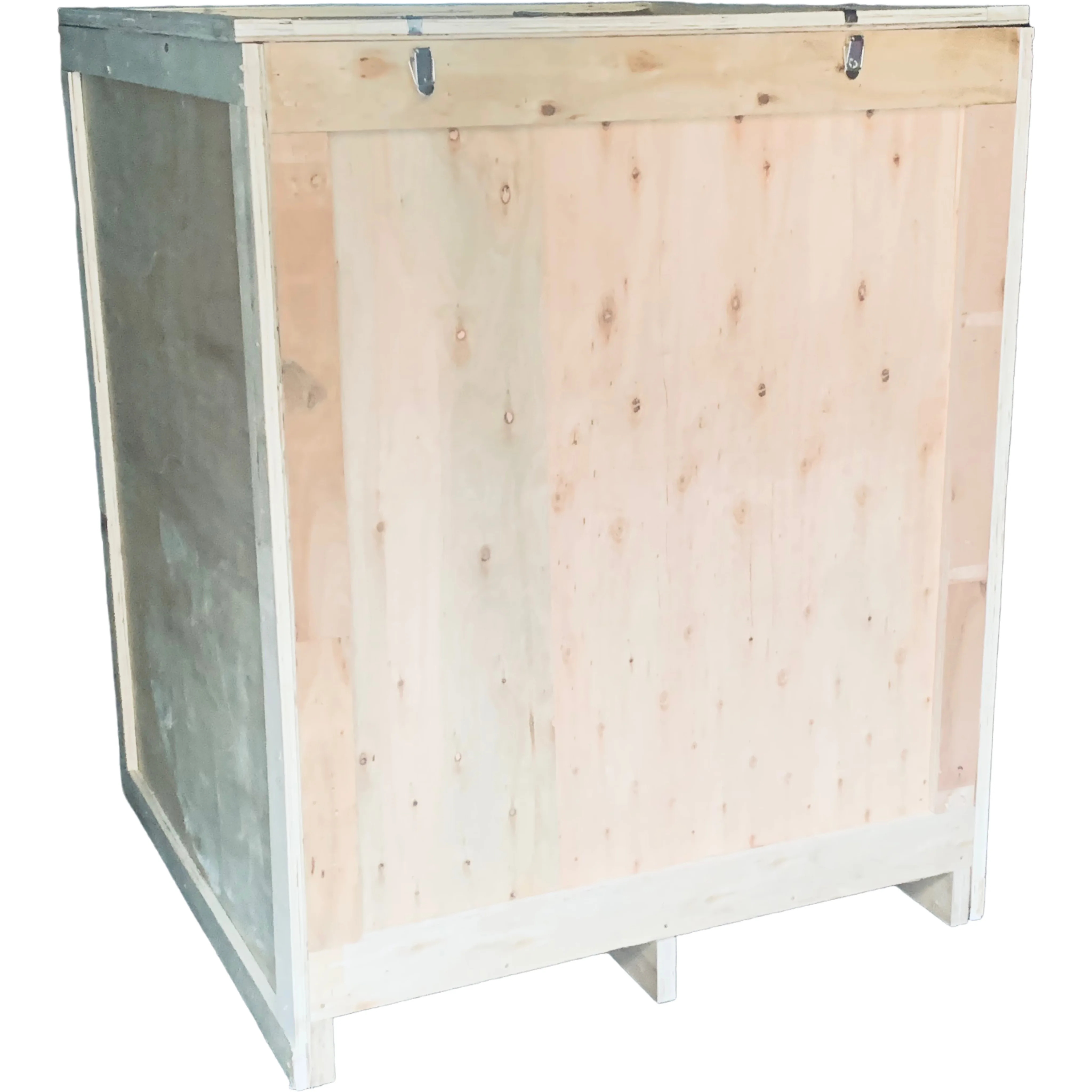

FINE PACKING
The internal fine packaging is sealed with wooden cases in line with export regulations, so as to ensure the quality of goods in transit is completeWhy Choose Us
Stamping
Materials Loading
Dual robot loading collaborate

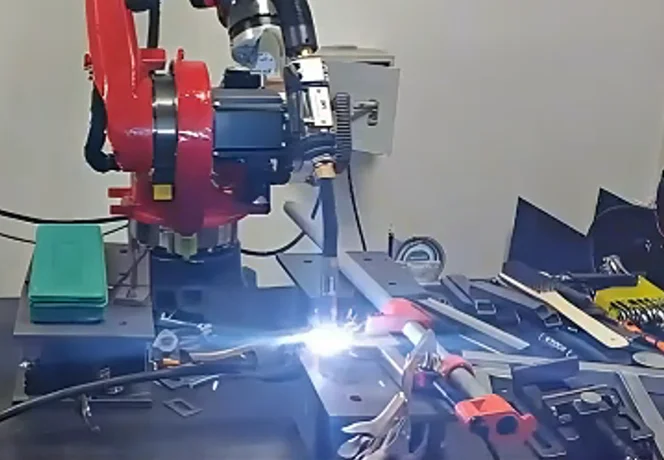

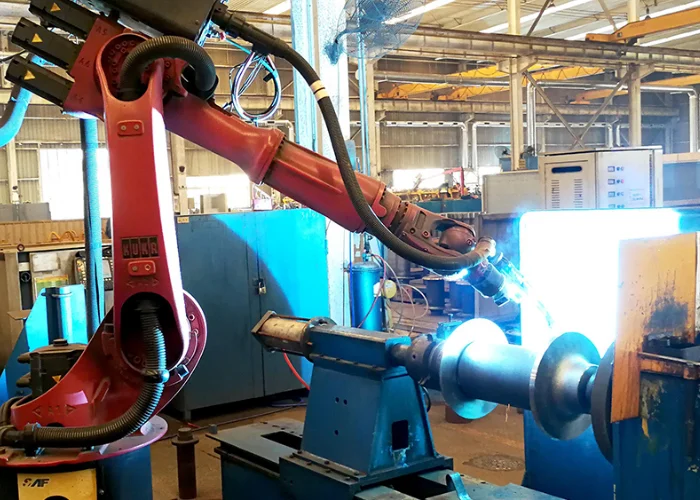

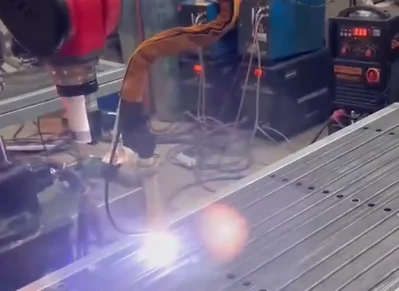

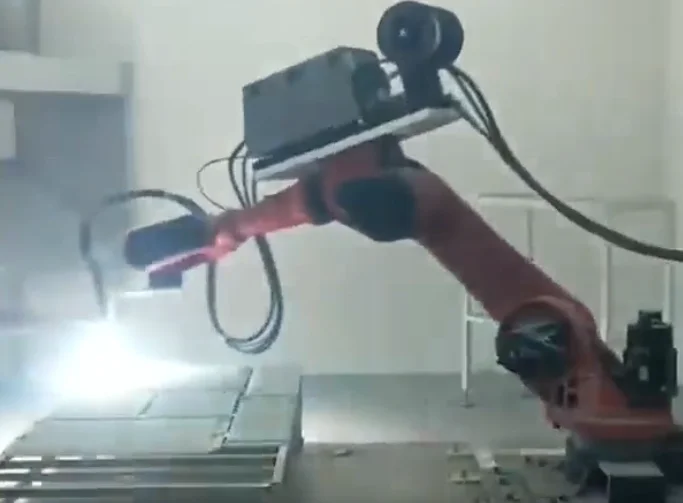

Welding
Spray

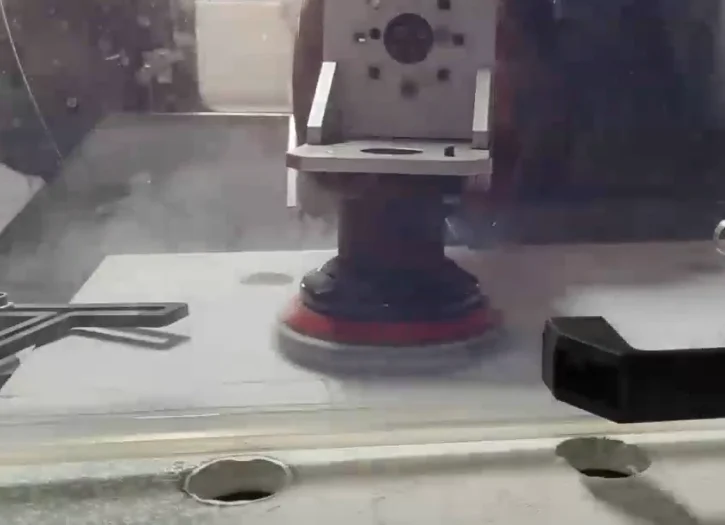

Polishing
Tracking
Die casting loading

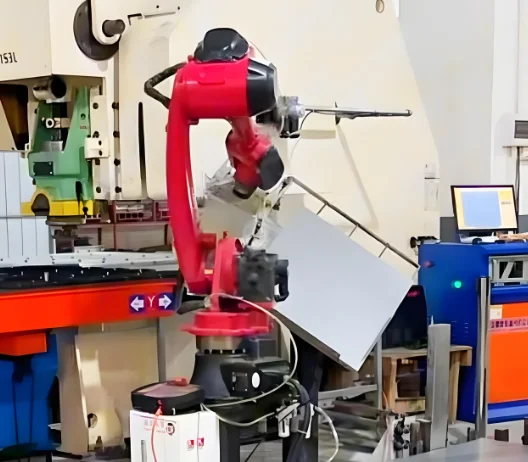

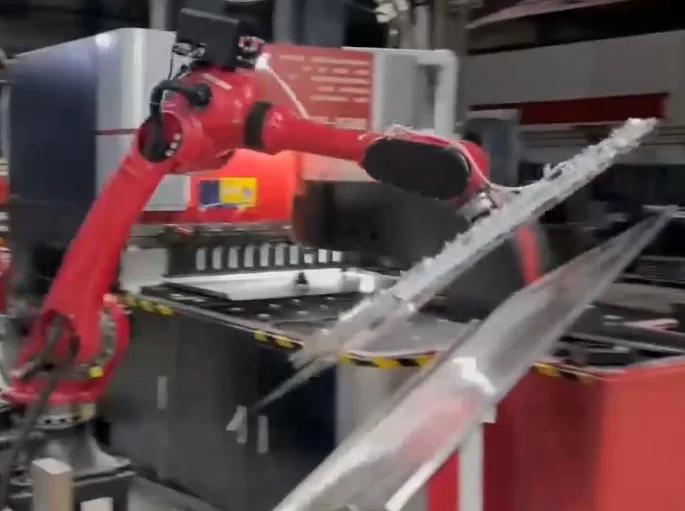

Bending
3D vision scan

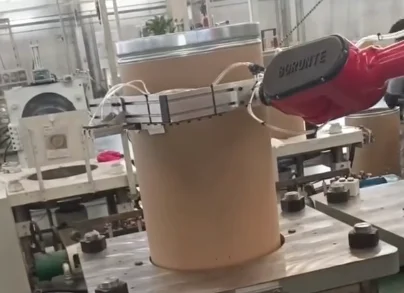

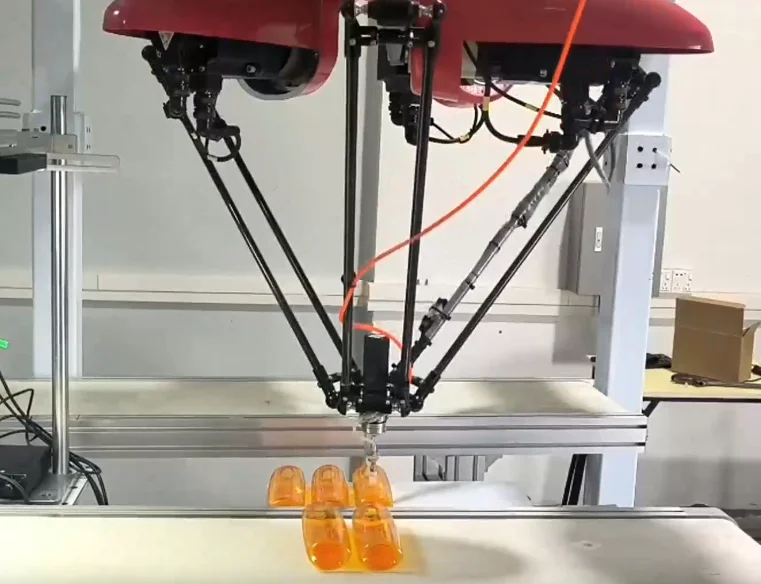

Vision grip bottles
Frame painting
3D vision stacking

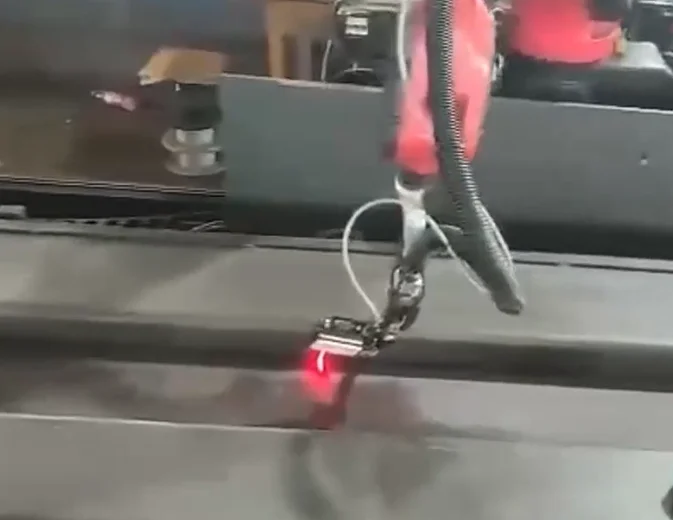

Laser cutting

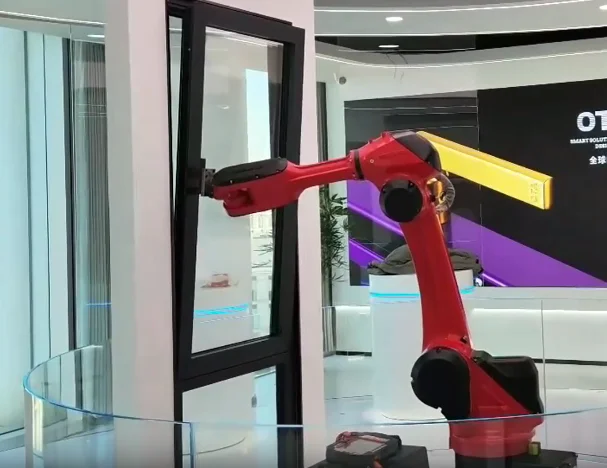

Window lifetime testing

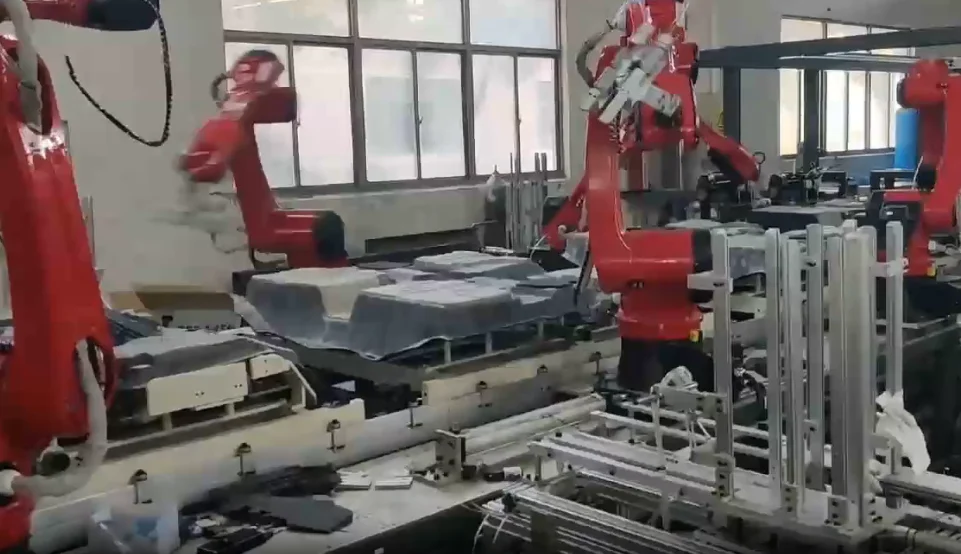

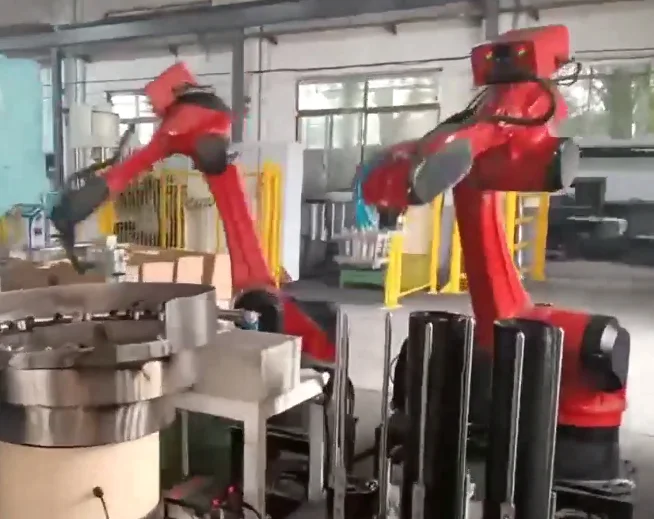

Robots collaborate

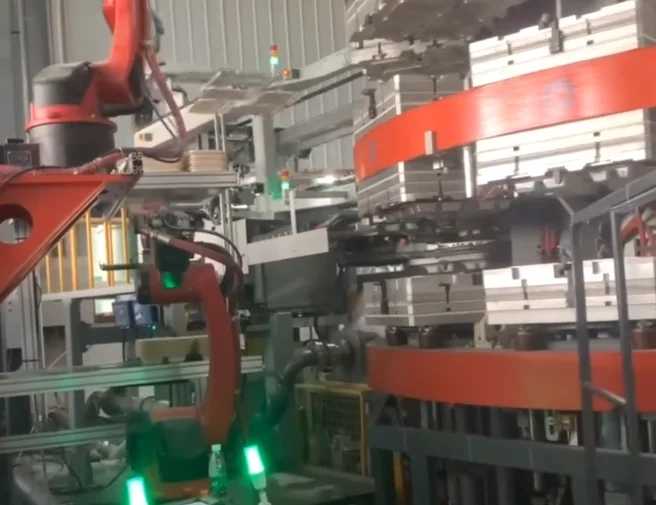

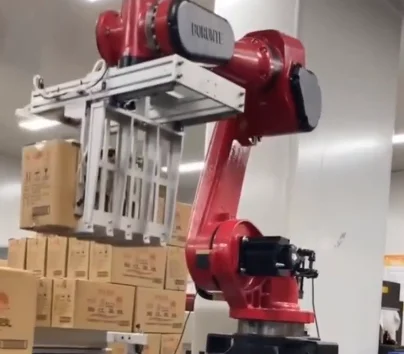

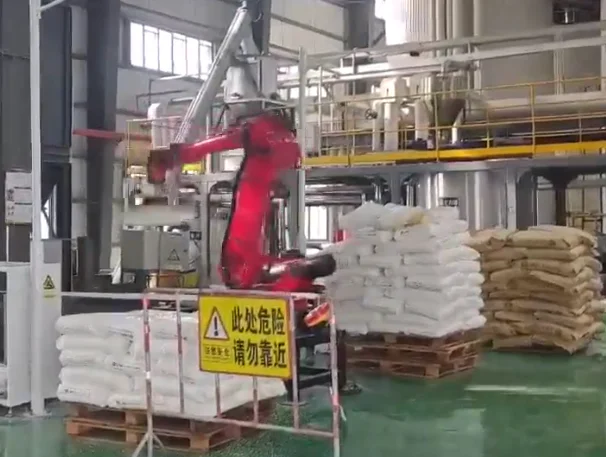

Box stacking
Silk screen
packing box production

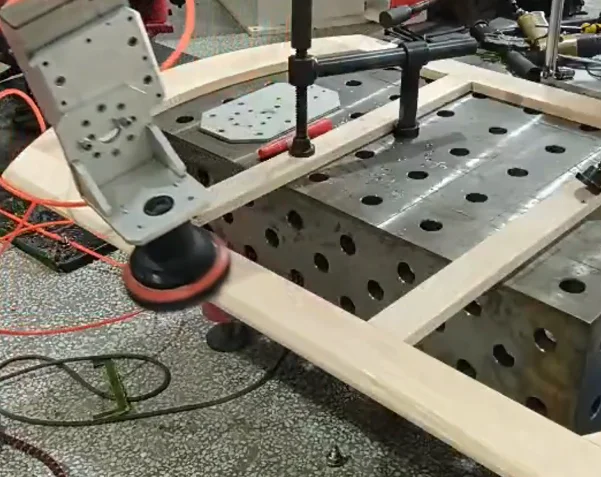

sheet metal polishing
Spot painting
TIG Welding
Laser welding
Thin tube welding

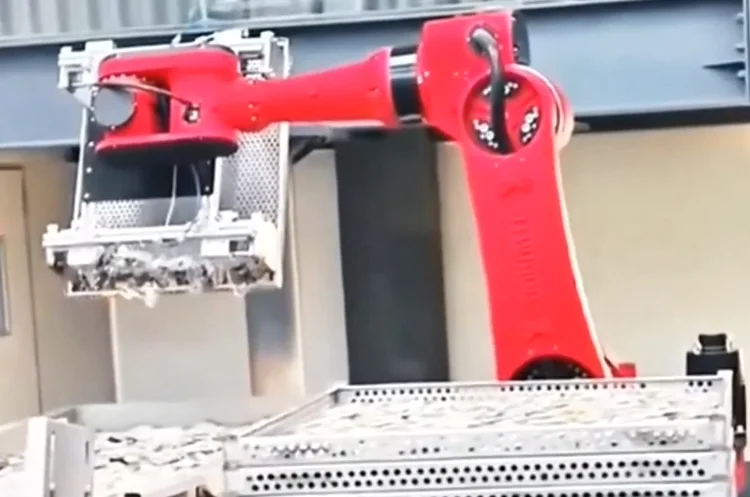

waste transfer
metal heat painting
Gypsum polishing

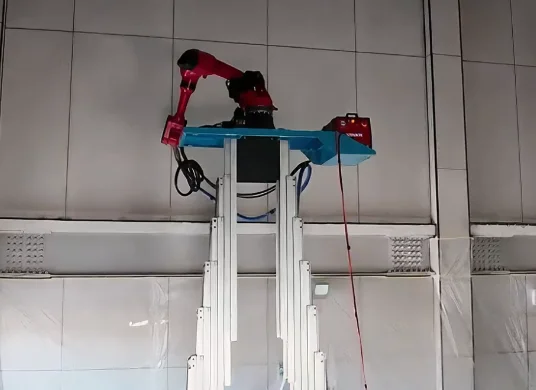

aloft painting robot

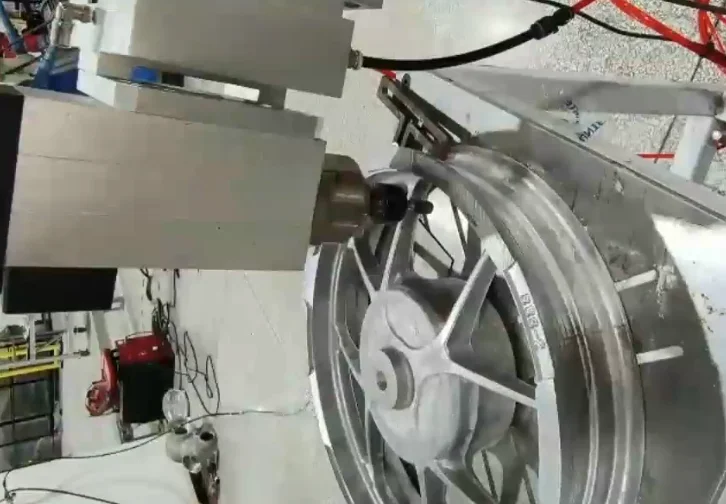

Wheeling hub polishing
Vision stackingAbout Prime Living
