TOOLTOP ET13S 192 * 192 Thermal Imager Camera 9999 Count Digital Multimeter 2-In

Product Description

The instrument integrates the functions of a thermal imaging camera and a multimeter and features a 2.8-inch color display with 320 * 480 high resolution, making it suitable for a wide range of measurements in complex environments. It supports AC and DC voltage, resistance, capacitance, diode measurement, circuit switch testing and other multimeter functions. With high precision, high speed and high sensitivity, it can be widely used in testing and debugging work in the fields of electronics, communications, computers, etc. It is an electrician and maintenance technician

Good choice Features:[2.8 inch color display]:

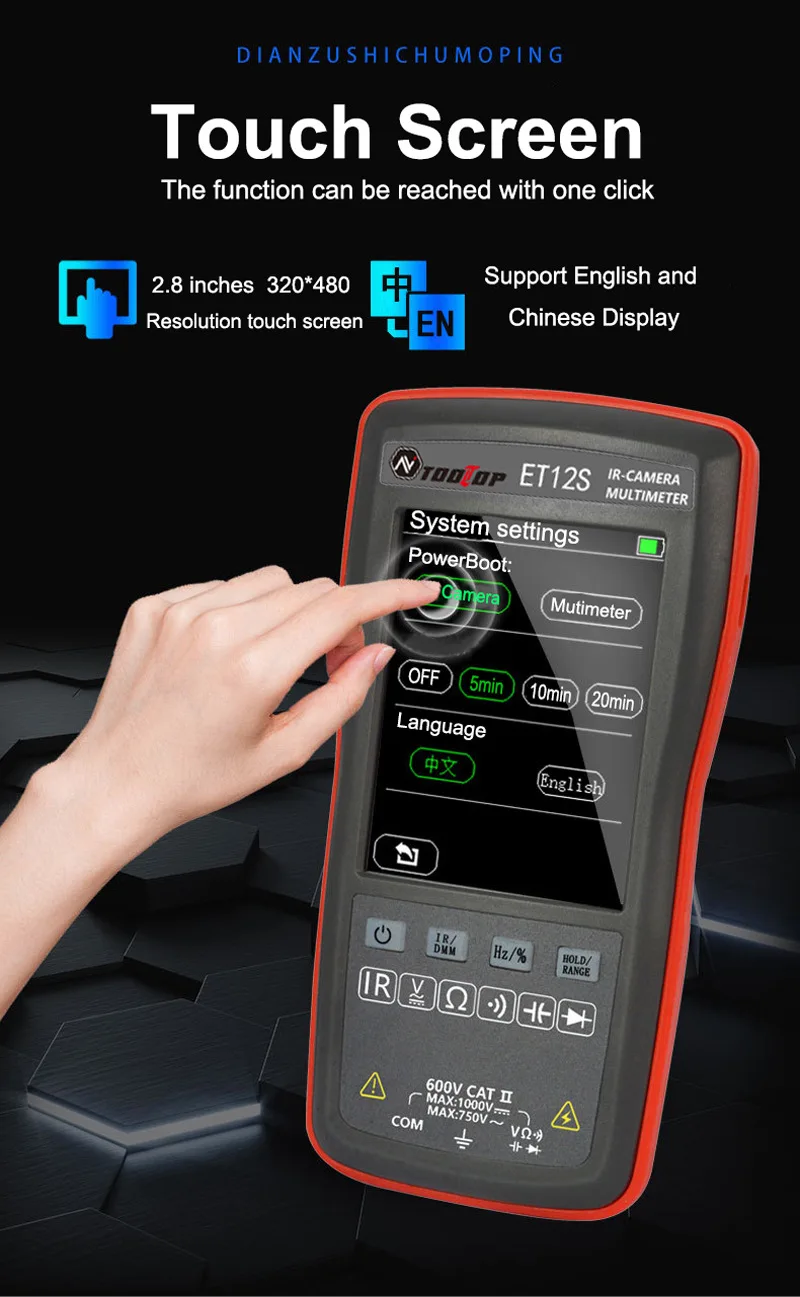

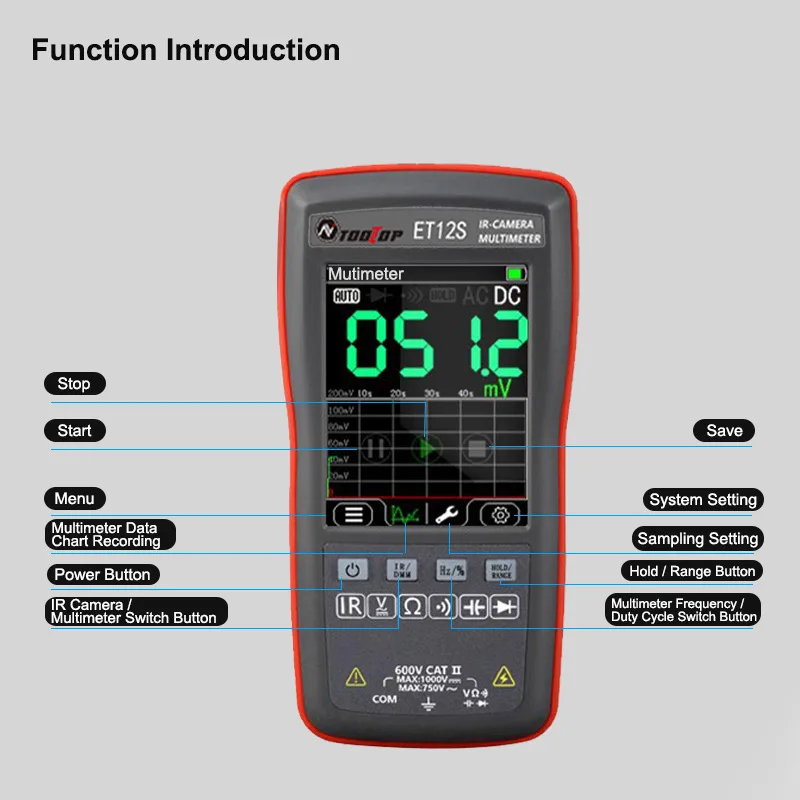

2.8 inch color display, 320*480 high resolution, resistive touch screen operation, one button function.

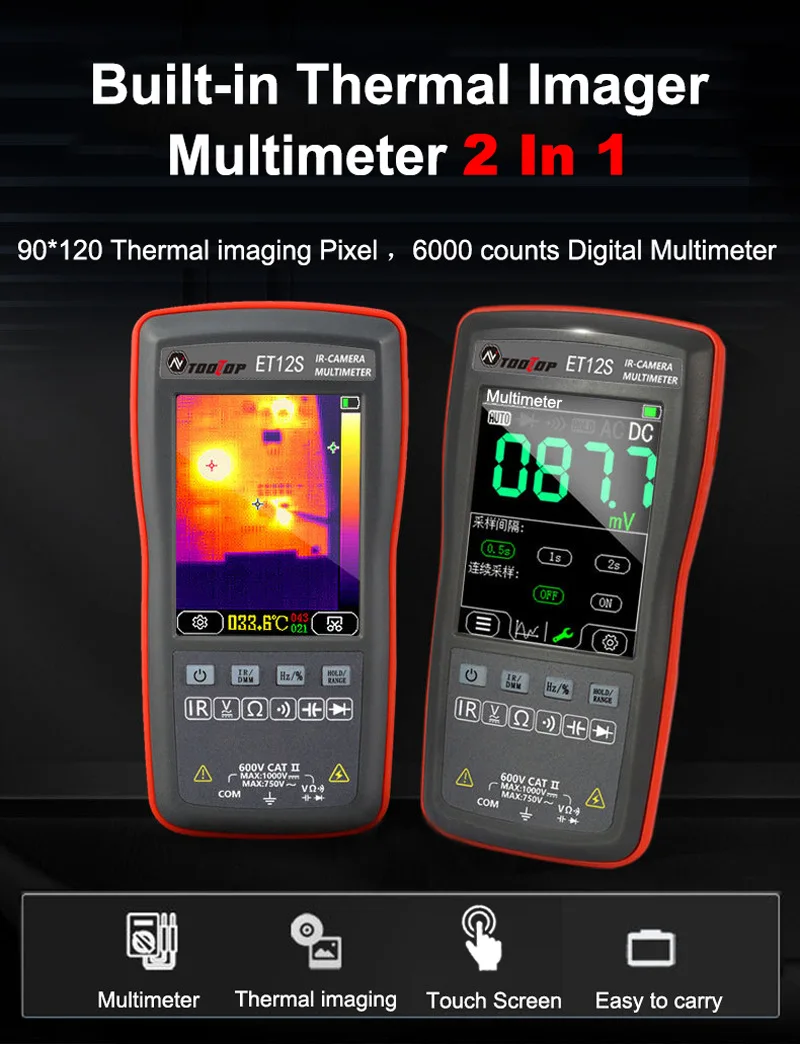

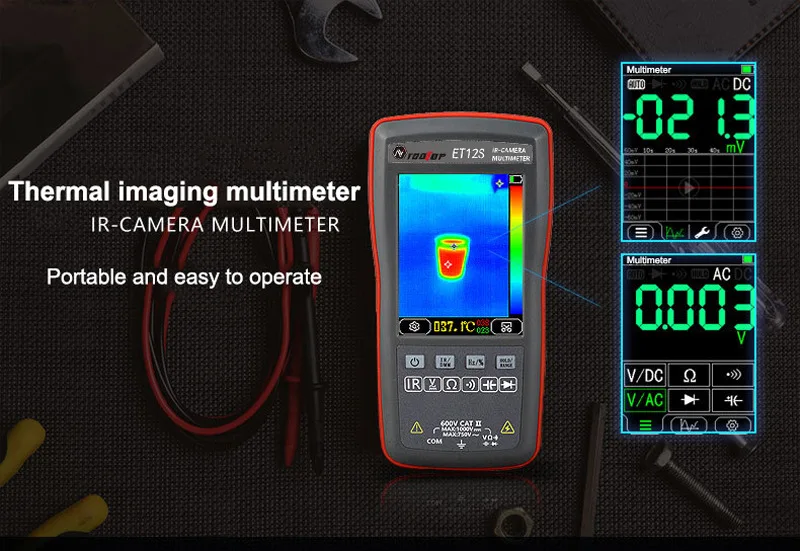

[2-in-1 Design]: 2-in-1 design, handheld thermal imaging camera with high thermal imaging pixels, 6000 counts digital multimeter, support thermal imaging camera and multimeter dual mode switching.

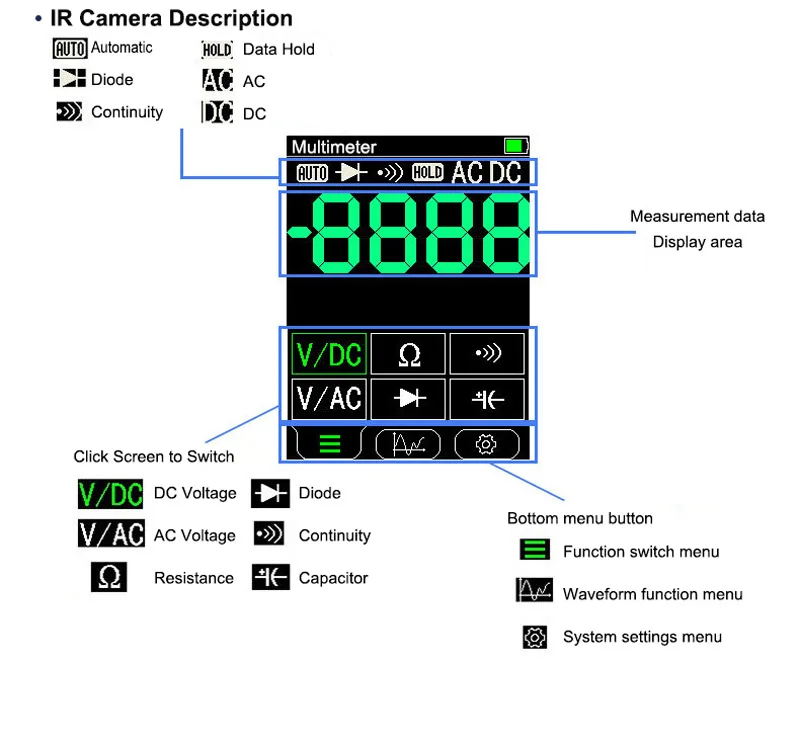

[Multi-function Design]: Support AC/DC voltage, resistance, capacitance, diode measurement, support circuit switching test. Both Chinese and English can be set according to your reading preference.

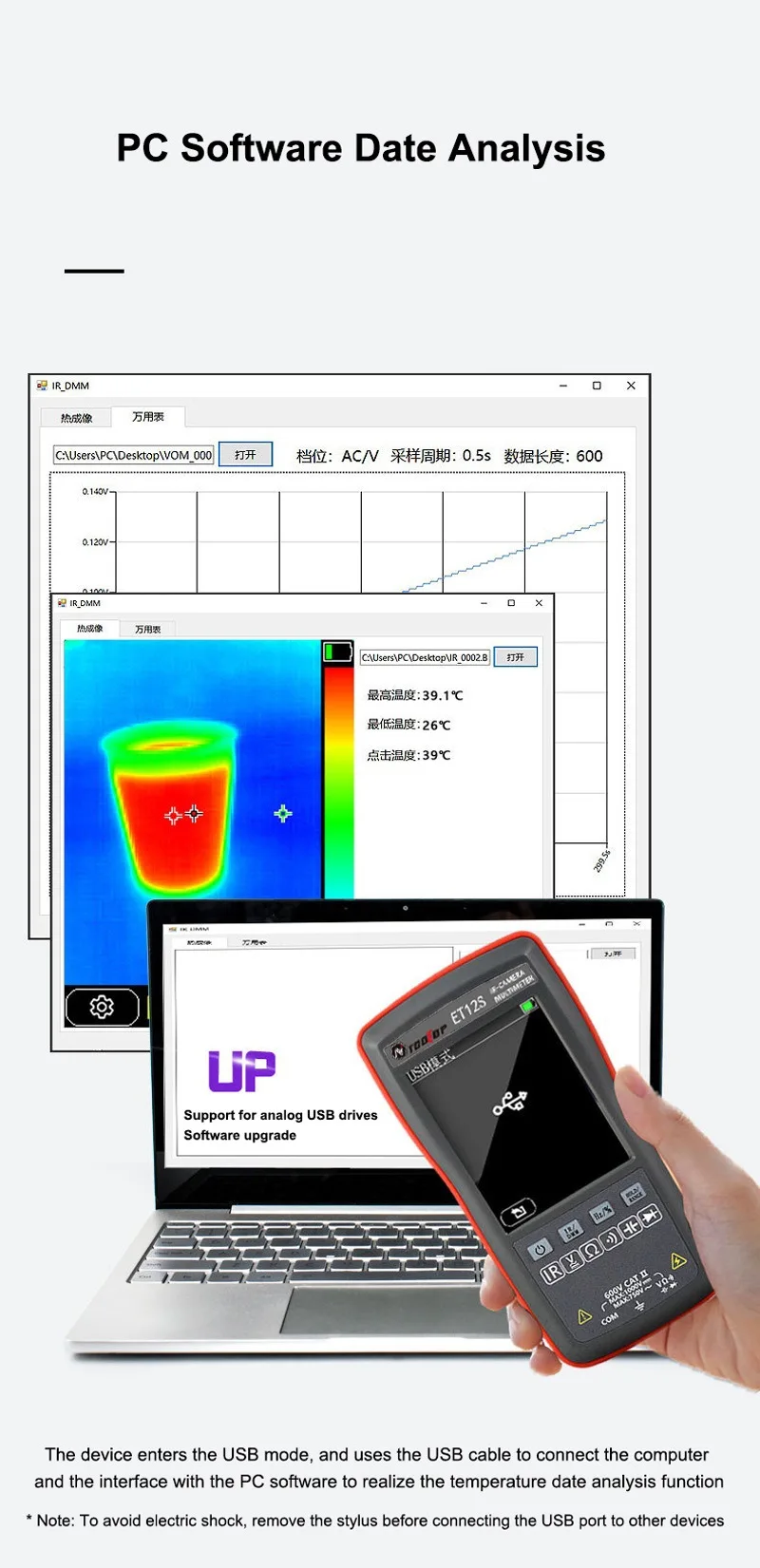

[PC Connection]: In USB mode, locally saved thermal imaging images and multimeter measurement data records can be transferred via data chart. And display them on the computer via PC software, more convenient for backup and analysis.
【Battery Management】：Built-in 850mAh lithium battery, support USB charging, with automatic screen shutdown and auto power off function.
[Wide application]: with high precision, high speed, high sensitivity, multiple measurement modes, can be widely used in electronics, communications, computers and other fields of test debugging work specifications

Name:
Thermal imaging camera multimeter
Model: ET11S, ET12S (optional)

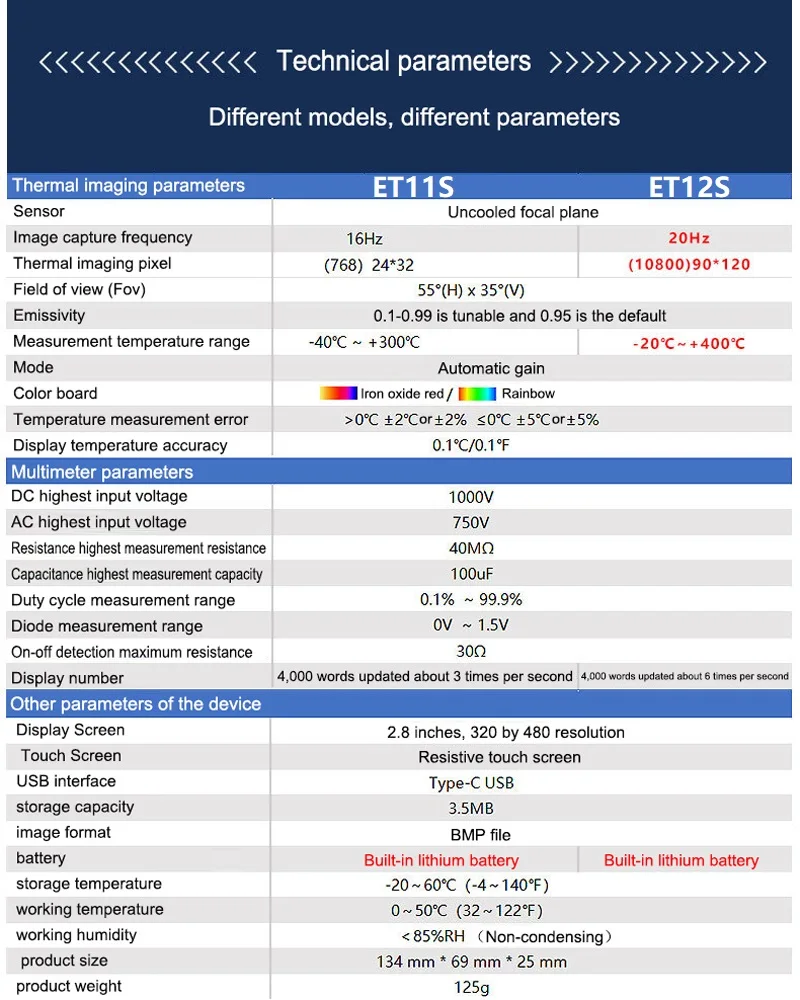

Thermal imaging camera parameters:

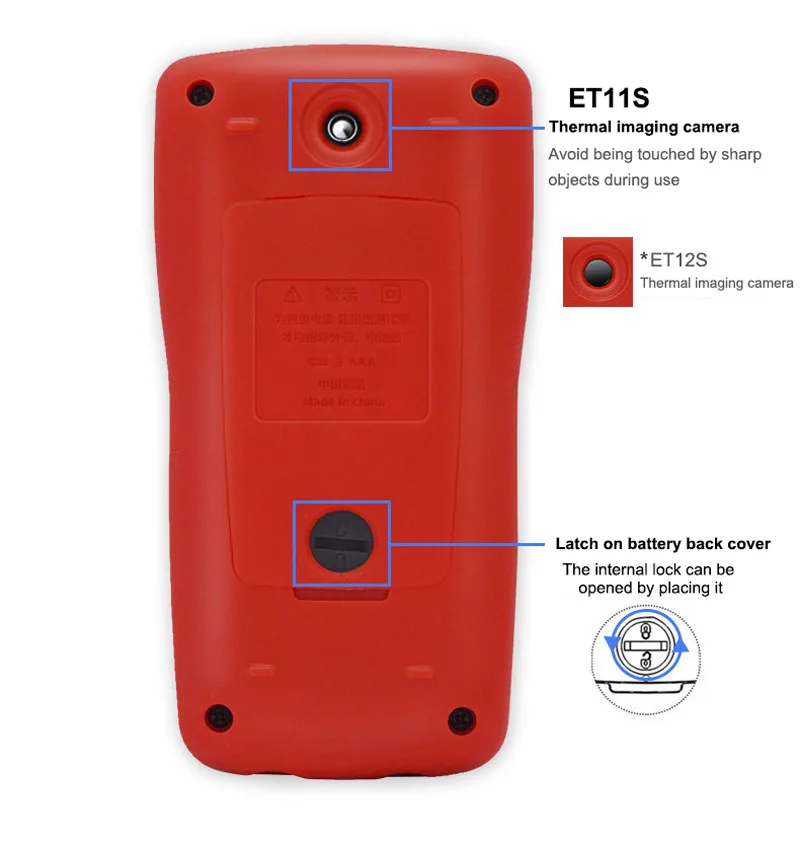

Sensor: uncooled focal plane
Measurement capture frequency: 16Hz (ET11S) ;20Hz (ET12S)
Thermal imaging pixels: 24*32 (ET11S) ;90*120 (ET12S) Field of view: 55° (H)*35° (V)

Emissivity: 0.1-0.99
Adjustable Measuring range: -40~ +300°C (ET11S);-20~ +400°C (ET12S)
Mode: Auto Gain

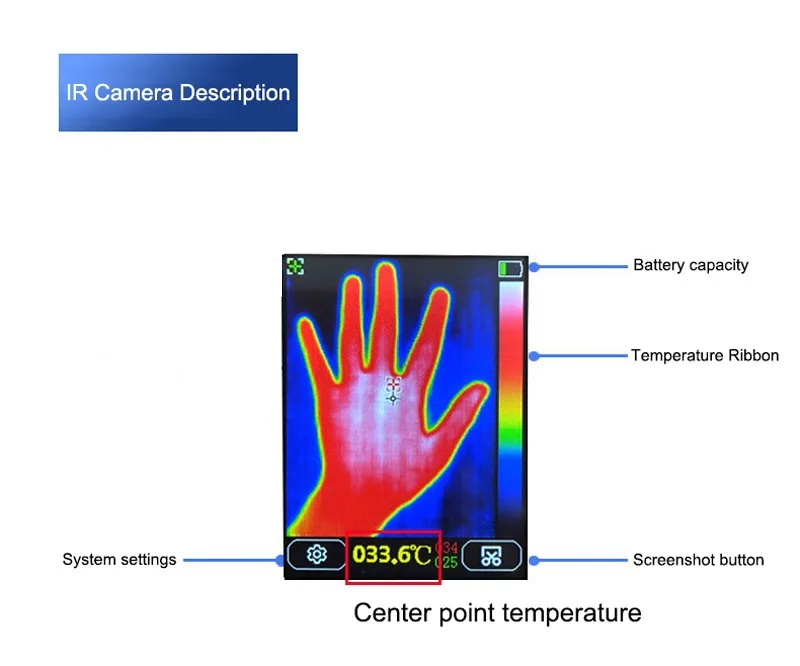

Color palette: Iron Red / Rainbow
Temperature Measurement Error: >0°C: +2°C/+2%; ≤0°C: +5°C/+5% Display Temperature Accuracy: 0.1°C/0.1°F Multimeter Parameters: Maximum Input Voltage: 1000VDC
Maximum AC Input Voltage: 750V Maximum Measuring Resistance: 40MΩ
Maximum capacitance measurement resistance: 100uF

Duty Cycle Measurement Range: 0.1%
-99.9%
Diode measurement range: 0V-1.5V

Maximum on-off resistance detection: 30Ω
Count: 4000 counts, Refresh: 3 times per second (ET11S) 4000 counts, Refresh: 6 times per second (ET12S)

Other parameters: display: 2.8 inches 320 * 480
Touch screen:

Resistive touch screen
USB input face: C
Type Storage capacity: 3.5MB
Imaging format: BMP
Battery: 1 * Built-in 850mAh lithium battery
Storage Temperature: -20~60°C (-4~140°F) Operating Temperature: 0-50°C (32-122°F) Operating Humidity: <85%RH (non-condensing)
