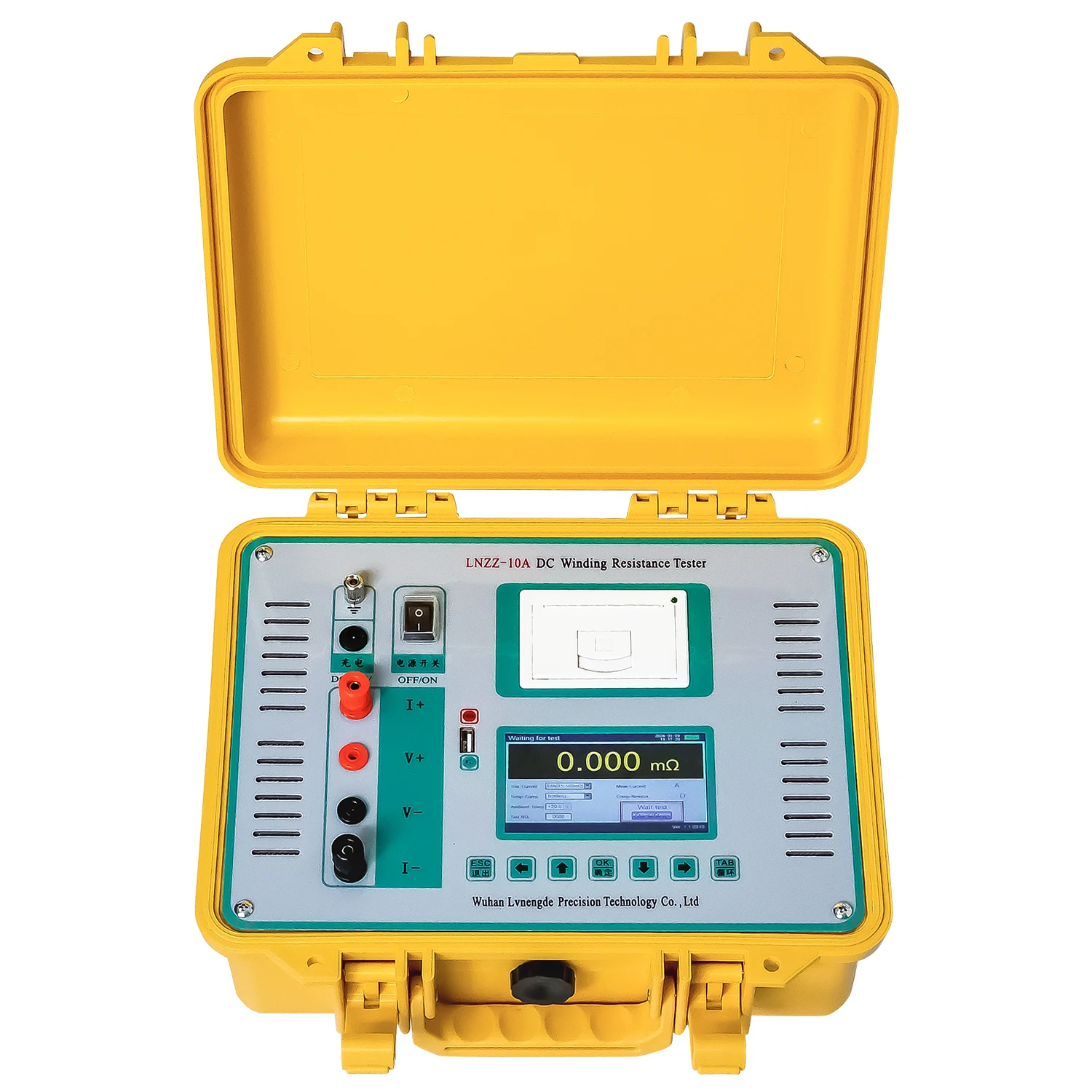

LNZZ5A/10A DC Winding Resistance Tester Velocimeter High Accuracy 0.2 IP67 Protection Aluminum Alloy 2-Year Warranty
LNZZ5A/10A DC Winding Resistance Tester Velocimeter High Accuracy 0.2 IP67 Protection Aluminum Alloy 2-Year Warranty
1. Fast testing speed: The maximum output charging current of the DC resistance fast tester can reach 5A, which can effectively compensate for the current inertia of large inductance equipment during measurement, accelerate the saturation of the iron core, shorten the charging time, improve the testing speed, and is several hundred times faster than traditional instruments with single or double arm bridges. 2. High accuracy: In addition to the advanced four terminal measurement method, the DC resistance rapid tester also adopts advanced constant current power supply technology, which maintains a relatively stable charging current for inductive loads, with stable anti inductance and strong anti-interference ability, thereby ensuring measurement accuracy. And high-quality components imported from abroad are used, with high measurement accuracy and good repeatability. 3. Wide measurement range: resistance measurement range is 1 μ Ω~20k Ω, with a wide range. 4. Dual use of AC and DC: The DC resistance fast tester comes with a rechargeable battery pack, powered by AC and DC, and is portable in design, making it easy to use and carry.
| Measuring Range | 0~2000 Ω (6 gears in total) 5A (20m Ω~2 Ω)；0.5A (20 Ω)；0.05A (200 Ω)； 0.005A (2000 Ω) |
| Resolution Ratio | 1μΩ(20mΩ Gear) |
| 10μΩ(200mΩ Gear) | |
| 0.1mΩ(2Ω Gear) | |
| 1mΩ(20Ω Gear) | |
| 10mΩ(200Ω Gear) | |
| 0.1Ω(2000Ω Gear) | |
| Overall Power Consumption | ≤100W |
| Working temperature and humidity | 0℃~40℃; ≤85%RH |
| Power Supply | AC220V 50Hz(±10 %) |
| Size | 320mmx270mmx150mm |
| Weight | 3kg |
