Product Description

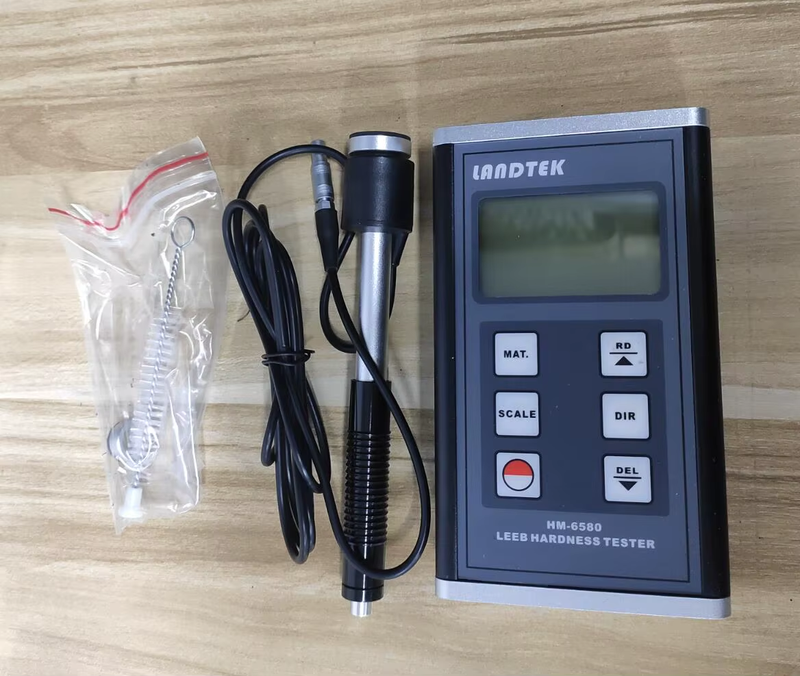

Landtek HM6580 Digital Leeb Hardness Tester Durometer Tester
Landtek HM6580 Digital Leeb Hardness Tester Durometer TesterLandtek HM6580 Digital Leeb Hardness Tester Durometer Tester
Applications：
Applicable to Die cavity of molds, Inspection of bearing and other mass produced parts on a production line, Failure analysis of pressure vessel, steam generator and other equipment, Inspection of installed machinery, permanent parts of assembled systems and heavy work pieces, Testing surface of a small hollow space, Material identification in the warehouse of metallic materials, Rapid testing in large range and multi-measuring areas for large-scale work piece.
Features:
* Palm size for narrow space.
* Test at any angle, even upside down.* Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.
* Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
* User recalibration function allowed.
* Can communicate with PC computer for statistics and printing by the optional cable.* Manual or automatic shut down.
* Low battery indication.
Case Material | Aluminum Alloy |
Display | LCD |
Materials | 9 different common materials ( Steel & Cast Steel, Metallurgy tool steel, Forged Steel, Gray Cast Iron, Nodular Cast Iron, Cast Aluminum, Brass, Bronze, Copper ) |
Measuring range | （170-960）HLD、（20-68）HRC、（19-651）HB、（80-967）HV、（30-100）HS、 （13-100）HRB |
Accuracy | ±8HLD（HLD=800) |
Repeatability | ±6HLD（HLD=800) |
Conversion | HL-HRC-HRB-HB-HV-HSD |
Measuring Direction | 360° |
Impact device | D Will handle, Weight: 75g |
Radius of Measured Workpiece | Rmin=50mm ( For non-conventional Supporting ring Rmin=10mm ) |
Min. Weight of Workpiece | Stable support 2kg ( 0.1kg Coupling ) |
Min. Thickness of Workpiece | 3mm |
Min. Thickness of Hardened Layer | 0.8mm |
Working Conditions | Temperature: 0 ~ 40 ℃ Humidity: ≤ 90 % |
Power supply | 2 x 1.5 V AA size (UM-3) battery |
Dimension | 130 x 76 x 31 mm |
Weight | 340 g (Not Including Batteries) |
Standard Accessories:
1. Main Unit
2. Standard Test Block
3. Measurement Sensor
4. Carrying Case
5. Operation Manual
6. Small Support Ring
7. Cleaning brush
Optional Accessories:
1. Impact Body
2. Support Rings set
3. USB, RS-232C data cable with software
