Product Description

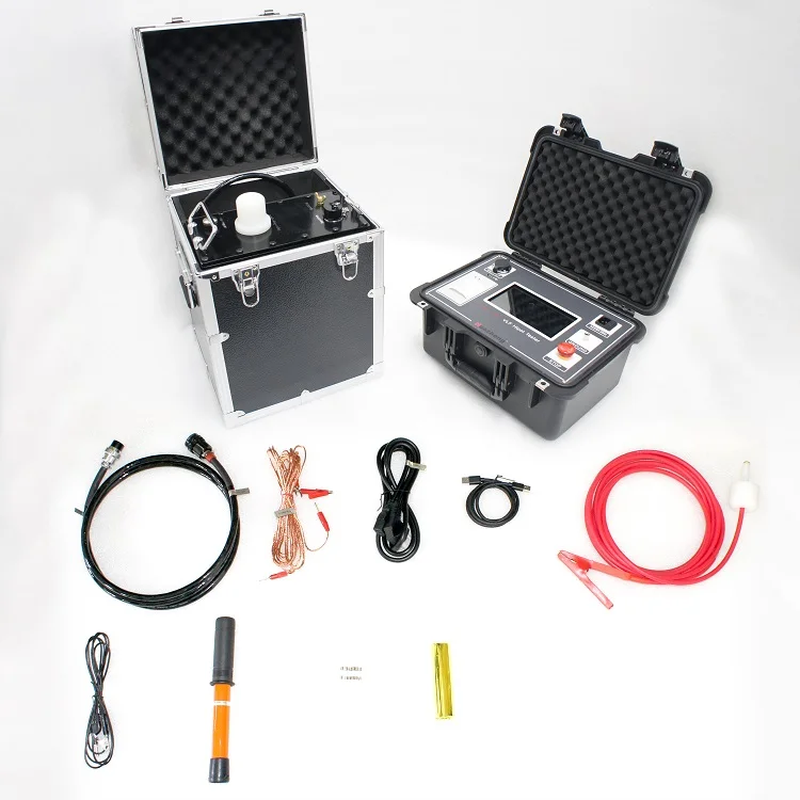

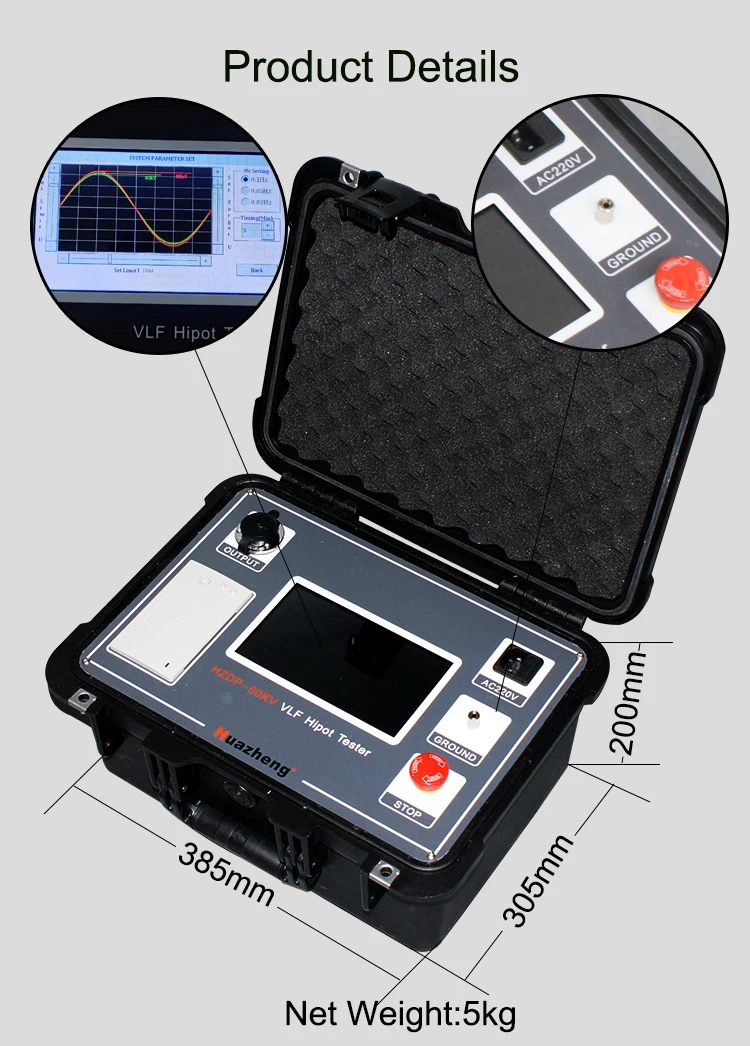

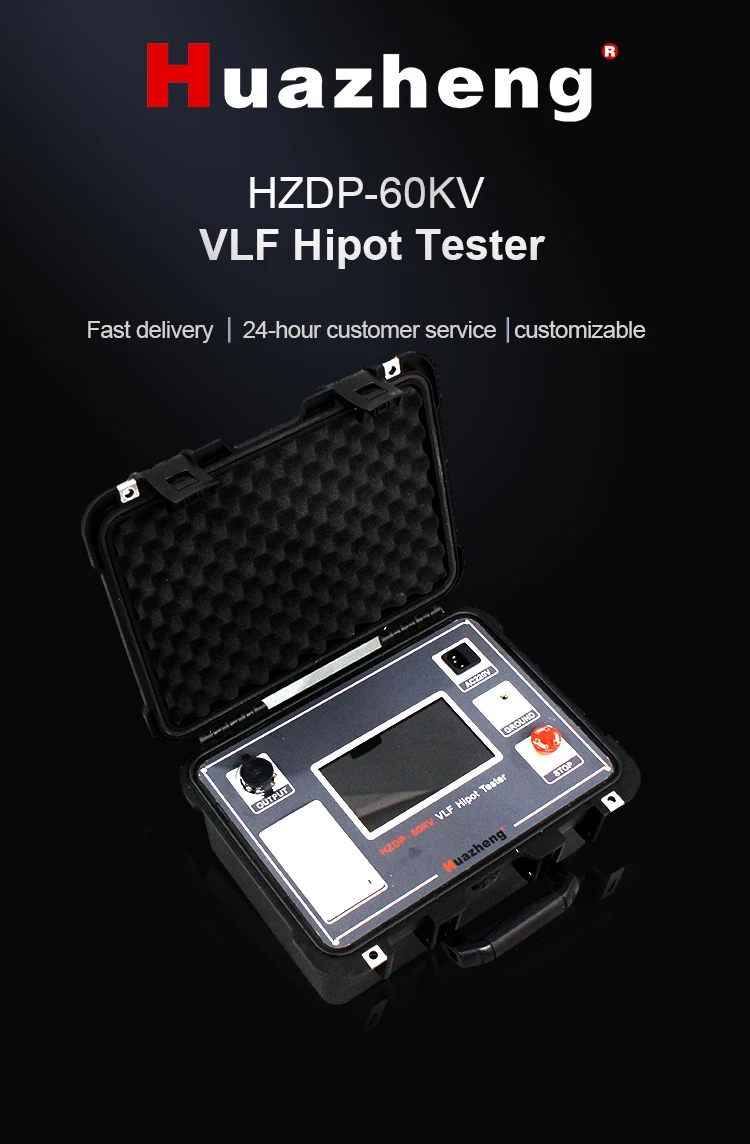

Cable Test Machine Reasonable Very Low Frequency AC High Voltage Generator 50kv Vlf Hipot Tester
Cable Test Machine Reasonable Very Low Frequency AC High Voltage Generator 50kv Vlf Hipot TesterHuazheng Cable Test Machine Reasonable Very Low Frequency AC High Voltage Generator 50kv Vlf Hipot Tester
Product Description
I. Technical Parameters Of Series Products
1.Output rated voltage:See table3
2.Output frequency:0.1Hz,0.05Hz,0.02Hz,0.01Hz
3.Carrying capacity: 0.1Hz max0.5µF
0.05Hz max1.1µF
0.02Hz max2.2µF
0.01Hz max5.5µF
4.Measurement accuracy:3%
5. Voltage positive, negative peak error:≤3%
6. Voltage waveform distortion degree:≤5%
7. Conditions of use: indoor, outdoor; temperature:-10℃~+40℃;humidity:≤85%RH
8. Power supplyfuse: See table 3
9. Power Supply: Voltage 220V±5%,60Hz
Note: If the portable generator is used for power supply, the generator output voltage and frequency are required to be stable (generally, the power is greater than 3kW, the frequency is 60Hz, and the voltage is 220V±5%
10. The electrical capacity of the subject shall not exceed the maximum rated electrical capacity of the instrument, and the value is shown in the table3;
Model | Rated voltage | Carrying capacity | Power source Safety tube | Product structure and weight |
30/1.1 | 30kV (Peak value) | 0.1Hz,≤0.5µF | 10A | ontroller:4kg :20kg |
0.05Hz,≤1.1µF | ||||
0.02Hz,≤2.2µF | ||||
0.01Hz,≤5.5µF | ||||
40/1.1 | 40kV (Peak value) | 0.1Hz,≤0.5µF | 10A | Controller:4kg Voltage booster:20kg |
0.05Hz,≤1.1µF | ||||
0.02Hz,≤2.2µF | ||||
0.01Hz,≤5.5µF | ||||
50/1.1 | 50kV (Peak value) | 0.1Hz,≤0.5µF | 15A | Controller:4kg Voltage booster:40kg |
0.05Hz,≤1.1µF | ||||
0.02Hz,≤2.2µF | ||||
0.01Hz,≤5.5µF | ||||
60/1.1 | 60kV Peak value) | 0.1Hz,≤0.5µF | 15A | Controller:4kg Voltage booster:50kg |
0.05Hz,≤1.1µF | ||||
0.02Hz,≤2.2µF | ||||
0.01Hz,≤5.5µF | ||||
80/1.1 | 80kV (Peak value) | 0.1Hz,≤0.5µF | 15A | Controller:4kg Voltage booster:50kg |
0.05Hz,≤1.1µF | ||||
0.02Hz,≤2.2µF | ||||
0.01Hz,≤5.5µF | ||||
90/1.1 | 90kV (Peak value) | 0.1Hz,0.5µF | 15A | Controller:4kg Voltage booster:55kg |
0.05Hz,≤1.1µF | ||||
0.02Hz,≤2.2µF | ||||
0.01Hz,≤5.5µF |
Customer Use Cases
ABOUT US
Huazheng, established in 2008, is a enterprise which is engaged in the research, development,
sale and service of transformer tester, transformer oil tester, relay tester, high voltage tester, circuit breaker tester. We are a cooperative supplier of the State Grid of China, and we have also
established cooperative relationships with customers in countries and regions such as USA, Brazil, Chile, Vietnam, Indonesia, Korea, Turkey, Dubai, South Africa, etc.We have obtained ISO and
CE certificates. And developed impeccable inspection organization to make sure all of our
products quality comply with international standards(like IEC/ASTM/EN).
