Product Description

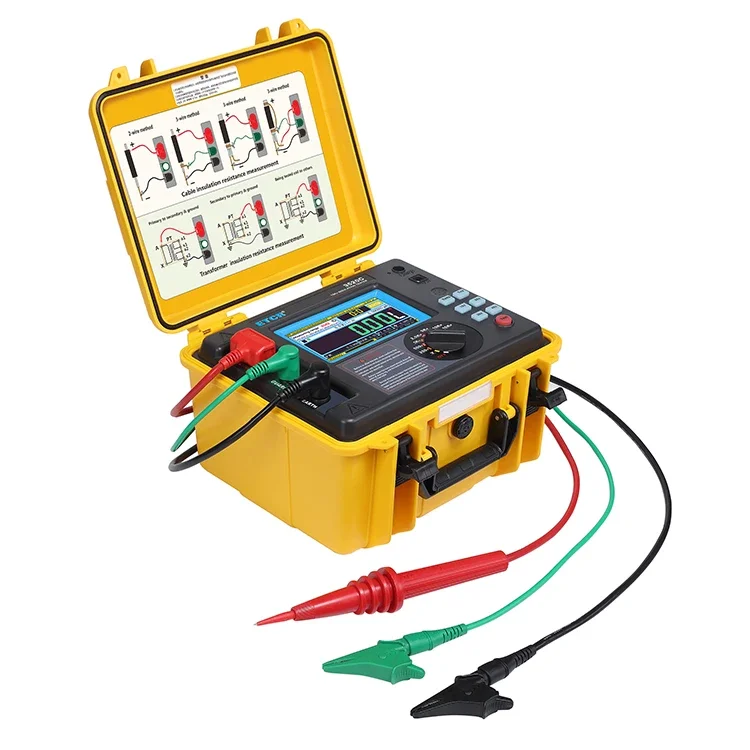

VK3520C Digital Only 6.2Ah Large Capacity High Voltage Rechargeable Lithium Battery Insulation Resistance Tester 5000V
VK3520C Digital Only 6.2Ah Large Capacity High Voltage Rechargeable Lithium Battery Insulation Resistance Tester 5000VVK3520C Used For Large Capacity High Voltage Electrical Equipment And Transmission Line Insulation Resistance Tester

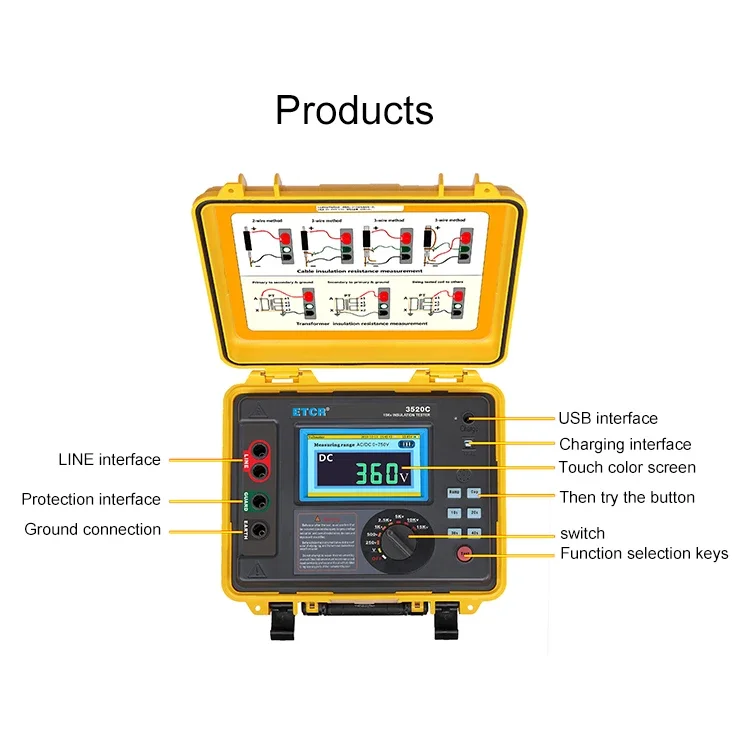

Product Description1. The combination of touch color screen, button and wave band knob, the function perfect can be directly tested with one button, the operation of inquiry record is simple and convenient.
2. Rich display content which can display on same screen : various test modes and insulation resistance value, output voltage and the voltage of tested object, current, test timing, test time, battery power, operation help, etc.

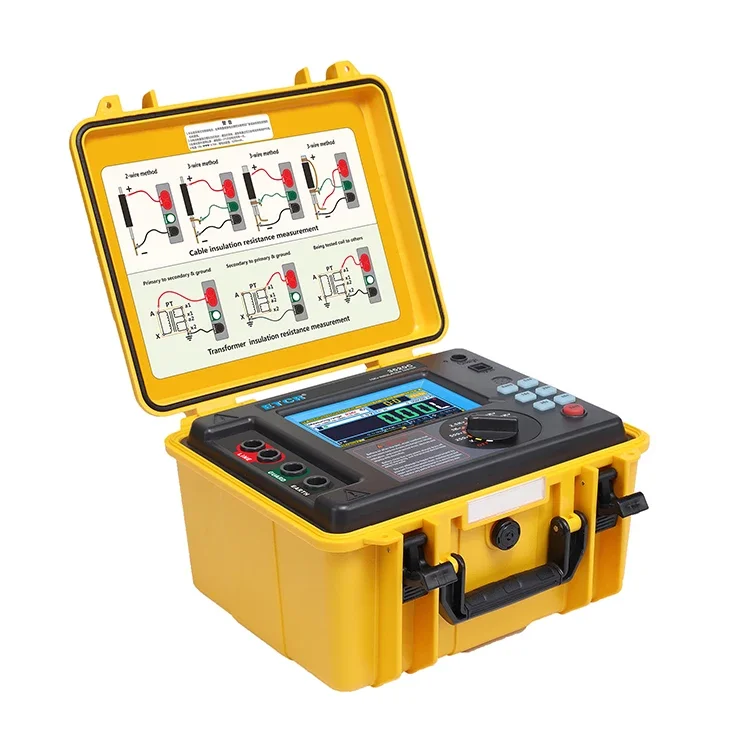

3. Double shell structure, firm and durable, protection level IP65.
4. Large capacity rechargeable lithium battery.
5. Voltage monitor function, automatically monitor live voltage of the tested object.
6. Test timer function, automatically record test time.
7. Automatic discharge function, Instantaneous release the charging charge of the measured object after the test, no need to add the discharge circuit.
8. Store function, automatically store 1000 groups of real-time test data with test date, time and timing.
9. Upload function, the recorded data can be uploaded to the computer by USB communication cable for data statistical analysis.
Technical Specification
Model | VK3520C |
Rated Voltage | 250v,500v,1000v,2500v,5000v,10Kv,15Kv |
Output Voltage Accuracy | (5%~10%)±10V |
Insulation Resistance Range | 15KV,30TΩ,7mA |
Output Short Circuit Current | ≥7mA |
Power Supply | Rechargeable lithium battery pack 6.2Ah |
Polarization Index Test | Yes |
Dielectric Absorption Ratio Test | Yes |
Ramp Test Mode | The output voltage will start at 10% of the preset voltage and increase in steps of 10% until the preset voltage is reached |
Filtered Resistance Test Mode | 10S,20S,30S,40S (4 selection) |
Voltage Test | Range: AC/DC 0V~1000V;Accuracy: ±(5%+3V) |
Current Test | Range: 0.01nA~9mA;Accuracy: ±(5%+0.2nA); |
Capacitance Test | Range: 10nF~25uF;Accuracy: ±(10%+nF) |
Voltage Monitor | Monitor the voltage of the measured object, and monitor discharge status after test, Forbidden to test when voltage is larger than 36V, protect instrument and operator. |
Test Timer | Automatic record test time, time range: 0s~9999s |
Storage Function | Automatically store the real-time test data with test date, time and timing, total of 1000 groups |
Upload Function | Upload the stored data to computer with USB communication cable. |
Battery Power Indication | Yes, when battery voltage low will remind to replace the battery |
Automatic Shutdown | After 15 minutes start up will shut down automatically without any operation |
Meter Dimension | 280mm×260mm×160mm |
Meter Weight | 4900g (include battery) |
Test Wire | Red high voltage test wire 1 pcs (with alligator clip 1PCS and hook 1PCS), green test wire 1PCS, black test wire 1PCS |
Protection Level | Close the case IP65; open the case IP40 |
Working Environment | -20℃~50℃;80%rh |
Store Environment | -25℃~65℃;80%rh |
Insulation Resistance | 50MΩ(1000v)(between the test circuit and shell) |
Withstand Voltage | AC 3Kv 50Hz 1min(between the test circuit and shell) |
Suitable Safety Standard | IEC61010-1,IEC61326-1 |

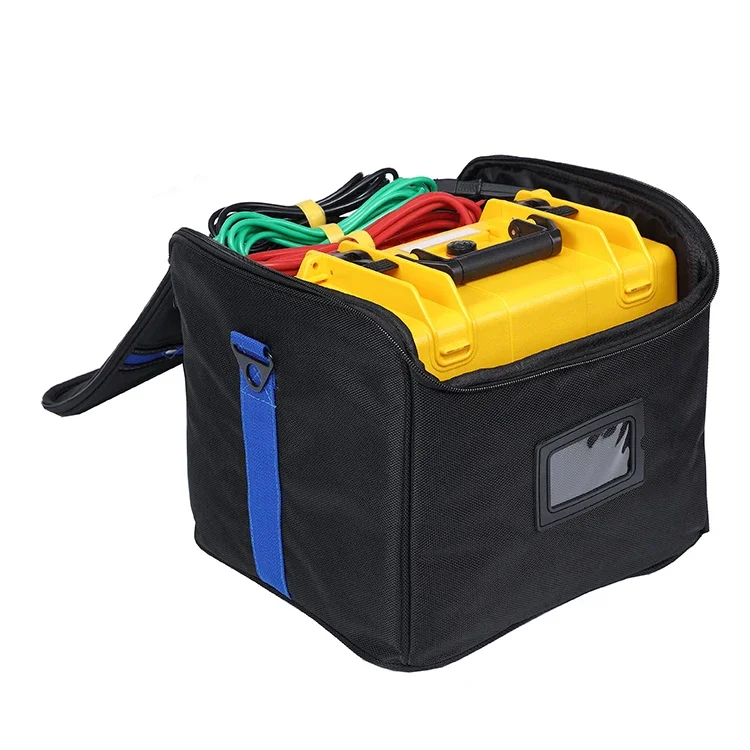

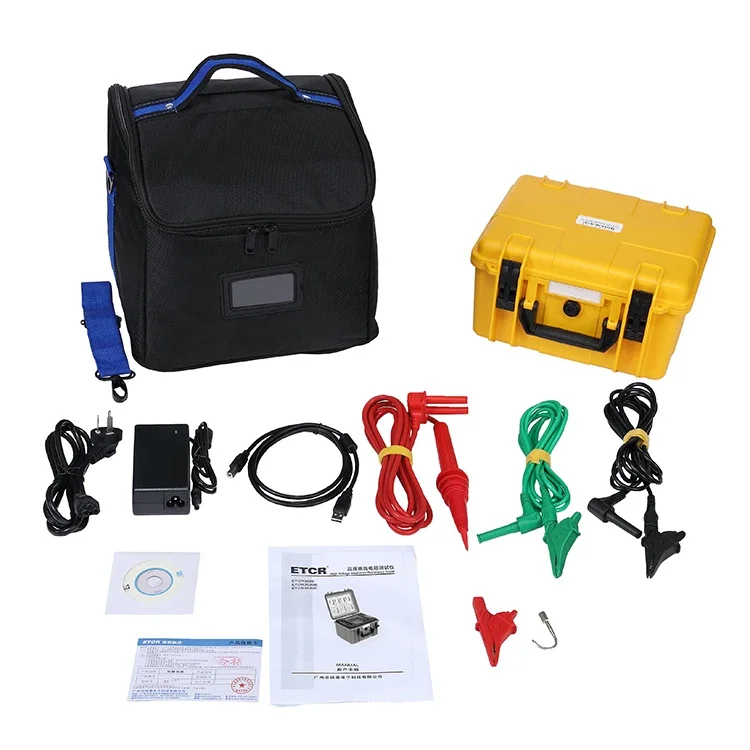

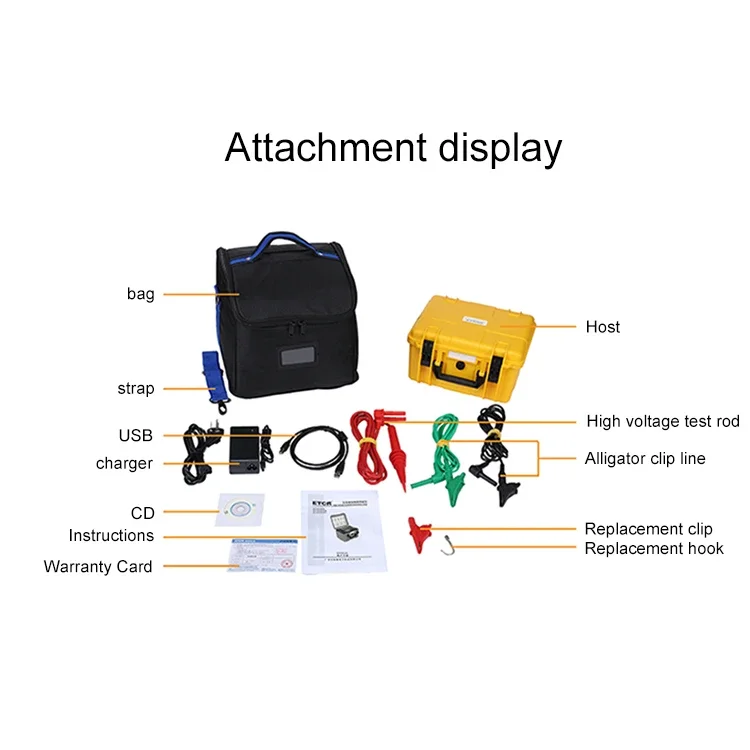

Accessories | Host: 1PCS, high voltage test wire(red): 1PCS, Test wire (green): 1PCS; Test wire (black): 1PCS; Alligator clip: 1PCS; Hook 1PCS; USB communication cable 1PCS; Software CD: 1COPY; Tool bag: 1PCS |
