Product Description

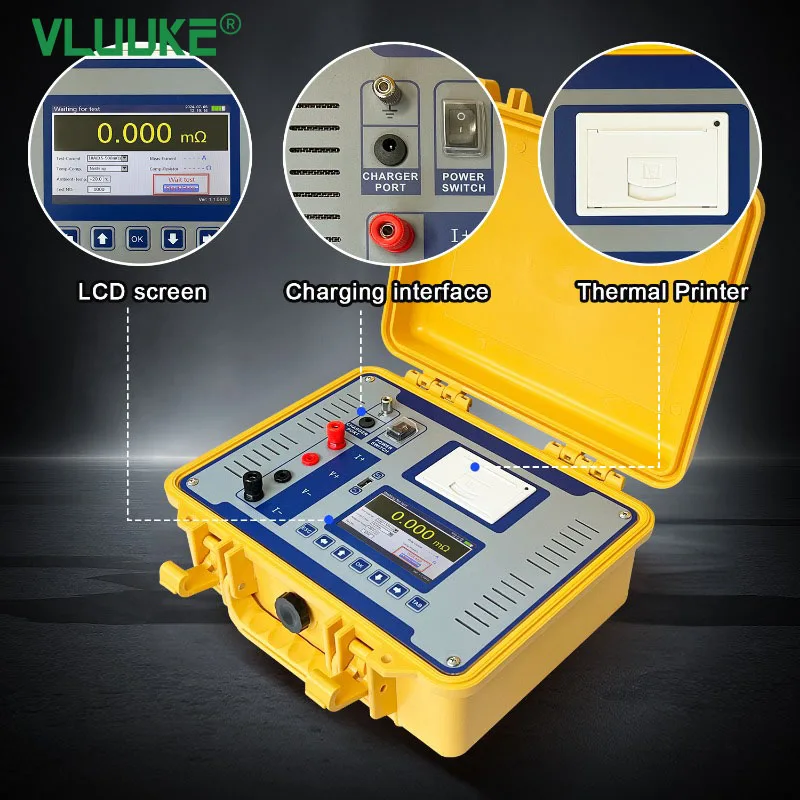

LNZZ10AB Electronic DC Winding Resistance Tester 220V Voltage 1-Year Warranty
LNZZ10AB Electronic DC Winding Resistance Tester 220V Voltage 1-Year Warranty
1、The whole machine is controlled by high speed single chip microcomputer, with high degree of automation and easy operation.2、Adopts a new power supply technology and has a wide measuring range.
3、Perfect protection function, can reliably protect the impact of the counter potential on the instrument, the performance is more reliable.
4、The response speed is fast, the instrument measurement data is stable, the instrument test process automatically refreshes the data.
5、Intelligent power management technology, the instrument always work in the minimum power state, effectively reduce the internal heat of the instrument, save energy.
6、has an internal non-dropping electric memory, which can store data permanently
1、Output current： auto、10A、 5A、1A、300mA、100mA、<5mA2、resolution：0.1μΩ
3、range： 30Ω-50KΩ （<5mA gear）
500mΩ-80Ω (100mAgear)
100mΩ-25Ω (300mAgear)
50mΩ-8Ω (1Agear)
1mΩ-1.5Ω (5Agear)
0.0005-0.5Ω (10Agear)
4、accuracy： 0.2%
5、operating temperature：0～40℃
6、humidity：<90%RH，No condensation
7、dimension: 320mmX270mmX150mm
