Product Description
eWelink Smart USB 5V DIY 1 Channel Jog Inching Self-Locking WIFI Wireless Smart Home Switch Remote Control Compatible with Alexa
eWelink Smart USB 5V DIY 1 Channel Jog Inching Self-Locking WIFI Wireless Smart Home Switch Remote Control Compatible with Alexa

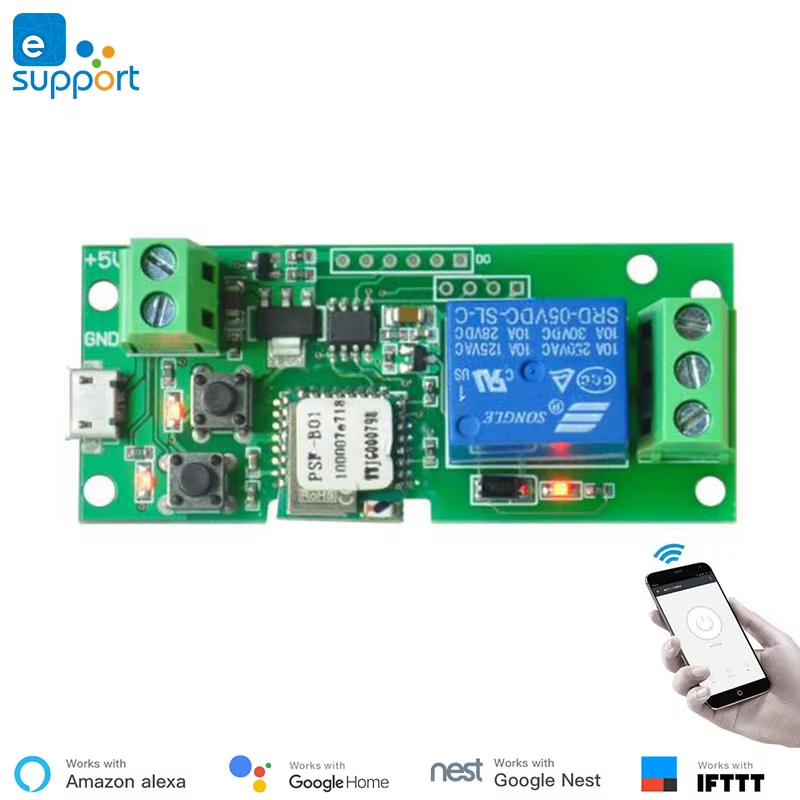

This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP eWelink in order to remotely control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately. When in inching mode, customers can have two wiring ways to select:Turn on 1s and then auto-offTurn off 1s and then auto-on.WIFi control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.Note:1. The WiFi module in this link is not support RF control , it only support WiFi control , if you need both WiFi & RF function , please find "ewelink WiFi & RF switch" product link in our shop , or contact seller for the right choice . 2.Please make sure to select the right model before buying,or leave us a message before shipping.Features:Option1.Working voltage:5VOption2.Working voltage:7-32VWith signal instruction light and relay pull-on instruction ligh
Power < 1W, and quiescent current:80mA
Cutover current< 10A , Cutover voltage< 250
10A Relay Mode
The life of Relay Model is more than 1,000,00
Insulation resistance: 100
Maximum pull-on time: 15m
Maximum release time: 5m
Working Temperature: -40 to 70 degree
Working Humidity: 40% to 80% RH

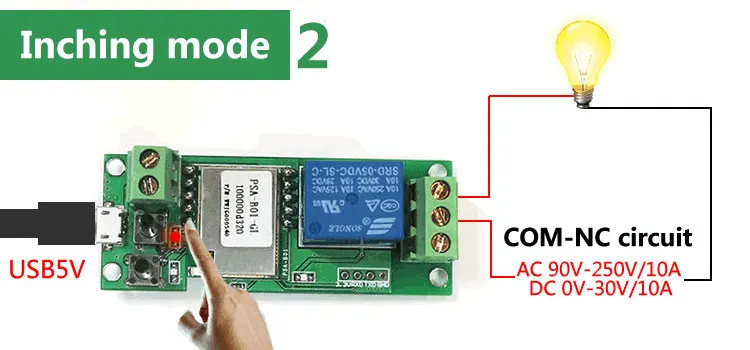

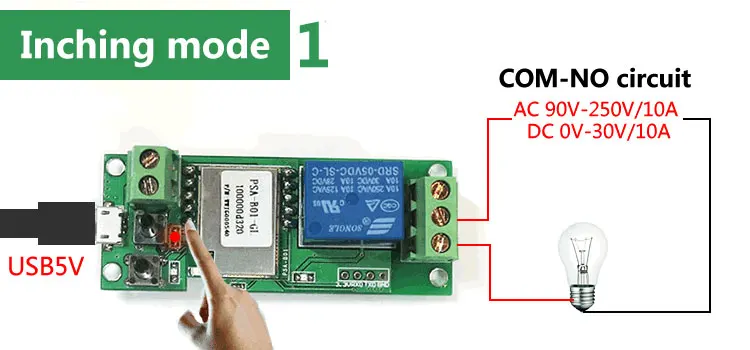

Default inching Function: Press the open relay by mobile phone, then cut off the pull-on immediately (default one second), it has the timing-share function at the same time.

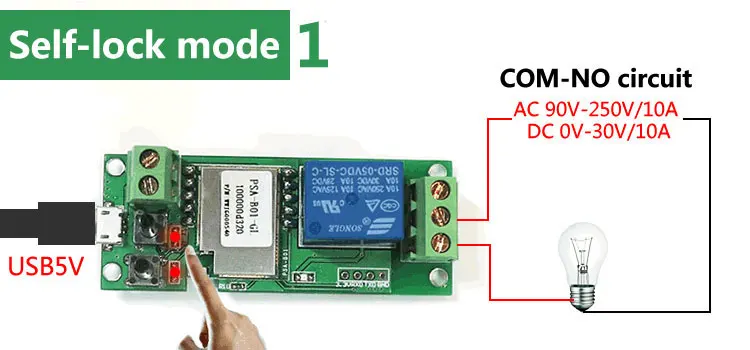

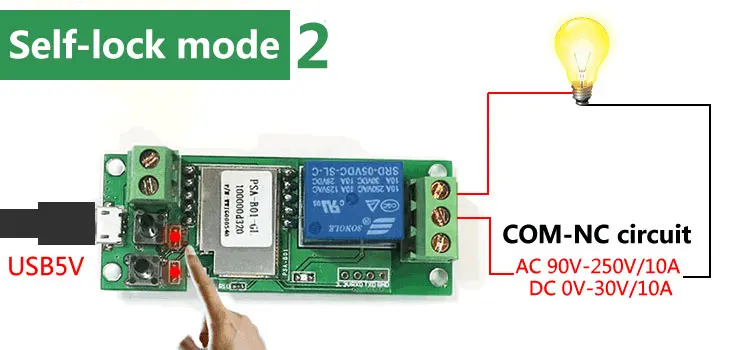

Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.
5V & 7-32V Instruction
5V Instruction
