M5Dial V1.1 Versatile Embedded development board Stamp-S3A 1.28-inch Round Touch

Product Description

Description

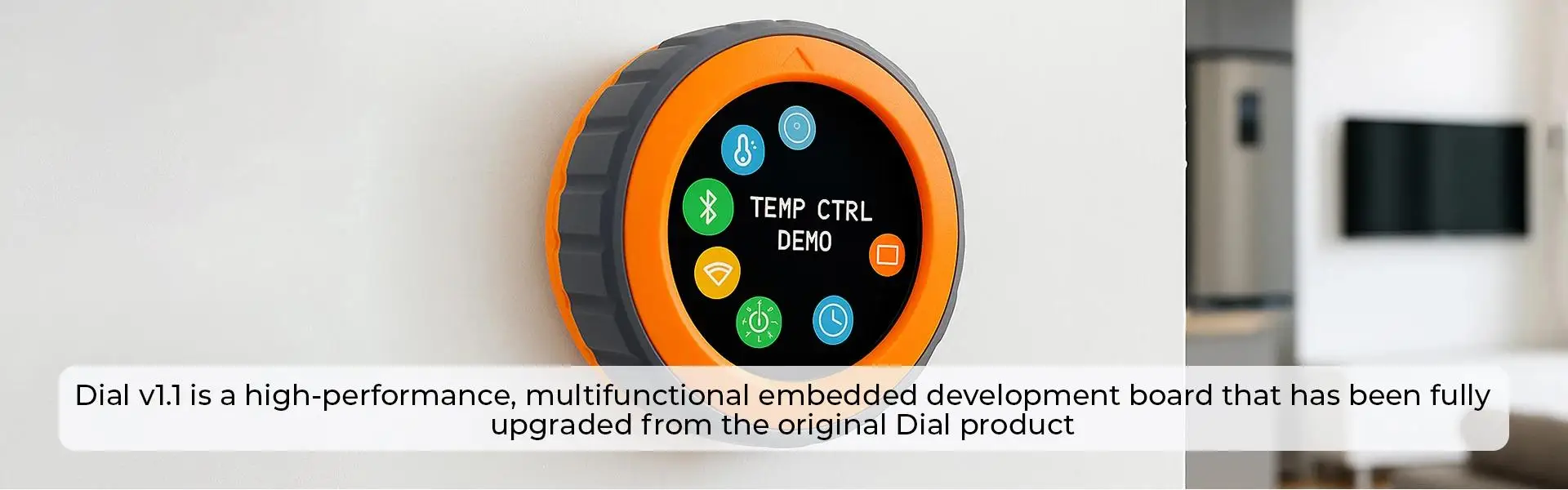

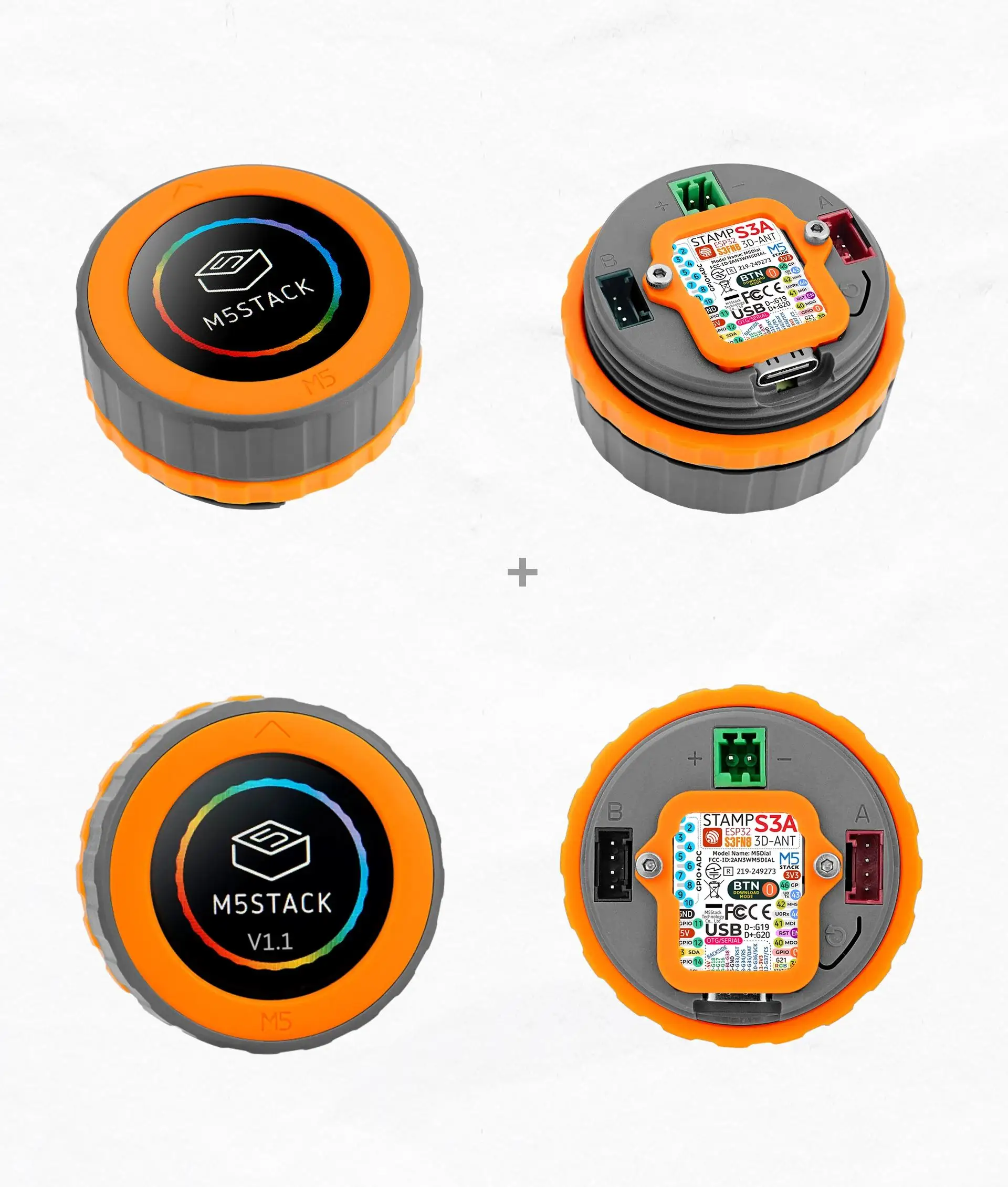

Dial v1.1 is a high-performance, multifunctional embedded development board that has been fully upgraded from the original Dial product. The new version features the Stamp-S3A as the main controller, further enhancing system processing power and stability. Additionally, the core module antenna and buttons have been optimized to effectively improve wireless communication performance and user interaction experience. The product is equipped with a 1.28-inch round TFT touch screen and a high-precision rotary encoder, and includes an RFID detection module, RTC circuit, onboard buzzer, and under-screen buttons to enable device interaction and wake-up alerts. The power supply solution supports DC 6～36V wide voltage input and includes a lithium battery interface and charging circuit to meet diverse application needs. Furthermore, the reserved PORT.A and PORT.B interfaces facilitate the expansion of I2C and GPIO devices. This product is widely applicable in smart home control, IoT applications, smart wearables, access control systems, industrial control, and educational maker projects.

Features

*Round TFT touch screen

*Stamp-S3A as the main controller

*Rotary encoder

*RFID detection module

*Wide voltage input

*Interface expansion: Reserved PORT.A and PORT.B interfaces

*Development Platform

-UiFlow2

-Arduino IDE

-ESP-IDF

-PlatformIO

***Wake up can be initiated by pressing the "Wake" button or by an IRQ signal triggered periodically by the RTC. After triggering the wake-up signal, set the HOLD (GPIO46) pin to a high level (1) during program initialization to maintain the power supply. Otherwise, the device will enter the sleep state again.

When there is no USB external power supply, press the RST key to power off. Alternatively, when there is no USB external power supply, set HOLD (GPIO46) to 0 during program operation to achieve power off.

Bundle list

•


  1 x Dial V1.1

  1 x L-shaped 1.5mm hex wrench (compatible with M2 screws)

  1 x 2.54-2P terminal

Applications

* Smart home control

* Internet of Things Project

* Access control system

* Industrial control
