Product Description

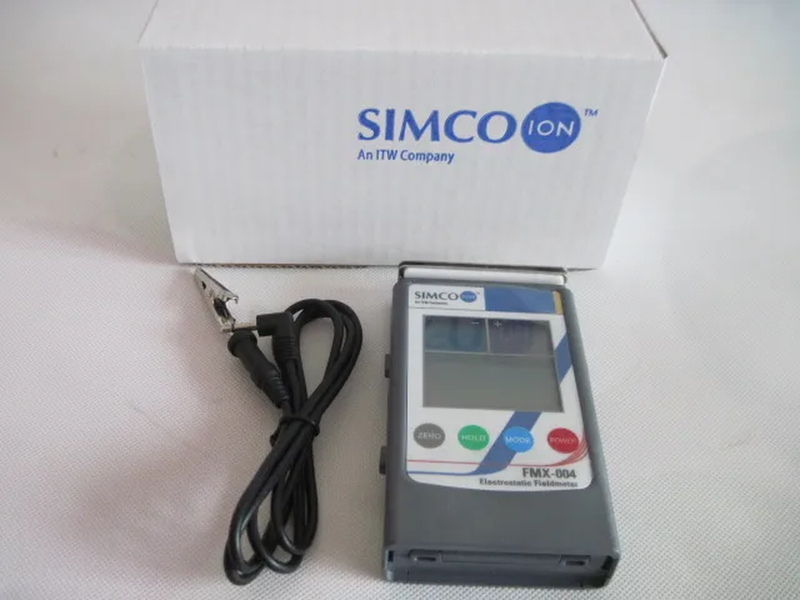

FMX-004 LCD Handheld Electrostatic Field Meter Static Tester for SIMCO
FMX-004 LCD Handheld Electrostatic Field Meter Static Tester for SIMCOFMX-004 LCD Handheld Electrostatic Field Meter Static Tester for SIMCO
Description:
SIMCO FMX-004 electrostatic field reflectoscope reflector is a non-contact portable electrostatic field measuring instrument is surveys the object surface static electricity value and the survey static electricity eliminates equipment's ion trim
Feature:
Easy to read, easy to use operation
Light weight, compact design
Range light assures accurate and repeatable measurements
Digital and bar graph display
Automatic power off after five minutes (may be disabled if preferred)
Main Parameter:
Measuring range: 0 to ±1.49KV ( Low range)
±1.0kV to ±30.00kV ( High range)
(range hysteresis: ±1.0kV to ±1.5kV)
0 to ±300V ( low balance measuring range)
Measuring distance: 1"±1/64" ( 25mm±0.5mm), LED guide for correct distance
( between object and field meter)
Response time: <1s
LCD display renewal rate: 5 times/s
Accuracy: ±10%
Ambient conditions: 50°-100°F, (10°- 40°), 0-60%RH ( non-condensing)
Display features: Bar graph, red LCD positive polarity voltage, blue LCD negative polarity voltage
Bar graph precision: ±0.1kV for low range ±2kV for high range,±20V for ion balance range
Digital reading: Auto-ranging , three digits x.xx=0 to ±1.49kV,xx.x=±1.0kV to ±30.0kV(Hi),xxx=0 to 300 ( lon balance)
lon balance mode display: (IB) is displayed
Battery capacity display indicatoror
HOLD switch to retain display after measurement
Error sign (ERR) appears if the sensor is damaged
Alarm feature: Beep sound will be heard during the following actions;
Power on: one beep
Power on with auto Off feature disabled: {Depress power button for more than 3 seconds three beeps
Auto power-Off : short beeps at 1 seconds interval for 5 seconds before power off
Over range: continuous sound
Auto power-off: Power turns off automatically after five minutes, A OFF is display whenever this features is disabled
Power source: 9V, manganese battery (Battery Not Included because of Shipping Policy)
Battery life: In excess of 30 hours
Size: 123mm (L) x 73mm (W) x 25mm (D)
Weight: 170g
Case material: Conductive resin( ABS)
