DS2-1000N/100kg High Precision Digital Display External Push-pull Dynamometer Ex

Product Description

DS2-1000N/100kg High Precision Digital Display External Push-pull Dynamometer External Dynamometer

The product has high precision, long service life, long standby time and simple operation. DS2 series digital display push-pull force meter is a small multi-functional and high-precision push-pull load test instrument. It is suitable for push-pull load test, plug-in force test and damage test of various products. The digital display has high resolution and is easy to use. It is a new generation of high efficiency and high precision mechanical testing instrument.

Product parameters:

Maximum load: 2N (200gf) - 1000N (100kgf)

Display: 4-bit LCD display

Safety overload: 150% rating (100% flash warning)

Power supply: built-in safe and durable large capacity lithium battery, external AC adapter

Weight: about 520g, depending on the maximum load value.

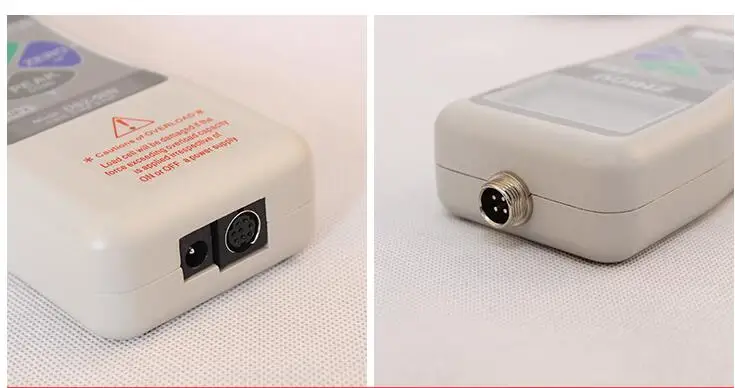

Output function: USB connected computer, digital display of tension and pressure

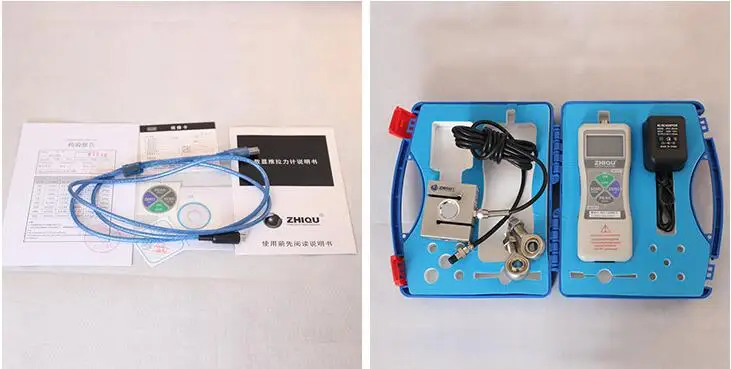

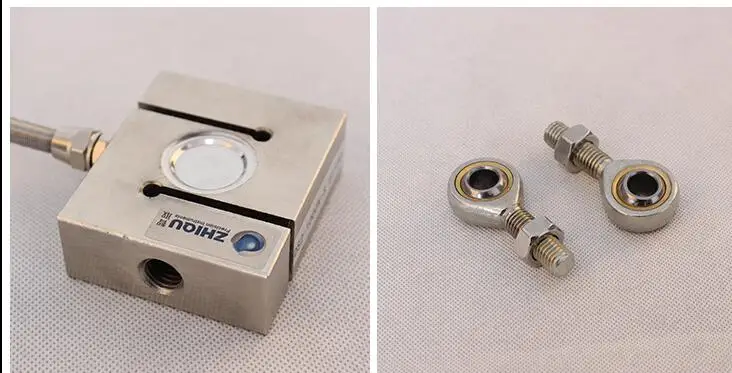

Standard accessories: 6 accessories, AC adapter, portable case

Accuracy: +0.1%F.S

Sampling rate: 1000 times per second

Screen flicker indicates overload; low-power battery symbol flicker

Four-bit liquid crystal display, display data can be displayed forward and backward

Automation signal interface, can connect to PLC (optional)

PC computer monitoring interface, which can connect computers and monitor test data in real time (optional)

Product characteristics:

1. High Precision and High Resolution

Accuracy is better than 0.2 grade (i.e. 0.2% F.S plus or minus 1 digit); minimum reading is 0.001N.

2. Peak Holding Function

It can capture the peak value (maximum value) in the testing process.

3. Comparative function

The upper and lower limit deviation values are set freely, and the screen flashes prompts. The result can be seen directly by the eyes. The result of misjudgement will not be produced.

4. Simple Conversion among Three International Common Mechanics Units

It can be swiftly converted in three measuring units: N, KGF and lbf.

5. Selectivity of sampling speed

The instrument can select the appropriate sampling speed according to the actual situation of the test. When entering the test which needs sensitive response (for example, when doing the test of pulling material), it needs high sampling speed. The highest sampling speed can reach 1000 times per second. When low sampling speed is required, low sampling speed can be used to test.

6. LCD LCD screen can be flipped, and LCM technology with wide viewing angle is adopted.

LCD screen can be flipped 180 degrees, which is more conducive to watching the test process and results in various occasions and ways of measurement.

7. Extra-long standby

The combination of large capacity, safe lithium batteries and ultra-low power processors and the use of top-level circuit design enable the product to achieve ultra-long standby (standby for at least 15 days, continuous use for at least a week), which is very simple and easy to operate.

8. USB Communication Function

This technology is the first application in China, breaking the previous domestic products of the same kind can only communicate through RS232. Because RS232 data line is not very universal, but using USB data line to connect DS2 series products with computers makes data communication more stable and efficient. Moreover, USB data line is very versatile, easy to use and easy to purchase. When DS2 series products are connected to computers or other computers with operating systems, they can conveniently process and analyze data (see intuitive function graphics, facilitate experimenters to carry out scientific experiments, reduce the inaccuracy of data in the process of transcription and other intermediate links), and save and type data. Print the results.

Among the similar products, it is currently an international one that can supply power to the instrument through USB. The whole machine is designed with low power consumption in many ways, which ensures long-term use of one charge.

9. Perfect Access to PLC Industrial Control System

In order to better serve the customers, DS2 has reserved the function of providing signal support for PLC industrial control system. Then it is closely integrated with industrial production control.

10.DS2 This product has a high cost performance ratio, stable product quality, 12-month free warranty, and lifelong maintenance services. 11. The panel is made of PET environmental protection nameplate with reasonable color matching and design. The keys are made of high-grade export environmental protection keys, which are comfortable, flexible and durable (up to 100,000 keystrokes life).

12. Aluminum alloy shell, according to ergonomic design, is easy to test and fix on the test bench. Aluminum alloy shell has strong anti-interference ability without money and electricity, which ensures that the measured data are real, reliable and stable, and effectively guarantees the quality of products.
