Product Description
TUF-2000B Ultrasonic flow meter DN50mm-DN700mm wall mounted type ultrasonic liquid flowmeter IP67 protection TM-1 Transducer
TUF-2000B Ultrasonic flow meter DN50mm-DN700mm wall mounted type ultrasonic liquid flowmeter IP67 protection TM-1 TransducerTUF-2000B Ultrasonic flow meter DN50mm-DN700mm wall mounted type ultrasonic liquid flowmeter IP67 protection TM-1 Transducer
Note: we usually do not ship the ultrasonic gel, because of flight control. if you have special need, please contact us.

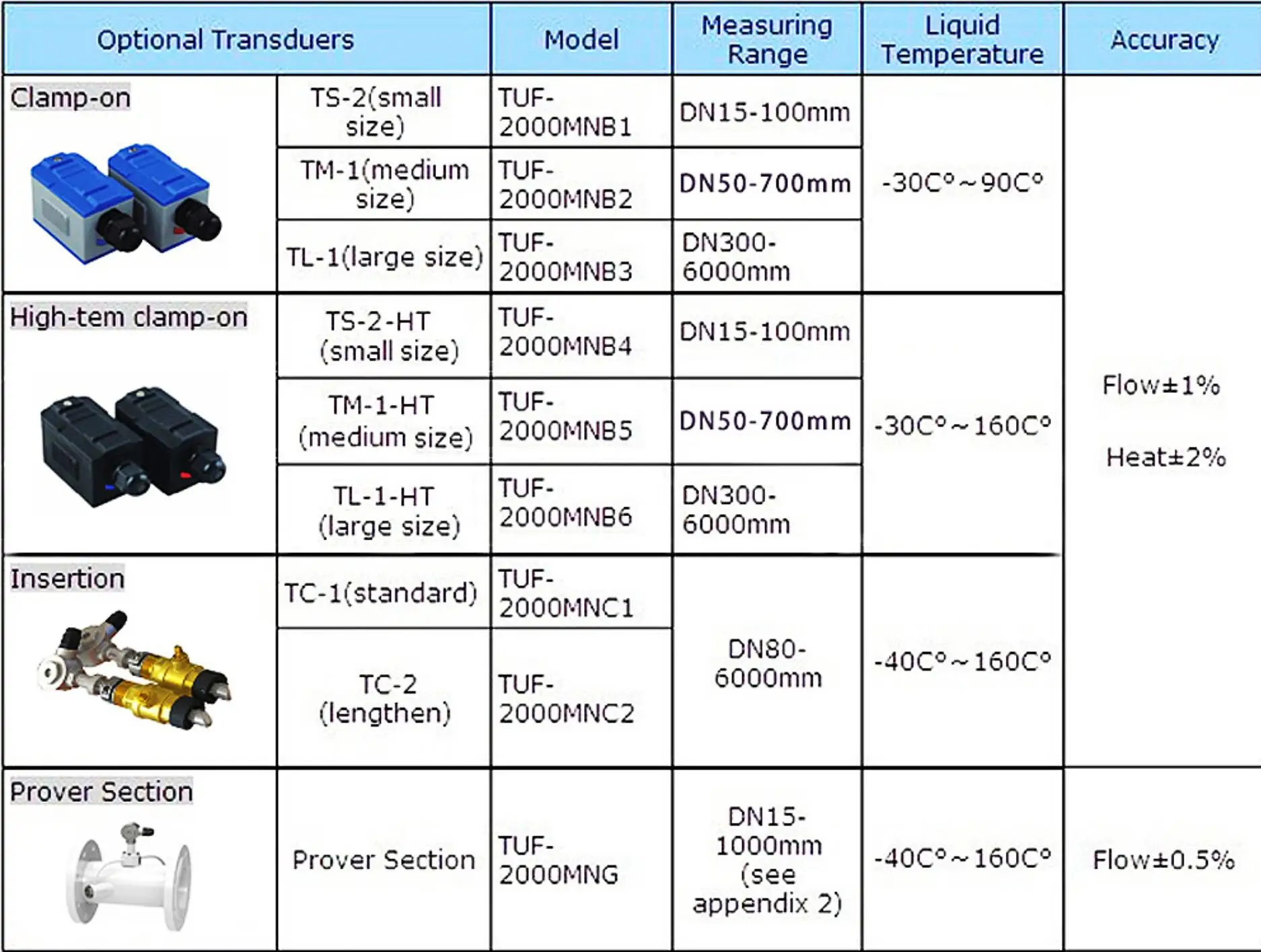

Plug-in sensor ：80-2000mm
High Accuracy measuring
Linearity: better than 0.5%,Repeatability: better than 0.2%, Accuracy: better than 1%
Wide Measuring Range
Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
Chinese or English menu
Different version UFM can support Chinese or English display, easy to operate
High Reliability
Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability
Strong Anti-interference
Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower, high voltage line etc.
Powerful Recording Function
Automatically record the following data: 1. The totalizer data of the last 512 days/128 months/5 years 2. The time and corresponding flow meter of the last 64 times of power on and off events 3. The working status of the last 32 days
Features | Description |
| High Accuracy measuring | Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than 1% |
| Wide measuring range | Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm |
| Chinese & English | Different version UFM can support Chinese or English display, easy to operate. |
| High Reliability | Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability. |
| Strong | Dual-balance signal differential receiver/driver circuit to avoid |
Anti-interference | interference of converter, TV tower, high voltage line etc. |
| Powerful Recording Function | Automatically record the following data: |
1. The totalizer data of the last 512 days/128 months/10 years | |
2. The time and corresponding flow meter of the last 64 times of power on and off events |
| Power Supply | DC8-36V or AC85-264V |
| Input | 3 channel 4-20mA analog input |
| Output | Isolation RS-485 output, 2 channel isolation OCT output: 1 channel isolation 4-20mA output (two-wire system) |
| Communication | Compatible with METER-BUS, MODBUS, Fuji extended protocol and |
Protocols | general water meter protocol. |
