Product Description
Hantek 100MHZ Oscilloscope HT8050/HT8100 High Voltage Differential Probe Isolation Probe LED Indicator Accessory Tools
Hantek 100MHZ Oscilloscope HT8050/HT8100 High Voltage Differential Probe Isolation Probe LED Indicator Accessory ToolsHantek HT8050/8100 Oscilloscope high voltage isolated differential probe 50MHZ-100MHZ bandwidth 1/50 1/500 two-stage attenuation
Feature:
1. The high-voltage isolation probe has an over-range alarm function and is indicated by a red LED for easier use.
2. The high-voltage isolation probe is small in size, beautiful in shape, firm in structure, durable in use.
3. This oscilloscope differential probe offers high stability, long service life, reliability and precision.
4. The high-voltage isolation probe uses a differential input mode and is primarily used in locations where high-voltage floating measurements are required.
5. With 1/50 and 1/500 attenuation, the differential mode measurement range is 130V (DC+peakAC) and 1300V (DC+peakAC).
Specification:
Electrical Performance | ||
Model Number | HT8050 | HT8100 |
Bandwidth(-3dB) | 50MHz | 100MHz |
Rise time | 7ns | 3.5ns |
Accuracy | ±2% | |
Attenuation Ratio | 1/50,1/500 | |
Imput Impedance | Single-ended to ground:4MΩ | |
Imput Capacitance | Single-ended to ground:7pF | |
Maximum Difference Measurement Voltage | 1/50:130V(DC+peakAC) | |
Maximum Common Mode Input Voltage | 1000Vrms,CATII | |
Noise | 1/50:≤1.5mVrms | |
Linearity | ±1% | |
Delay Time | 20ns±1ns | |
CMRR | DC:≥80dB | |
Over Range Warning | 1/50:140V±4V(DC+peakAC) | |
Power Adapter | DC9V,1000mA | |
Power Adapter | AC100-240V,50-60Hz | |
Machinery Specification | ||
Length of Input Cable | About 60cm | About 30cm |
Length of Output Cable | About 90cm | |
Gator Clip | About 85*40*13(mm) | |
Finger Pin | About 160*45*13(mm) | |
Probe Body | 120*55*24(mm) | |
Weight | 160g | |
Environmental Characteristics | ||
Working Temperature | 0-40℃ | |
Storage Temperature | -10-45℃ | |
Working Humidity | 85%RH | |
Storage Humidity | 90%RH | |
Working Altitude | 3000m | |
Storage Altitude | 12000m |

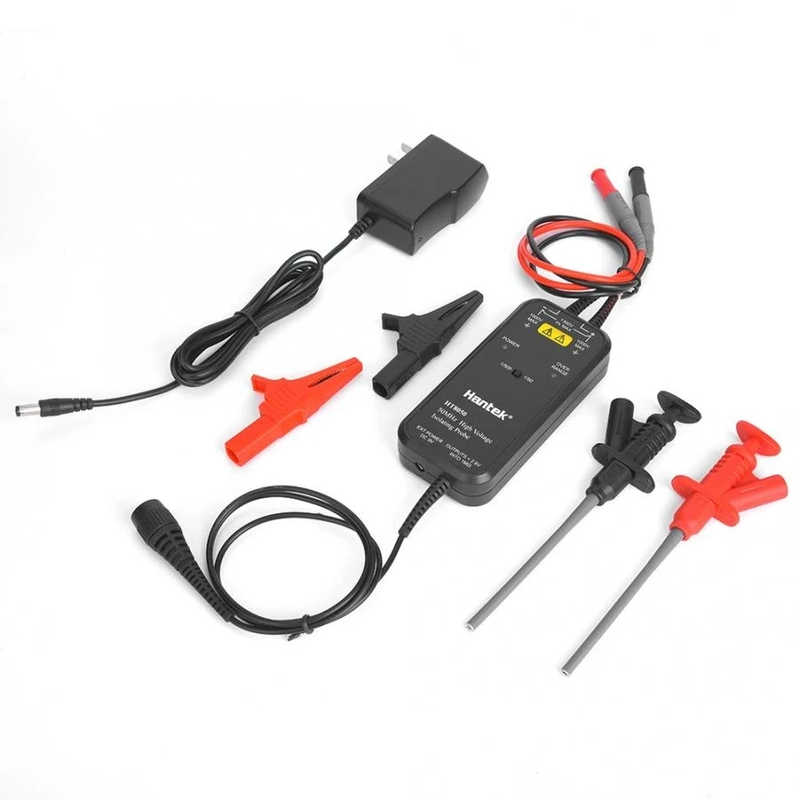

Package List:
1 x Probe
2 x Clip
2 x Probe Hook
1 x Adapter
1 x English User Manual
