ETCR3500B 10kV -Enabled High Voltage Insulation Resistance Tester

Product Description

ETCR3500B 10kV -Enabled High Voltage Insulation Resistance Tester

Specification

Name: Insulation Resistance Tester

Model: ETCR3500 / ETCR3500B (optional)

Power supply: Rechargeable lithium battery 5.2Ah

Output short-circuit current: ≥5mA

Power display: With

Storage function: 1000 groups

Capacitance Test: None

Gross weight: 5.3kg

Machine size: 28*26*16cm

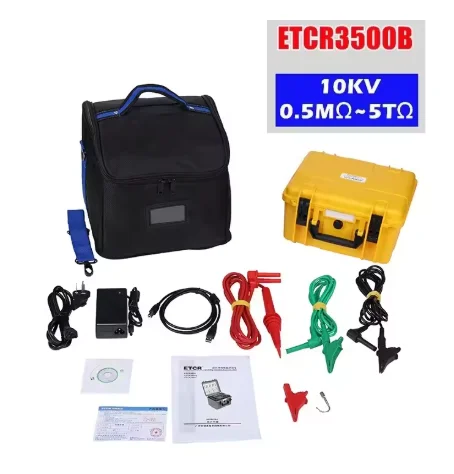

Package Included:

Insulation Resistance Tester*1pc (optional)

Power Adapter*1pc

Accessories*1set

Models:

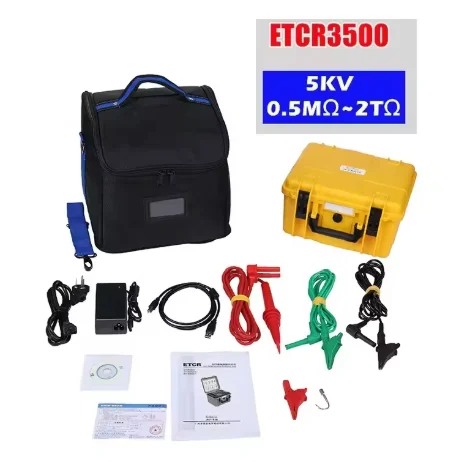

(1) Model: ETCR3500

Voltage gears: 250V, 500V, 1KV, 2.5KV, 5KV

Insulation resistance testing range: 0.5MΩ~2TΩ

(2) Model: ETCR3500B

Voltage gears: 250V, 500V, 1KV, 2.5KV, 5KV, 10KV

Insulation resistance testing range: 0.5MΩ~5TΩ

Functions:

-Insulation resistance test (IR)

-Polarization Index Test (PI)

-Absorption ratio test (DAR)

-Ramp test mode: Test in steps of 10% of preset voltage until preset voltage

-Filtering test: 10S, 20S, 30S, 40S

-Voltage test (V): range: AC/DC: 0V~1000V

-Current test (nA)

-Voltage monitoring: It can monitoring the voltage of the test object,

discharge status after the test, prohibit the test when the voltage is greater than 36V
