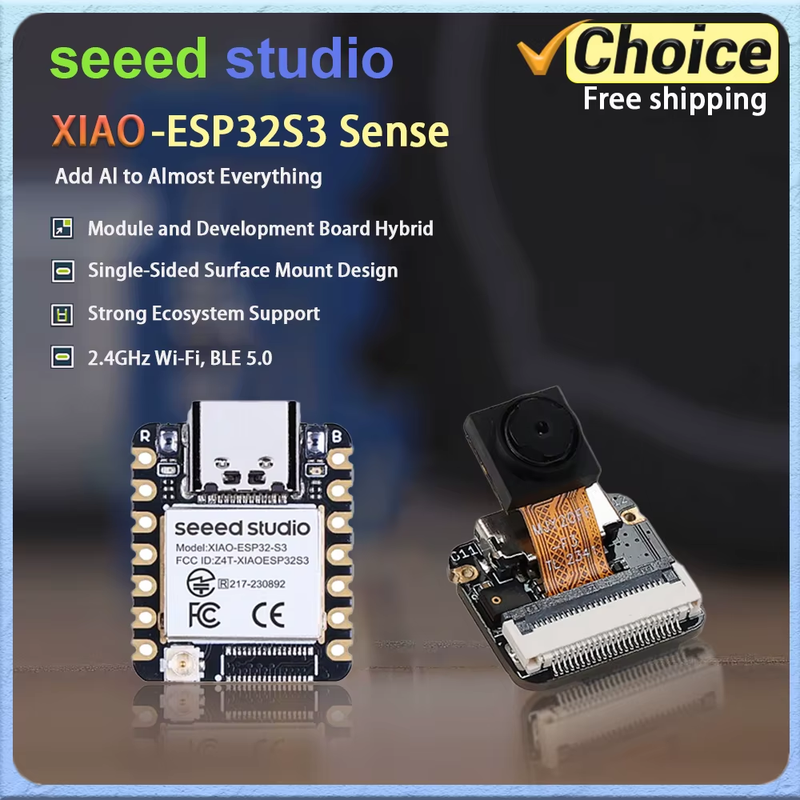

XIAO ESP32 S3 Sense with OV2640 Camera Sensor 2.4GHz Wi-Fi BLE 5.0 Microphone 8MB for IoT visual identity development board
XIAO ESP32 S3 Sense with OV2640 Camera Sensor 2.4GHz Wi-Fi BLE 5.0 Microphone 8MB for IoT visual identity development boardXIAO ESP32 S3 Sense with OV2640 Camera Sensor 2.4GHz Wi-Fi BLE 5.0 Microphone 8MB for IoT visual identity development boardPowerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor chip operating up to 240 MHz, mounted multiple development ports, Arduino / MicroPython supported

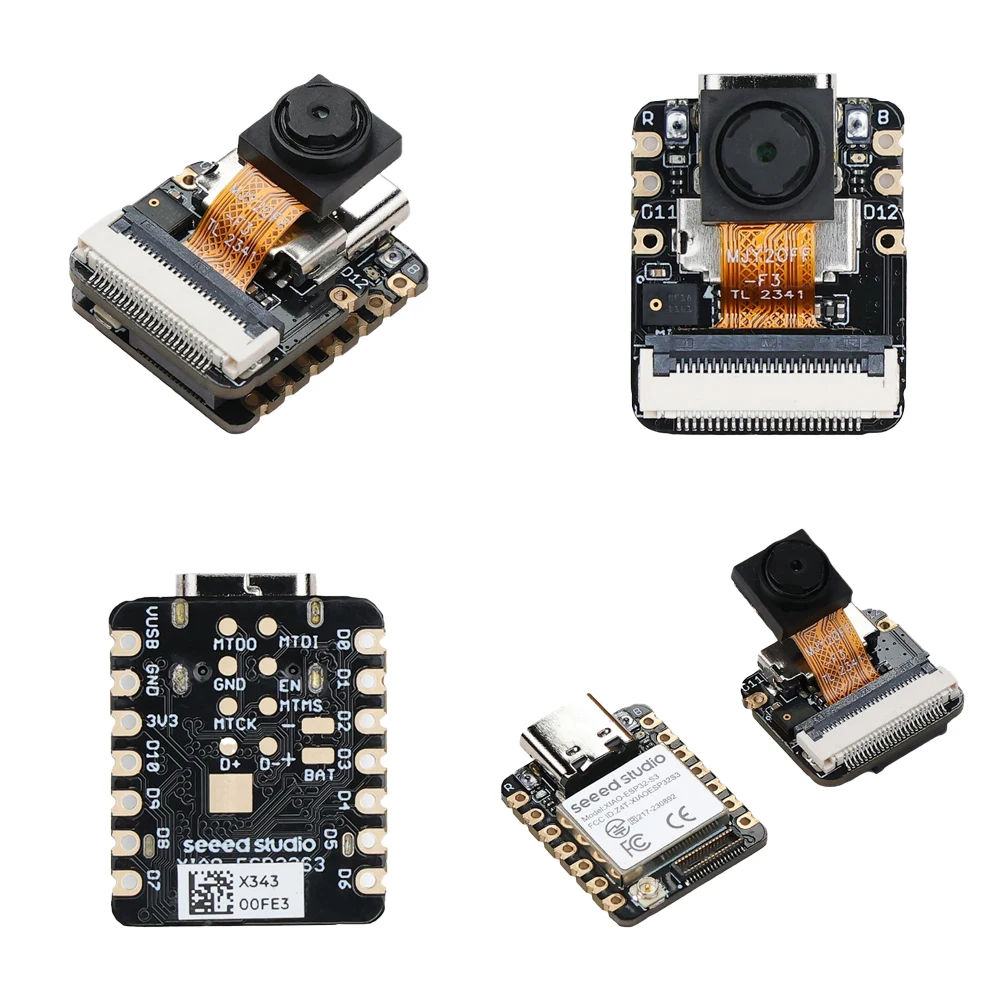

Advanced Functionality: Detachable OV2640 camera sensor for 1600*1200 resolution, compatible with OV5640 camera sensor, integrating additional digital microphone

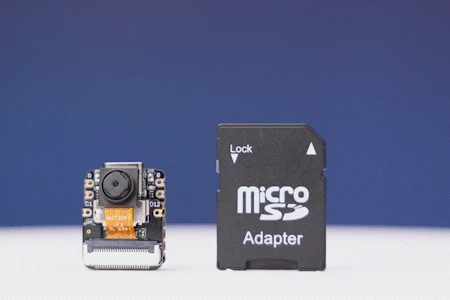

Great Memory for more Possibilities: Offer 8MB PSRAM and 8MB FLASH, supporting SD card slot for external 32GB FAT memory

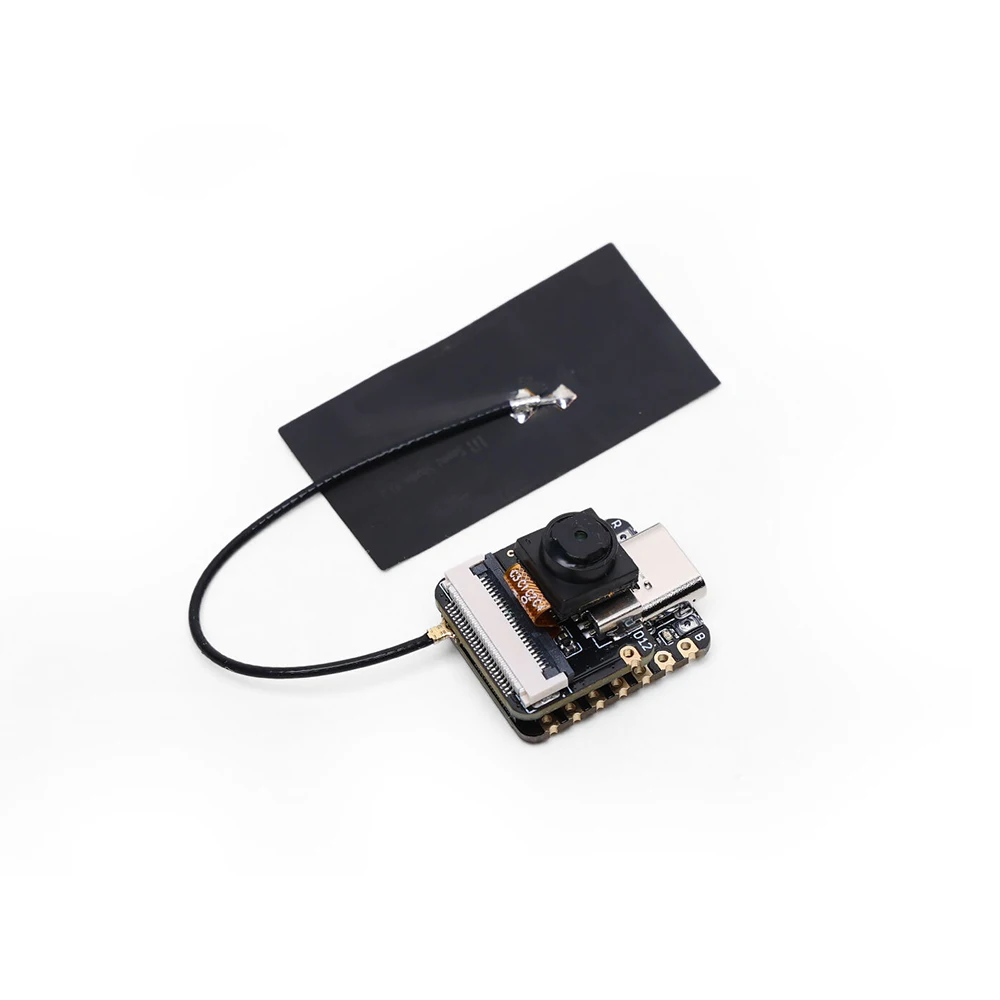

Outstanding RF performance: Support 2.4GHz Wi-Fi and BLE dual wireless communication, support 100m+ remote communication when connected with U.FL antenna
Thumb-sized Compact Design: 21 x 17.8mm, adopting the classic form factor of XIAO, suitable for space-limited projects like wearable devices
Pretrained Al model from SenseCraft AI for no-code deployment
Specification
Item | Seeed Studio XIAO ESP32S3 | Seeed Studio XIAO ESP32S3 Sense |
Processor | ESP32-S3R8 | |
Wireless | Complete 2.4GHz Wi-Fi subsystem | |
Built-in Sensors | / | oV2640 camera sensor for 1600*1200 |
Memory | On-chip 8M PSRAM & 8MB Flash | On-chip 8M PSRAM & 8MB Flash |

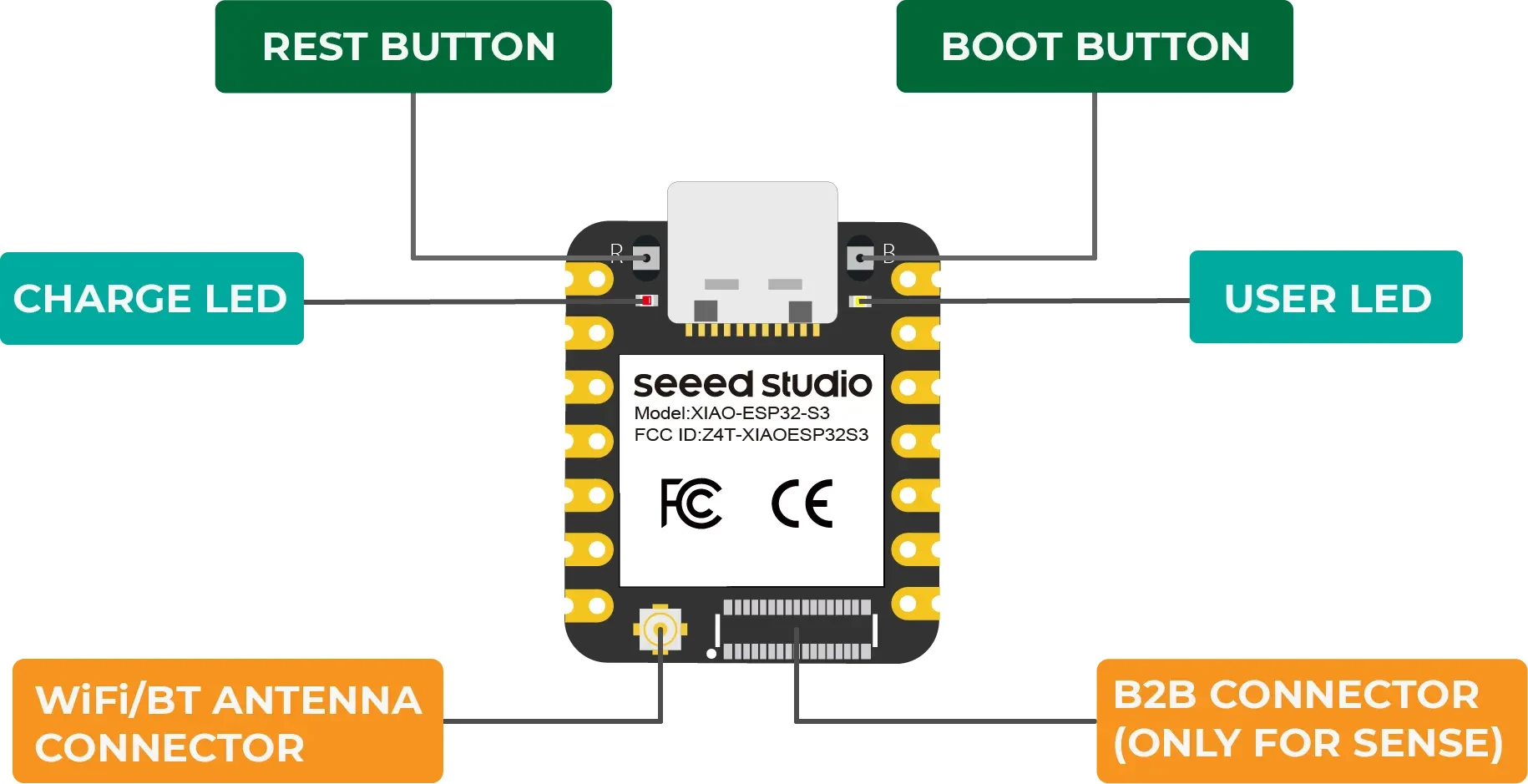

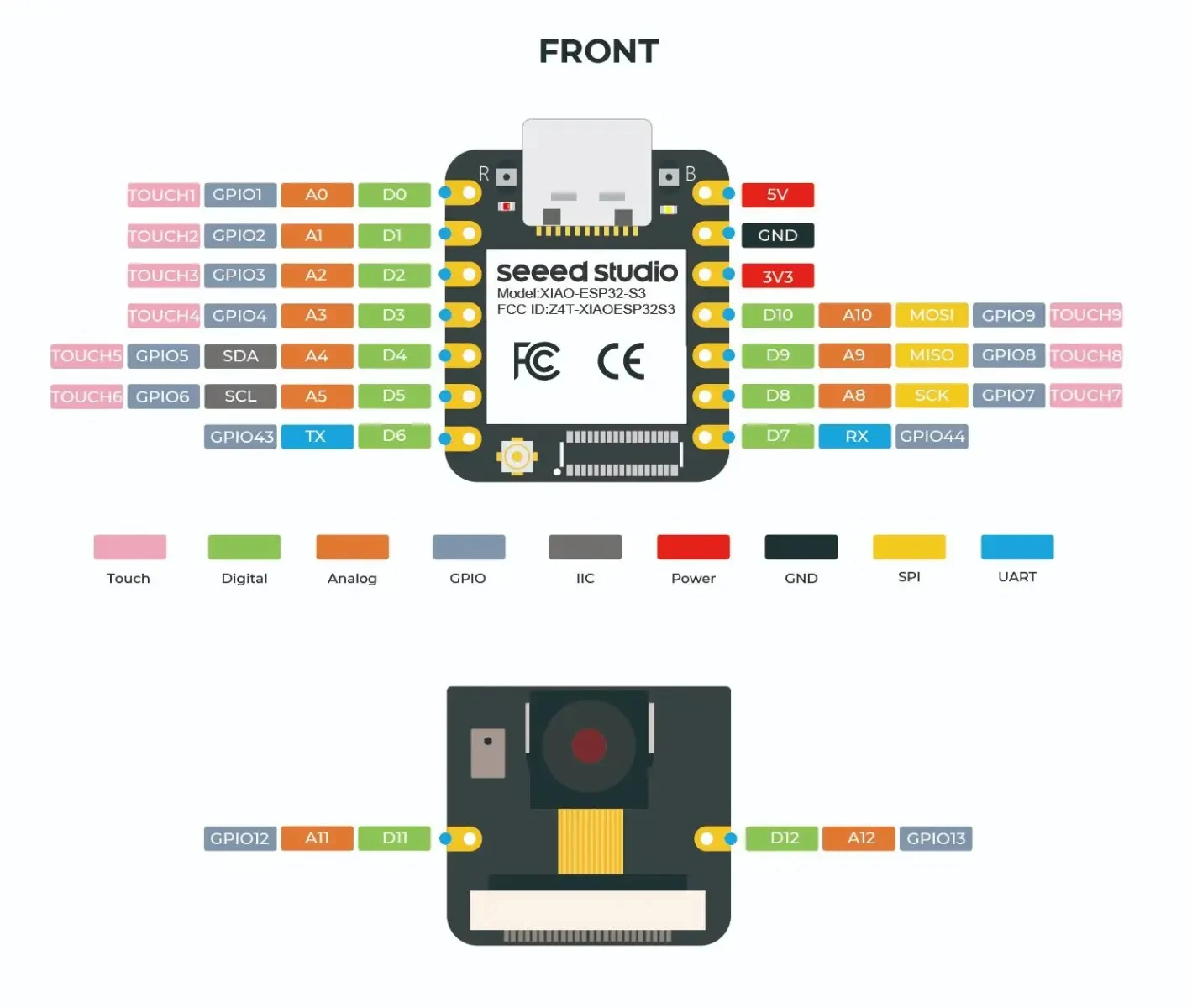

lnterface | 1x UART,1x IIC,1x llS,1x SPl,11xGPIOs (PWM)，9x ADC,1x User LED,1x Charge LED | 1x UART,1x lIC,1x lIS,1x SPI,11x GPIOs (PWM),9xADC，1x User LED, 1x Charge LED,1x B2B Connector(with 2 additional GPIOs) |
Dimensions | 21 x 17.8mm | 21 x 17.8 x 15mm (with expansion board) |
Power | Input voltage (Type-C): 5V | |
Circuit operating Voltage (ready to operate): | Circuit operating Voltage (ready to operate): | |
/ | Webcam Web application: | |
/ | Microphone recording & SD card writing:- Type-C: | |
Charging battery current：100mA | Charging battery current：100mA | |
Low Power Consumption Model | Modem-sleep Model:~ 25mA | Modem-sleep Model: ~44mA |
Wi-Fi Enabled Power Consumption | Active Model: ~ 100 mA | Active Model: ~ 110 mA (with expansion board) |
BLE Enabled Power Consumption | Active Model: ~85 mA | Active Model: ~ 102 mA (with expansion board) |
Working Temperature | -40°C ~65°C |
Application

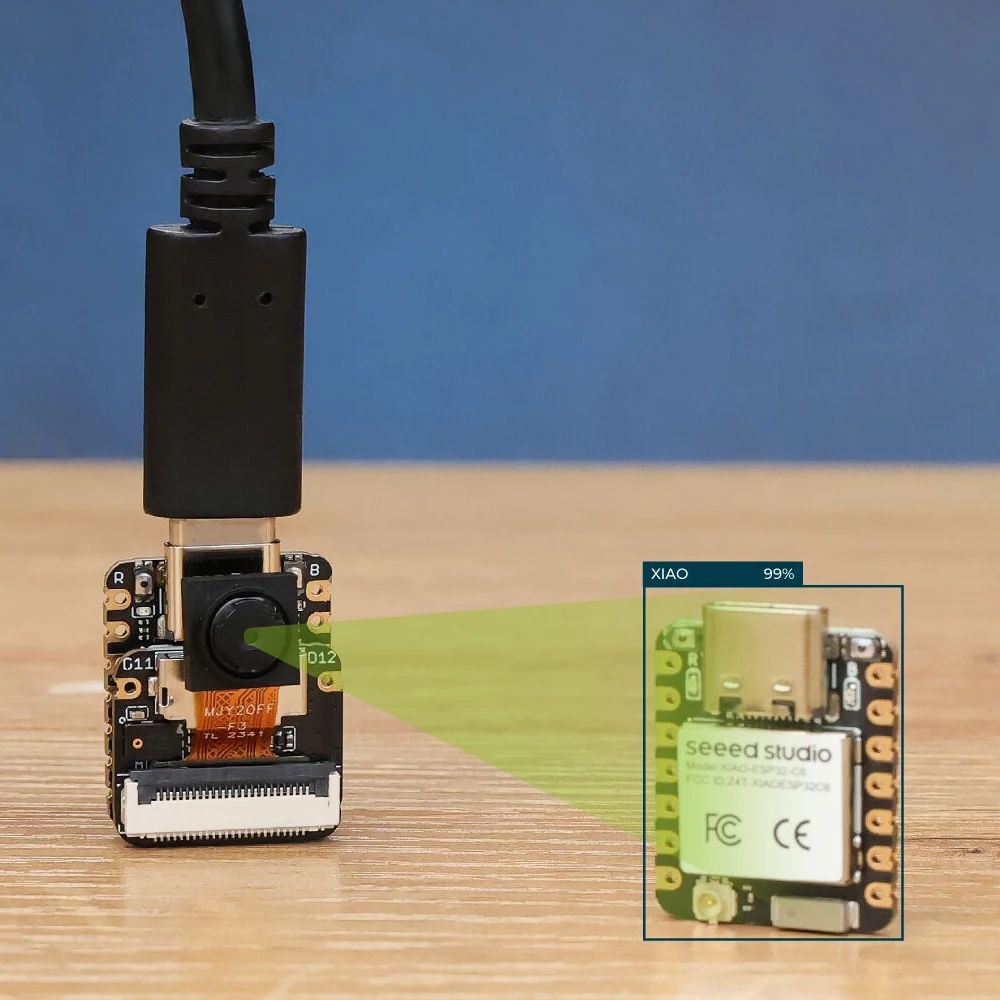

Image processing
Speech Recognition
Video Monitoring
Wearable devices
Smart Homes
Health monitoring
Education
Low-Power(LP) networking
Rapid prototyping

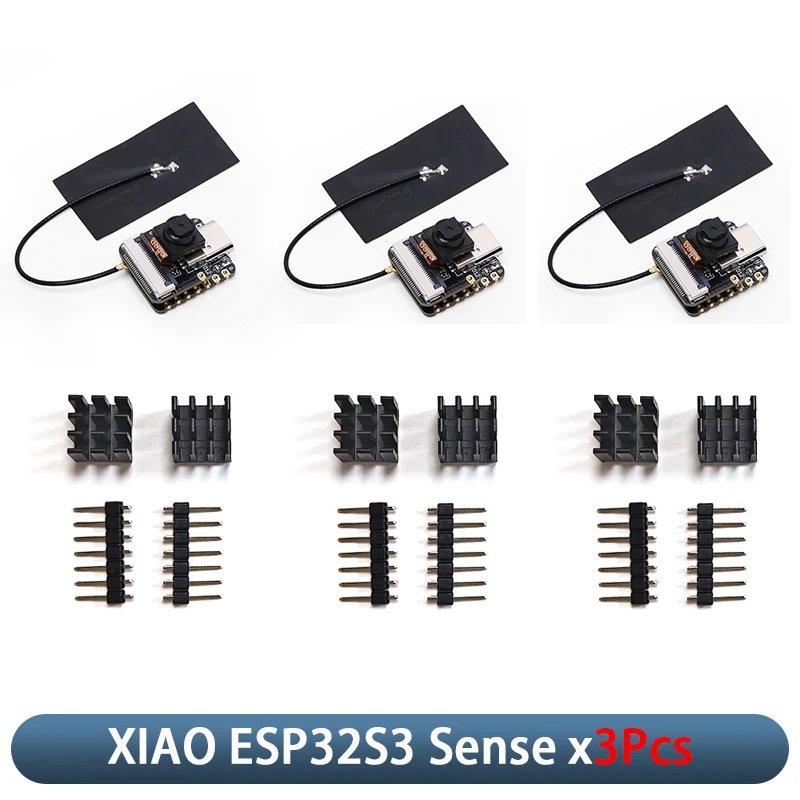

x1No welding-Plug-in camera sensor board
x1-Heat Sink For XIAO
x2-7 Pin Header
x2-Antenna
x1Note*There are two additional GPIO on the plug-in camera sensor board linking to the microphone. If you want to apply these two external IO, the microphone should not be used at the same time.
