Product Description

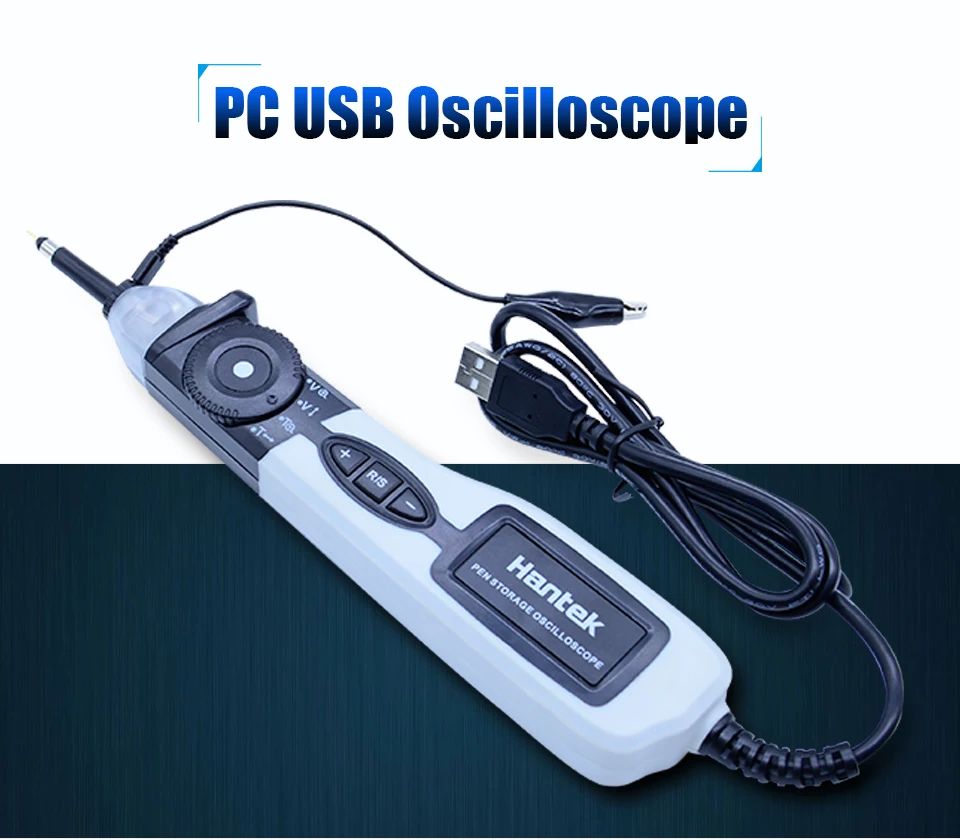

Hantek PSO2020 Portable Pen Storage USB Oscilloscope 20MHz Bandwidth 96MSa/s Diagnostic-tool
Hantek PSO2020 Portable Pen Storage USB Oscilloscope 20MHz Bandwidth 96MSa/s Diagnostic-toolHantek PSO2020 Portable Pen Storage USB Oscilloscope 20MHz Bandwidth 96MSa/s Diagnostic-tool

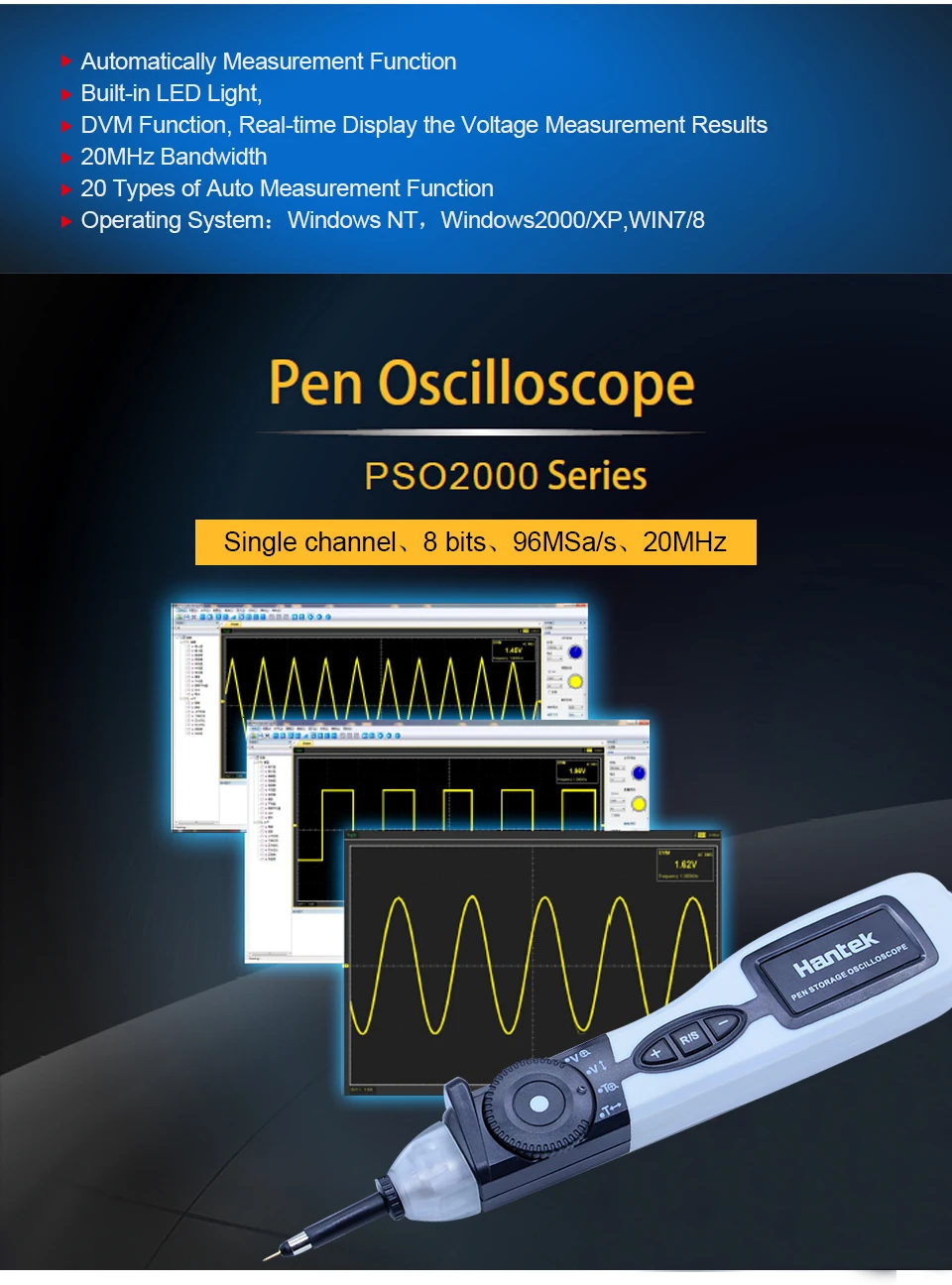

Features
1.Powered by USB Interface. Plug and Play Device. Automatically Measurement Function. Easy for Operation;
2.Change the Voltage/Time Division Gear with Single Hand. No Need to Operate on the Computer;
3.Built-in LED Light, Providing Better Light for User's Convenient Operation in Dark Environment;
4.Light Weight and Portable. Suitable for Human Body's Design;
5.DVM Function, Real-time Display the Voltage Measurement Results;
6.20MHz Bandwidth. Meet the Requirements of Measurement;

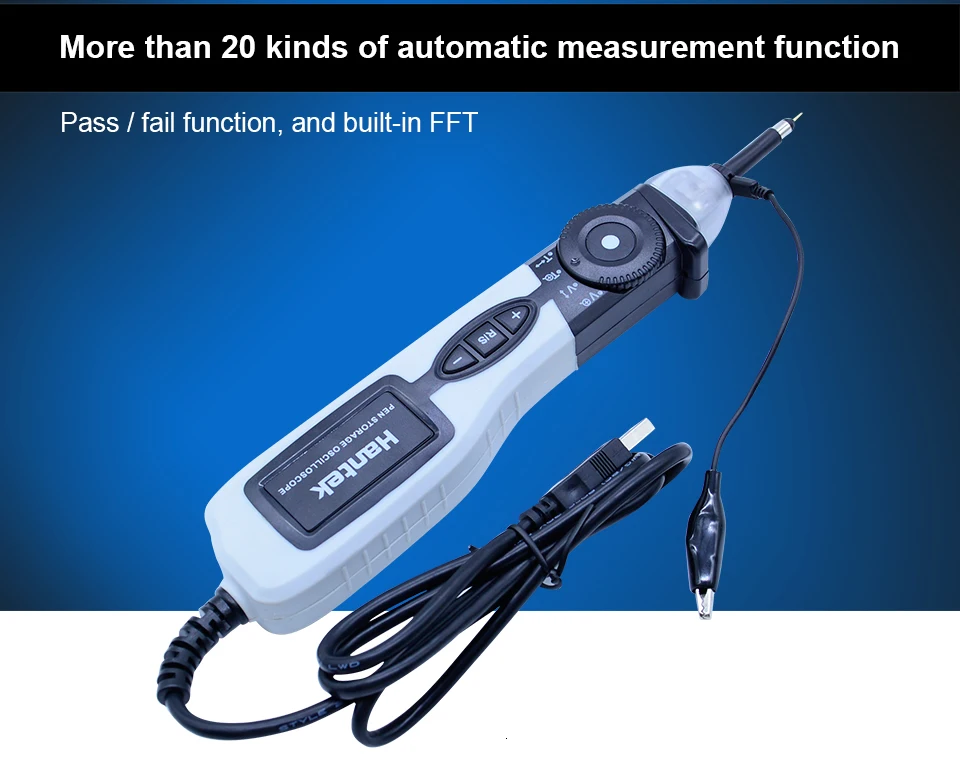

7.Different Kinds of Language Available. 20 Types of Auto Measurement Function, Pass/Fail Function;

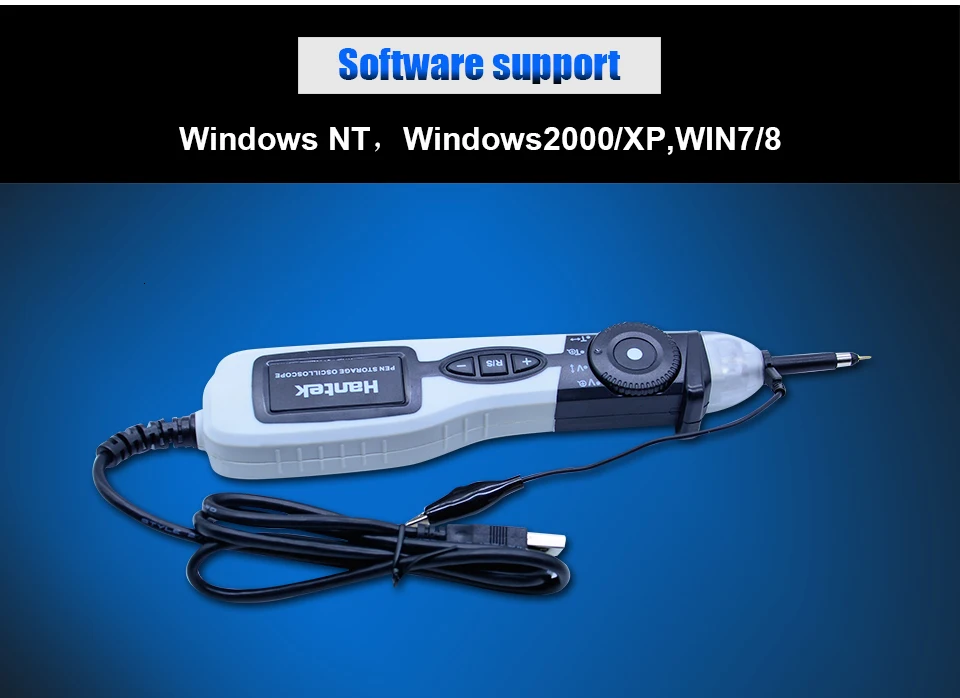

8.Operating System:Windows NT,Windows2000/XP,WIN7/8;
9.Possible to Connect to Laptop Directly. High Cost Performance.

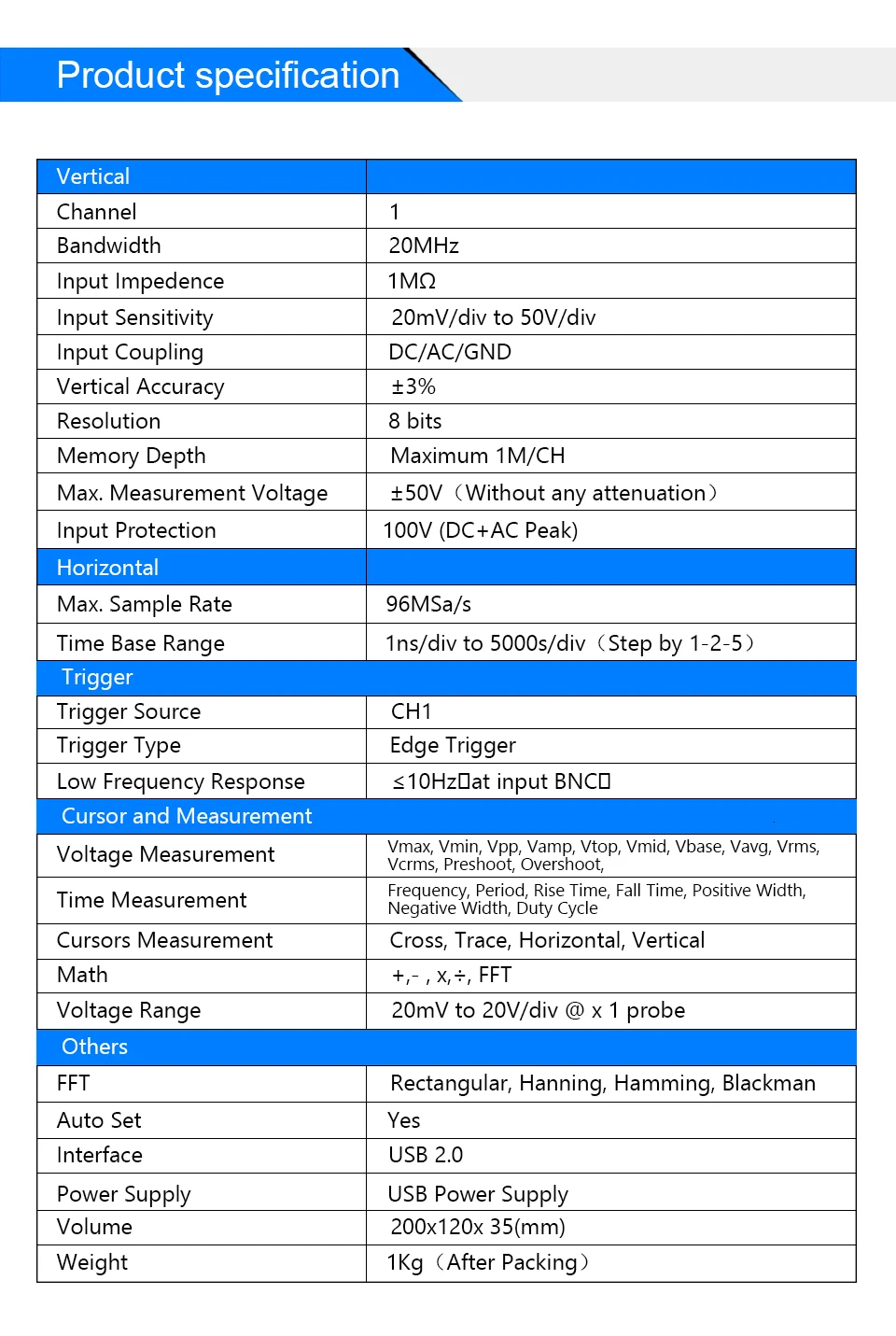

Specifications
Vertical | |
Channel | 1 |
Bandwidth | 20MHz |
InputImpedence | 1MΩ |
InputSensitivity | 20mV/divto50V/div |
InputCoupling | DC/AC/GND |
VerticalAccuracy | ±3% |
Resolution | 8bits |
MemoryDepth | Maximum1M/CH |
Max.MeasurementVoltage | ±50V(Withoutanyattenuation) |
InputProtection | 100V(DC+ACPeak) |
Horizontal | |
Max.SampleRate | 96MSa/s |
TimeBaseRange | 1ns/divto5000s/div(Stepby1-2-5) |
Trigger | |
TriggerSource | CH1 |
TriggerType | EdgeTrigger |
CursorandMeasurement | |
VoltageMeasurement | Vmax,Vmin,Vpp,Vamp,Vtop,Vmid,Vbase,Vavg,Vrms,Vcrms,Preshoot,Overshoot, |
TimeMeasurement | Frequency,Period,RiseTime,FallTime,PositiveWidth,NegativeWidth,DutyCycle |
CursorsMeasurement | Cross,Trace,Horizontal,Vertical |
Math | +,-,x,÷,FFT |
VoltageRange | 20mVto20V/div@x1probe |
Others | |
FFT | Rectangular,Hanning,Hamming,Blackman |
AutoSet | Yes |
Interface | USB2.0 |
PowerSupply | USBPowerSupply |
Volume | 200x120x35(mm) |
Weight | 1Kg(AfterPacking) |

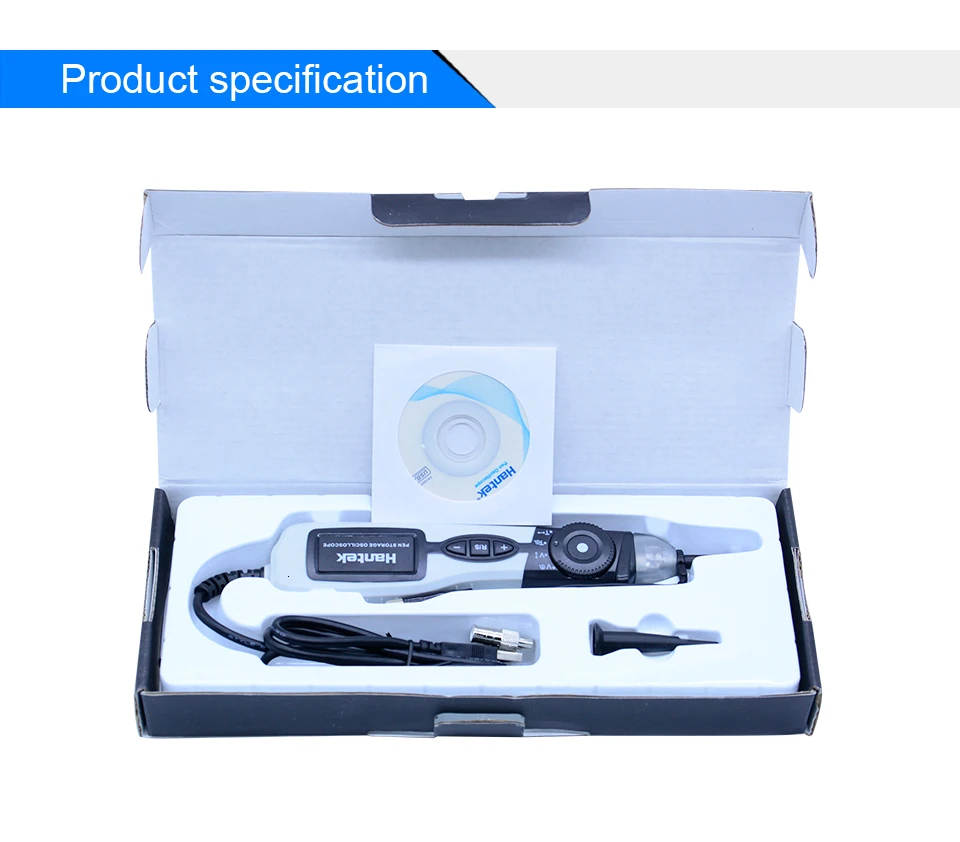

Packing List:
1*PC USB pen type oscilloscope
1*CD
1*Color box
