AtomS3 Lite ESP32-S3 Programmable Controller Embedded IoT Application for IoT I

Product Description

Features

1. ESP32-S3FN8 Microcontroller:

Powered by the ESP32-S3FN8, AtomS3 Lite delivers efficient processing with built-in Wi-Fi, 8MB of SPI flash, and a 3D antenna for enhanced connectivity.

2. Compact Design:

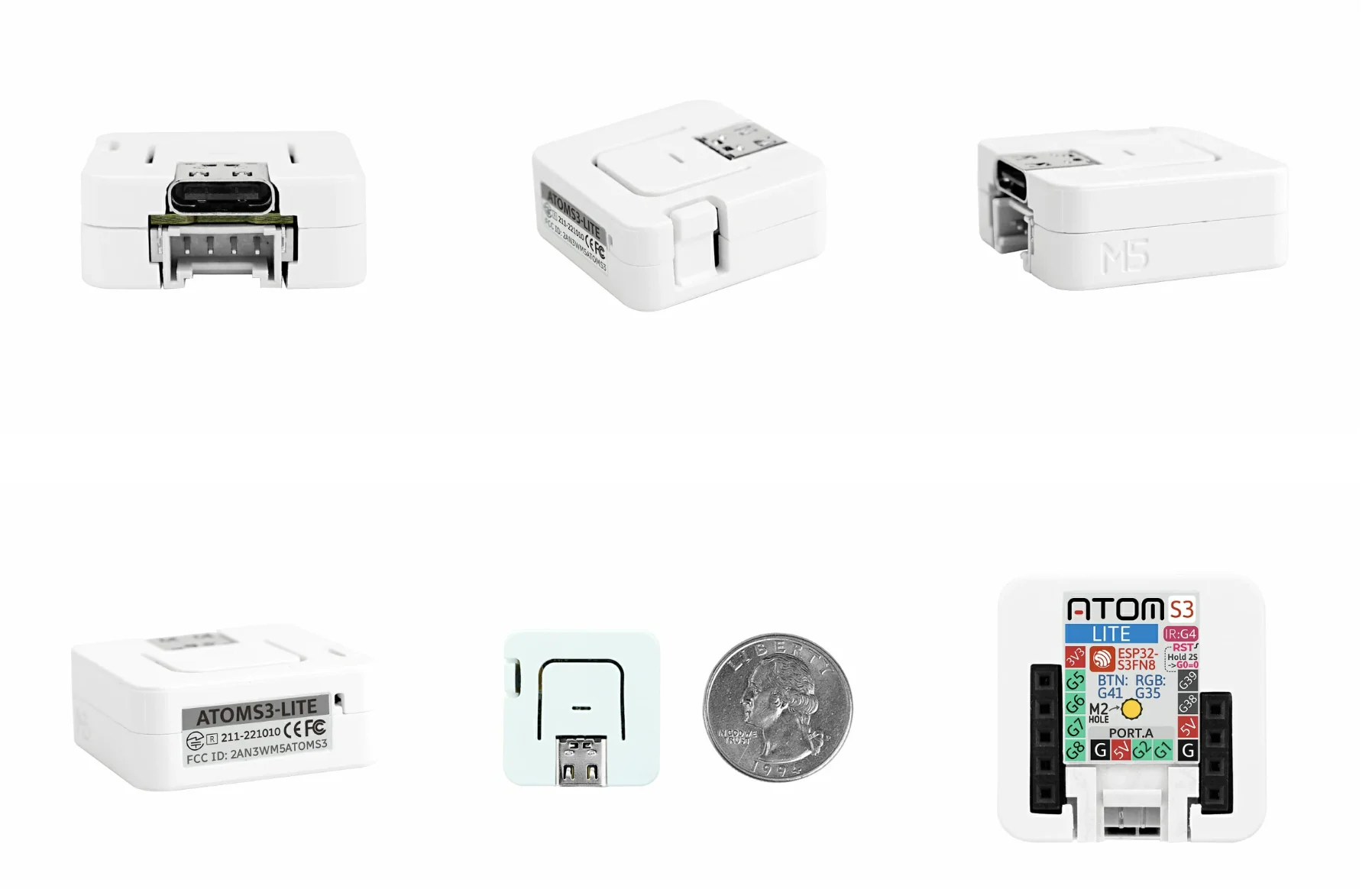

With a size of just 24x24x9.5mm, AtomS3 Lite is an ultra-compact programmable controller, perfect for embedded applications and space-constrained projects.

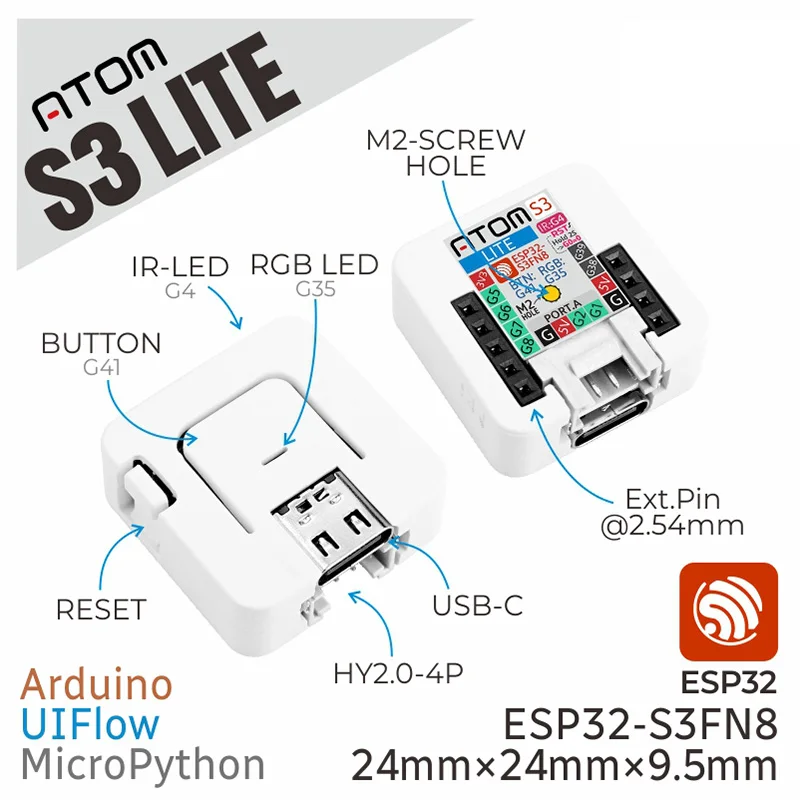

3. Infrared Emission & RGB Indicators:

AtomS3 Lite is equipped with an infrared emitter for remote control functions and RGB status indicators (WS2812C-2020) for visual feedback in your projects.

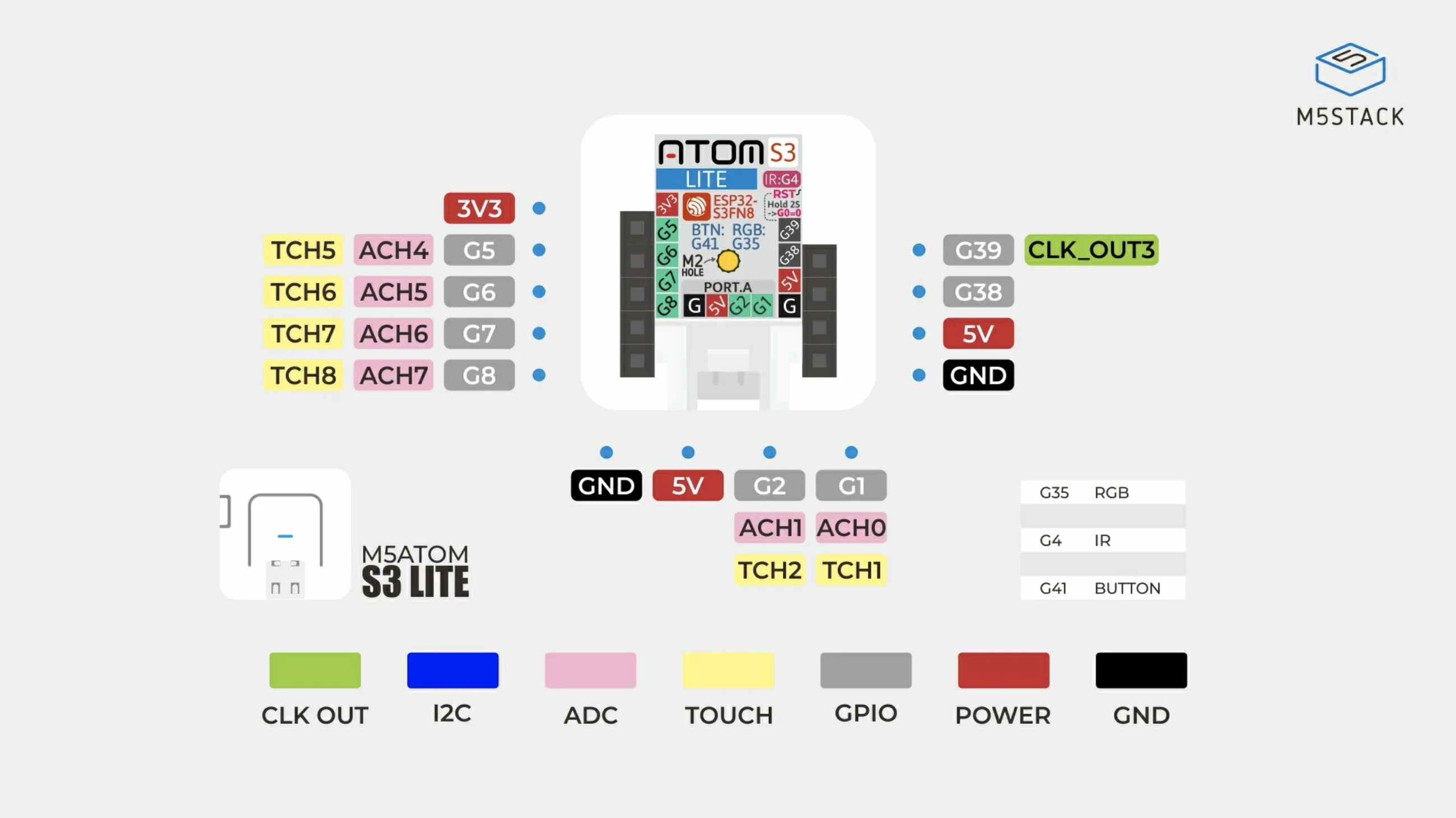

4. Expandable GPIOs & Interfaces:

The device provides 6 GPIO headers and a GROVE/HY2.0-4P interface for easy expansion, allowing the addition of sensors, actuators, and other peripherals.

5. Type-C USB Interface:

The built-in Type-C USB port supports quick program downloads and serial communication, making development fast and efficient.

6. Programmable Button:

A customizable button enables easy user input for a wide variety of applications, from IoT nodes to wearables.

**Compact and Powerful**

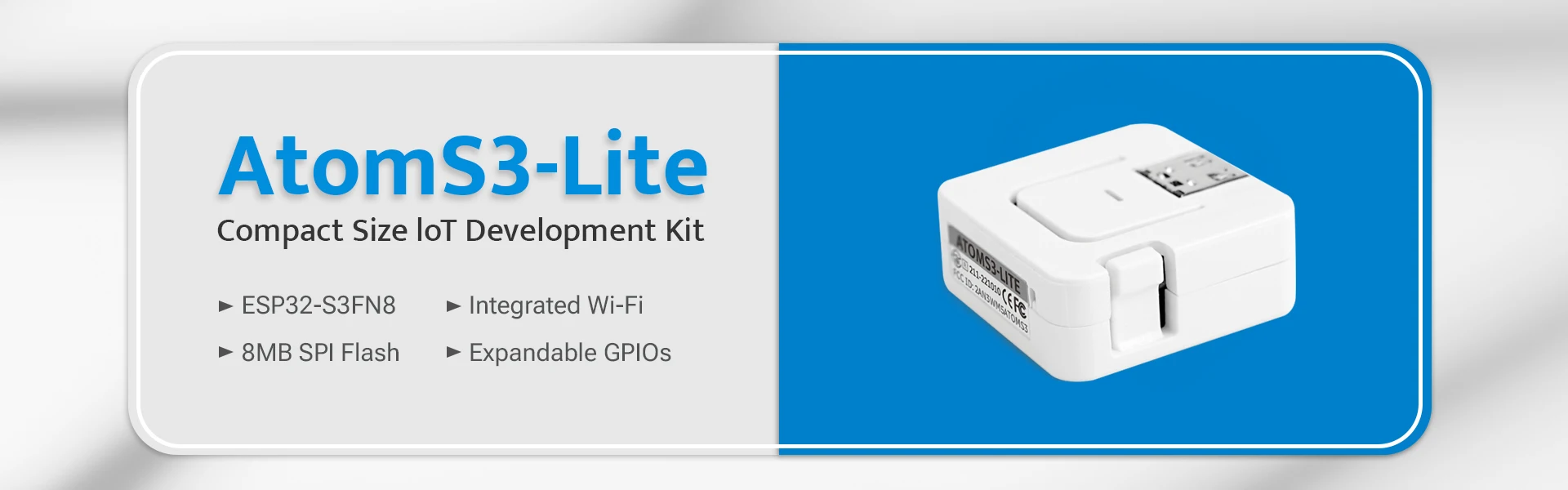

The M5Stack Official AtomS3 Lite Kit with ESP32-S3FN8 is a highly compact and efficient programmable controller designed for embedded systems, IoT nodes, and wearable devices. At just 24x24x9.5mm, it offers powerful features in a small package, including infrared emission, RGB status indicators, and multiple GPIOs for project expansion. The USB Type-C interface allows for quick programming and communication, making AtomS3 Lite an ideal tool for fast prototyping and long-term applications alike.

**Versatile Expansion and Control**

AtomS3 Lite supports a wide range of expansion options with its 6 GPIO pins and GROVE/HY2.0-4P interface, allowing users to easily integrate sensors and peripherals into their projects. The infrared emitter and RGB indicators offer additional control and feedback options, making it perfect for smart home devices, automation systems, and interactive applications.

**Efficient Power Management and Design**

With a built-in 5V to 3.3V power circuit and Type-C power supply, AtomS3 Lite ensures stable operation and easy development. The M2 screw hole on the back provides secure mounting for embedded projects, while its lightweight design (5.3g) ensures portability. Whether for rapid prototyping or IoT applications, AtomS3 Lite offers powerful performance in a compact form.

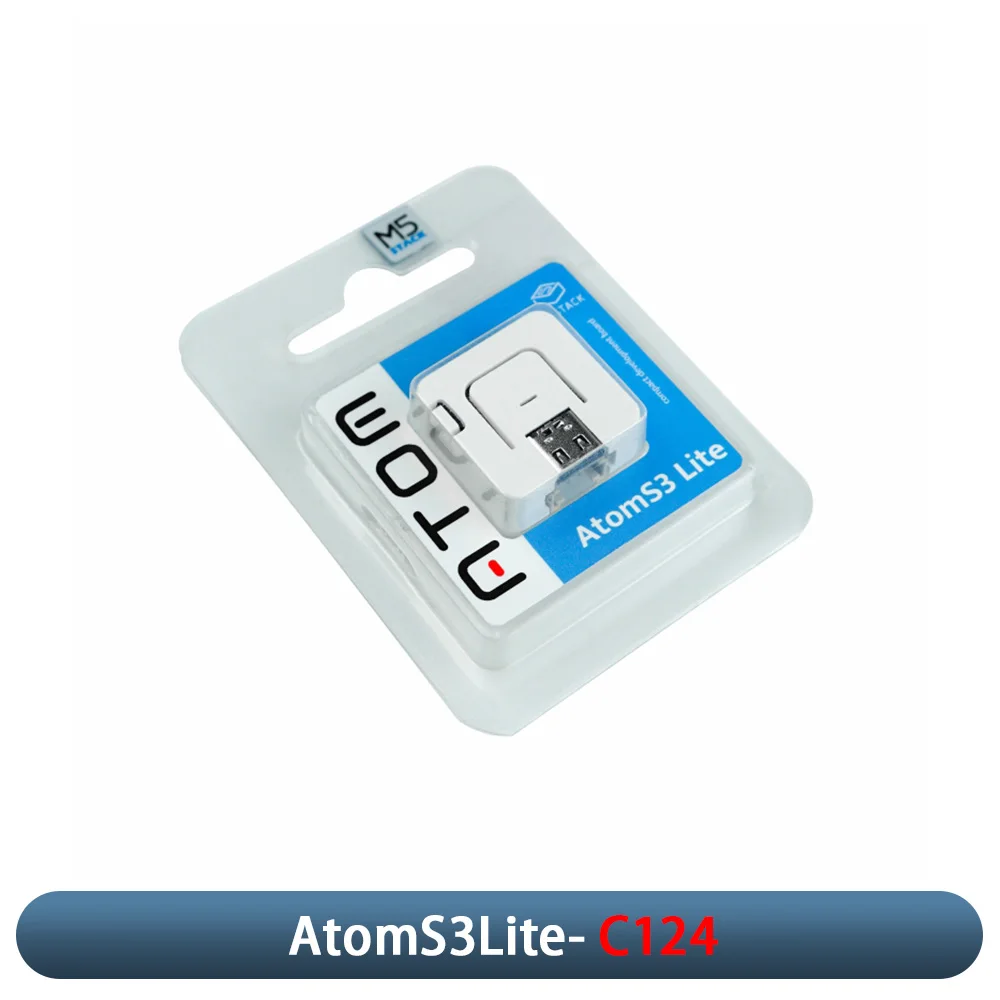

Includes

1x AtomS3 Lite

Applications

* IoT node

* Microcontroller

* Wearables

Product details

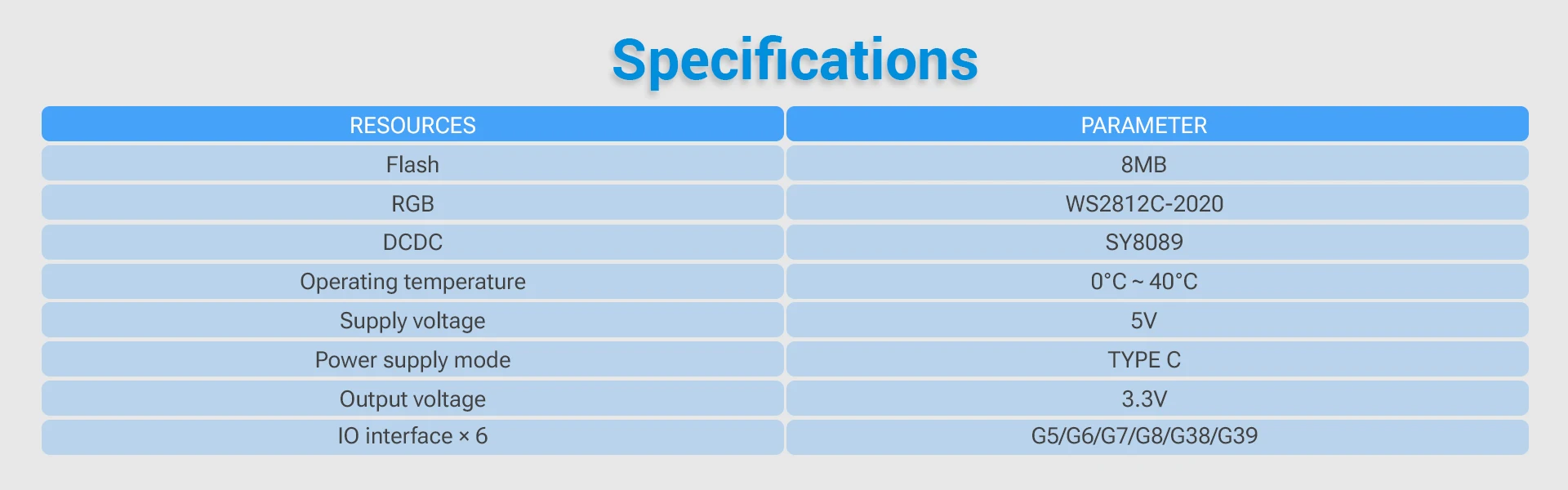

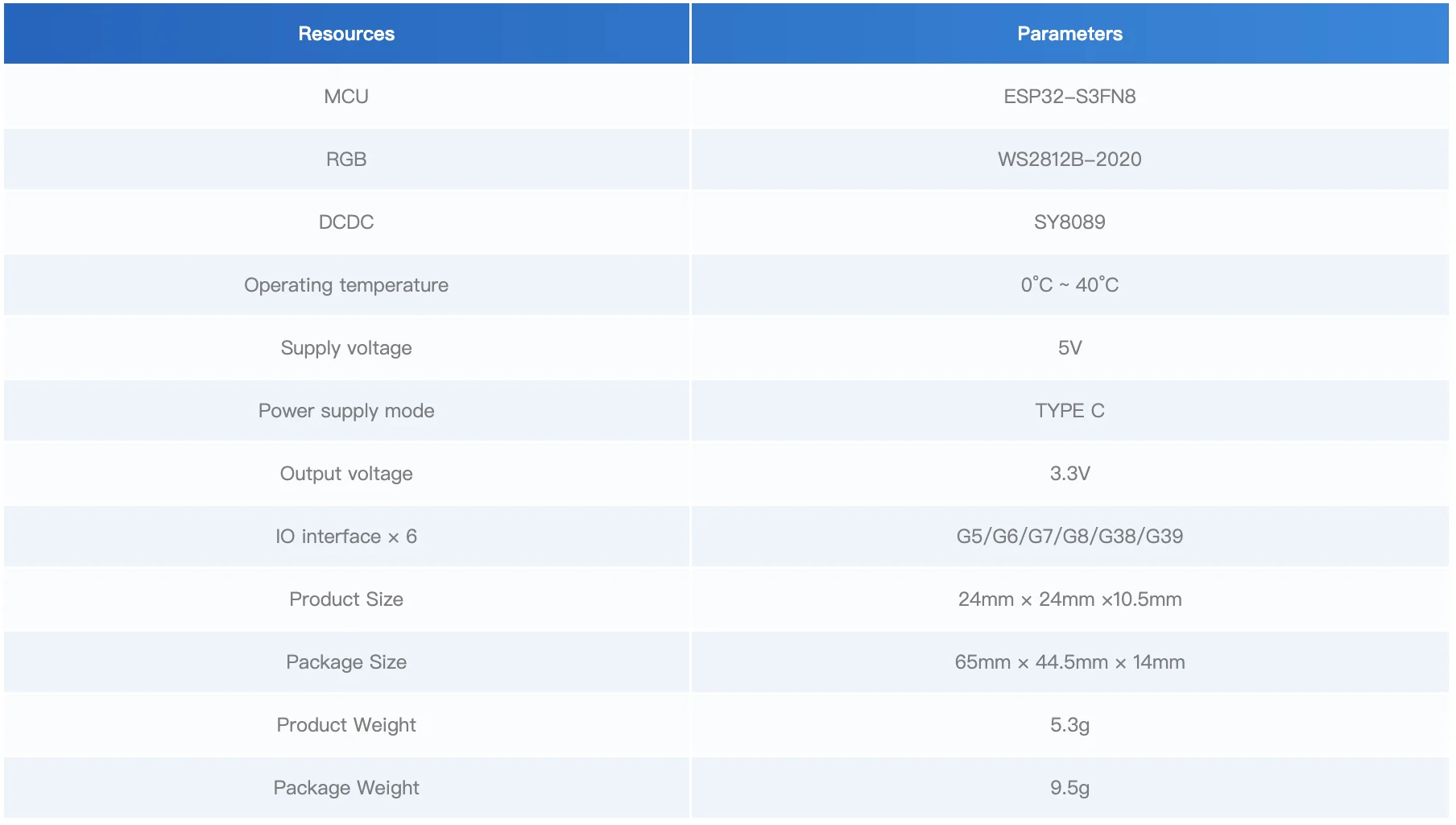

Specification

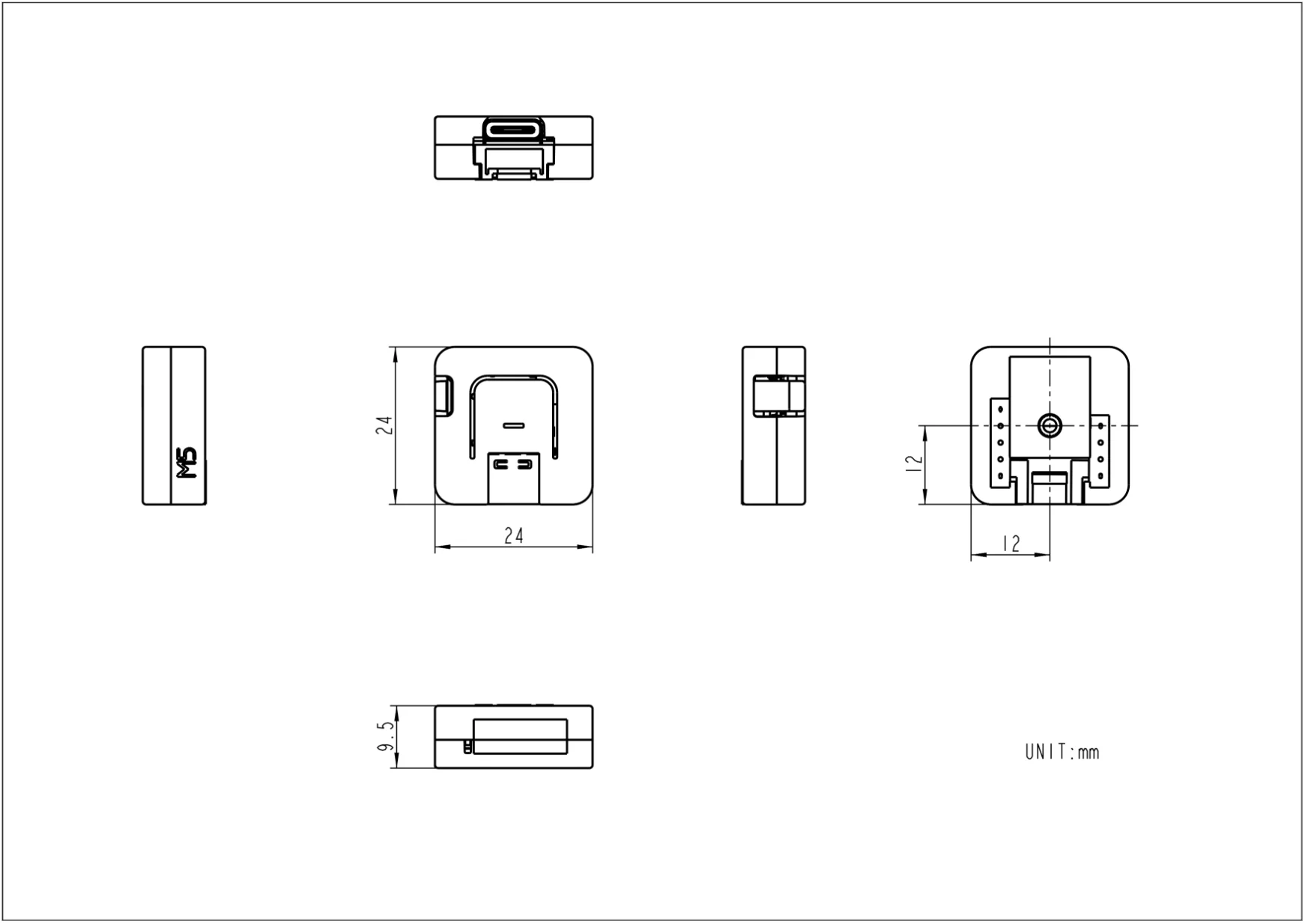

Module Size

Schematic
