Product Description
Original XIAO ESP32-C6 Mini Development Board Module 2.4GHz WiFi6 BlE 5.0 for Arduino IoT Intelligent system Zigbee Thread
Original XIAO ESP32-C6 Mini Development Board Module 2.4GHz WiFi6 BlE 5.0 for Arduino IoT Intelligent system Zigbee Threadseeed studio XIAO ESP32-C6 optional Mini Development Board Module 2.4GHz WiFi,BlE 5.0,for Arduino IoT Intelligent systemXIAO ESP32-C6 Introduction:

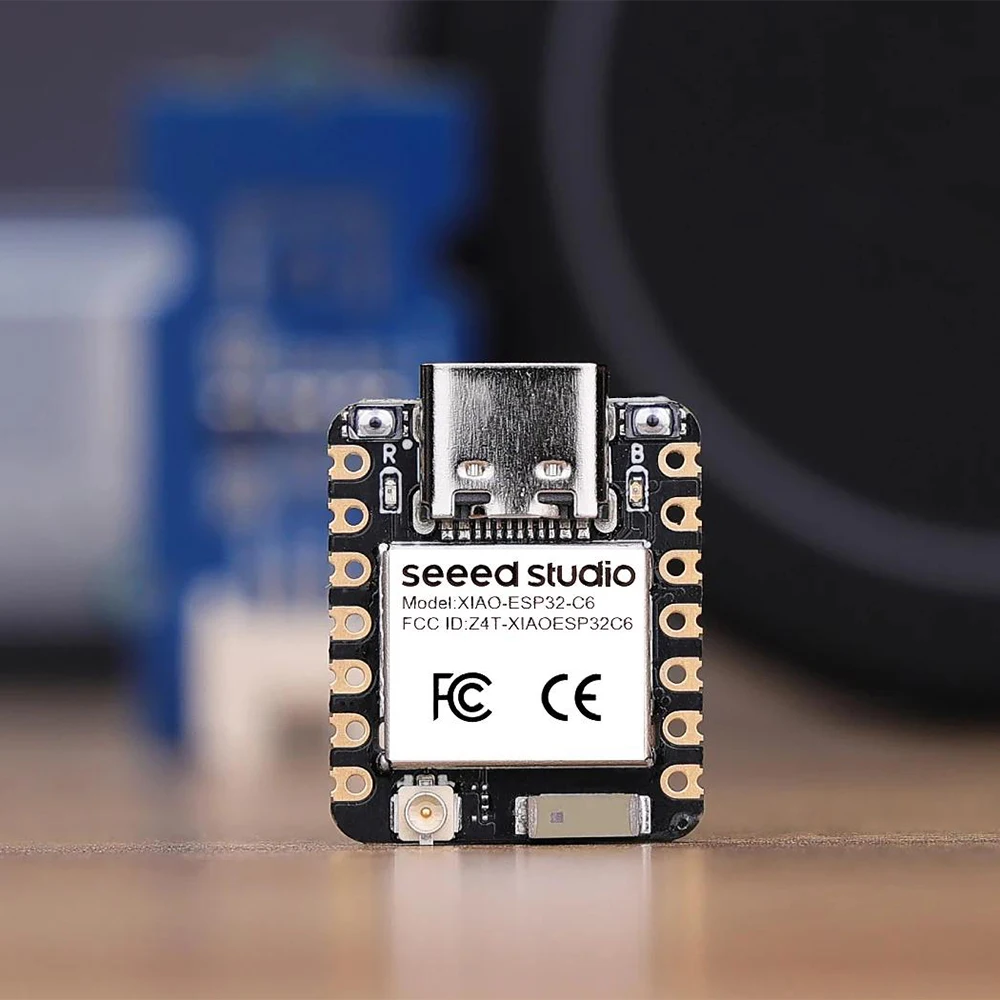

Seeed Studio XIAO ESP32C6 is powered by the highly-integrated ESP32-C6 SoC, built on two 32-bit RISC-V processors, with a high-performance (HP) processor with running up to 160 MHz, and a low-power (LP) 32-bit RISC-V processor, which can be clocked up to 20 MHz. There are 512KB SRAM and 4 MB Flash on the chip, allowing for more programming space, and binging more possibilities to the IoT control scenarios.
XIAO ESP32C6 is Matter native thanks to its enhanced wireless connectivity. The wireless stack supports 2.4 GHz WiFi 6, Bluetooth® 5.3, Zigbee, and Thread (802.15.4). As the first XIAO member compatible with Thread, it's a perfect fit for building Matter-compliant projects, thus achieving interoperability in smart-home.
ESP32-C6 Features
*Enhanced Connectivity: Integrates 2.4 GHz Wi-Fi 6 (802.11ax), Bluetooth 5(LE), and IEEE 802.15.4 radio connectivity, allowing for the application of Thread and Zigbee protocols.
*Matter Native: Supports the building of Matter-compliant smart home projects, ensuring interoperability among different smart devices.
*Security Encrypted on Chip: Utilizes the ESP32-C6 to provide secure boot, encryption, and Trusted Execution Environment (TEE) features, enhancing the security of smart home projects.

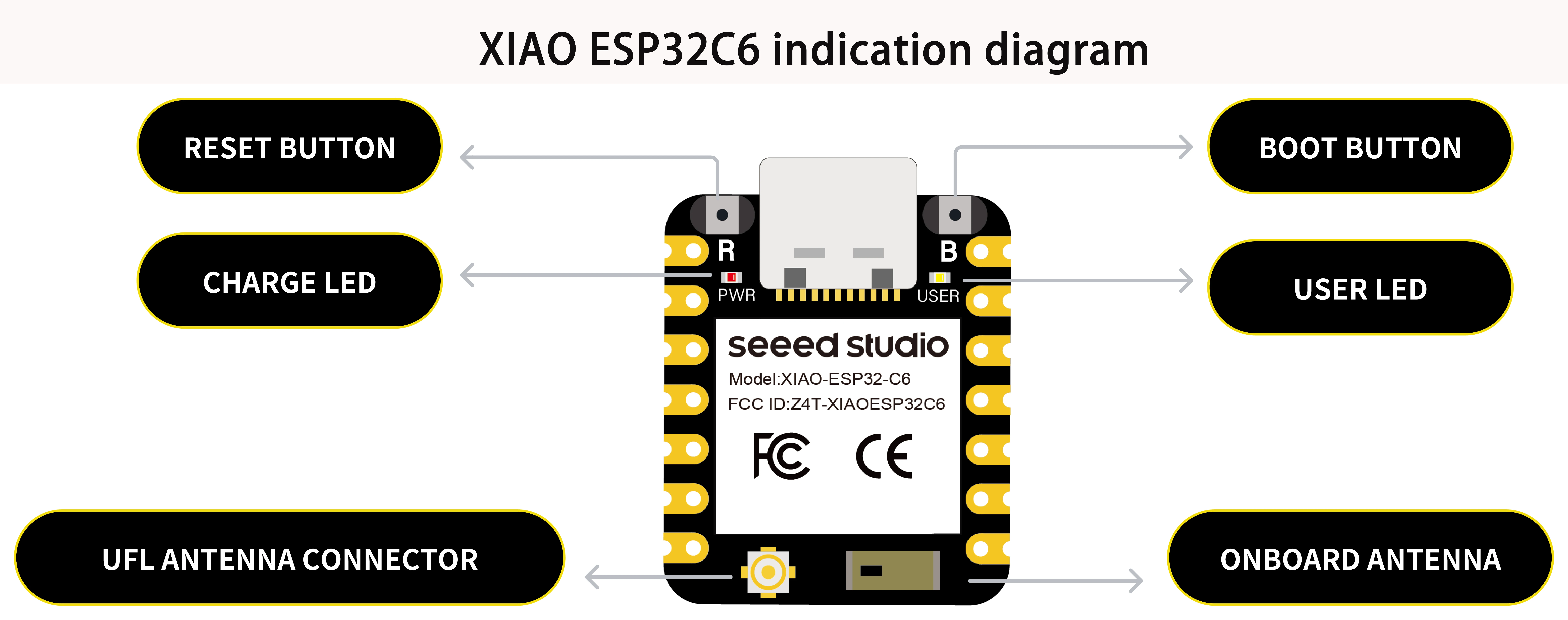

*Outstanding RF Performance: Features an on-board antenna with up to 80m BLE/Wi-Fi range and offers an interface for connecting an external UFL antenna, ensuring reliable connectivity.
*Leveraging Power Consumption: Offers four working modes, including a deep sleep mode with consumption as low as 15 μA, along with support for lithium battery charge management.
*Dual RISC-V Processors: Incorporates two 32-bit RISC-V processors, with the high-performance processor capable of running up to 160 MHz and the low-power processor up to 20 MHz.
*Classic XIAO Designs: Maintains the thumb-size form factor of 21 x 17.8mm and single-sided mount design, ideal for space-limited projects like wearable devices.
Packing list
-ESP32C6x1 (No welding)
-7 Pin Headerx2
Specifications contrast
Products | XIAO ESP32C6 | XIAO ESP32C3 | XIAO ESP32S3 | |
Processor | Espressif ESP32-C6 SoC | Espressif ESP32-C3 SoC | Espressif ESP32-S3R8 | |
Two 32-bit RISC-V processors, with the high-performance one running up to 160 MHz, and the low-power one clocking up to 20 MHz | RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz | Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz | ||
Wireless | Complete 2.4GHz Wi-Fi 6 subsystem | Complete 2.4GHz Wi-Fi subsystem | ||
BLE: Bluetooth 5.0, Bluetooth Mesh | BLE: Bluetooth 5.0, Bluetooth Mesh | BLE: Bluetooth 5.0, Bluetooth Mesh | ||
Zigbee,Thread,IEEE 802.15.4 | / | / | ||
On-chip Memory | 512KB SRAM & 4MB Flash | 400KB SRAM & 4MB Flash | 8M PSRAM & 8MB Flash | |

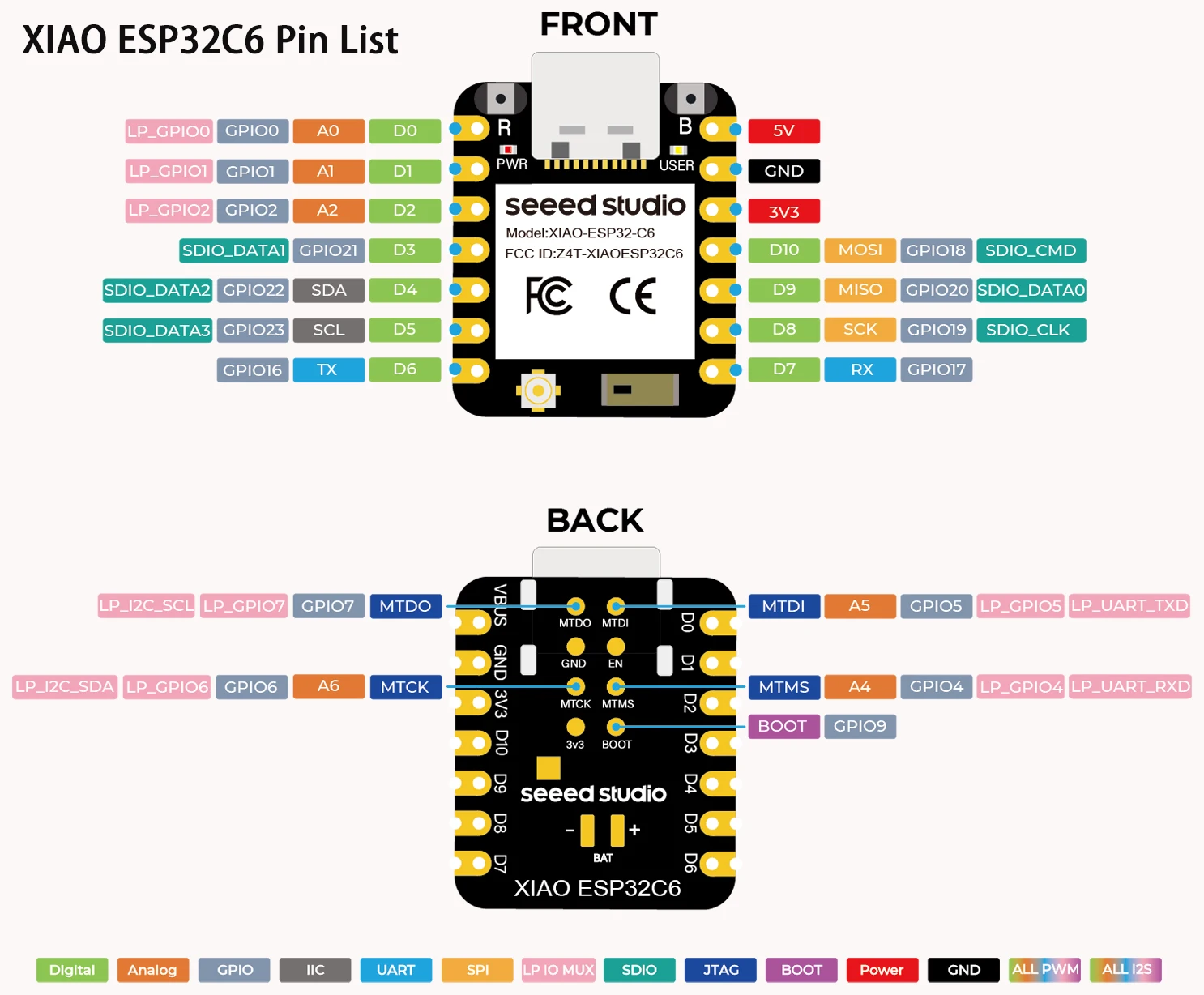

Interface | 1x UART,1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI,11x GPIO(PWM), 7x ADC, 1xSDIO | 1x UART, 1x IIC, 1x SPI,11x GPIO(PWM), 4x ADC | 1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED | |
1x Reset button, 1x Boot button | ||||
Dimensions | 21x18mm | |||
Power | Input voltage | Type-C: 5V | ||
Circuit operating Voltage (ready to operate) | USB:5V@9mA | Type-C: 5V@19mA | ||
Charging battery current | 100mA | 350mA | 100mA | |
Power Consumption Model | Modem-sleep Model | ~ 30 mA | ~ 24 mA | ~ 25 mA |
Light-sleep Model | ~ 2.5 mA | ~ 3 mA | ~ 2 mA | |
Deep Sleep Model | ~ 15 mA | ~ 44 mA | ~ 14 mA | |
Working Temperature | -40°C ~ 85°C | -40°C ~ 65°C |
Product details

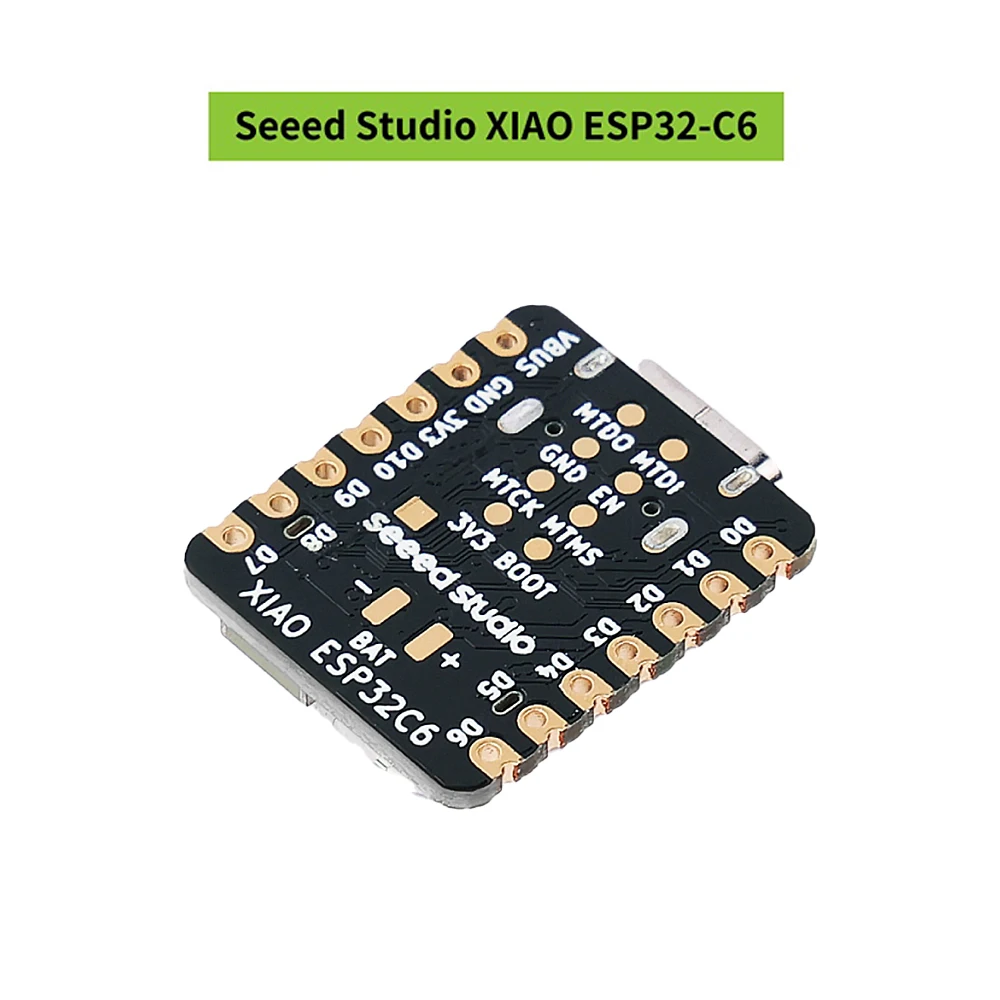

XIAO ESP32-C6
