Product Description
Vacuum Glass Lifter with Vacuum Lifting Machines, Top Sucker, Spider Fork, Skewer Loading Suction Cups
Vacuum Glass Lifter with Vacuum Lifting Machines, Top Sucker, Spider Fork, Skewer Loading Suction Cups

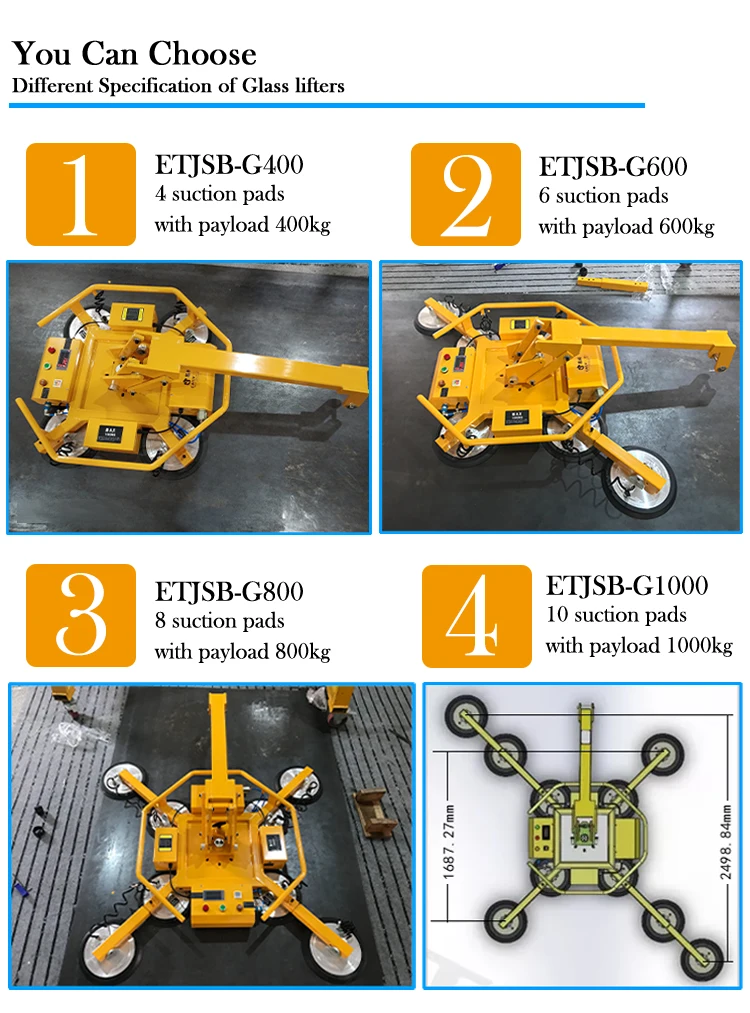

| Model | ETJSB-G400 | ETJSB-G600 | ETJSB-G800 | ETJSB-G1000 |
| Capacity | 400kg | 600kg | 800kg | 1000kg |
| Suction pad dia. | 300mm | |||
| Suction pad qty. | 4pcs | 6pcs | 8pcs | 10pcs |
| Dimension | 800*850*290mm | 1800*850*290mm | 1800*1750*290mm | 1800*2600*290mm |
| Turnover | Manual 90 | |||
| Rotation | Manual 360 | |||
| Battery | 12V | |||
| Supply power | 220V/360V/380V | |||
| Net weight | 115kg | 127kg | 139kg | 151kg |
| Size in wooden case | 1230*1040*380mm | |||
| Gross weight | 137kg | 149kg | 161kg | 173kg |
| Max Workpieces Size | 1300*1300 | 2200*2200 | 2200*2800 |
General Descriptions:
Lifterboy vacuum lifter is specially designed for metal sheet logistics and transportation. They are mainly used for loading and unloading of metal processing equipment such as laser cutting machine and laser machine, as well as warehouse transportation of metal plates, installation of new composite materials such as metal cold storage panels, etc. It can be used with crane, forklift, manipulator, outdoor crane and other equipment, the scope of application is very wide.So far, we got 3 models of lifterboy vacuum lifter to cover lifting capacity from 150kg to 1000kg.
l Lifterboy Basic, capacity 100kg~200kg
l Lifterboy Light-Load, capacity 300kg
l Lifterboy Heavy-Load, capacity 600kg~1000kg
And each model has 3 supply modes to choose,
-Plug-in type, sustainable use, stable
-Rechargeable, easy to use, good mobility
-Pneumatic, energy saving and environmental protection (need air compressor)
| No. | Parts | Specification | Unit | Quantity |
| 1 | Lifting Handle | original brand | pc | 1 |
| 2 | Vacuum pump | original brand | pc | 1 |
| 3 | Vacuum Air Filter | pc | 1 | |
| 4 | Suction Pads | 300mm | pc | 1 |
| 5 | PLC Pressure Display | pc | 1 | |
| 6 | Blue Vacuum Controller | 300mm | pcs | 4-10(TBD) |
| 7 | Buzzer | original brand | pc | 1 |
| 8 | Power Switch | pc | 1 | |
| 9 | Alram Lamp | set | 1 | |
| 10 | Battery | DC 14.4V | set | 2 |
| 11 | Eccentric positioner | pc | 1 | |
| 12 | Latch | set | 1 | |
| 13 | Digital Pressure Gauge | pcs | 2 | |
| 14 | Control Handle | pc | 1 | |
| 15 | Beam | pc | 1 | |
| 16 | One-way Valve | pcs | 4-10(TBD) |
Applications:
# for feeding and unloading to laser cutting machine, flame cutting machine, shearing machine, etc.# for stainless copper sheet,aluminum sheet,metal sheet transportation and logistics.
# for stone plate, glass elements, acrylic plate and so on, in-door and out-door use.
