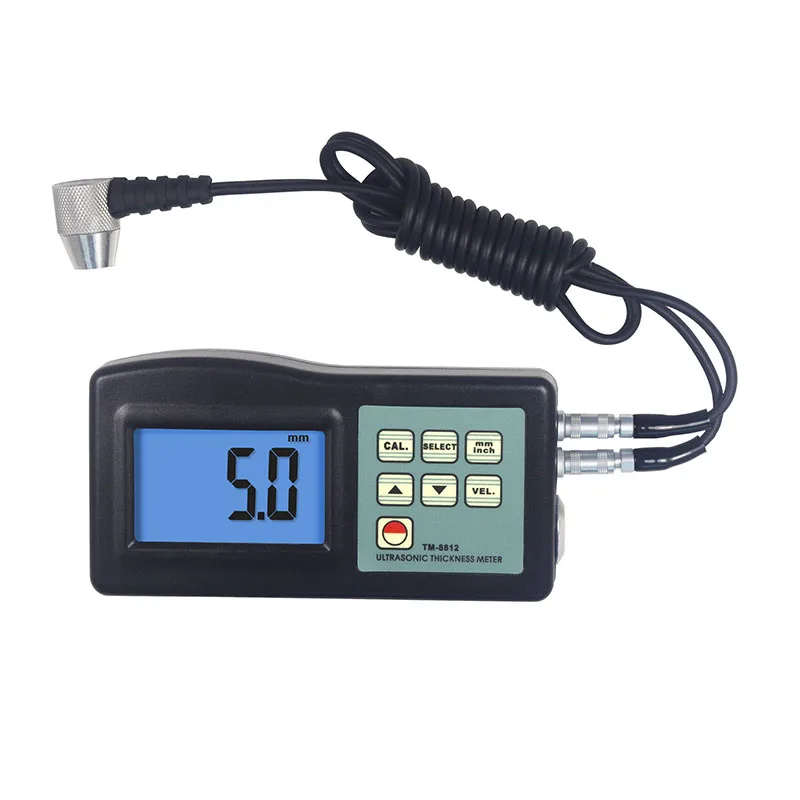

Functional Type TM-8812 TM-8812C Ultrasonic Thickness Gauge 1.2-200mm/0.05-8inch for metal, polyethylene, PVC, etc
Functional Type TM-8812 TM-8812C Ultrasonic Thickness Gauge 1.2-200mm/0.05-8inch for metal, polyethylene, PVC, etcFunctional Type TM-8812 TM-8812C Ultrasonic Thickness Gauge 1.2-200mm/0.05-8inch for metal, polyethylene, PVC, etc
* Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.Material Selections:
Code | Material |
CD01 | Steel |
CD02 | Cast Iron |
CD03 | Aluminum |
CD04 | Red Copper |
CD05 | Brass |
CD06 | Zinc |
CD07 | Quartz Glass |
CD08 | Polyethylene |
CD09 | PVC |
CD10 | Gray Cast Iron |
CD11 | Nodular Cast Iron |
XXXX | Sound Velocity |
Display |
4 Digit, 10 mm LCD | |
Operating Principle | Ultrasonic |
Measuring Range (metric / Imperial) | 1.0~200 mm / 0.04~8 inch |
Battery Indication | Low Battery Indication |
Sound Velocity | 1000~9000 m/s |
Lower Limit Steel Pipes | Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer |
Calibration Block | Included |
Resolution | 0.1 mm (TM-8812C 0.01 mm) |
Accuracy | ± (0.5%n + 0.1) |
Automatic memory material code and the value of sound velocity | |
Power off | Auto Power off & Manual Power Off |
Operating Conditions | Temperature: 0~40 °C, Humidity: < 85 %RH |
Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
Dimensions | 120 x 62 x 30 mm |

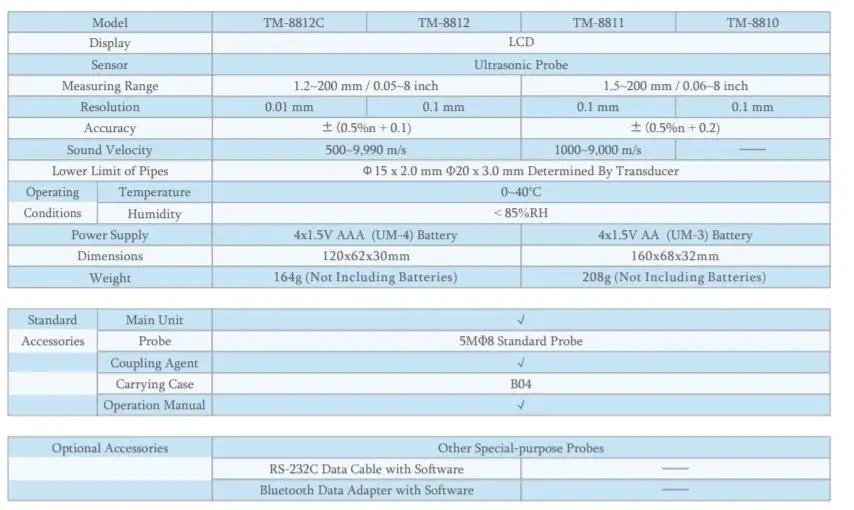

Thickness gauge of TM-8810/TM-8811/TM-8812/M-8812C:
Standard Accessories:
1. Main Unit
2. 5M 8 Standard Sensor
3. Coupling Agent
4. Carrying Case
5. Operating Manual
Optional Accessories:
1. 6M 6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C
2. 5M 12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C
3. Curved Surface Probe
4. USB, RS-232C data cable with software
5. Bluetooth data output with software
