Product Description

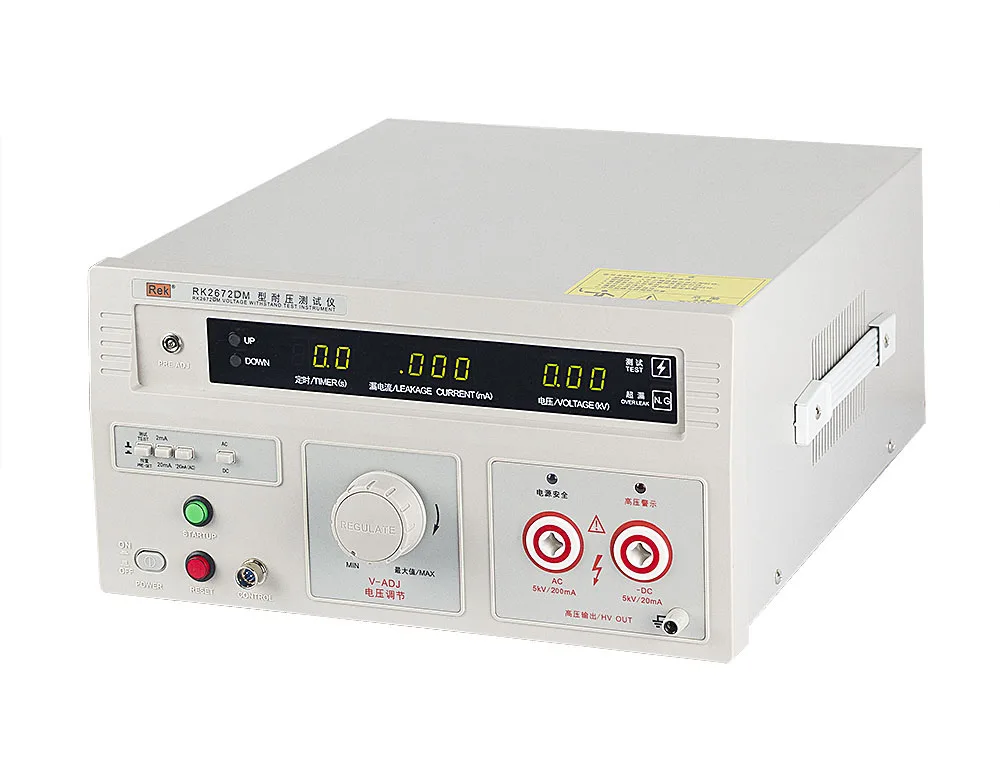

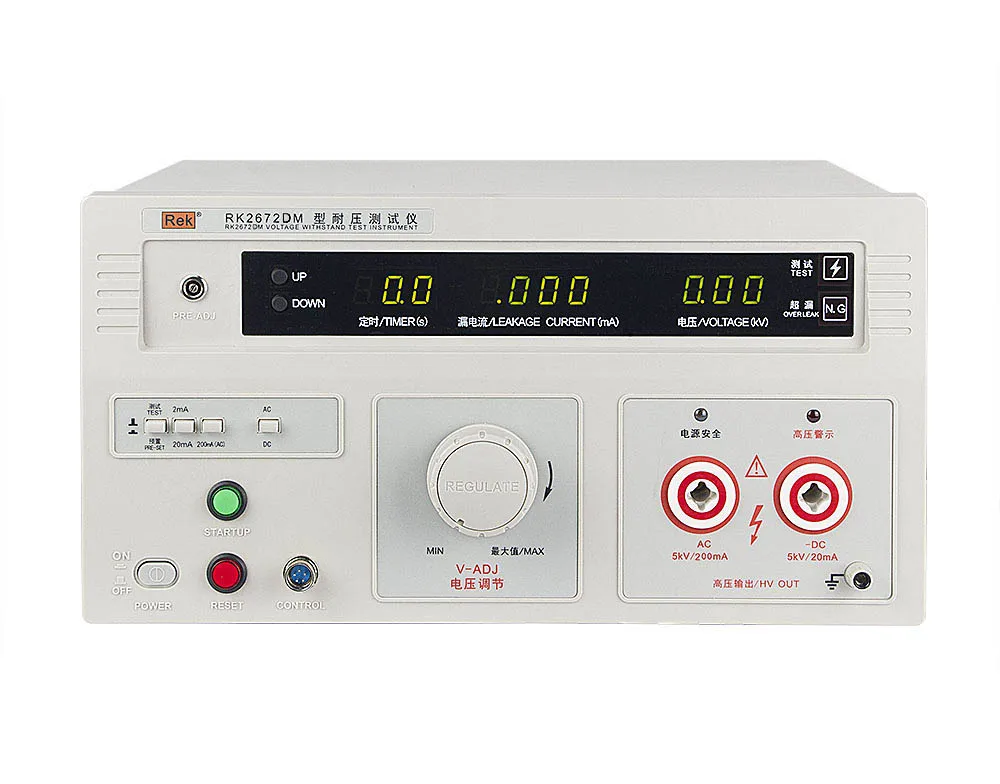

RK2672DM Hipot Tester AC DC 5KV 200mA Withstanding Voltage Tester
RK2672DM Hipot Tester AC DC 5KV 200mA Withstanding Voltage TesterRK2672DM AC/DC Hipot Dielectric Test Set High Voltage Breakdown Voltage Tester 5KV Withstanding Voltage Tester
Product InformationThe RK2672_MWithstand voltage testerof Meiruikeisthemeasurement instrument for compressive strength,itmainly used forinsulation leakage safety testofproduct.It can test the electrical safety performance index ofbreakdown voltage,leakage currentof which all kind of themeasured objectintuitive,accurate and fast,and can be usedfortestingthecomponents and overall performanceas a high voltage source.
This series of testeraccording to the following standards:Standard for household electrical appliances(IEC6035,GB4706.1-2001, GB4706.1-1998),Standard for lamp(IEC60598-1-1999, GB7000.1-2000),Standard for information(GB8898-2001,GB12113.GB4943-2001,IEC60065,IEC60950) and so on.
Application area
1.Components:diode,triode,high-voltage silicon stack,all kinds of electronic transformer,connector assembly,high voltage electrical equipment.
2.Household Electric Appliances:TV,refrigerator,air conditioner,washing machine,dryer, electric blanket,charger etc.
3.Insulation material:heat shrinkable tube,capacitor film,high pressure tube,insulating paper,insulated shoes,rubber insulating gloves,PCB circuit board etc.
4.Instruments and meters:oscilloscope,signal generator,DC power supply,switching power supply and other types of machine.
5.Lighting appliances:ballast,road lights,stage lights,portable lamps and other types of lamps.
6.Electric heating appliances:electric drill,pistol drill,cutting machine,grinding machine,electric welding machine etc.
7.Wire and cable:high voltage cable,optical cable,electric cable,silicone rubber cable, etc.

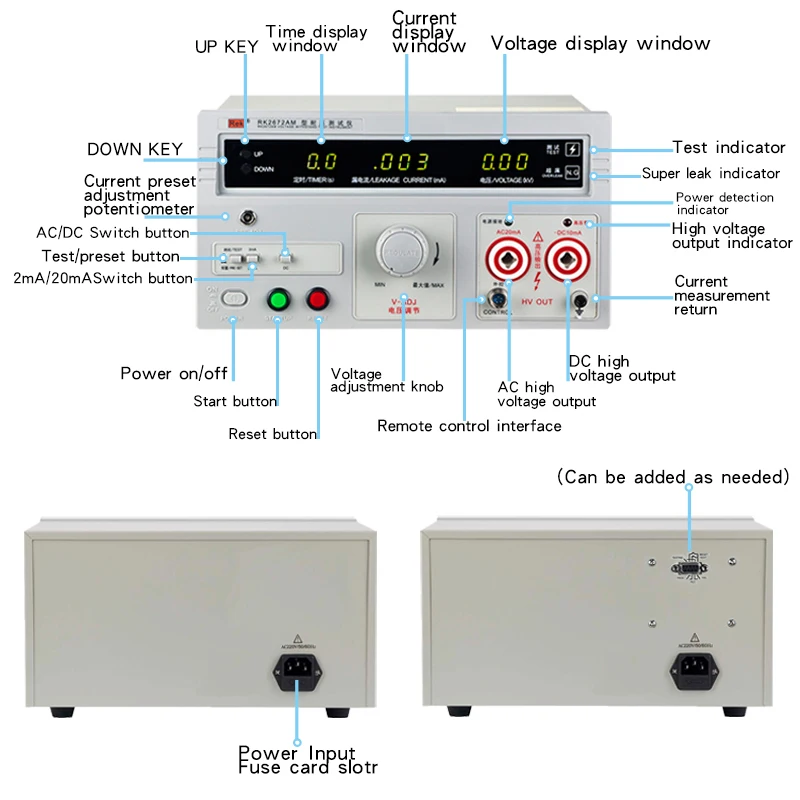

Performance characteristics
n AC/DCvoltage 5kV universal withstand voltage tester.
n The output voltage regulatedoutputby the regulator,which has high reliability and high durability.
n Using high brightness LED digital displaying test time,voltage,current,itcan display thebreakdown currentvalueand voltagevaluein real time.
n Alarm current value can be presetarbitrarily.
n Test time using three digital tube display
n Equipped with PLC signal input,output interface,itcan constituteeasily integrated test systemwith PLCexpediently.(optional)
Technology ParameterParameter Type | RK2672AM | RK2672BM | RK2672CM | RK2672DM | |
Output Voltage (kV) | AC | 0~5 | 0~5 | 0~5 | |
DC | 0~5 | ———— | 0~5 | ||
OutputCurrent (mA) | AC | 0~2/20 | 0~2/20/100 | 0~2/20/100 | 0~2/20/200 |
DC | 0~2/10 | ———— | 0~2/20 | 0~2/20 | |
Test accuracy | ±(5%+3 words) | ||||
Test time | (0.0~999)s 0.0=continuous test | ||||
Transformer capacity | 100VA | 500VA | 1000VA | ||
Interface of PLC | Optional | ||||
Power Requirments | AC:220V±10%50Hz/60Hz±3Hz | ||||
Working environment | Temperature:(0-40)℃ Humidity≤75%RH | ||||

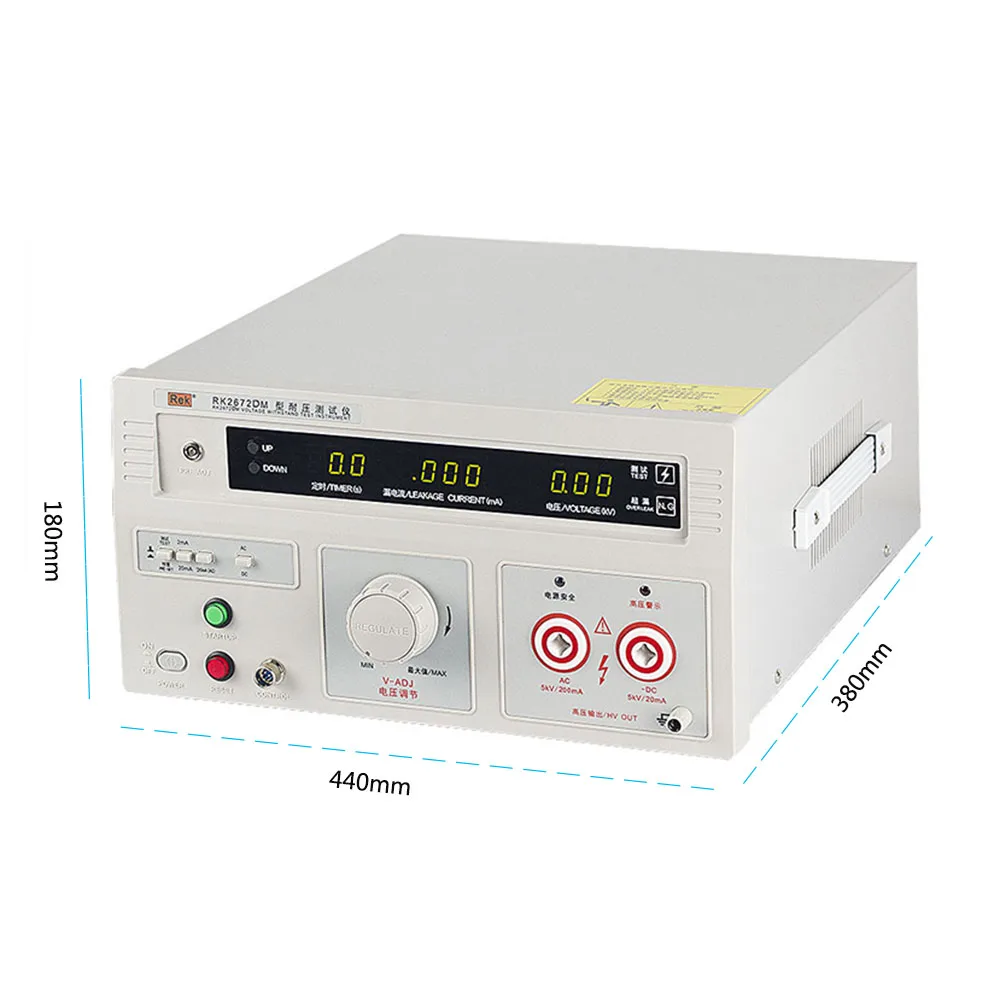

Exterior dimension | 390×310×200mm | 443×390×200mm | |||
Weight | 11kg | 16kg | 20kg | 28kg | |

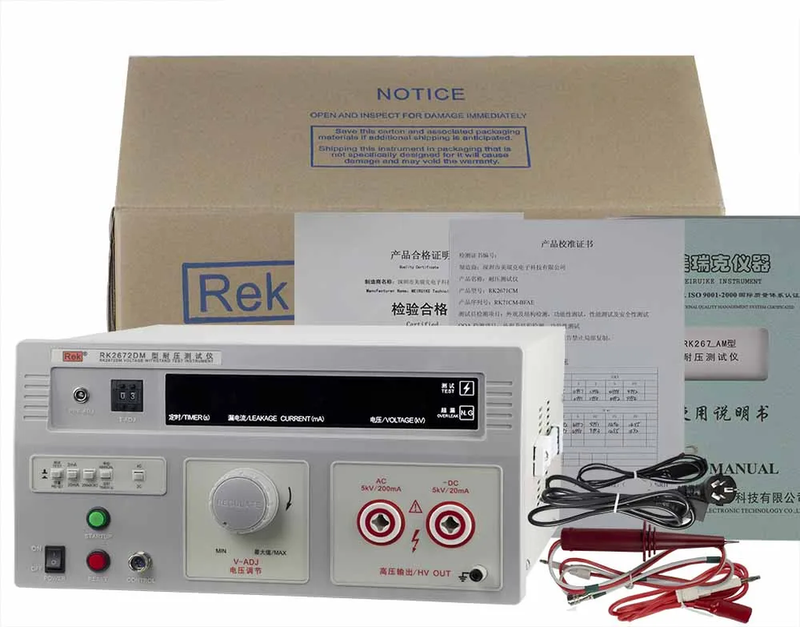

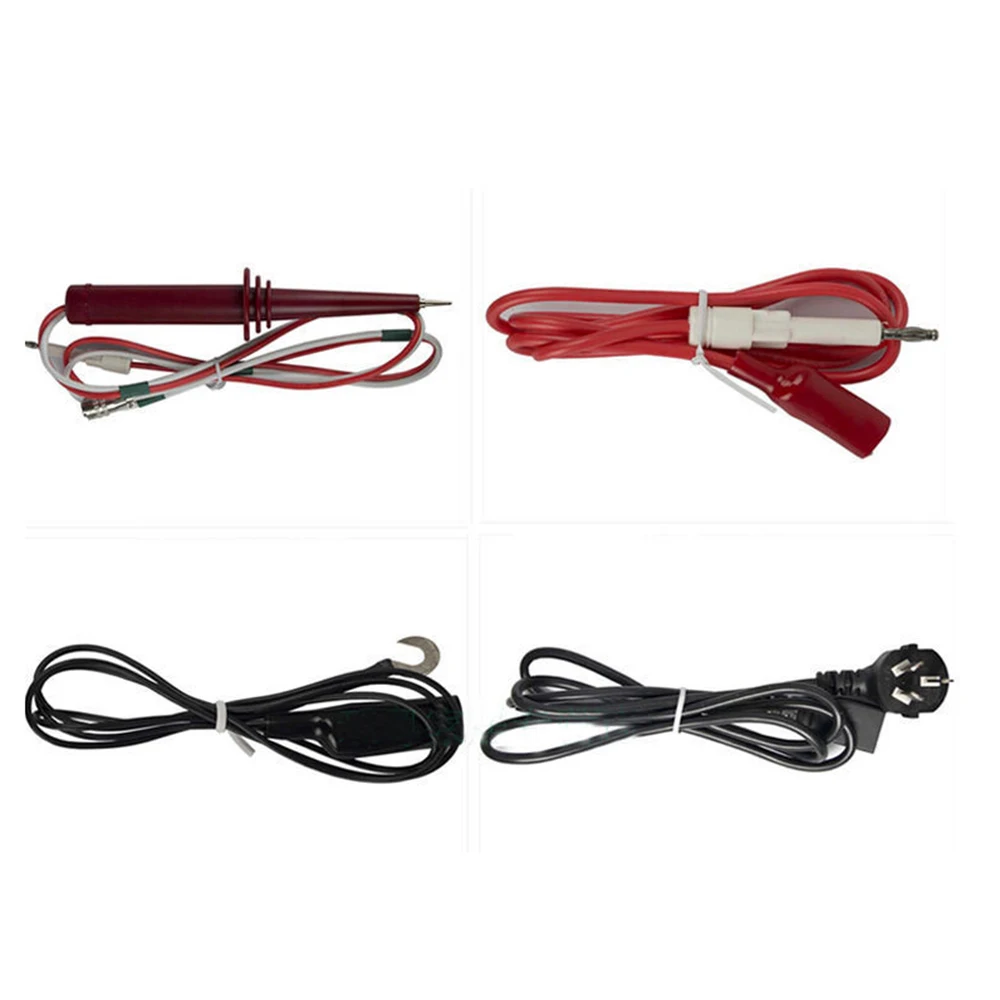

Accessory | High voltage test line,grounding wire,high-voltage stick,power line(standard) Communication line,interface of PLC(optional) |
