Product Description
Komshine FX39 Original Fiber Optic Equipment Six Motors Trunk Splicing Machine SC Core Alignment Optical Welder Fusion Splicer
Komshine FX39 Original Fiber Optic Equipment Six Motors Trunk Splicing Machine SC Core Alignment Optical Welder Fusion Splicer9 Languages FTTH Fiber Fusion Splicer Komshine FX39 Fiber Welder

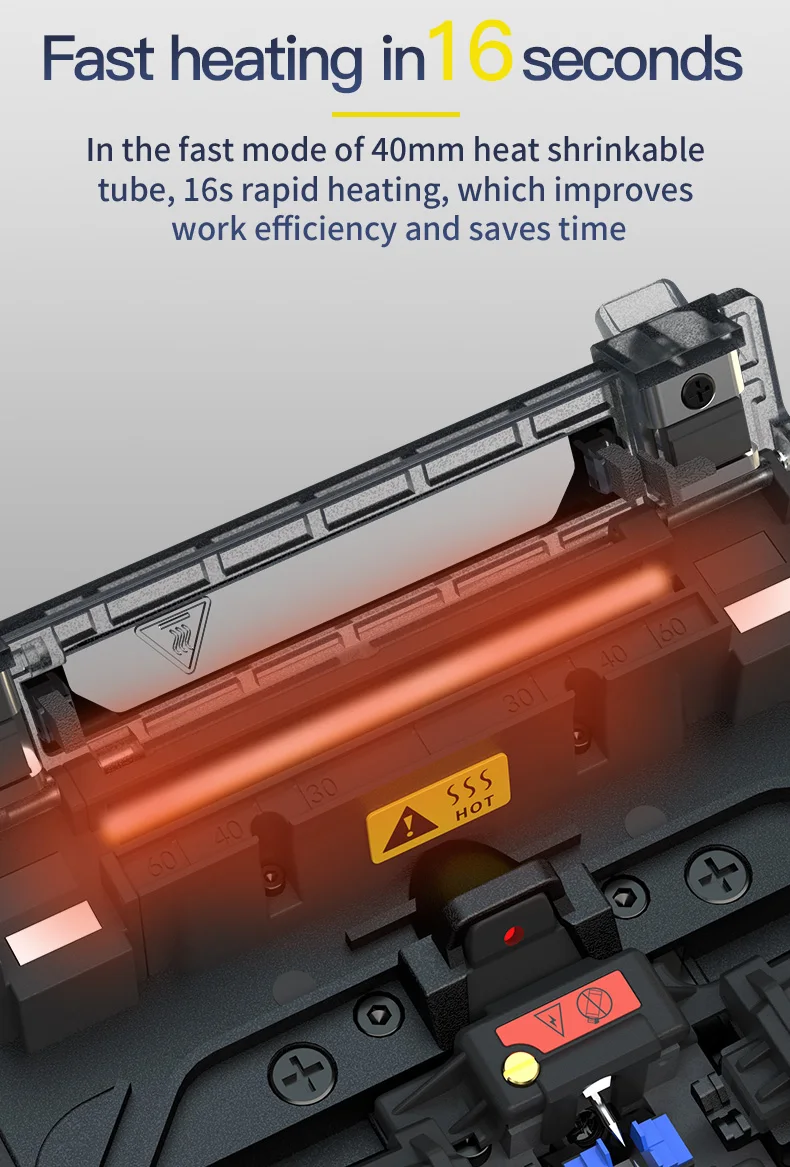

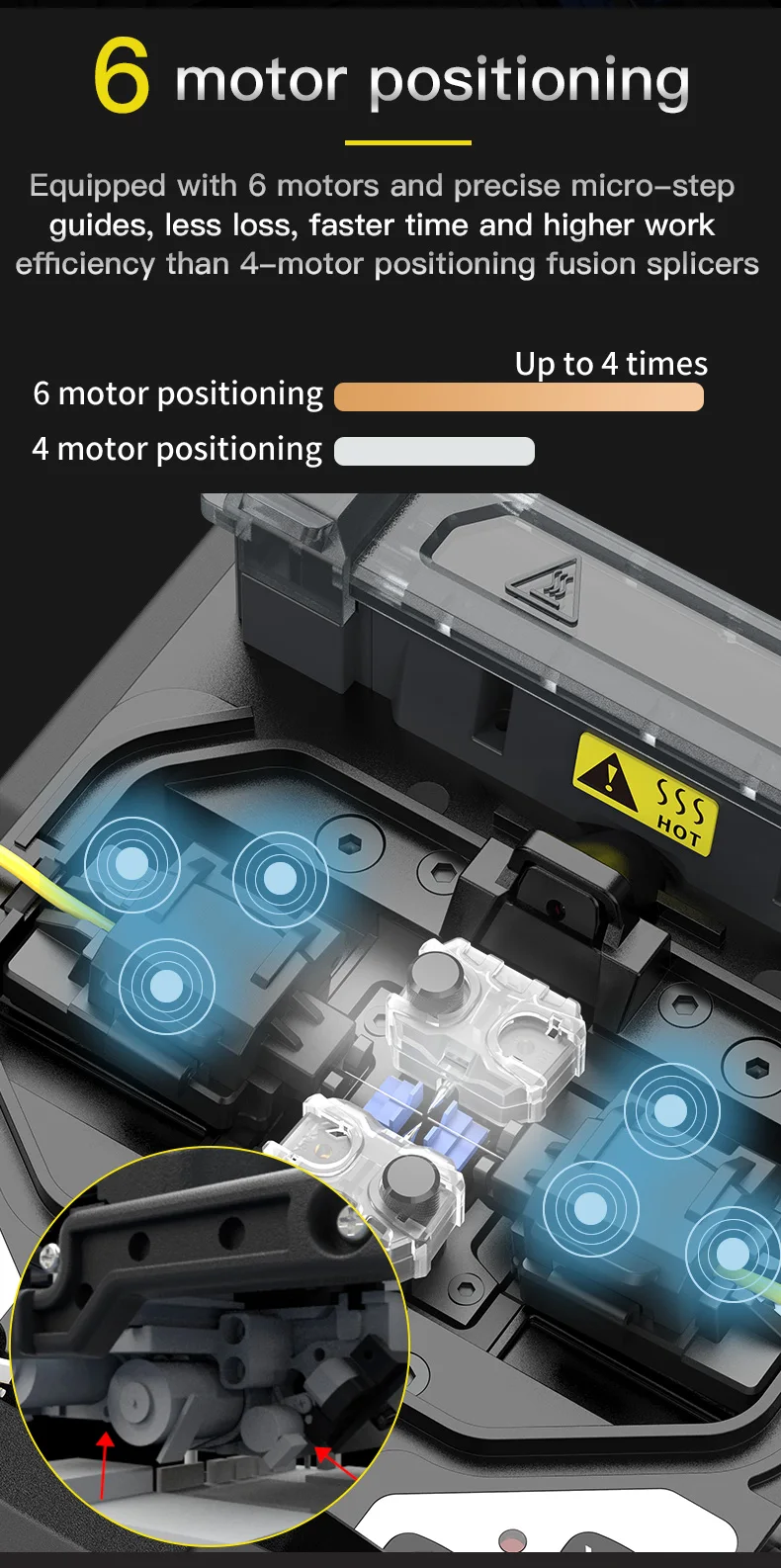

KomShine FX39 is a Six Motor Backbone Fusion Splicer, 6S fast splicing, 16S fast heating. Equipped with 6 motors and precisemicro-step guides, less loss, faster time and higher work efficiency than 4-motor positioning fusion splicers.
Features
1). High precision 6 motor backbone fusion splicer for FTTx project2). Core alignment, which can clearly display the fiber core

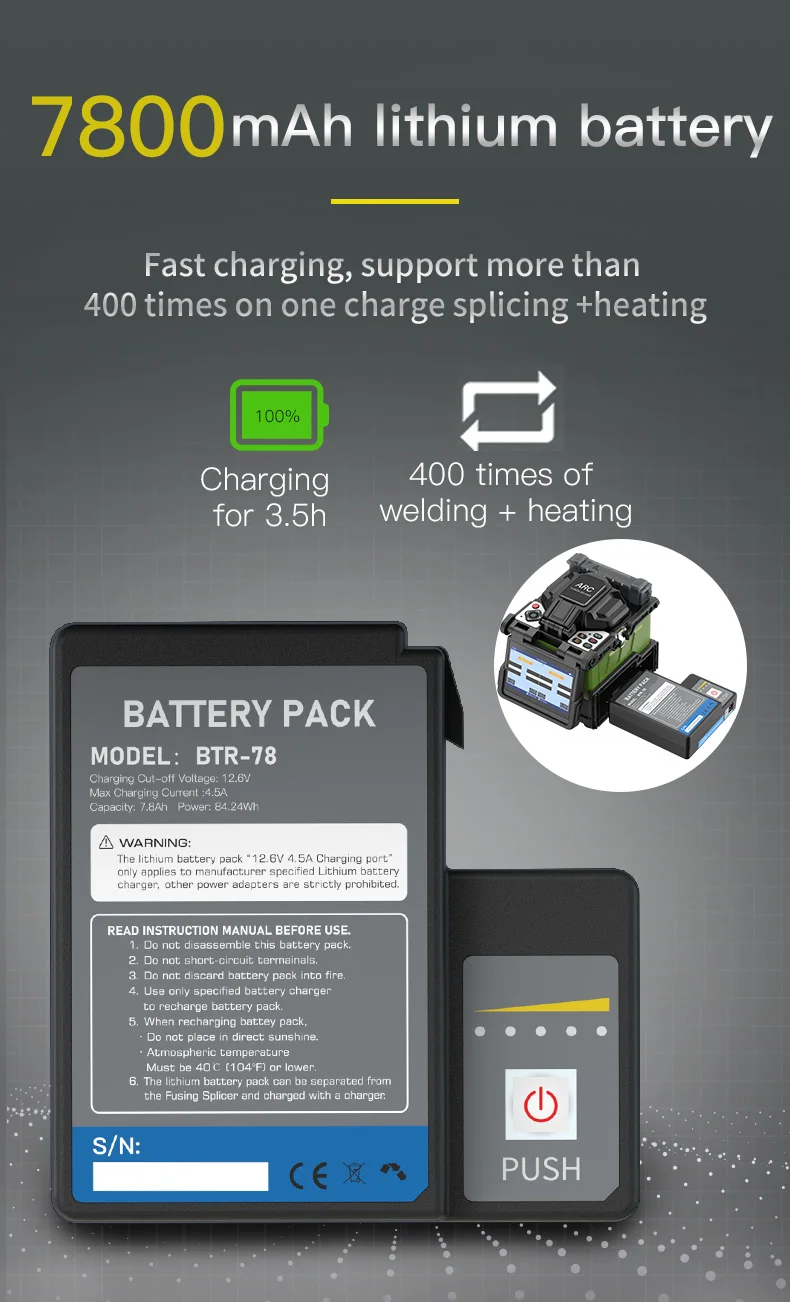

3). High-capacity battery is 7800mAh, which can be used for about 400 cycles splicing and heating when fully charged
4). Can use for outdoor construction for 288 & 128 core backbone cable
5). Appearance design closely follows the international counterparts

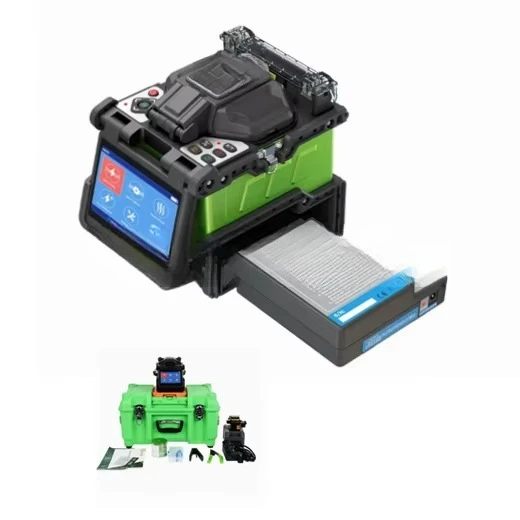

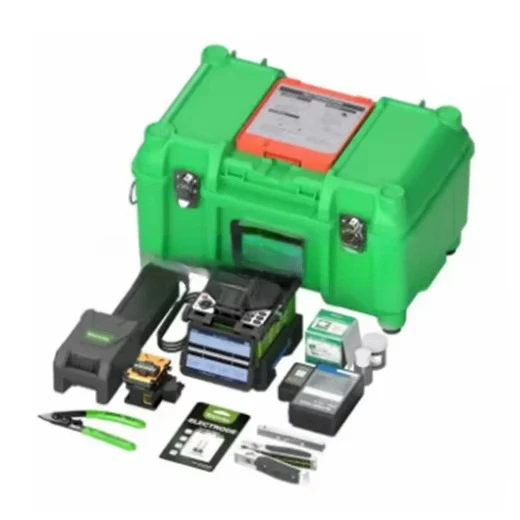

6). Carrying case designed with workbench, which can be loaded with more necessary construction tools (power meter,VFL, pliers,
etc.Specification
| Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Average Loss | SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB |
| Return Loss | Better than 60dB |

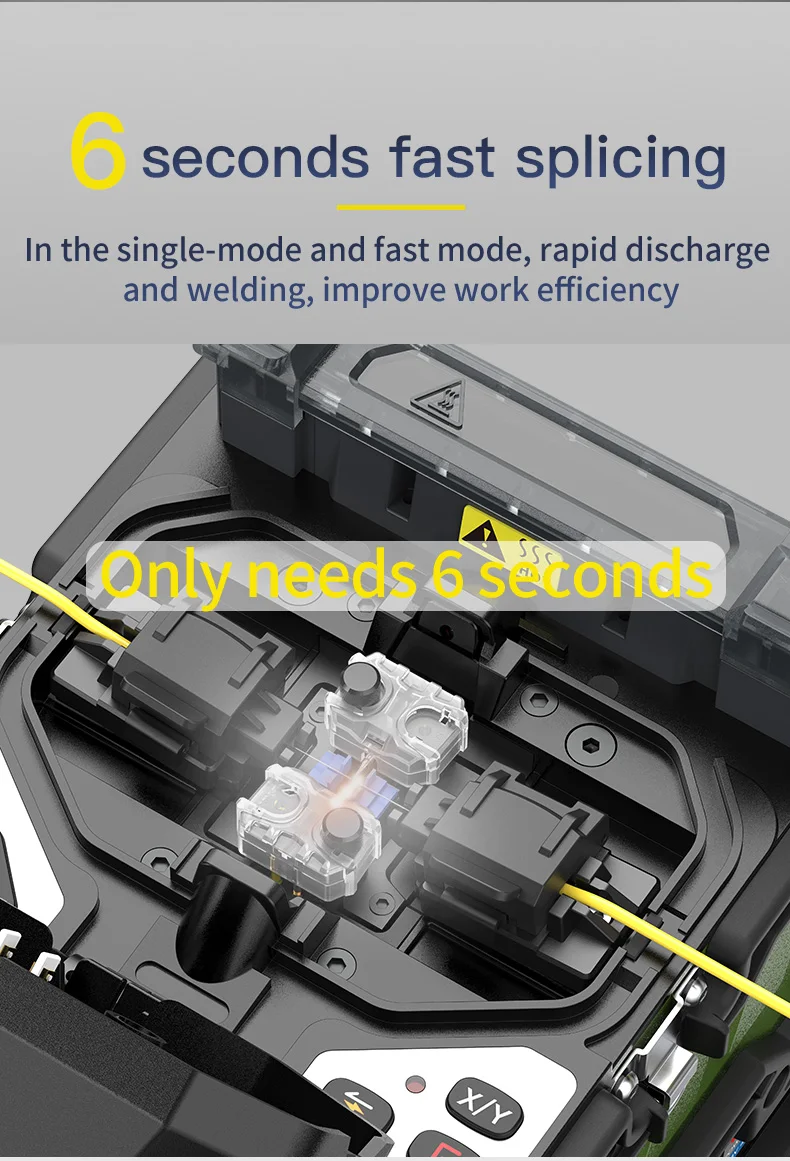

| Typical Splicing Time | 6 seconds(SM G652 QUICK mode) |

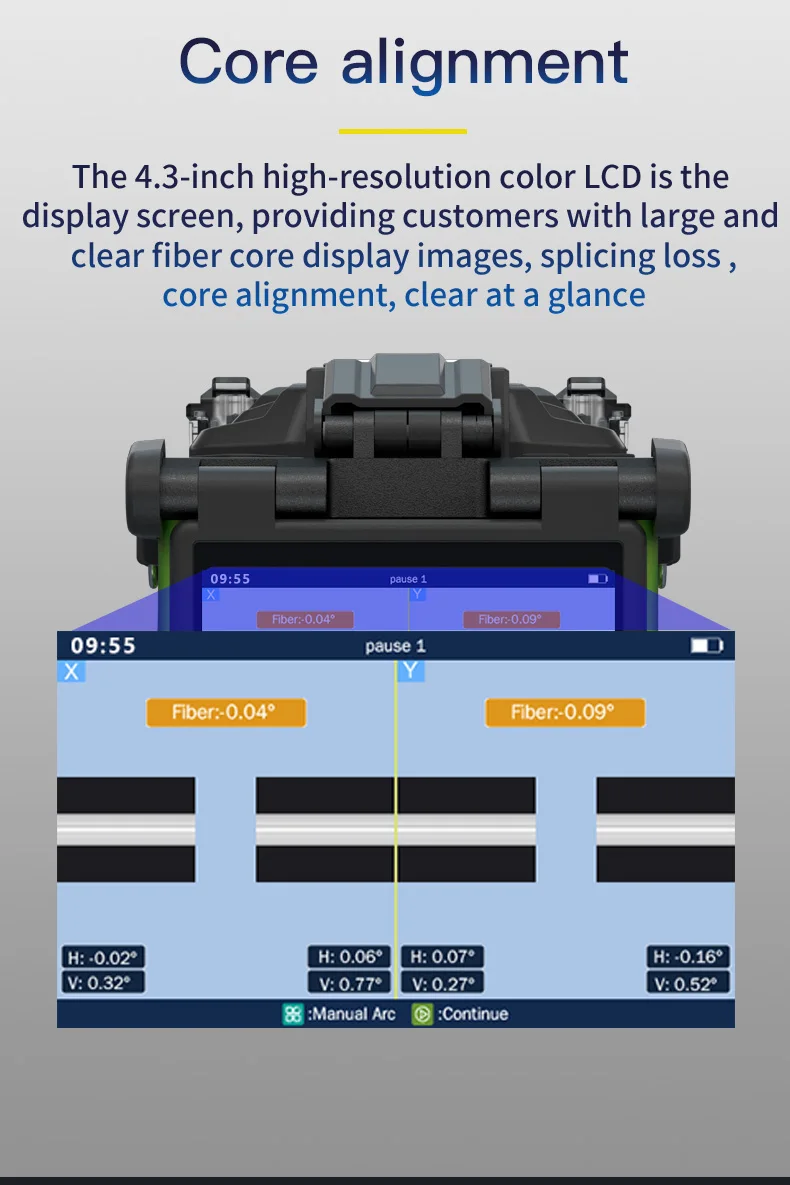

| Fiber Aligning | Core to core alignment |
| Fiber Diameter | Cladding diameter:80～150μm |
| Coating diameter:100～1000μm | |
| Magnification | X, Y, XY, X/Y : 320 times magnification |
| Image display | 4.3 inches, high-definition LCD display |
| Tensile test | 1.96~2.25N |
| Splicing Mode | Maximum 128 groups |

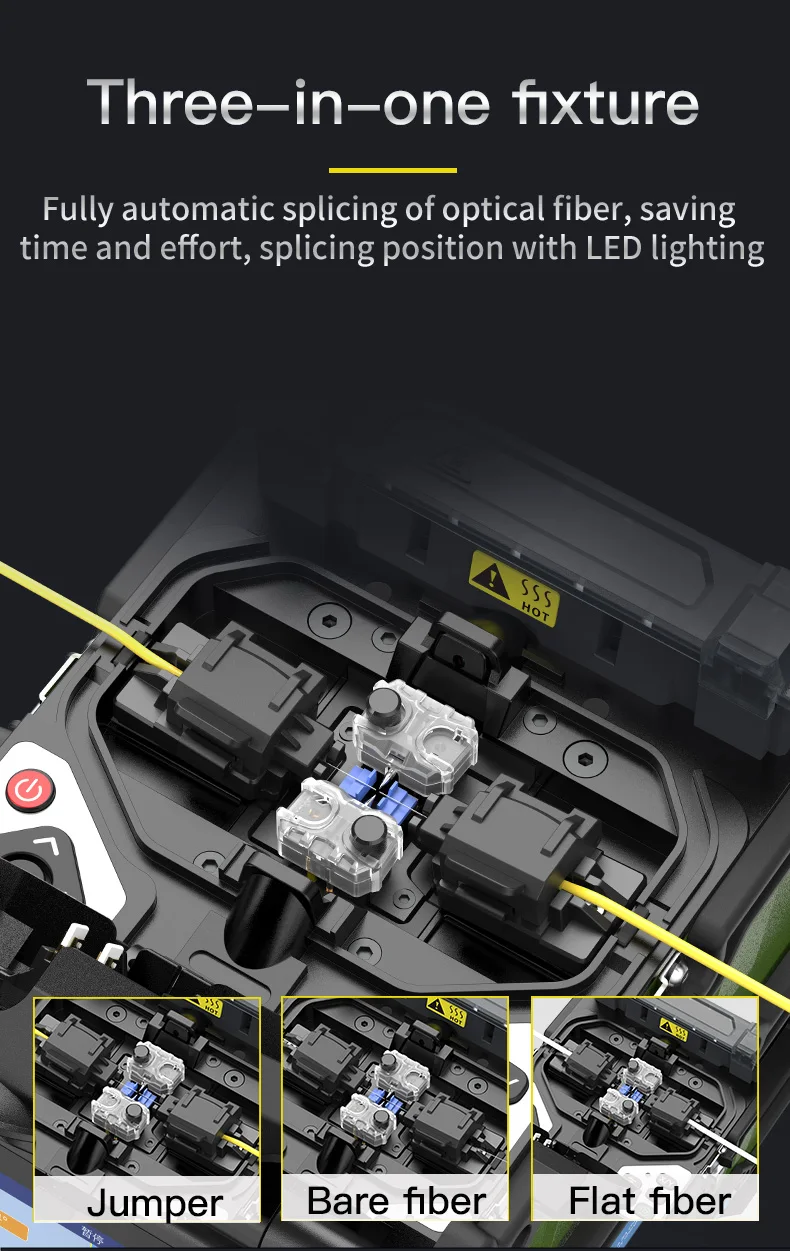

| Fiber type | Replaceable universal fixture, SOC fixture (optional) |

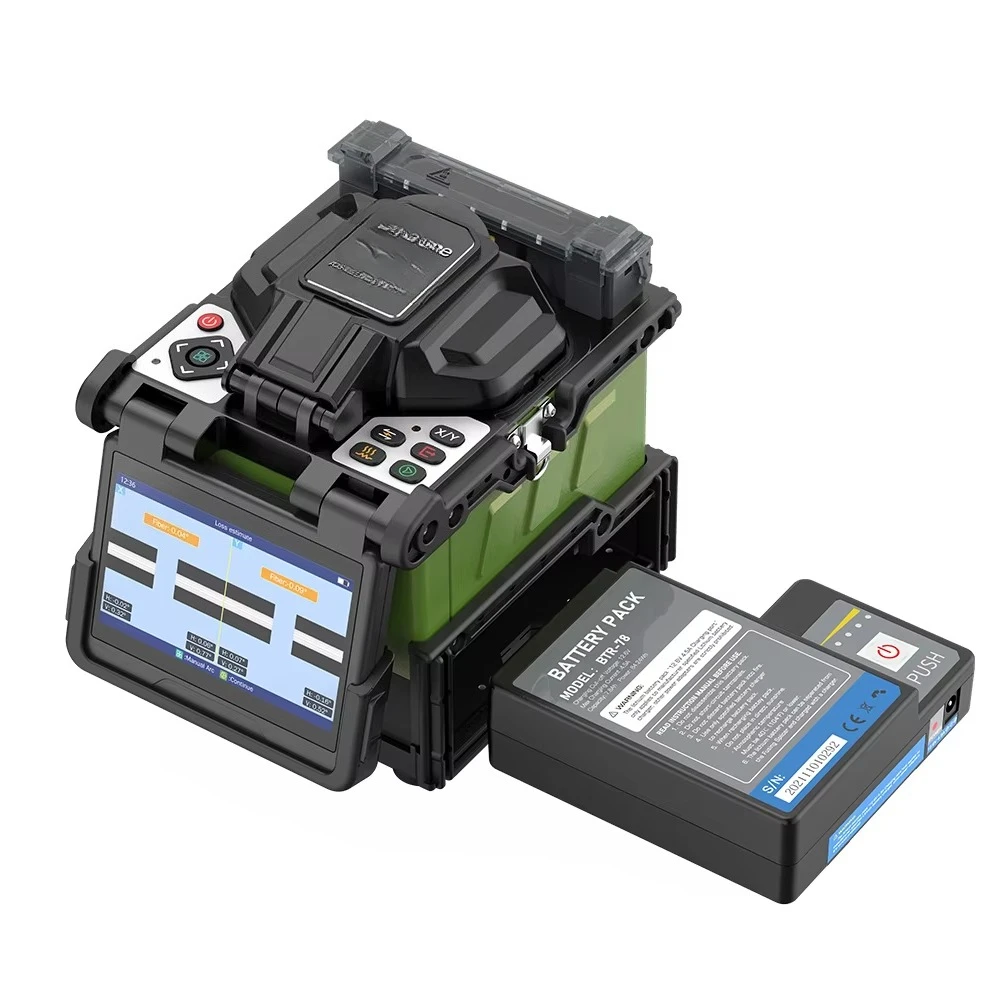

| Battery capacity | 7800mAH, 86.58WH |
| 400 times (splicing and heating) | |
| Charging time: about 3h (can be used while charging) | |
| Battery life | 1000 charging cycles |
| Electrode life | About 5000 times discharges |
| External interface | Mini USB |
| Result record | 10000 sets of splice data, or 2000 sets of splice images |
| Automatic discharge calibration | Automatically calibrate according to ambient temperature and air pressure changes |
| Power supply | Built-in lithium battery: 11.1V |
| AC/DC adapter input: AC 100-240V | |
| Output: DC 13.5V / 5.0A | |
| Working environment | Temperature: -20°C ~ +55°C (-4°F~131°F) |
| Humidity: 95% (40°C non-condensing) | |
| Altitude: 0~5000m | |
| Dimensions | 158H x 132W x 157D mm (including rubber bumper |
| Weight | 1.72kg without battery / 2.25kg with battery |
| Windproof performance | max wind velocity of 15m/s |
| Dimension | 130mm(L) x130mm (W) x120mm (H) |

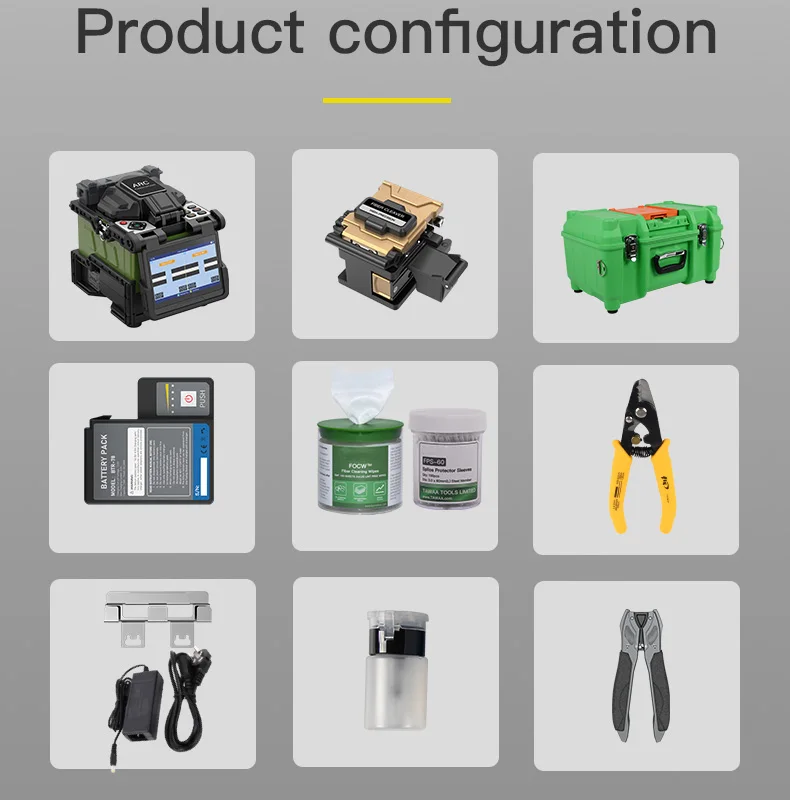

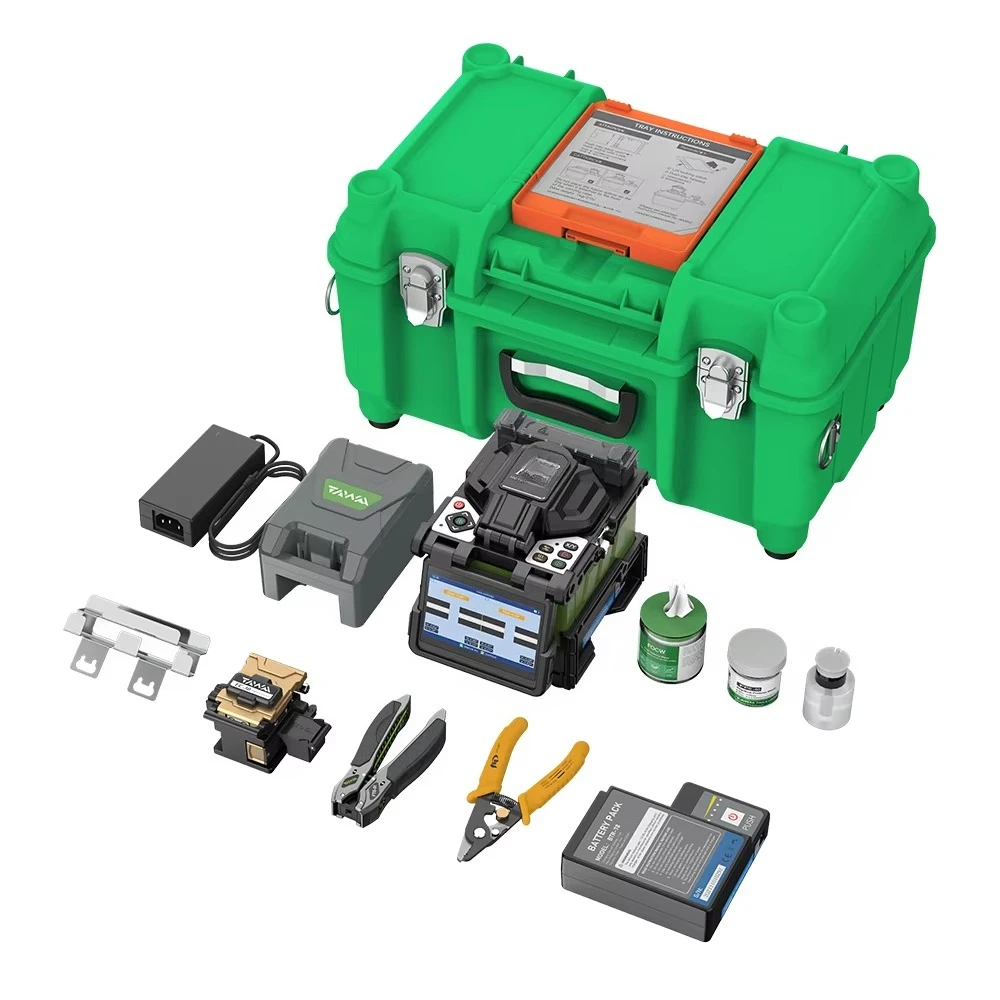

Standard Configuration
