Product Description

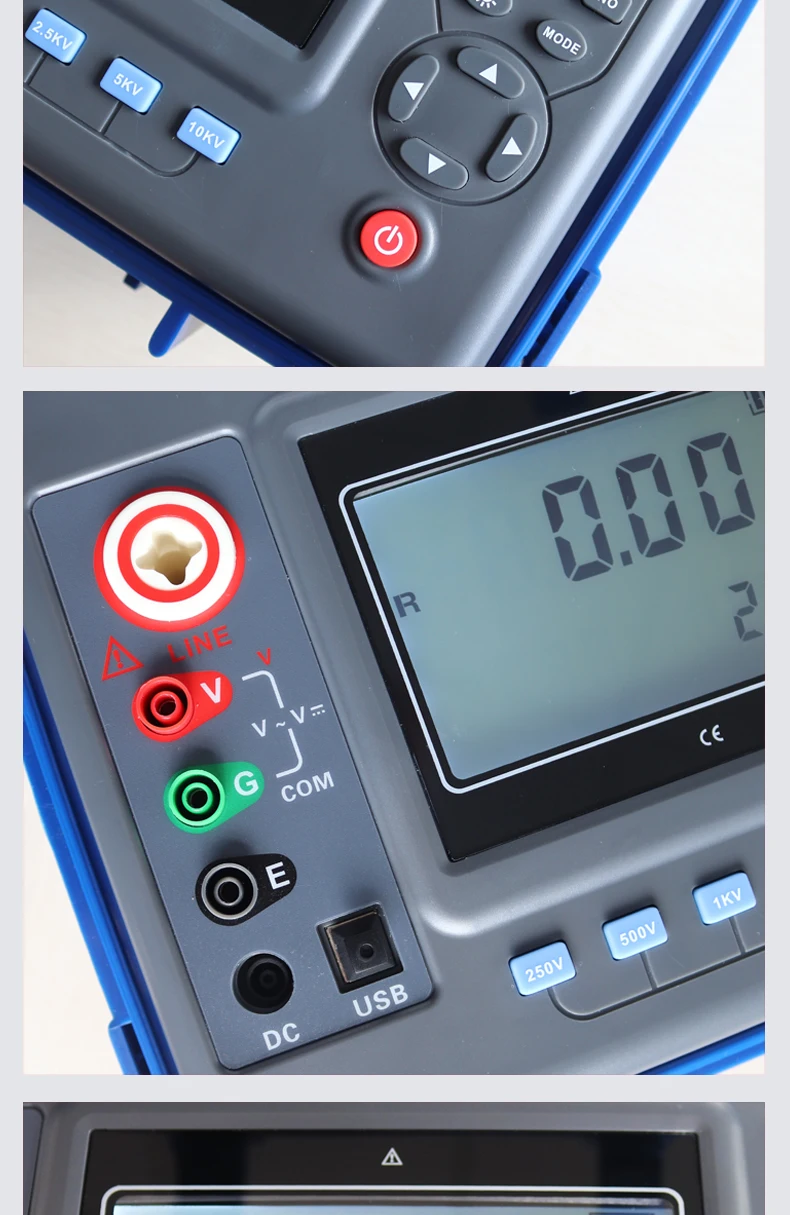

FUZRR ES3035E+ ES3035+ Digital Insulation Resistance Tester 10KV Double Insulation Protection High Voltage Meter Megohmmeter

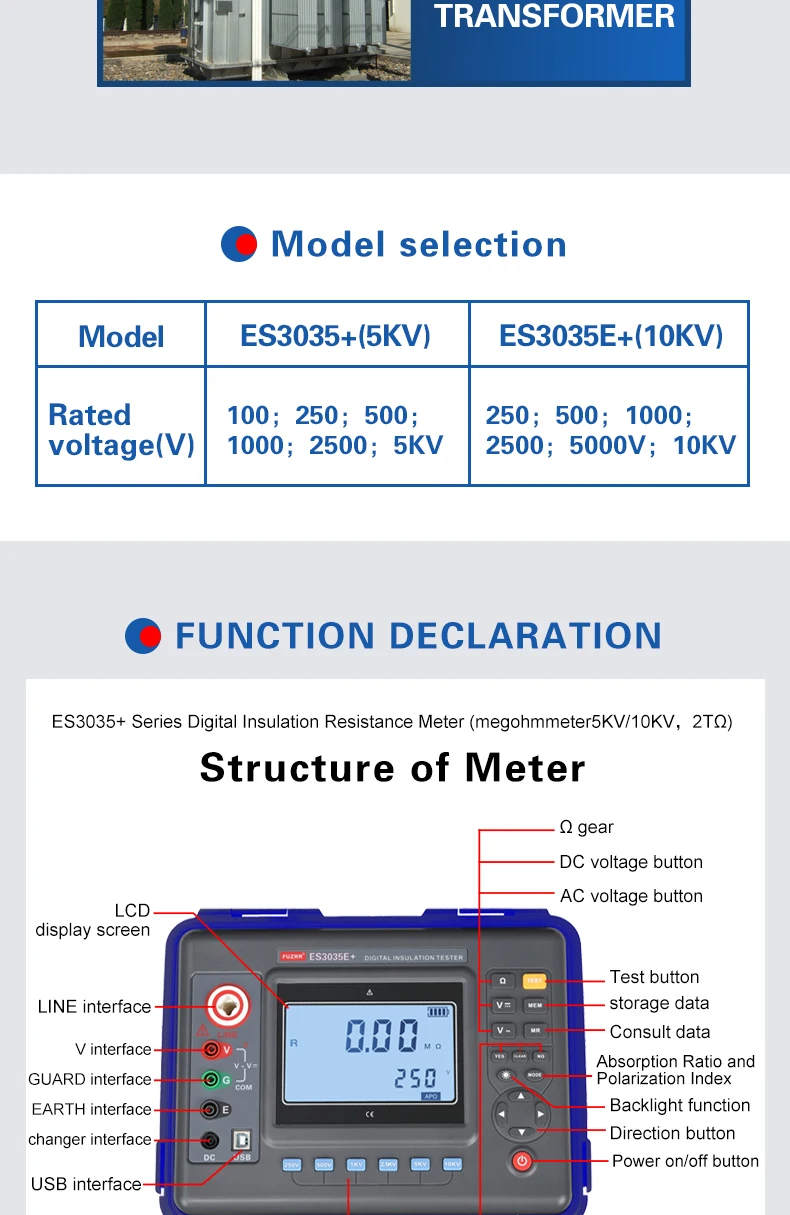

FUZRR ES3035E+ ES3035+ Digital Insulation Resistance Tester 10KV Double Insulation Protection High Voltage Meter MegohmmeterES3035+ High Voltage Insulation Resistance Tester of 100V-5000V Digital Insulation Resistance Tester
Product Paramenters| Features | Insulation resistance test, voltage test |
| Baseline conditions | 23℃±5℃, below 75%rh |

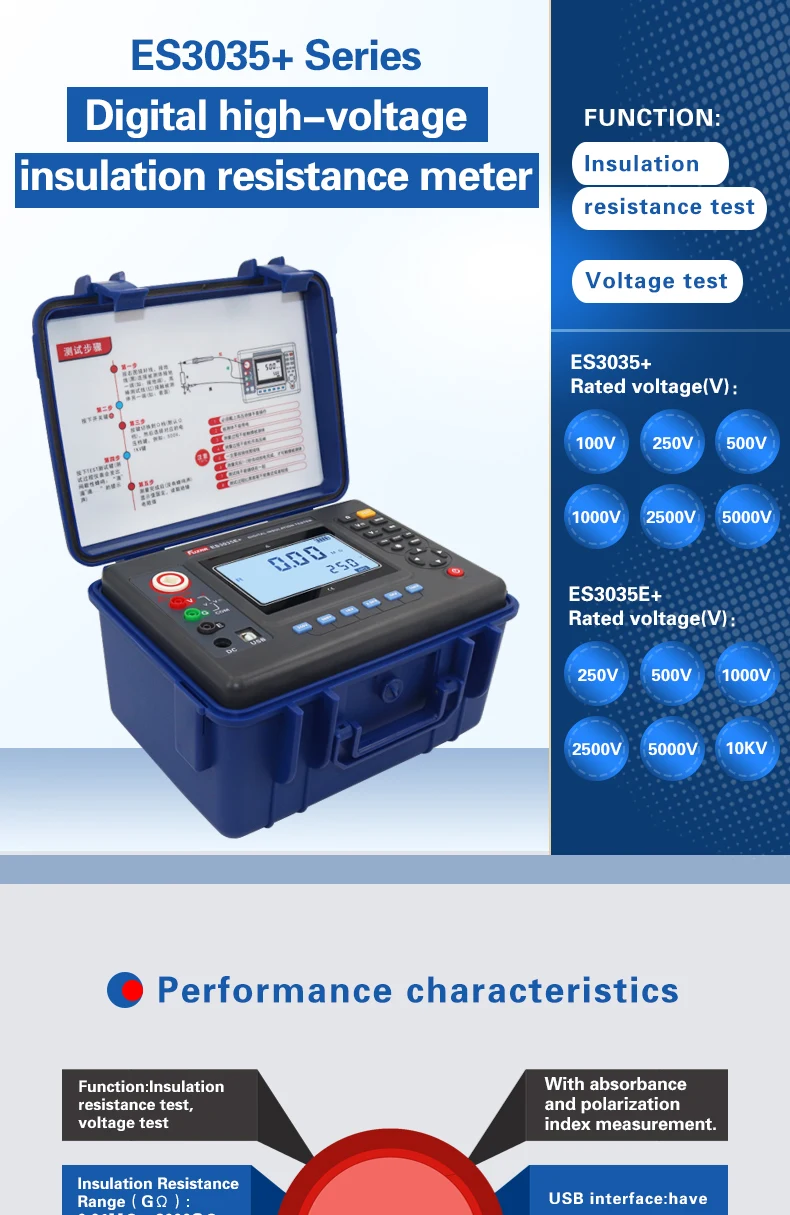

| Rated voltage (V) | 100; 250; 500; 1000; 2500; 5000V Accuracy ±3%rdg±5dgt |
| Measuring voltage (V) | Rated voltage × (1±10%) |
| Insulation resistance range (GΩ) | 0.01MΩ～2000GΩ Accuracy ±3%rdg±5dgt |
| Insulation Resistance Resolution | 0.01MΩ |
| DC voltage range | 0～1000V |
| DC voltage resolution | 0.1V |
| AC voltage range | 0～750V |
| AC Voltage Resolution | 0.1V |
| Output short circuit current | ≥5mA(5000V) |
| Absorption Ratio and Polarization Index Measurements | Have |
| Power supply | 12V rechargeable battery |
| Backlight | Controllable gray and white screen backlight, suitable for use in dark places |
| Display mode | 4-digit large LCD display, gray and white screen backlight |
| LCD display size | 108mm×65mm |

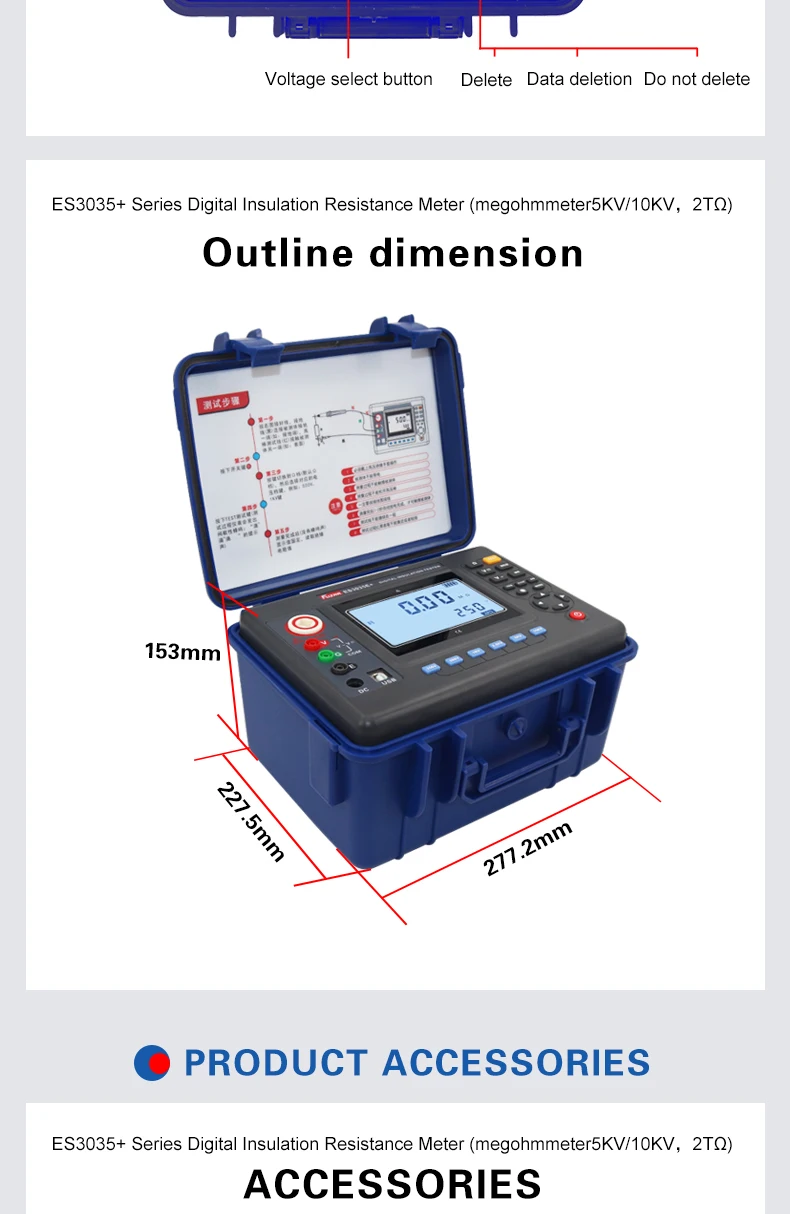

| Meter size | Length, width and height: 277.2mm×227.5mm×153mm |

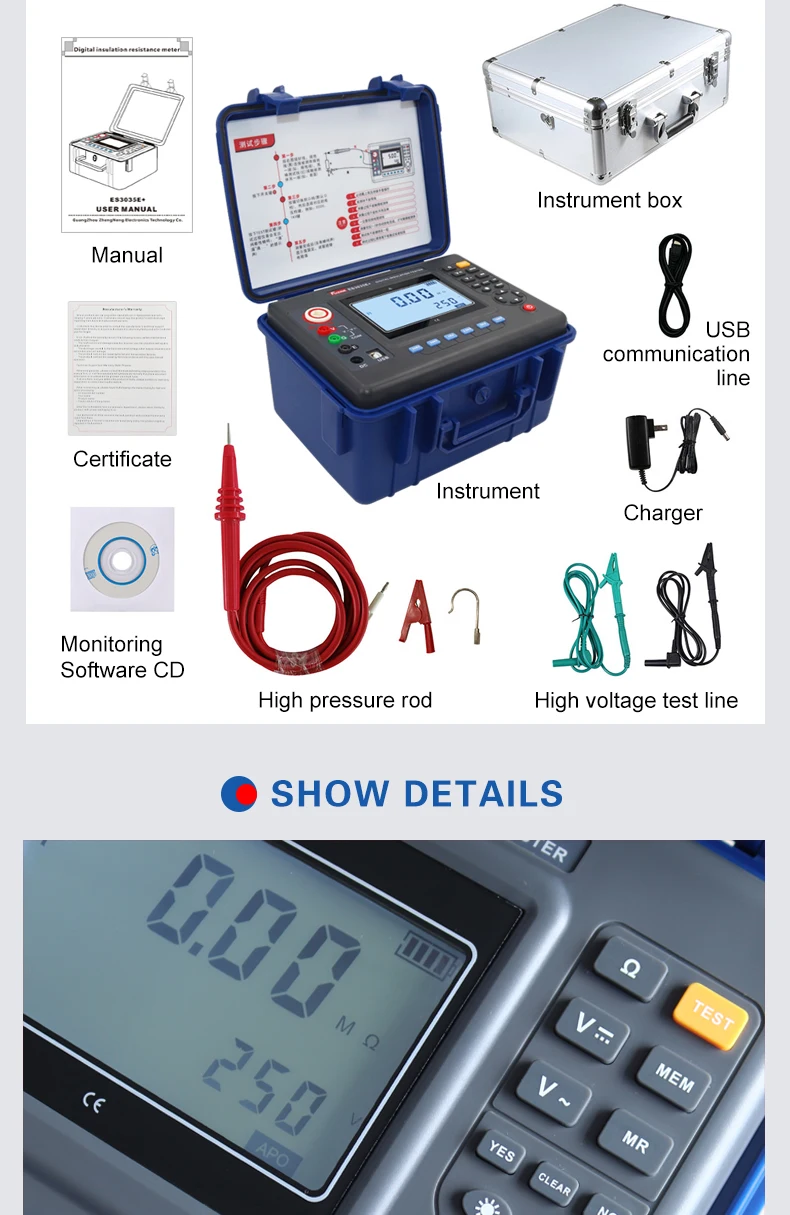

| Test line | High voltage bar red 3 meters, high voltage test line black 1.5 meters, green line 1.5 meters |
| Data storage | 500 groups, flashing "FULL" symbol indicates that the storage is full |
| USB interface | With USB interface, software monitoring, storage data can be uploaded to the computer, save and print |
| Communication line | 1 USB communication line |
| Data access | Data access function: "READ" symbol display |
| Overflow display | Overrange overflow function: "OL" symbol display |

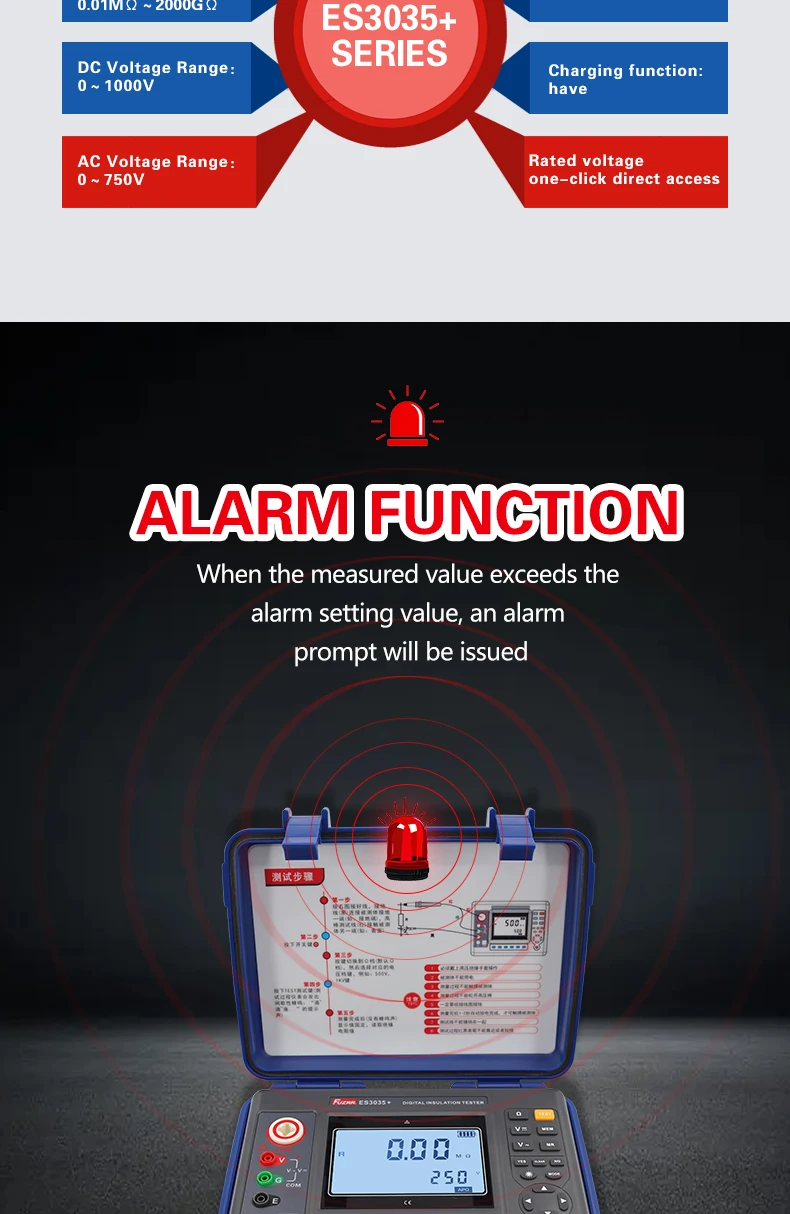

| Alarm function | When the measured value exceeds the alarm setting value, an alarm prompt will be issued |
Power consumption | Standby: 30mA Max (backlight off) |
| Turn on the backlight: 42mA Max | |
| Measurement: 200mA Max (backlight off) | |
| Instrument quality | 2350g (including battery) |
| Battery voltage | Low battery voltage, showing low battery symbol“ ” |
| Automatic shut-down | The meter shuts down after about 15 minutes of inactivity |
| Insulation resistance | ≥50MΩ (between measurement line and shell) |
| Pressure resistance | AC3kV/50Hz 1min |
| Operating temperature and humidity | -10℃～+50℃＜85%RH |
| Storage temperature and humidity | -15℃～+55℃＜90%RH |
| Suitable for safety regulations | IEC61010-1, IEC1010-2-31, IEC61557-1, 5, IEC60529 (IP54), pollution, etc. 2, CAT Ⅲ 300V |
