Product Description
PROVA-200A/210/218 Digital PV Analyzer Solar Module Analyzer 60V 6A (180W Capability) Solar Panel Tester
PROVA-200A/210/218 Digital PV Analyzer Solar Module Analyzer 60V 6A (180W Capability) Solar Panel TesterPROVA-200A/210/218 Digital PV Analyzer Solar Module Analyzer 60V 6A (180W Capability) Solar Panel Tester
Product Features:
1.I-V curve test for solar panel/module
2.Max. solar panel power (Pmax) search byauto-scan:
PROVA 200A: 60V, 6A (180W capability)
PROVA 210: 60V, 12A (500W capability)
PROVA 218: 85v, 8.5A (500W capability)
3.Best resolution for PROVA 200A: 1mV,0.1mA
4.Best resolution for PROVA 210/218: 1mV,1mA
5.Manual single point I-V test
6.Max. voltage (Vmaxp) at Pmax
7.Max. current (Imaxp) at Pmax
8.Voltage at open circuit (Vopen)
9.Current at short circuit (Ishort)
10.I-V curve with cursor to display each datapoint
11.Efficiency (%) calculation of solar panel
12.Solar panel area setting: 0.001 m2 m 9999m2
13.Standard light source setting: 10 W/m2 m1000 W/m2
14.Communicate with PC via USB cable
15.Min. power setting for alarm function. Built-in calendar clock
16.Built-in battery charging circuit
17.Rechargeable lithium battery and ACpower adaptor
18.Memory size: 100 records
19.Sampling time of data logging for PROVA210/218: 0 m 99 min.
20.Large LCD with backlight
21.Application:
Quality control in the production line,warehouse, or site of installation.
Identify the solar power system
requirement.
Maintenance of solar panels.
Verify the best installation angle of solarpanels
Electrical Specifications (23C±5C)
Voltage Measurement:
Range (60V / 6A) | Resolution | Accuracy |
| 0–6V | 0.001V | ±1% ± (1% of Vopen ± 9mV) |
6 - 10V | 0.001V | ±1% ± (1% of Vopen ± 0.09V) |
| 10–60V | 0.01V | ±1% ± (1% of Vopen ± 0.09V) |
Current Measurement:
Range (60V / 6A) | Resolution | Accuracy |
| 0–0.6A | 0.1mA | ±1% ± (1% of Ishort ± 0.9mA) |
0.6 - 1A | 0.1mA | ±1% ± (1% of Ishort ± 9mA) |
| 1–6A | 1mA | ±1% ± (1% of Ishort ± 9mA) |
Current Simulation:
Range (60V / 6A) | Resolution | Accuracy |
| 0–1A | 0.1mA | ±1% ± 0.9mA |
| 1–6A | 1mA | ±1% ± 9mA |
General Specifications:
| Battery Type: | Rechargeable, 2500mAh (1.2V) x 8 |
| AC Adaptor: | AC 110V or 220V input, |
| Dimension: | 257 (L) x 155 (W) x 57 (H) mm |
| Weight: | 1160 g / 40.0 oz |

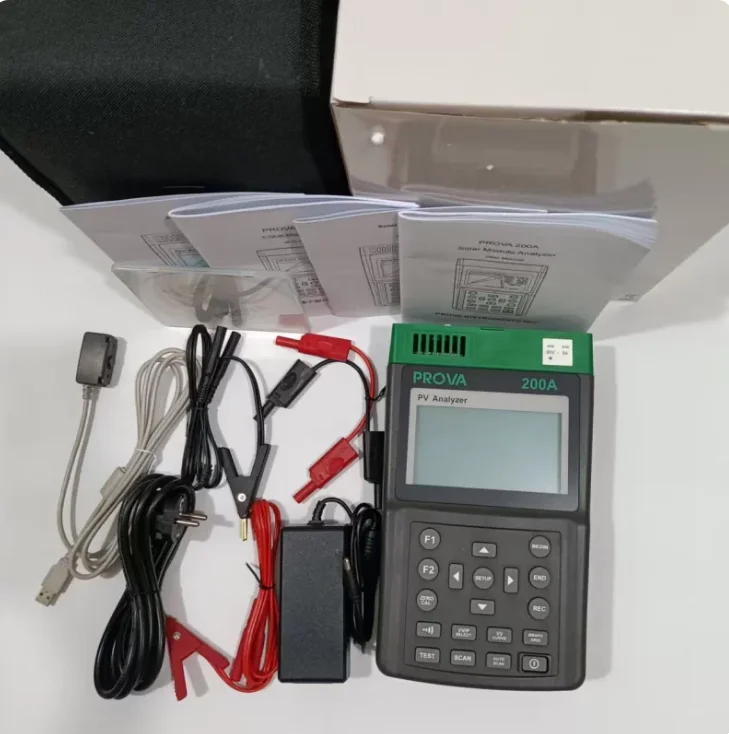

| Accessories: | Users manual x 1, AC adaptor x 1 |
