TES-1358C Digital Sound Analyzer Sound Level Meter IEC 61672-1 Class 2 30 to 130dB Noise Tester 25Hz to 10KHz
TES-1358C Digital Sound Analyzer Sound Level Meter IEC 61672-1 Class 2 30 to 130dB Noise Tester 25Hz to 10KHzTES-1358C Digital Sound Analyzer Sound Level Meter IEC 61672-1 Class 2 30 to 130dB Noise Tester 25Hz to 10KHz
Product Features
*Super high - contrast backlight TFT -LCDcolor display.
*Compliant with IEC 61672-1 class 2standard
*Real-time 1/1-Octave and 1/3-Octaveanalysis.
*Measurement can be started by internal orexternal trigger.
*Comparator output to trigger externaldevices.
*Data transfer using USB
*Dynamic range of 90dB.·
*Real time clock with calendar.
*AC and DC outputs.
*Micro SD CARD 4GB.
Specification:
Applicable standards | IEC 61672-1: 2013 Class 2, IEC61260-1: 2014 Class 2, ANSI S1.11: 2004 Class 2,ANSI S1.4:1983 Type 2,ANSI S1.43:1997 Type 2 |
Microphone | 1/2-inch Electret condenser microphone |
Measurement range | 30 to 130dB |
Measurement level range | 20 to 90dB, 20 to 100dB, 20 to 110dB, 30 to 120dB, 40 to 130dB |
Measurement function | Lp , Leq , LE , Lmax , Lmin , L05,L10 , L50 , L90 , L95 |
Frequency range | 25Hz to 10KHz |
Frequency weighting | A,C and z |
Time weighting | Fast , Slow,t =10ms, lmpulse |
Accuracy | ±1.0dB (ref 94dB@1KHz) |
Display | 3.5”320x240 TFT-LCD display with back light |
1/1 Octave and 1/3 Octave band filters | 1/1 Octave band center frequencies : (9 bands) 31.5Hz,63Hz,125Hz,250Hz,500Hz,1KHz,2KHz,4KHz and 8KHz 1/3 Octave band center frequencies : (27 bands) 25Hz,31.5Hz,40Hz,50Hz, 63Hz,80Hz,100Hz, 125Hz,160Hz,200Hz,250Hz,315Hz,400Hz,500Hz, 630Hz,800Hz,1KHz,1.25KHz 1.6KHz, 2KHz,2.5KHz, 3.15KHz,4KHz,5KHz,6.3KHz,8KHz,10KHz |
Extension cable (Optional accessories) | Available in lengths of 5m (TL-F47/5M) and 10m(TL-F47/10M) |
Memory capacity | Manual (250 data sets), Auto (250 blocks on micro SD CARD ) |
Signal output | AC output : 1 Vrms (at full scale) DC output : 10mV/dB |
Power | 4 pcs of C size 1.5V(LR14) batteries |
External DC power supply | 6V,1A |
Battery life | Approx. 2hrs |
Operating TemperaturelHumidity | -10°℃ to 50°℃ , 10 to 90% RH |
Dimensions & Weight | 34.5(H)×10(W)×6(D) cm & Approx.950g (including batteries) |

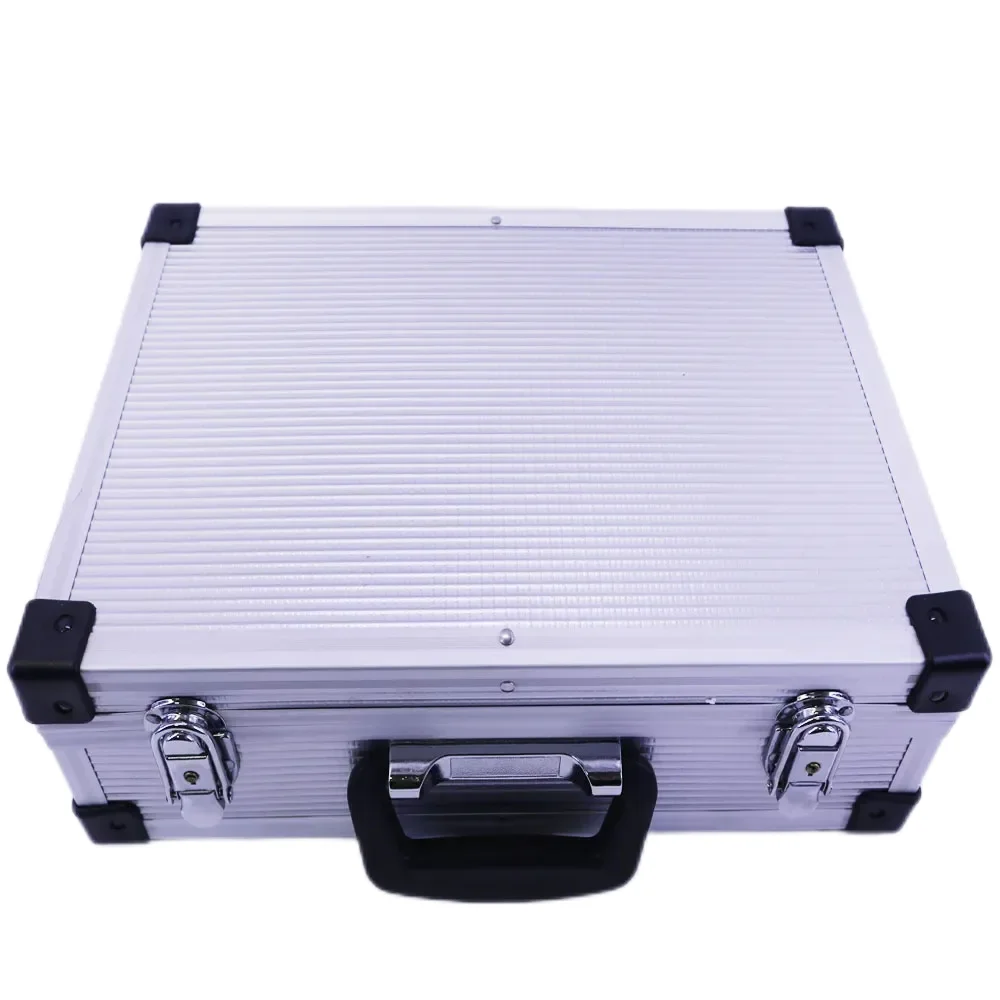

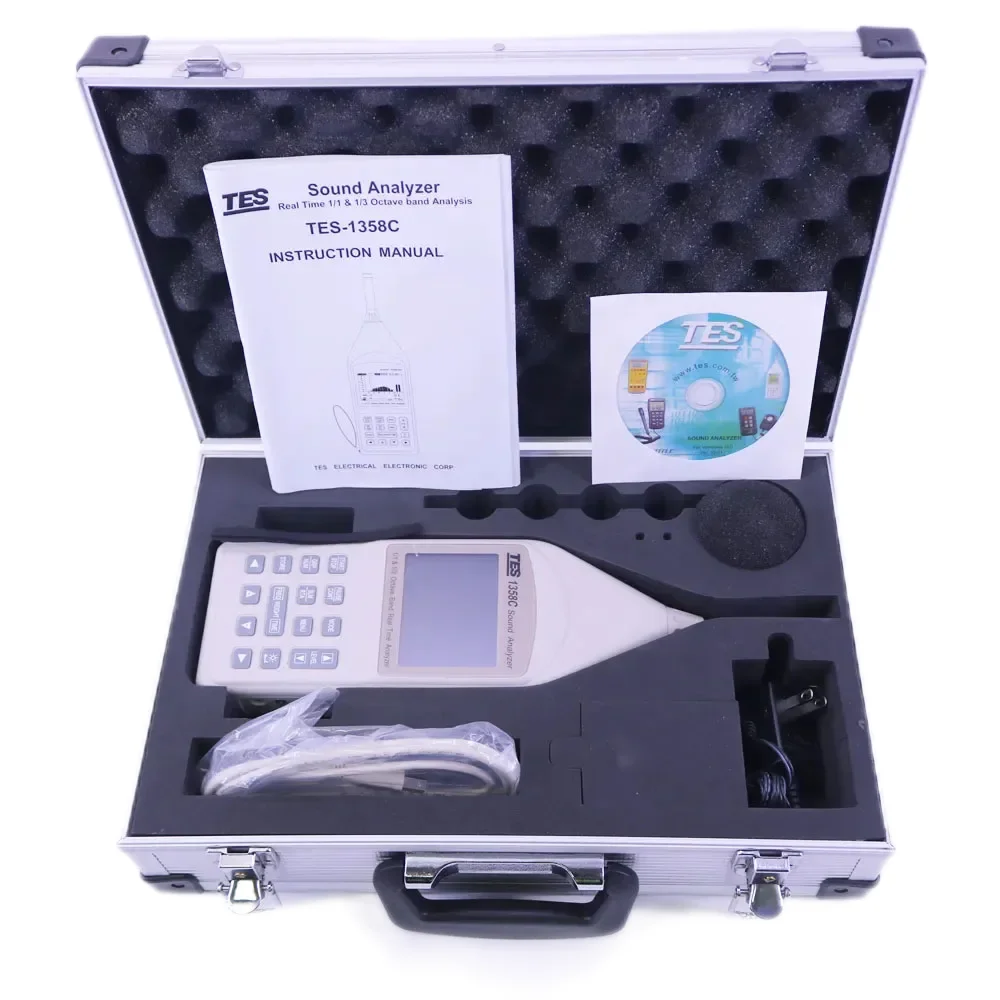

Accessories | lnstruction manual, Hard carry case, CD-ROM,USB cable,micro SD card, Windscreen,3.5 plug, AC adaptor. |
