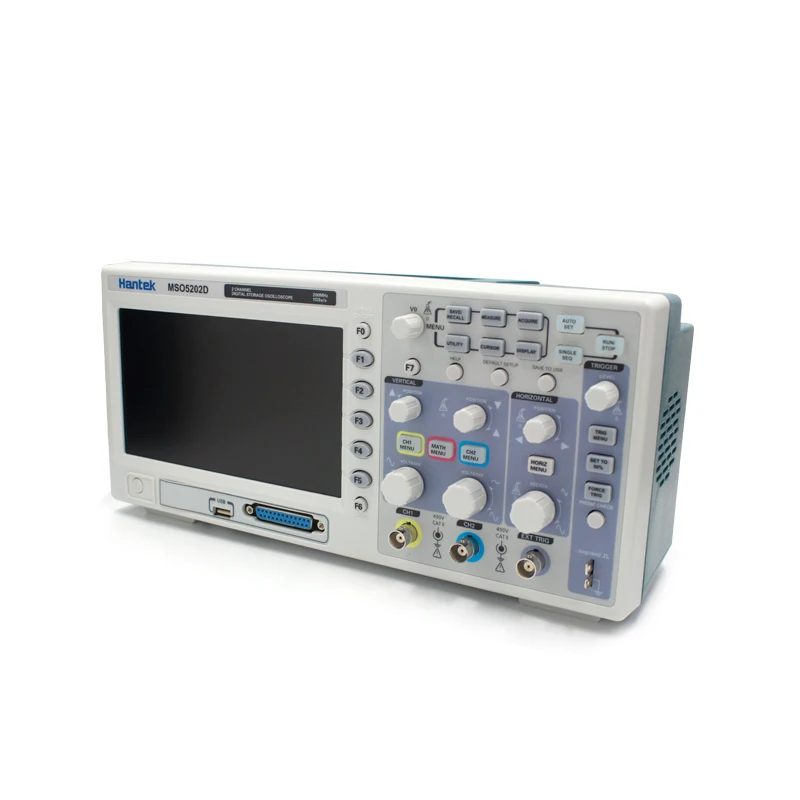

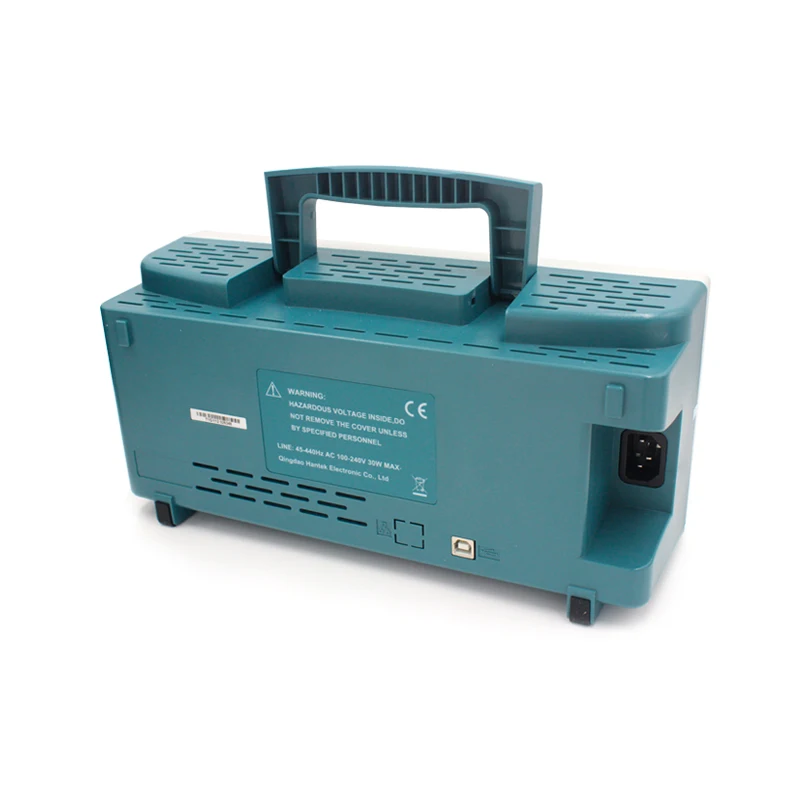

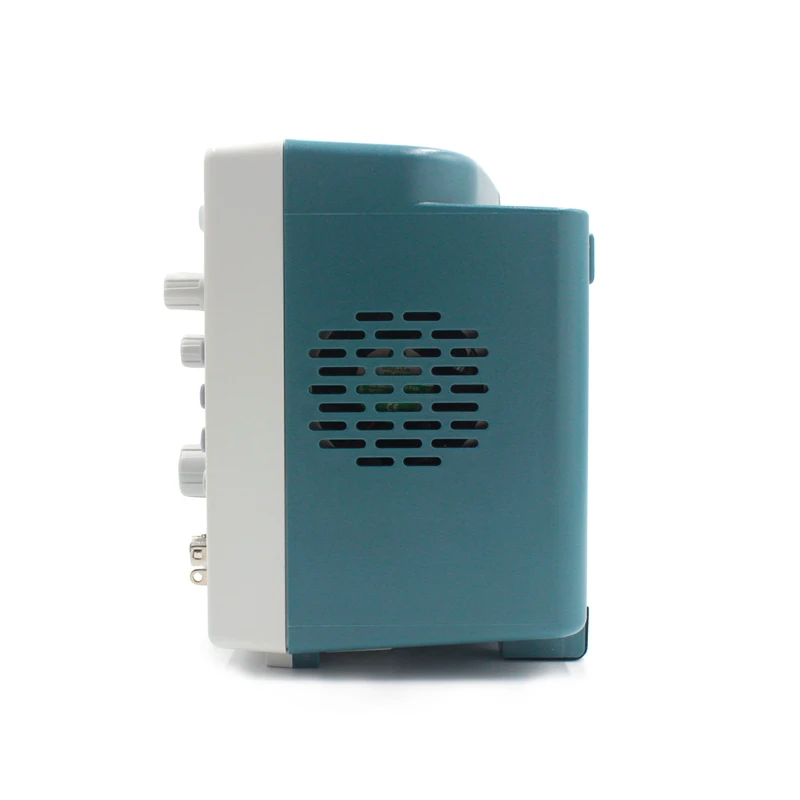

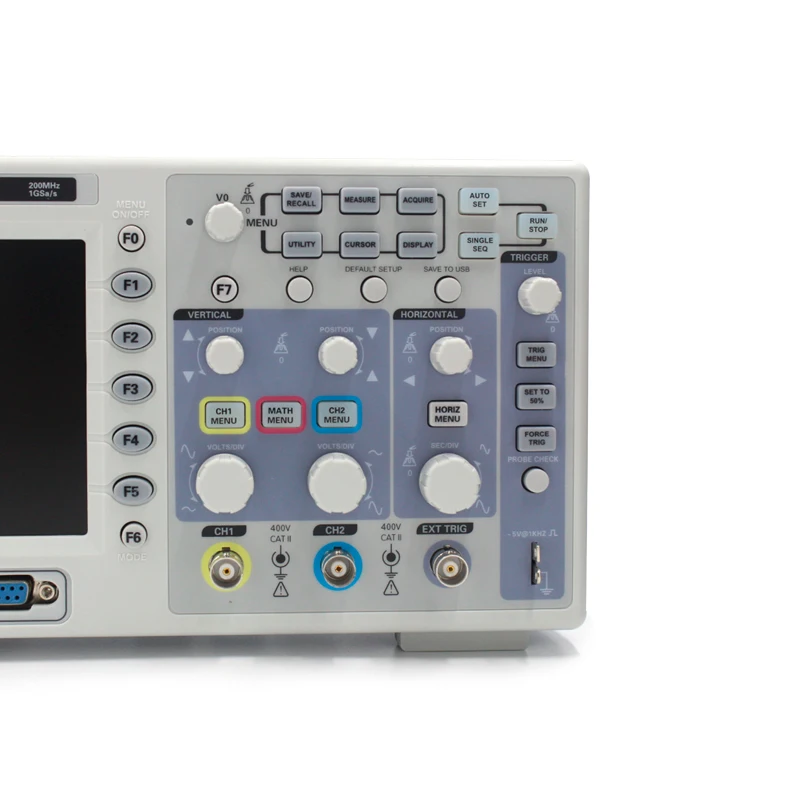

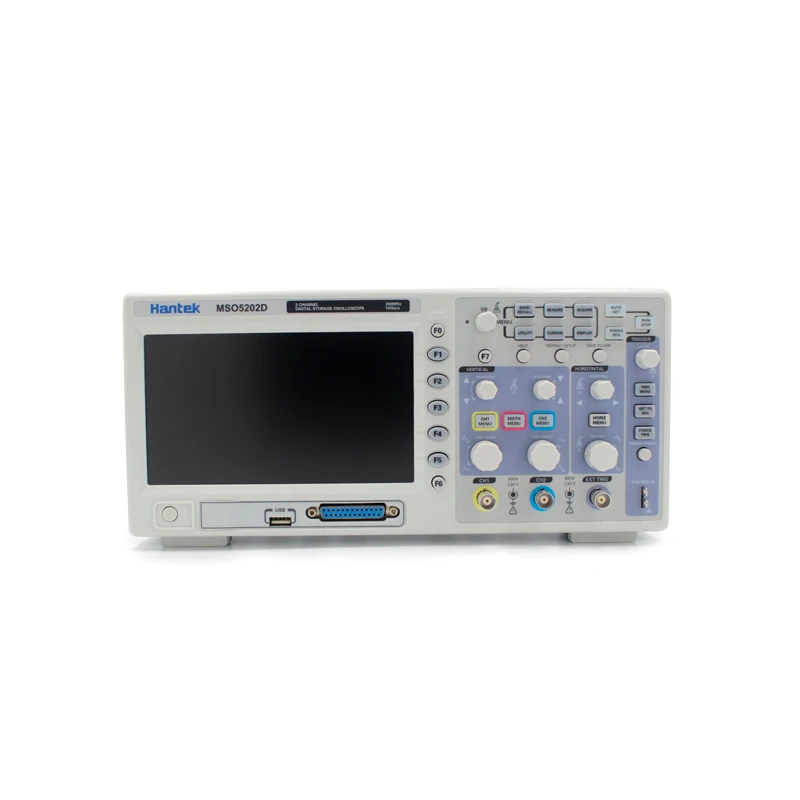

Name: Hantek MSO5202D Digital Oscilloscope Portable 200MHz 2Channels Oscilloscopes USB
Brand: Prime Living
SKU: H-168370252263
Price: 2208.99 CAD
Availability: InStock

Product Description

Hantek MSO5202D Digital Oscilloscope Portable 200MHz 2Channels Oscilloscopes USB Osciloscopio 16Channel Logic Analyzer

Feature

16 channels logic analyzer + 2 channels oscilloscope + external trigger.
Big and clear display (7.0-inch color LCD, high revolution 800 x 480), clear lifelike waveform display.
1GSa/s real time sampling rate.
USB host, support flash memory card storage and USB interface system upgrade.
Ultrathin design, handy volume, easily portable.
VGA Optional

Oscilloscope Function

Bandwidth 200MHz.
Each channel record length up to 1M.
Real time sampling rate up to 1GSa/s.
Powerful trigger function.
32 kinds of automatic measurement function.

Logic Analyzer Function

16 channels divided into 2 groups which is able to setup threshold level individually.
Real time sampling rate up to 500MSa/s.
Powerful trigger function: edge, duration, pulse width, code-type, queen, repeat.

2. Specification

Model	MSO5202D
Acquisition
Sample Rate	Real-Time Sample: 1GS/s
Acquisition Modes
Normal	Normal data only
Peak Detect	High-frequency and randon glith capture
Average	Wavefom Average, selectable 4,8,16,32,64,128
Inputs
Inputs Coupling	AC, DC, GND
Inputs Impendance	1MΩ±2% 20pF±3pF
Probe Attenuation	1X, 10X
Supported Probe Attenuation Factor	1X, 10X, 100X, 1000X
Maximum Input Voltage	CAT I and CAT II: 300VRMS (10×), Installation Category; CAT III: 150VRMS (1×); Installation Category II: derate at 20dB/decade above 100kHz to 13V peak AC at 3MHz* and above. For non-sinusoidal waveforms, peak value must be less than 450V. Excursion above 300V should be of less than 100ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300V. If these values are exceeded, damage to the oscilloscope may occur.
