Product Description

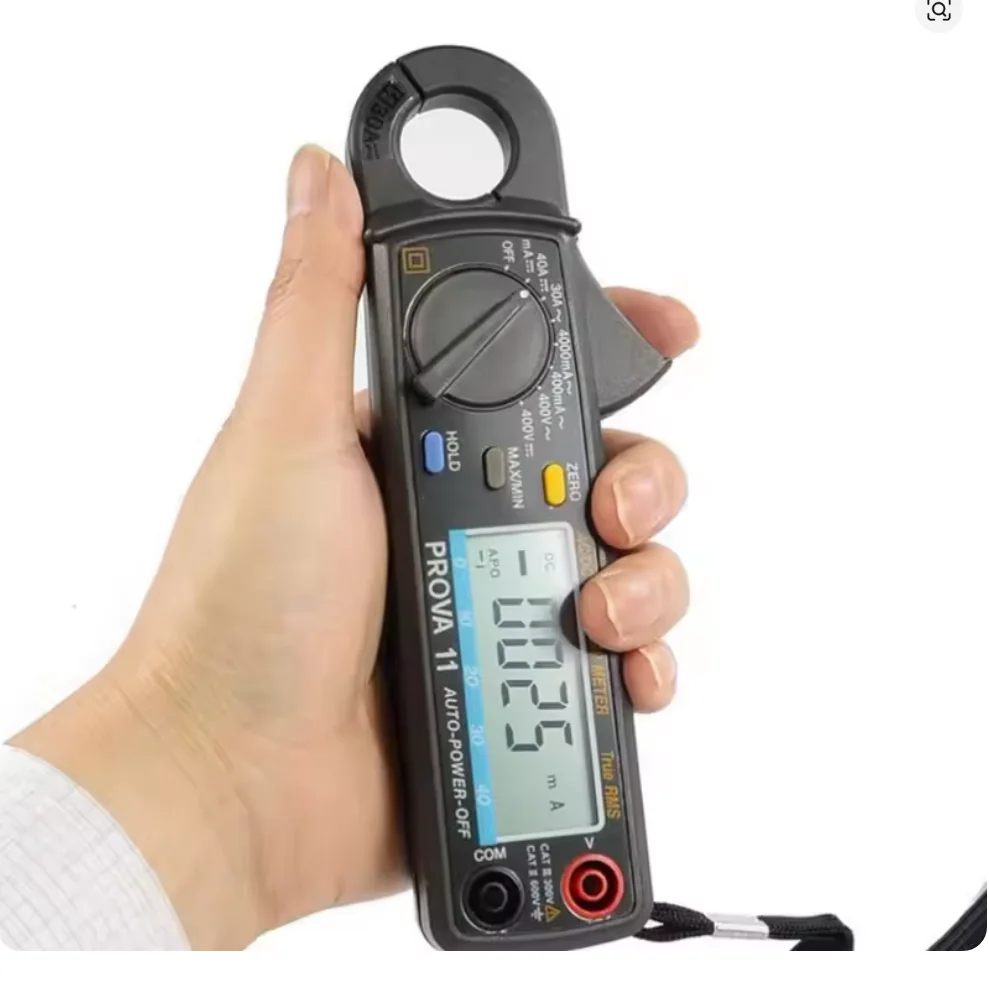

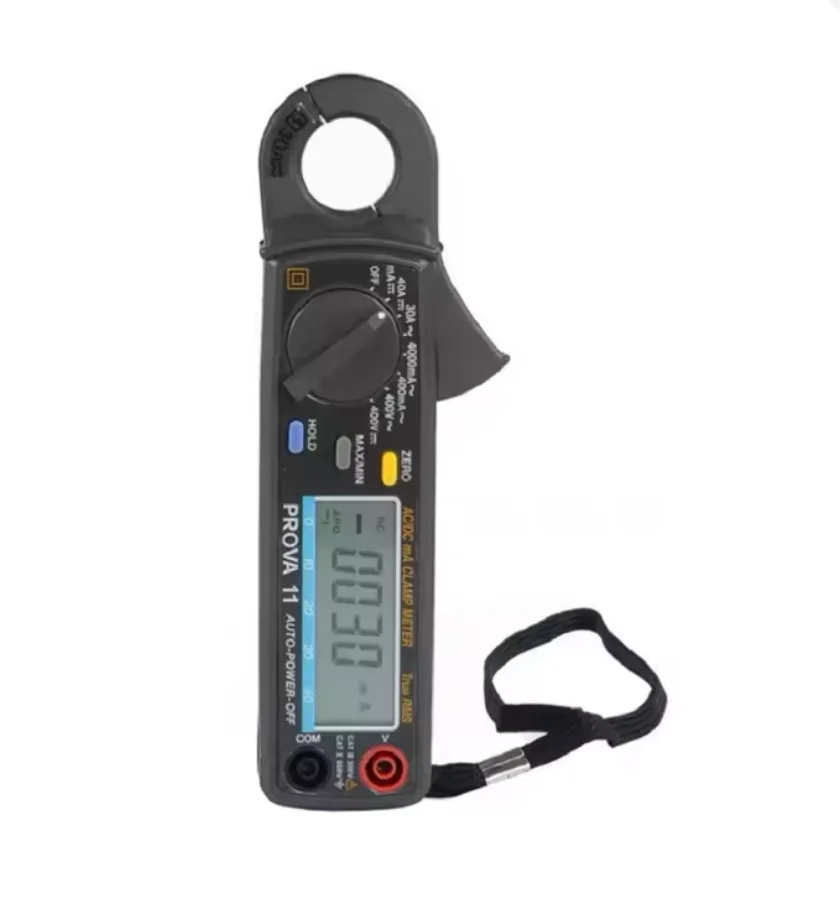

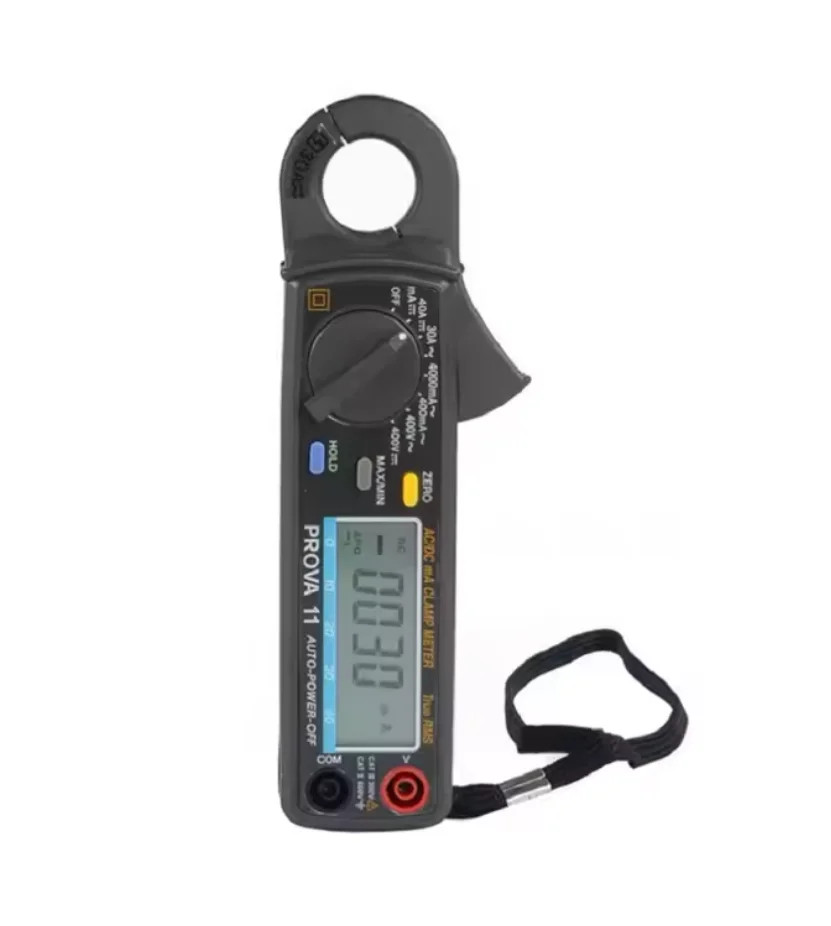

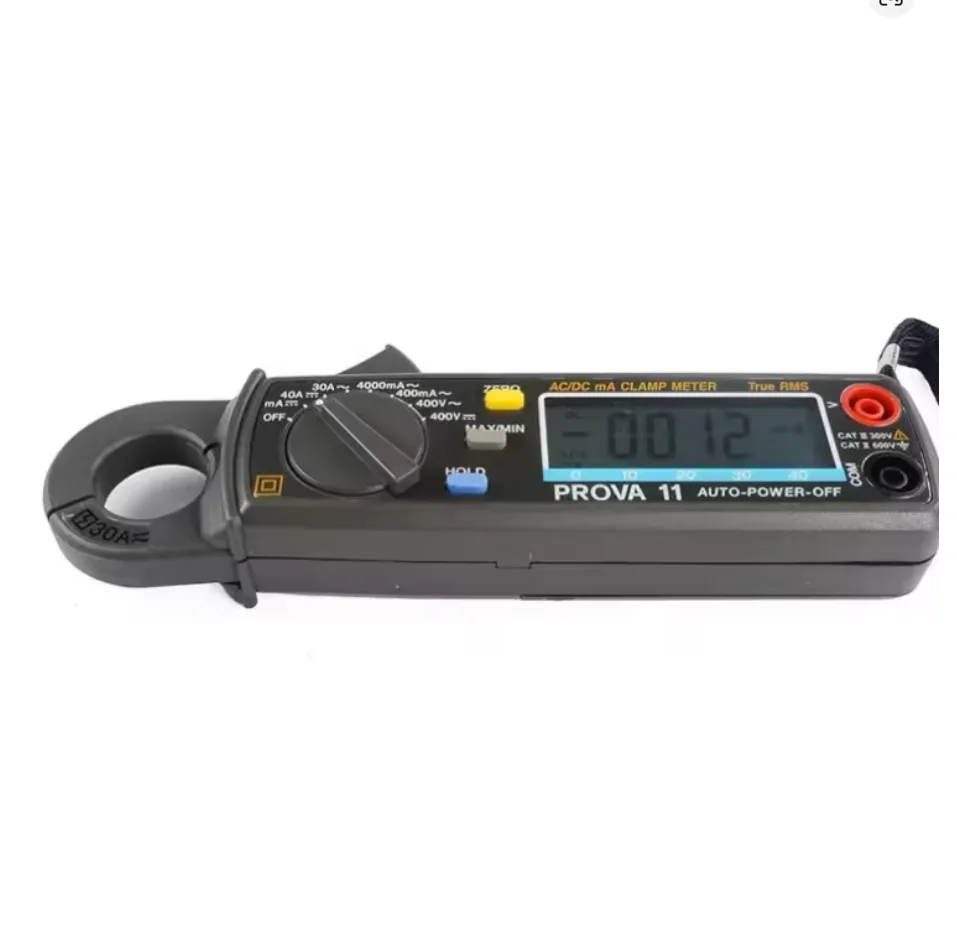

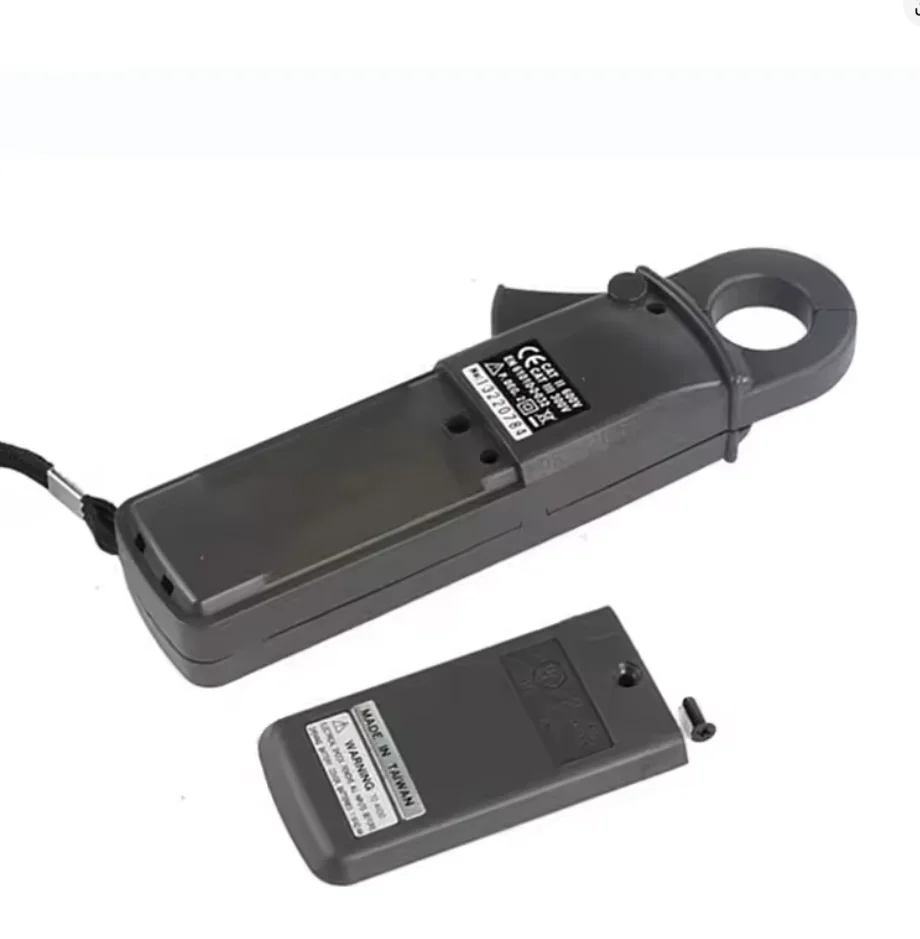

PROVA-11 AC/DC Current Clamp Meter AC/DC mA Clamp Meter AC/DC mA True RMS Clamp Meter
PROVA-11 AC/DC Current Clamp Meter AC/DC mA Clamp Meter AC/DC mA True RMS Clamp MeterPROVA-11 AC/DC Current Clamp Meter AC/DC mA Clamp Meter AC/DC mA True RMS Clamp Meter
Features:
1. Accurate digital clamp meter for Current measurement:
AC current: 0 ~ 30A (True RMS)
DC current: 0 ~ 40A
2. Accurate digital clamp meter for Voltage measurement:
AC voltage: 0 ~ 400V (True RMS)
DC voltage: 0 ~ 400V
3. AC 0.1mA, DC 1mA high resolution
4. One touch zero for DCA adjustment
5. 23 mm diameter jaw
6. Large 3 3/4 digits LCD
7. Fast bargraph display (30 times/sec.) for transient observation
8. Max/Min and Data Hold functions
9. Auto power off
10. Easy single rotary switch for any function selection
Electrical Specifications: (23℃±5 ℃)
DC Current:
Range | Resolution | Accuracy | Overload Protection |
mA (0-4A) | 1mA | ±2.0%±3dgts | DC 40A |
30A | 10mA | ±2.0%±3dgts | DC 100A |
40A | 10mA | ±2.5%±3dgts | DC 100A |
AC Current: (True RMS, Crest Factor < 3)
Range | Resolution | Accuracy | Overload Protection | |
50/60 Hz | 40 - 100Hz | |||
400mA | 0.1mA | ±1.5%±5dgts | ±2.0%±5dgts | AC 40A |
50/60 Hz | 40 - 1KHz | |||
4000mA | 1mA | ±2.5%±5dgts | ±3.0%±5dgts | AC 40A |
30A | 10mA | ±2.0%±5dgts | ±2.5%±5dgts | AC 100A |
(Input Impedance: 10MΩ)
Range | Resolution | Accuracy | Overload Protection |
400V | 0.1V | ±1.0%±2dgts | DC 1000V |
AC Voltage:
(Input Impedance: 10MΩ , True RMS, Crest Factor < 3)
Range | Resolution | Accuracy | Overload Protection | |
50/60 Hz | 40 - 1KHz | |||
400V | 0.1V | ±1.5%±4dgts | ±2.0%±5dgts | AC 800V |
General Specifications:
Conductor Size: | 23mm max. (approx.) |
Dimension (Box): | 183 (L) x 61.3 (W) x 35.6 (H) mm 7.2" (L) x 2.5" (W) x 1.4" (H) |
Battery Type: | two 1.5V SUM-3 |
Display: | 3 3/4 LCD with 40 seg. bargraph |
Range Selection: | Manual |
Overload Indication: | OL |
Power Consumption: | 15 mA (approx.) |
Low Battery Indication: | |
Sampling Time: | 3 times/sec. (display) 30 times/sec. (bargraph) |
Operating Temperature: | -10.C to 50.C |
Operating Humidity: | less than 85% relative |
Altitude: | up to 2000M |
Storage Temperature: | -20.C to 60.C |
Storage Humidity: | less than 75% relative |
Weight: | 190g (battery included) |

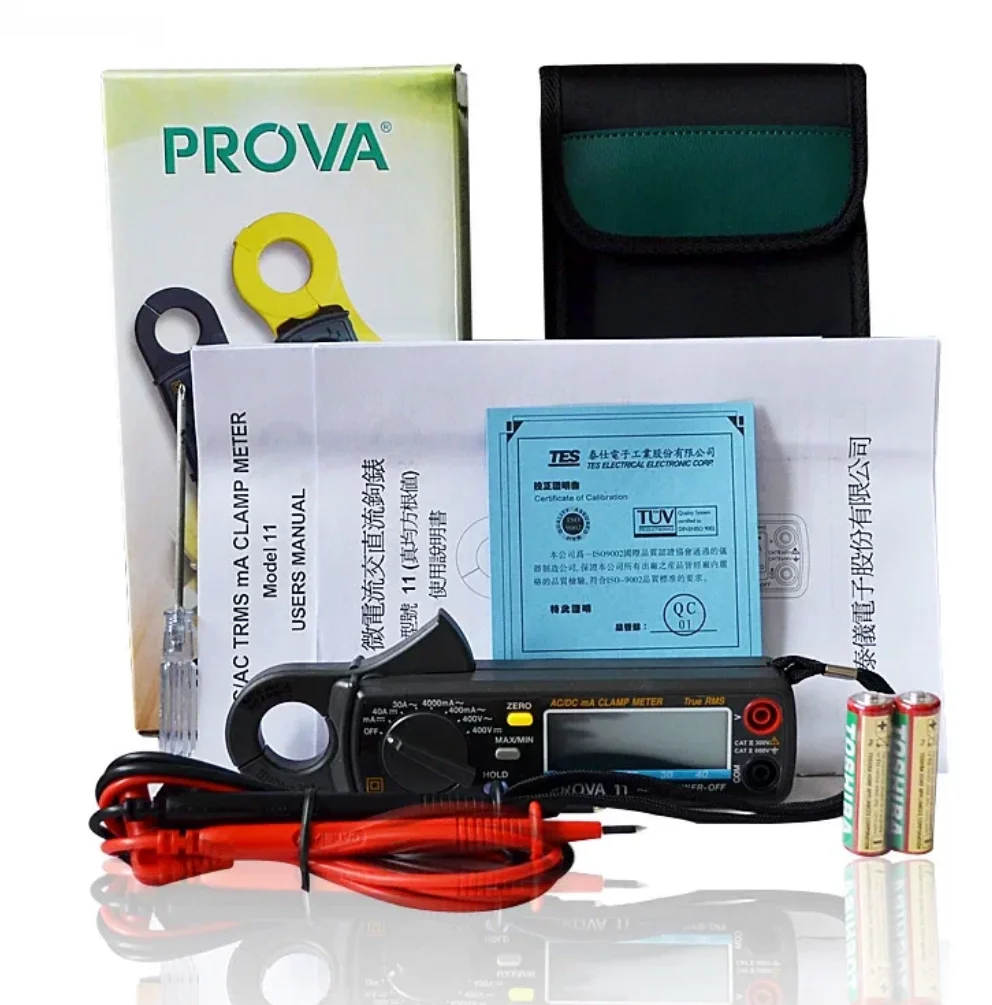

Accessories | Carrying bag x 1 Users manual x 1 Test leads x 1 |
