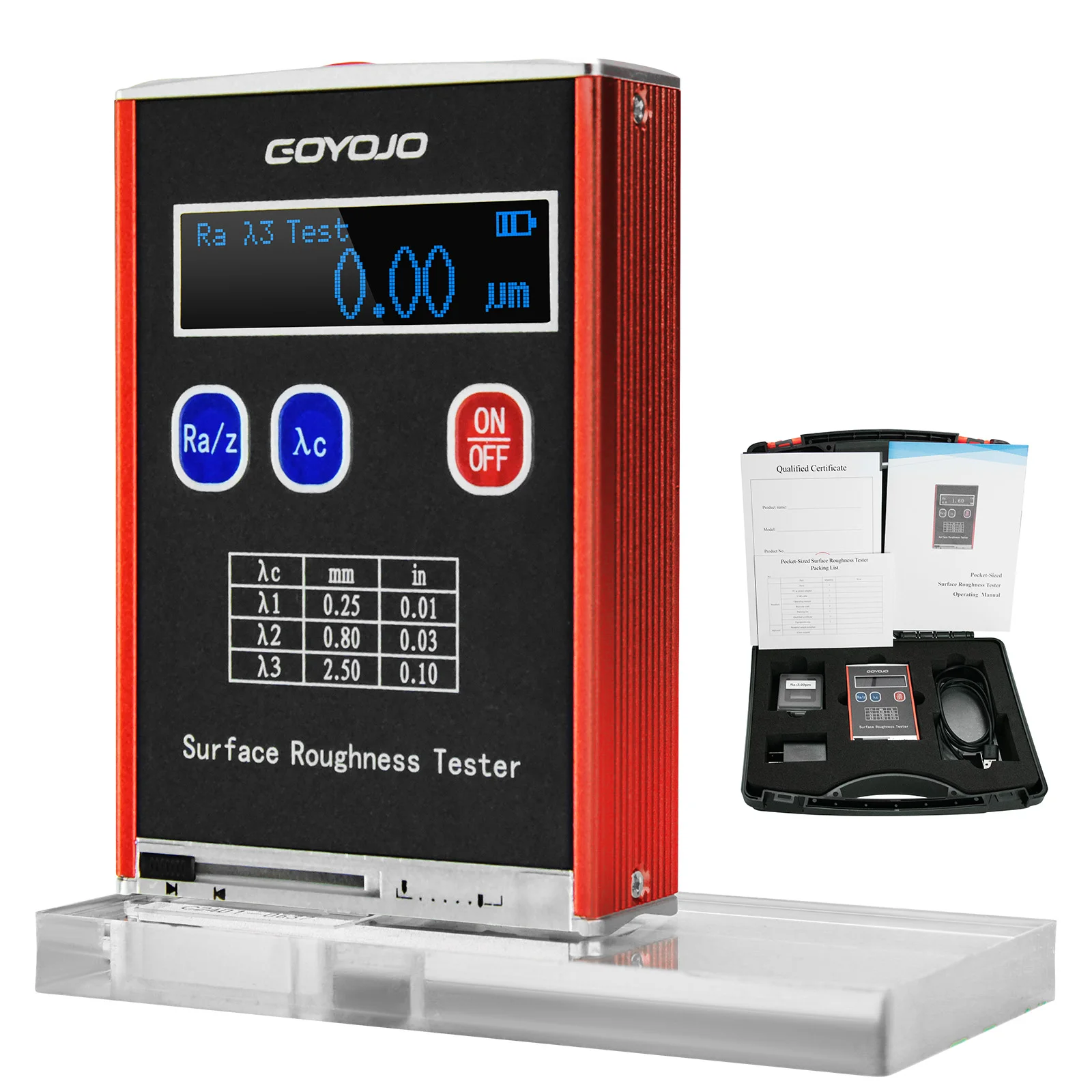

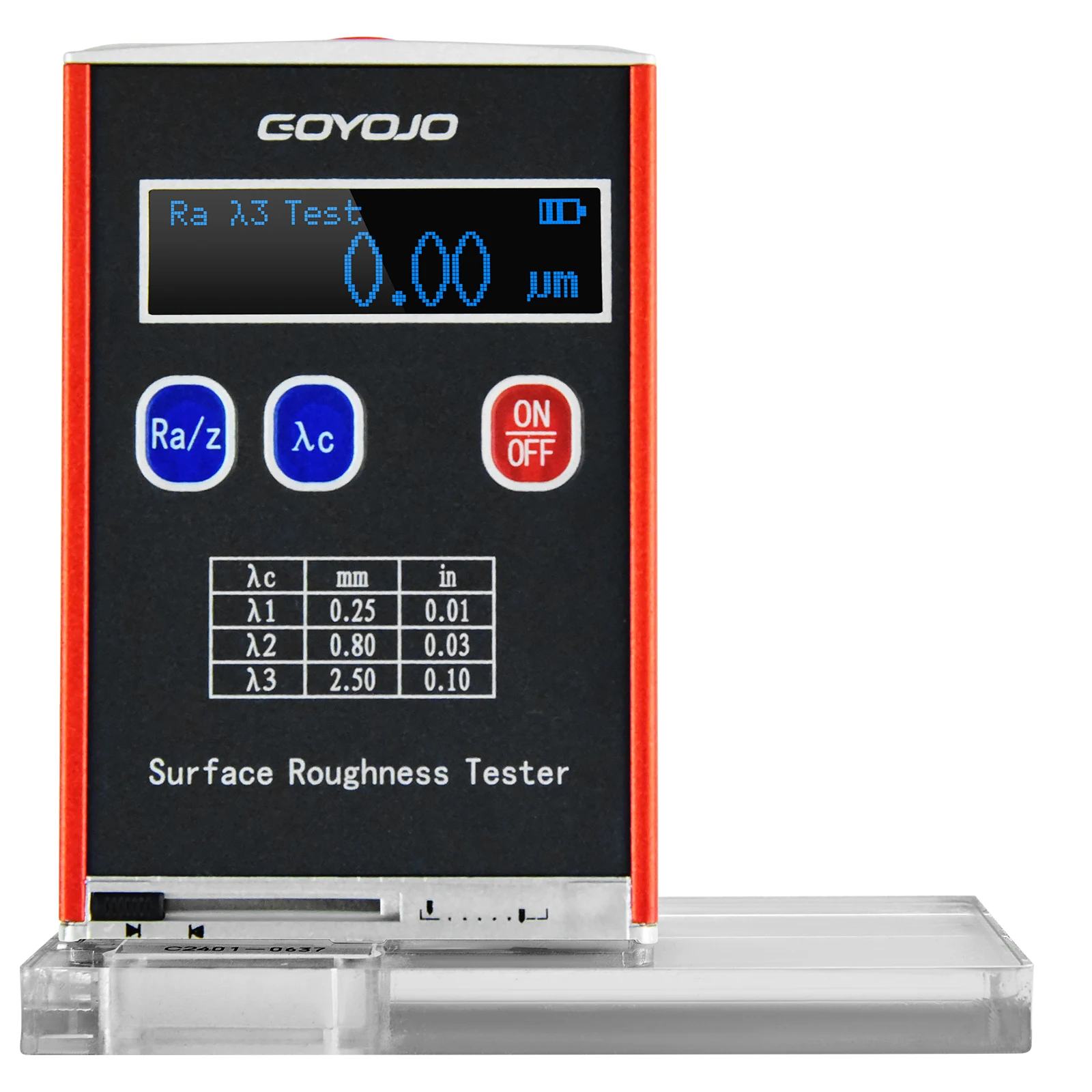

Surface Roughness Tester Meter High Accuracy 0.01μm Profilometer Portable Profil

Product Description

Key Features:

Measures Ra, Rz, Rq, and Rt with 4 testing parameters, suitable for a wide range of applications.
Versatile testing capability: can measure ex-circle, flat surfaces, conical surfaces, and grooves larger than 80 x 30mm.
Large measuring range suitable for a variety of materials, including both metal and non-metallic surfaces.
Utilizes a high-speed DSP processor for quick data processing and calculations, resulting in fast measurement and computation speeds.
Durable design with an aluminum mold shell, providing resistance to electromagnetic interference.
Features a wide temperature OLED display for high brightness, suitable for various working conditions.
Powered by a long-lasting lithium-ion rechargeable battery and includes a USB port for convenient charging.

Specifications:

Testing Parameters: Ra, Rz, Rq, Rt
Indication Accuracy: 0.01μm
Measuring Range: Ra, Rq: 0.05~15.0μm; Rz, Rt: 0.1~50.0μm
Sample Length: 0.25, 0.80, 2.50mm
Evaluation Length: 1.25, 4.0, 5.0mm
Stroke Length: 6mm
Variability: <12%
Stylus Static Force: ≤ 0.016N
Force Measuring Rate of Change: ≤ 800N/m
Power: Rechargeable Li-battery
Relative Humidity: <90%; Working Temperature: -20°C~40°C( -4°F ~ 104°F)
Size: 106 x 70 x 24mm( 4.17 x 2.76 x 0.94 inches)
Weight of Host: 0.2kg( 7.05 Ounces )

Surface Roughness Meter

Surface Roughness Meter, featuring an integrated design, is extensively used for inspecting the surfaces of various metal and non-metal processing applications. It employs a high-speed DSP processor, offering characteristics such as high measurement accuracy, wide measurement range, and stable operation.

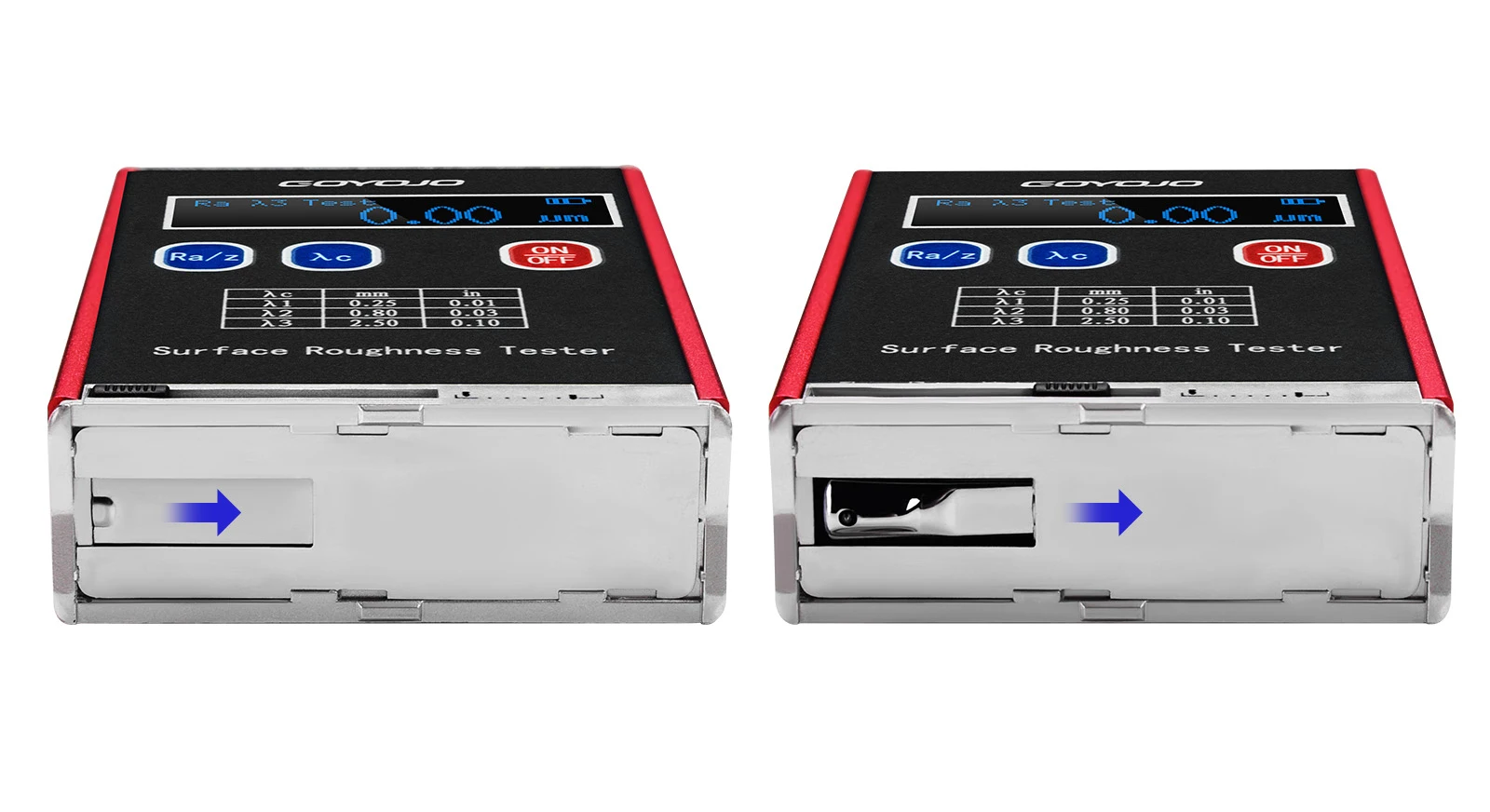

HOW TO USE -- Step 1:

Slide the measuring area to the right to expose the sensor.

Note: The sensor is a precision instrument, so it should be carefully maintained.
Avoid exposure to expansion, moisture, oil, or strong magnetic fields. After each use, gently cover the instrument with the protective cap.

HOW TO USE -- Step 2:

Place the instrument steadily on the surface of the object to be measured and press the start measurement button.
After the measurement is complete, the results will be displayed on the screen.
Note: Do not touch the instrument or the object being measured during the measurement process to avoid affecting the measurement results.

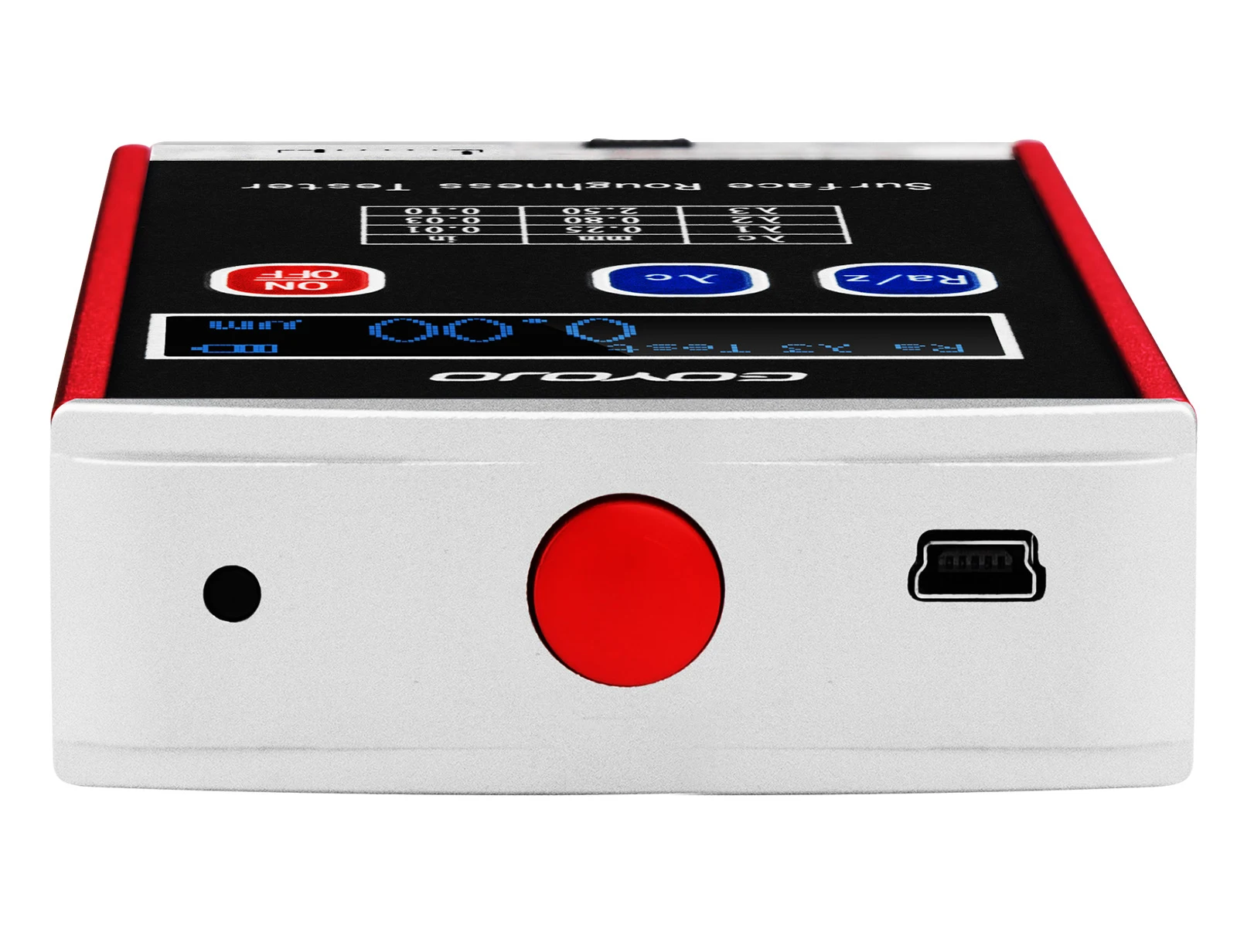

One-Button Measurement

Press the red button on the top of the instrument for a one-touch measurement.

Sensor Protection

Equipped with a protective door, effectively safeguarding the sensor probe to ensure measurement accuracy.

Extended Standby

Surface Roughness Tester features an automatic shutdown function and low power consumption design, providing an extended working time.

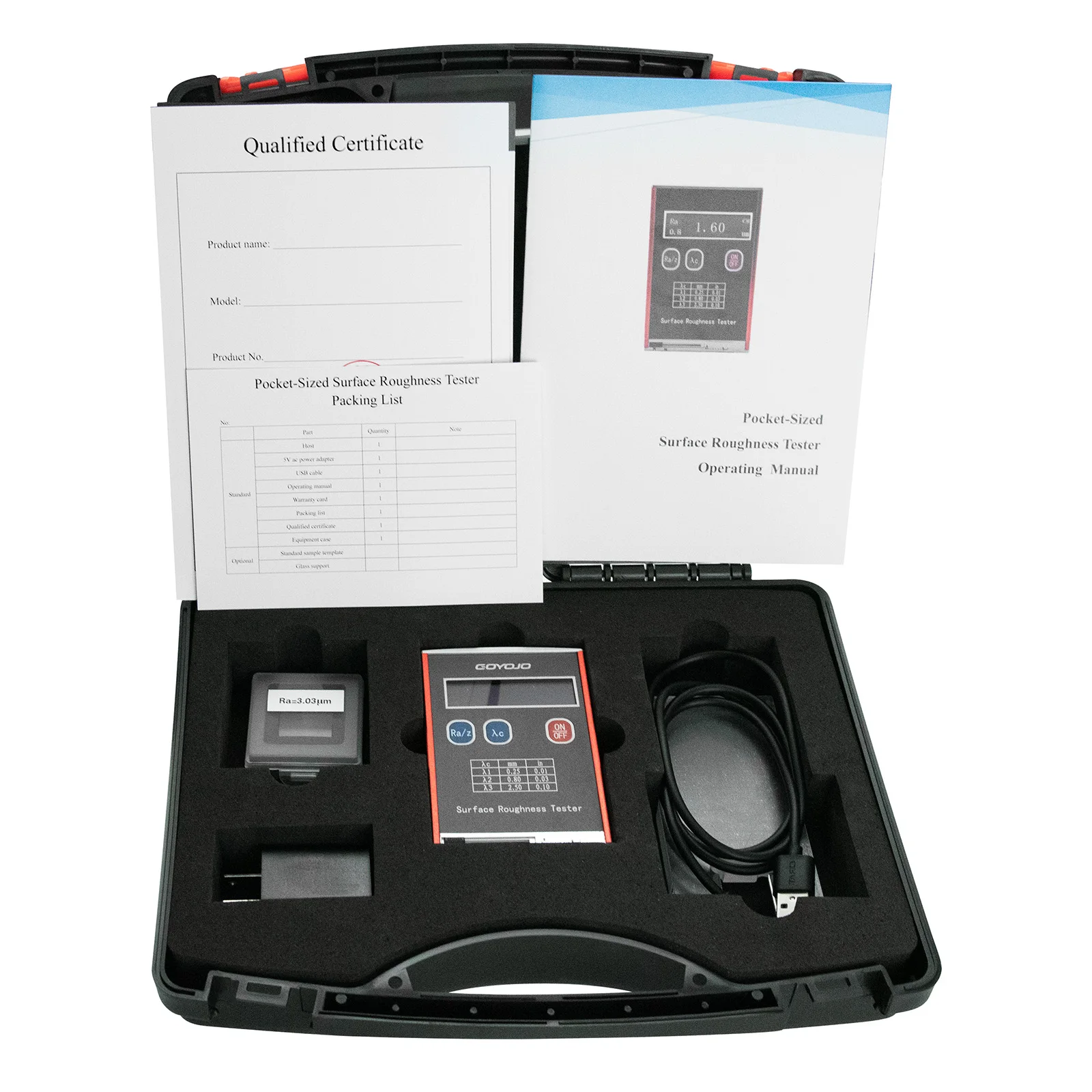

INCLUDED IN THE PACKAGE

Surface Roughness Tester Host: 1
Standard Calibration Block: 1
Bracket for Calibration Block: 1
Power Charger: 1
Charging Cable: 1
User Manual: 1

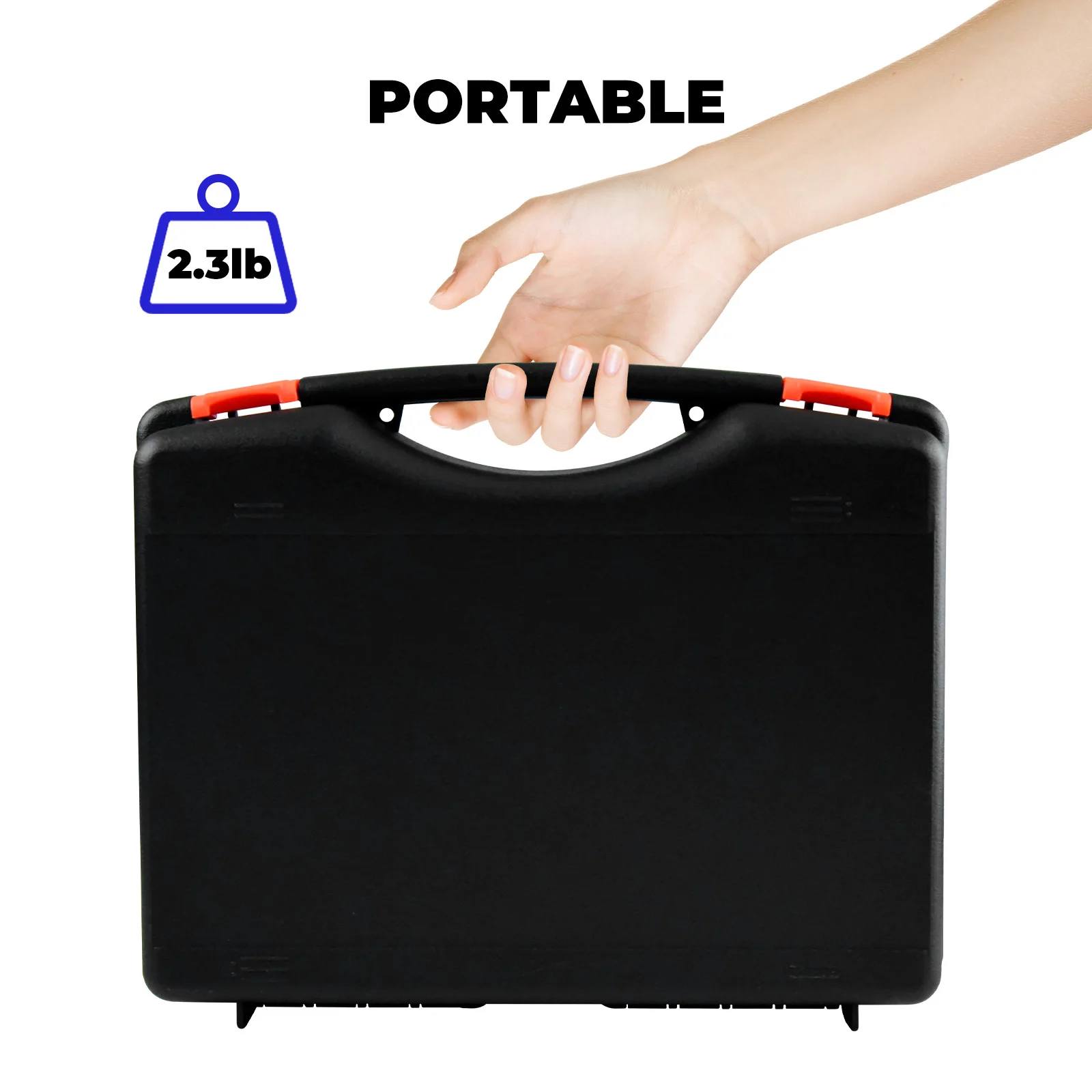

Instrument Case: 1
