Product Description
0.001um Precision Digital Graphic Surface Roughness Tester Touch 160μm Surface Roughness Meter Bluetooth Data PC Printer Probe

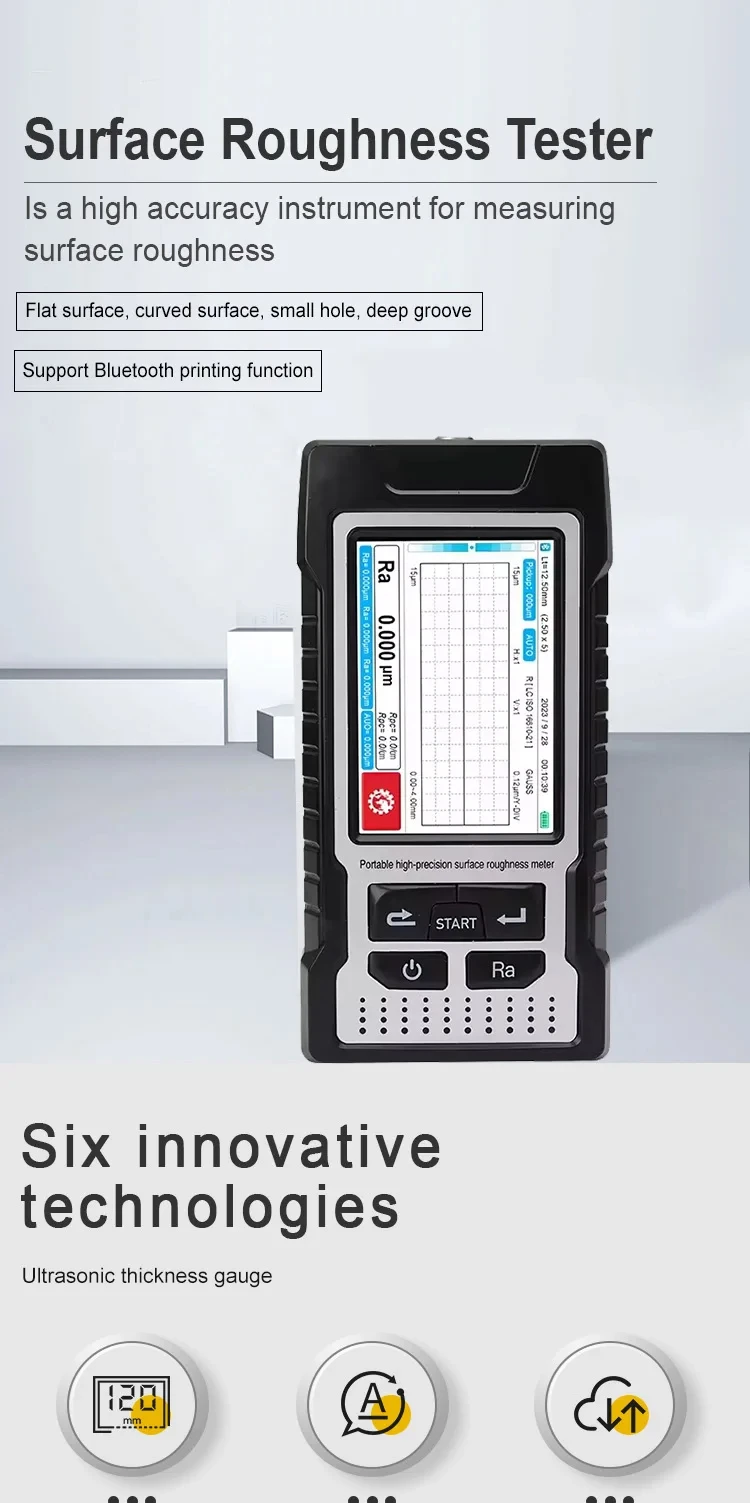

0.001um Precision Digital Graphic Surface Roughness Tester Touch 160μm Surface Roughness Meter Bluetooth Data PC Printer Probe Product Description JITAI8103 Surface Roughness Tester
IntroductionThe surfaces roughness tester is suitable for shop floor use and mobile measure to need of a small handheld instrument, it operation simple, function overall, measure fast, accuracy stability, take convenience. This tester applies to production site and can be used to measure surface roughness of various machinery-processed parts.This tester is capable of evaluating surface textures with a variety of parameters according to various national standards and international standard.The measurement results are displayed digital/graphically on the OLED,and output to the printer.

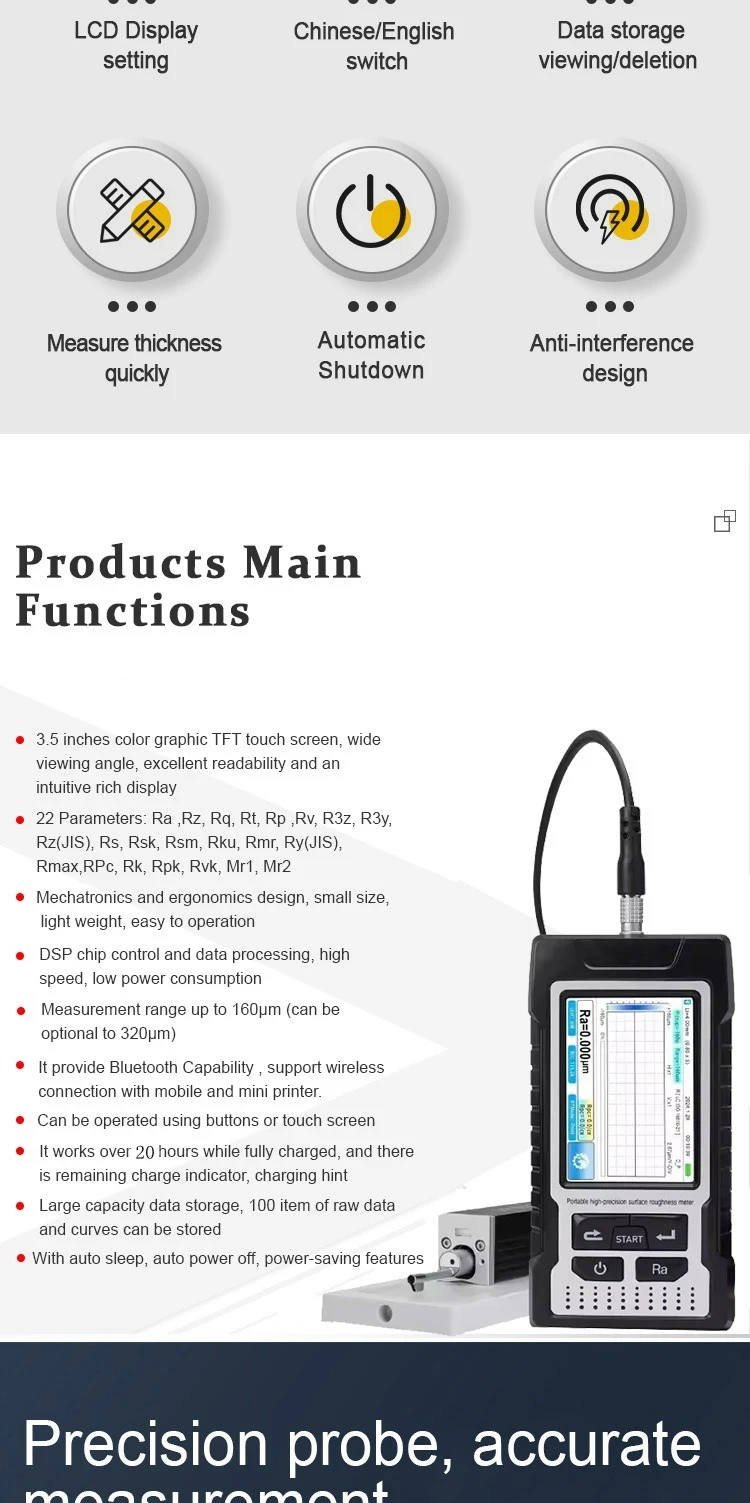

Main Feature

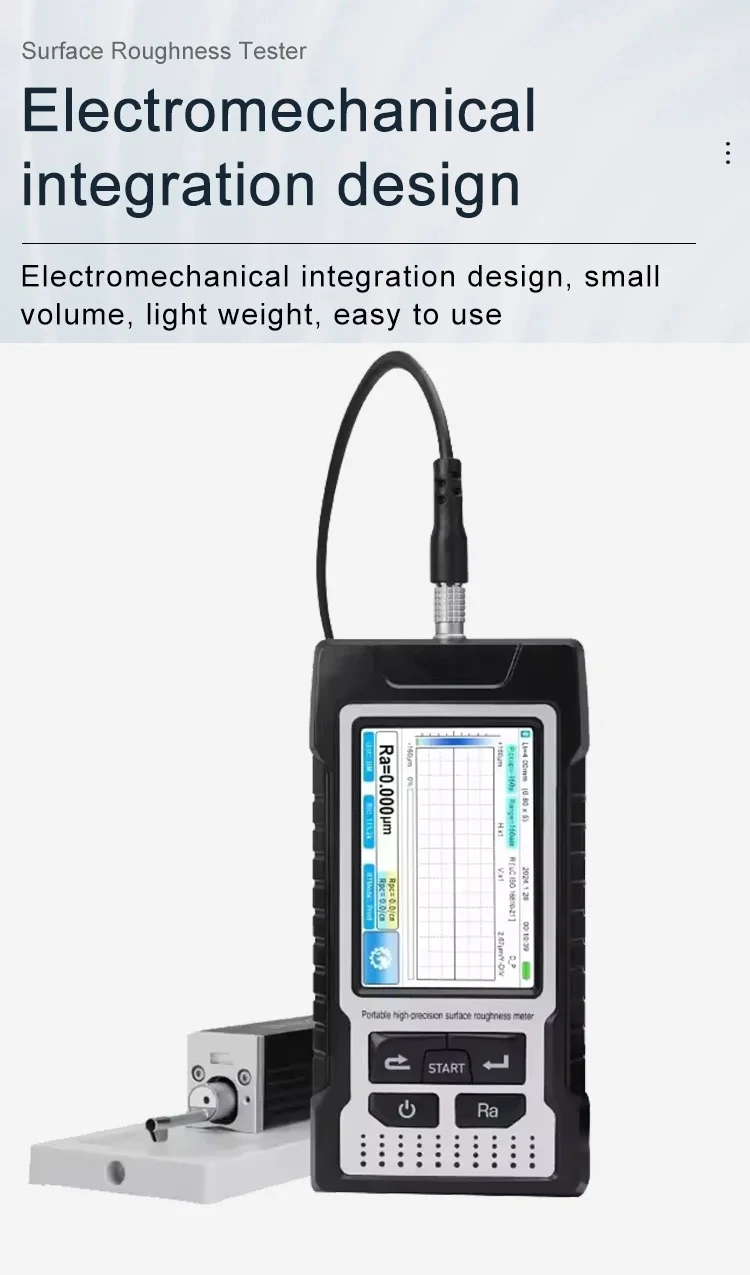

* Composite structure of main display unit ,driver unit and Sensor. Electromechanical integration
* DSP chip control and data processing, high speed, low power consumption

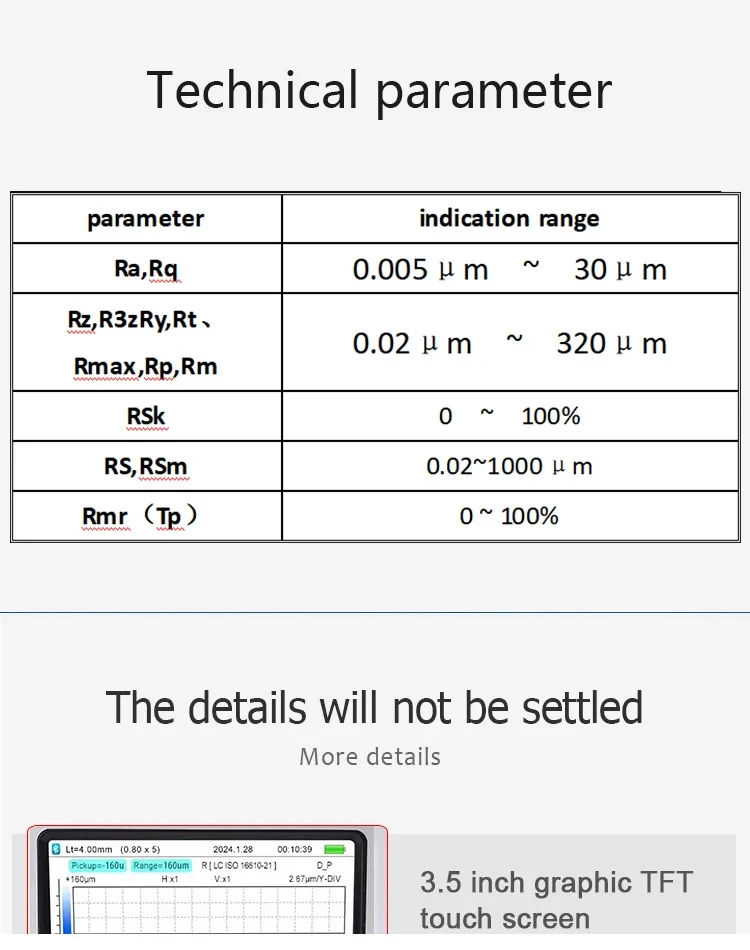

* 14 parameters: Ra,Rq,Rz,Rt,Rp,Rv,R3z,R3y,Rz(JIS),Rs,Rsk,Rku,Rsm,Rmr
* 160μmlarge measurement range
* 480*320 TFTcolor display,digital or graphic highlight display; no viewing angle
* Display full information, intuitive and graphical displays all parameters
* Compatible with ISO, DIN, ANSI, JIS multiple national standards
* Built-in 6000mAh lithium-ion rechargeable battery and control circuit, high capacity, no memory effect
* There are remaining charge indicator, charging hint
* Tester has charging instructions, the operator can readily understand the level of charge
* Can work more than 20 hours while the power is enough
* Large capacity data storage, can store 100 item of raw data and waveform
* Real-time clock setting and display for easy data recording and storage
* With automatic sleep, automatic shutdown power-saving features
* Reliable circuit and software design of prevent the motor stuck
* Instrument can display a variety of information tips and instructions. For example Measurement result display, the menu prompts and error messages
* Ergonomic housing design,rugged, compact, portable, high reliability
* English / Chinese optional
* Can connected to the computer and printer
* All parameters can be printed or print any of the parameters which set by the user

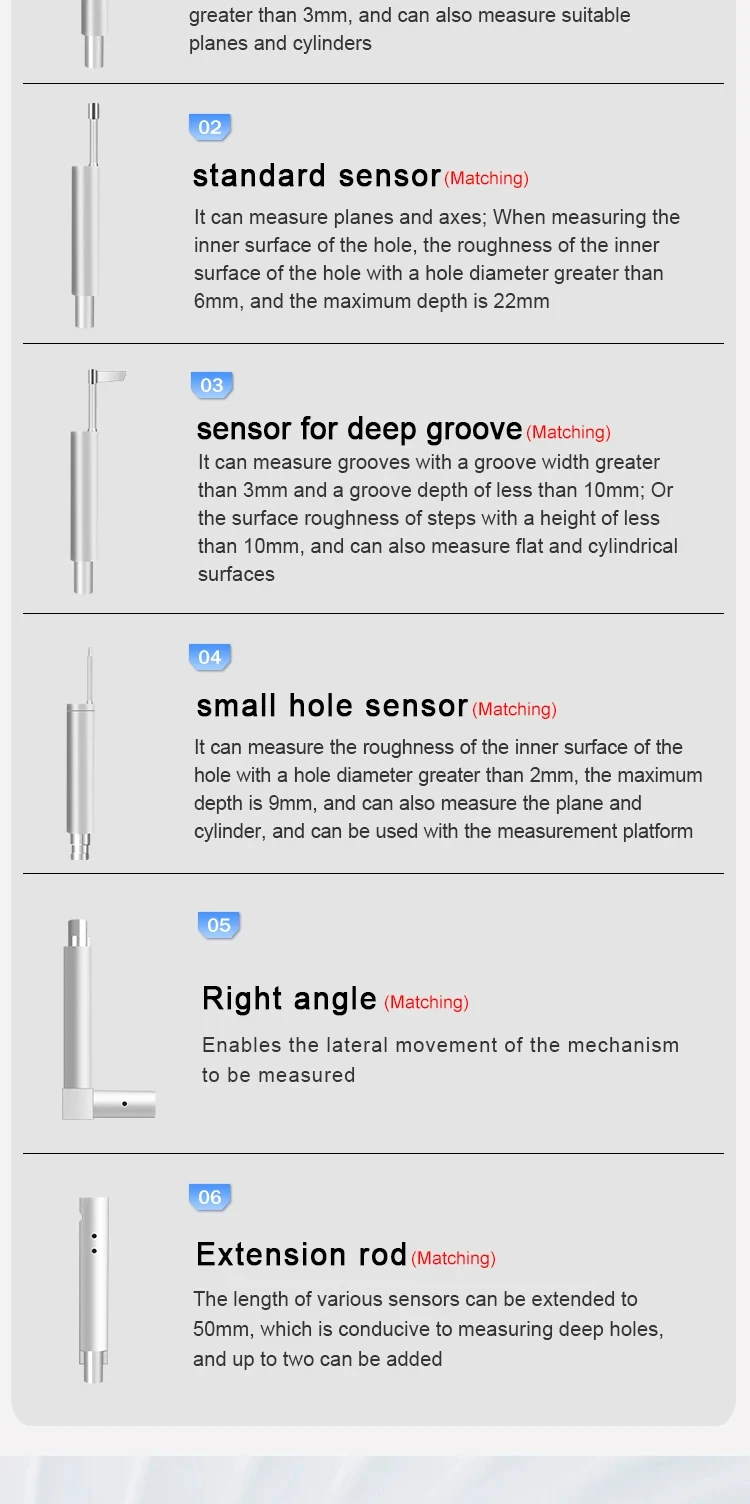

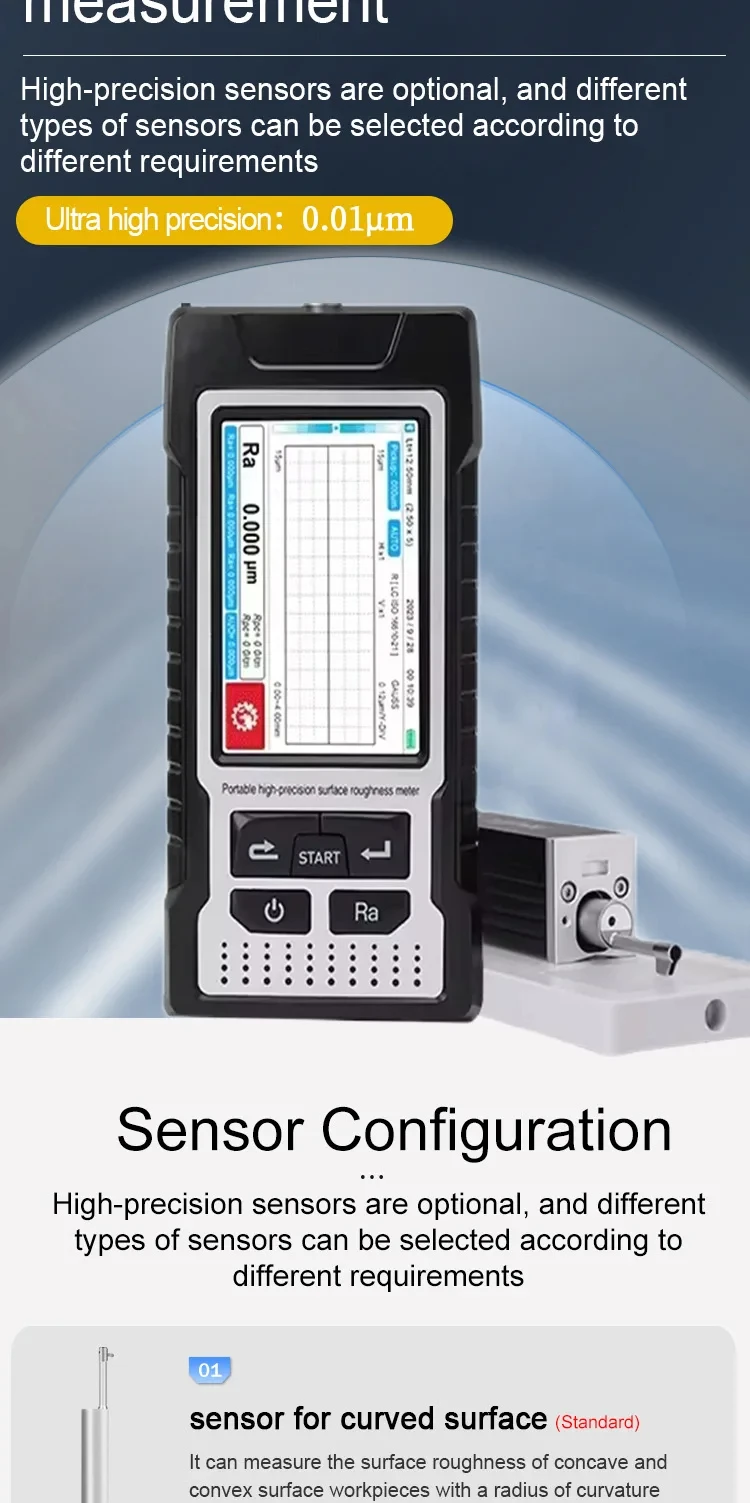

* Optional curved surface pickup sensor, holes sensor, minuteness holes sensor, measurement stand, Sheath of sensor, extension rod, printer and analysis software

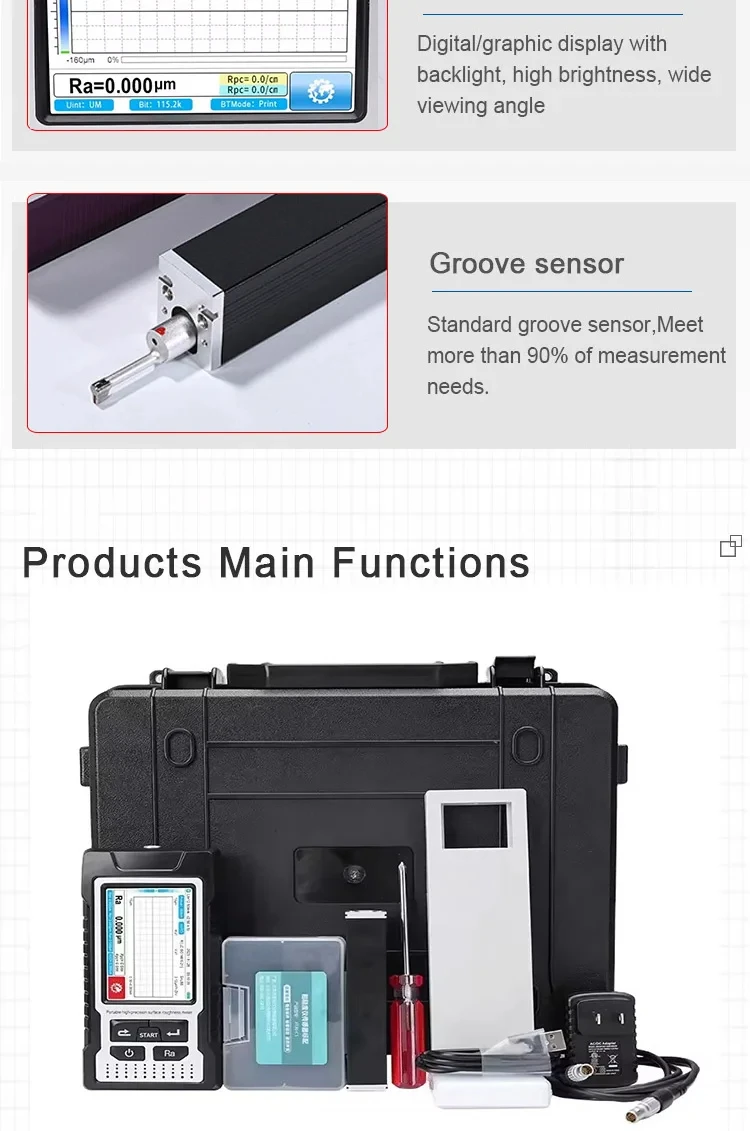

Standard Configuration:
