New Thermal Imager for FPV Drones Racing with CVBS Interface Longwave IR 12um Mi

Product Description

The thermal imaging movement is a miniaturized integrated product characterized by small size and low power consumption, which can be integrated into various types of equipment, such as robot gimbals, individual helmets, pods, etc.
【Functional characteristics】
High sensitivity vanadium oxide non cooled detector, supporting 640 × 512 resolution

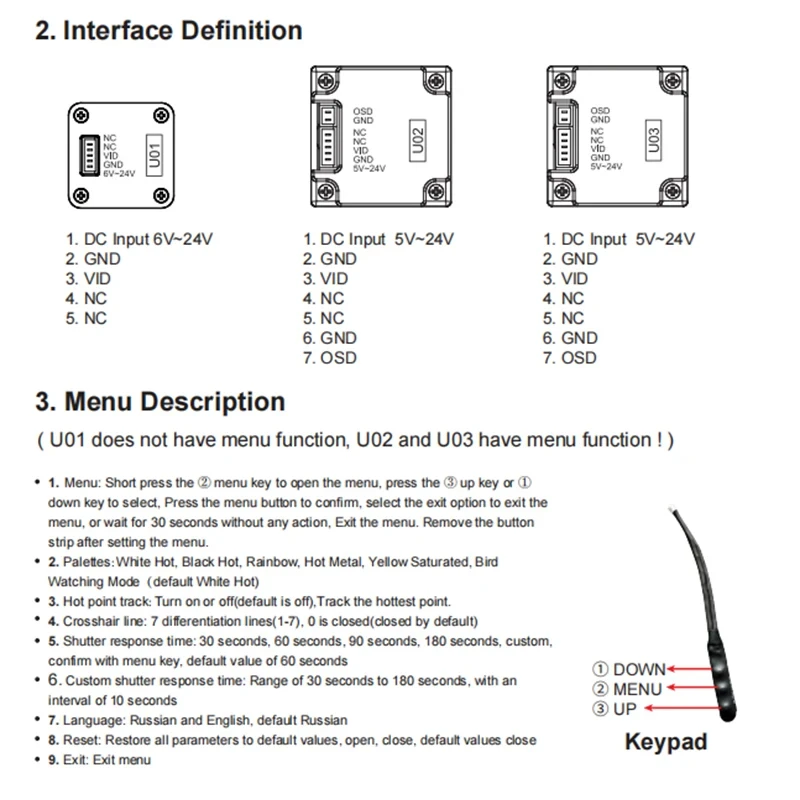

Support analog signal output
Support automatic, manual calibration, and background correction
Compact design for easy integration
【Application scenarios】
Integration of drone pods, intelligent equipment, etc

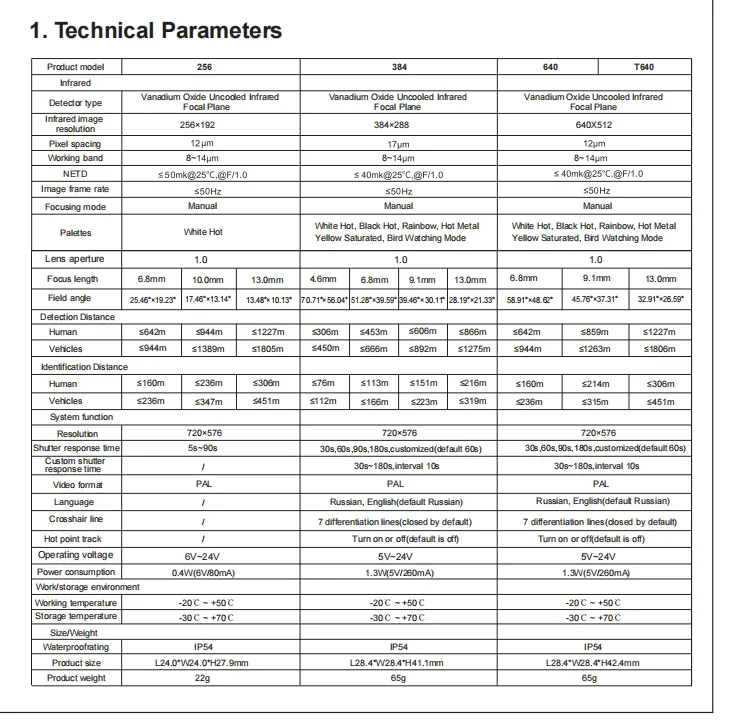

256 x 192 Specification:

- Resolution: 256 x 192
- Detector type: vanadium oxide uncooled infrared focal plane detector
- Effective frame rate: 50fps
- Pixel pitch: 12um
- NETD: 50mk
- Spectral band: 8 - 14um
- Lens parameters:F1.0/6.8mm
- FOV (HxV): 6.8mm: 25.46°(H) x 19.23°(V)
- Polarity/palette: White Hot
- Power supply input: 6V - 24V
- Power: 0.4W (6V/80mA)
- Output: CVBS
- Analog video: PAL

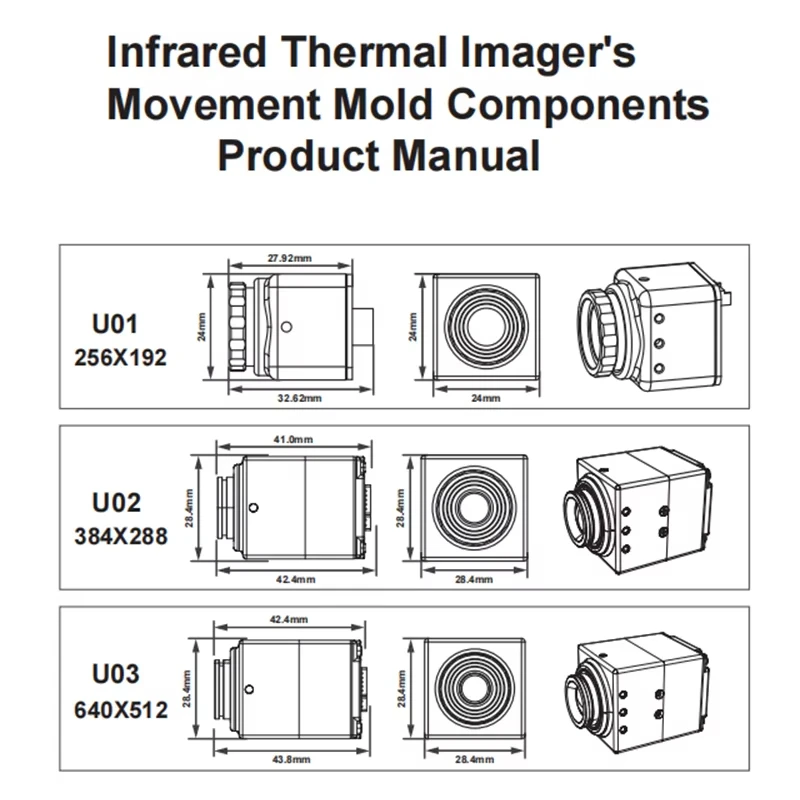

- Product size (without lens): 24Xmm24mmX27.9mm
- Weight (without lens): ≤22g
- Operating temperature: -20℃ ~ 50℃
- Storage temperature: -30℃ ~ 70℃
Waterproof: IP54

384 x 288 Specification:

- Resolution: 384 x 288
- Detector type: vanadium oxide uncooled infrared focal plane detector
- Effective frame rate: 50fps
- Pixel pitch: 17um
- NETD: 50mk
- Spectral band: 8 - 14um
- Lens parameters:F1.0/9.1mm
- FOV (HxV): 9.1mm: 39.46°(H) x 30.11°(V)

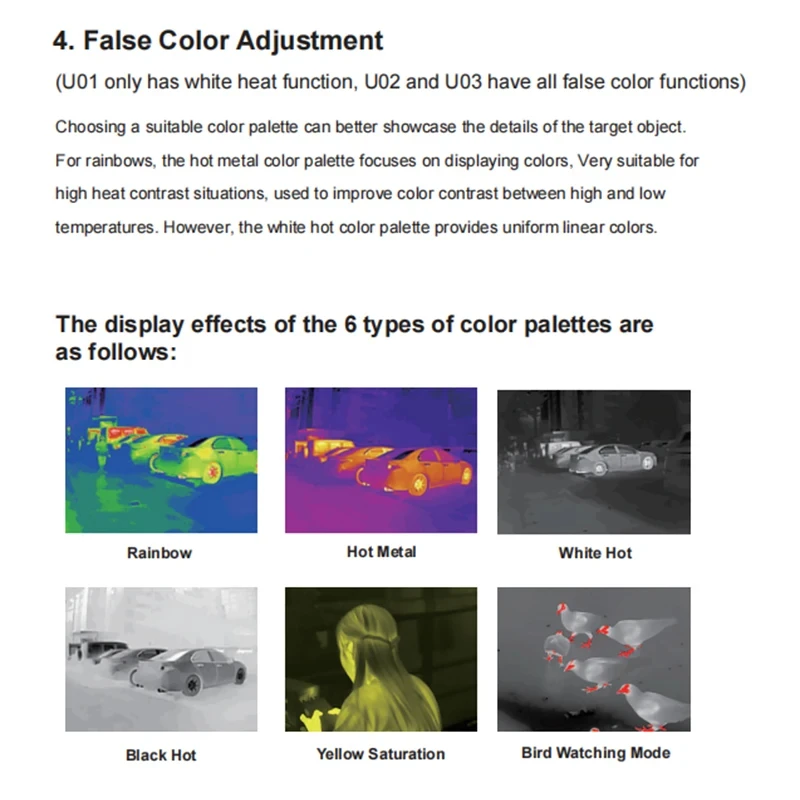

- Polarity/palette: Rainbow, Hot Metal, White Hot, Black Hot, Yellow Saturation, Bird Watching Mode
CVBS only has white heat and black heat
- Power supply input: 5V - 24V
- Power: 1.3W (5V/260mA)
- Output: CVBS
- Analog video: PAL
Shutter response time: 30s.60s.90s.180s.customized(default 60s)
Cnstom shuter response time: 30s-180s,interval 10s
- Language: Russian,Enqlsh(defaut Russian)
- Cros shair line: 7 differentiation lines(closed by default)
- Product size (without lens): 28.4Xmm28.4mmX41.1mm
- Weight (without lens): ≤65g
- Operating temperature: -20℃ ~ 50℃
- Storage temperature: -30℃ ~ 70℃
Waterproof: IP54

640 x 512 Specification:

- Resolution: 640 x 512
- Detector type: vanadium oxide uncooled infrared focal plane detector
- Effective frame rate: 50fps
- Pixel pitch: 12um
- NETD: 50mk
- Spectral band: 8 - 14um
- Lens parameters:F1.0/9.1mm
- FOV (HxV): 9.1mm: 45.76°(H) x 37.31°(V)
- Polarity/palette: Rainbow, Hot Metal, White Hot, Black Hot, Yellow Saturation, Bird Watching Mode
CVBS only has white heat and black heat
- Power supply input: 5V - 24V
- Power: 1.3W (5V/260mA)
- Output: CVBS
- Analog video: PAL
Shutter response time: 30s.60s.90s.180s.customized(default 60s)
Cnstom shuter response time: 30s-180s,interval 10s
- Language: Russian,Enqlsh(defaut Russian)
- Cros shair line: 7 differentiation lines(closed by default)
- Product size (without lens): 28.4Xmm28.4mmX42.4mm
- Weight (without lens): ≤65g
- Operating temperature: -20℃ ~ 50℃
- Storage temperature: -30℃ ~ 70℃
Waterproof: IP54
