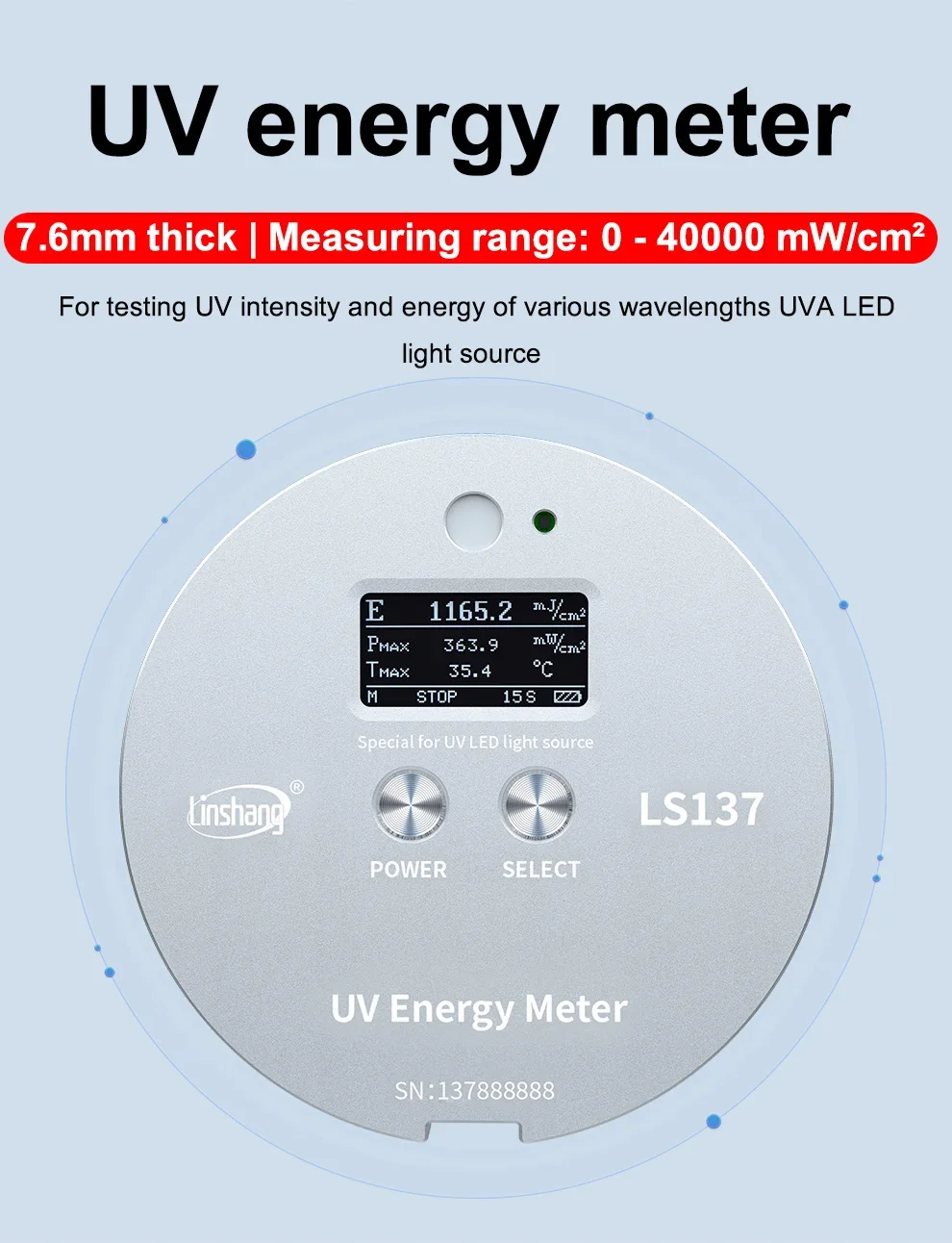

Uv Energy Meter Radiometer UVA LED Light Sources LS137 Measure Energy, Power and

Product Description

Description

LS137 UV energy meter can simultaneously display UV intensity, UV energy and temperature values, adapted to measure the wavelength of 365nm, 375nm, 385nm, 395nm, 405nm and other kinds of UVALED light source. Mainly used for UV dryer, curing machine, UV coating machine, exposure machine, printing machine and other equipment within the UV light source irradiation intensity and energy detection. The range of the instrument is up to 40,000mW/cm2, the disc design, the body is more slim, lighter weight, equipped with high temperature protection cover, fearless of high temperature environment.

Specifications

1. Spectral range: 340nm - 420nm, calibrated at 395nm LED light source

2. Power measuring range: 0-40000mW/cm²

3. Power resolution: 1mW/cm²

4. Energy measuring range: 0-999999mJ/cm²

5. Energy measuring accuracy: ±10%, ±5% (typical)

6. Sampling speed: 2048 times/second

7. Recording period: 32 min

8. Power supply: Rechargeable lithium battery 3.7V@400mAh

9. Display: 128X64 Dot matrix OLED

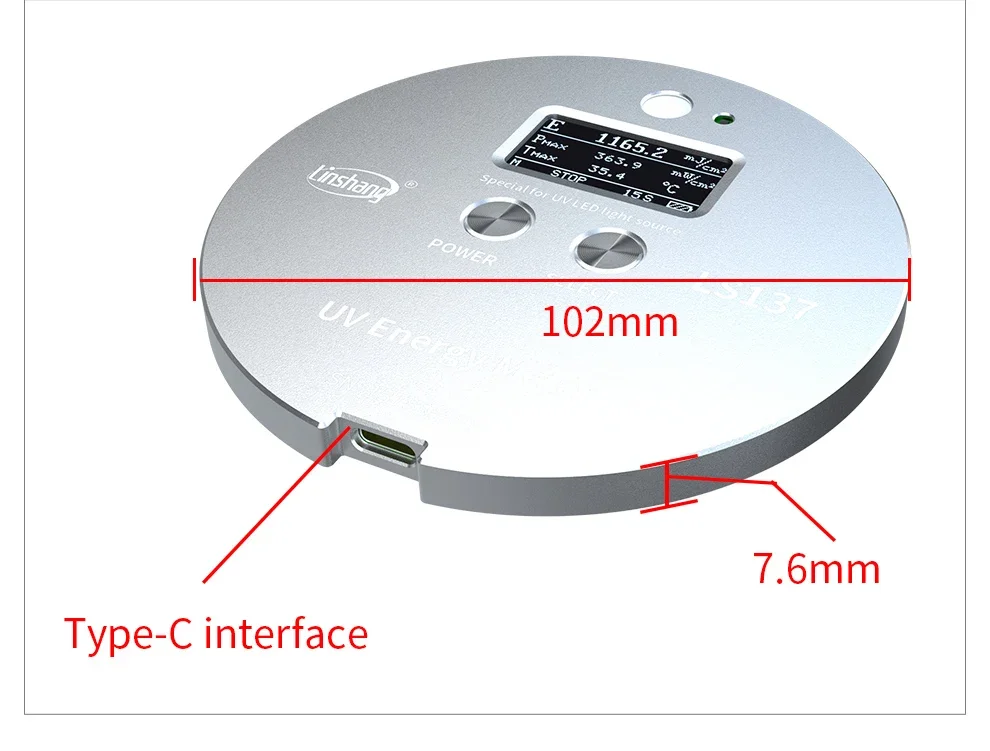

10. Dimension: Diameter 102mm* thinkness 7.6mm

11. Weight: 136g

Features

1. Wide spectral response range of 340nm-420nm, suitable for measuring UV LED light sources.

2. Simultaneous measurement of energy value, power value and temperature.

3. Thinner at only 7.6mm and lighter in weight for measurements in narrow spaces.

4. Automatic and manual measurement modes can be selected.

5. With high temperature protection cover, it can operate for a long time in high temperature environment.

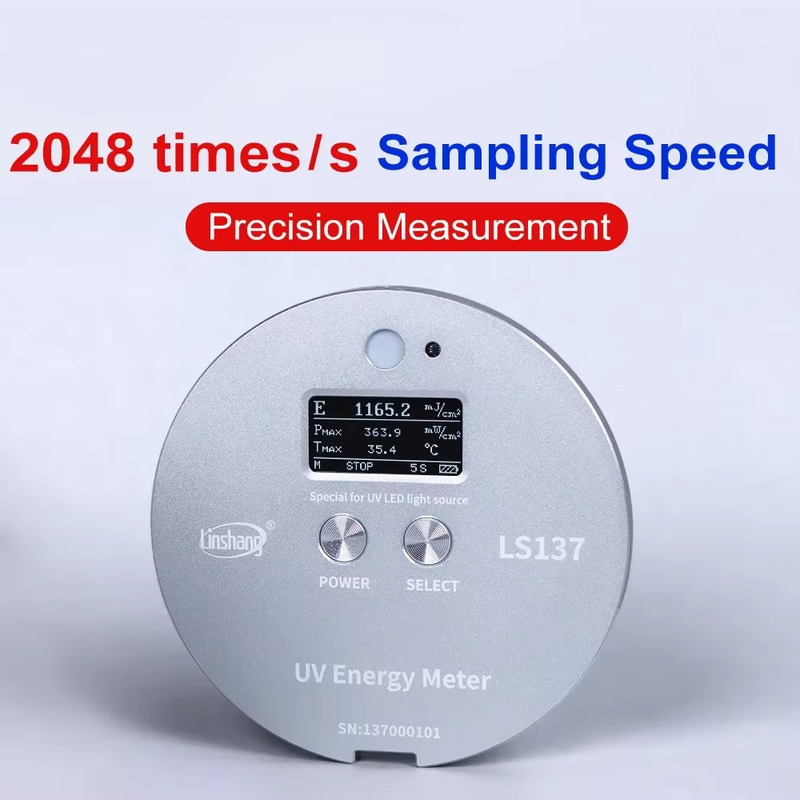

6. 2048 times/sec high-speed sampling, fast acquisition frequency to make UV energy meter more accurate.

7. Built-in temperature detector and timer, real-time display of temperature and measurement duration.

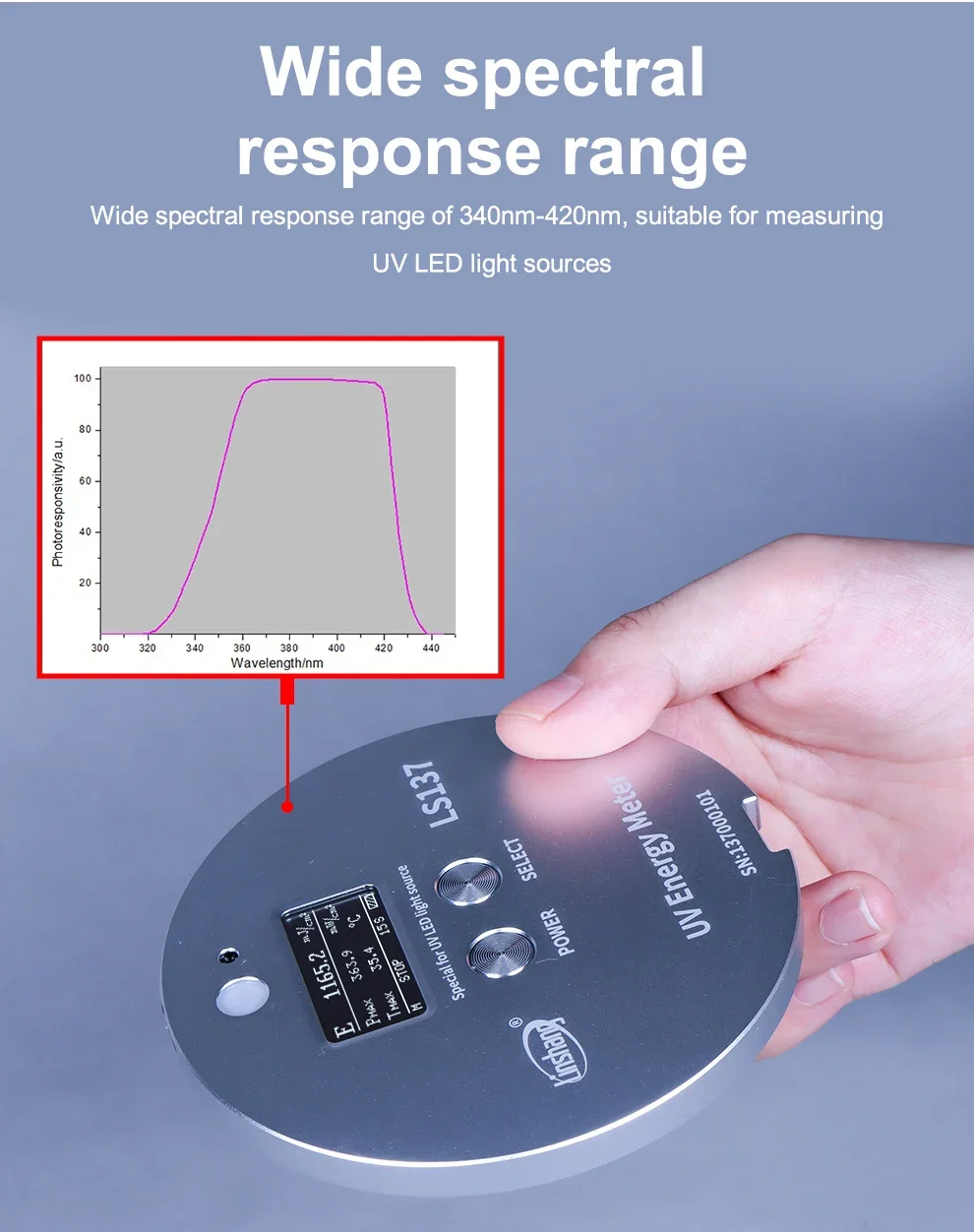

Wide spectral response range

Wide spectral response range of 340nm-420nm, suitable for measuring UV LED light sources.

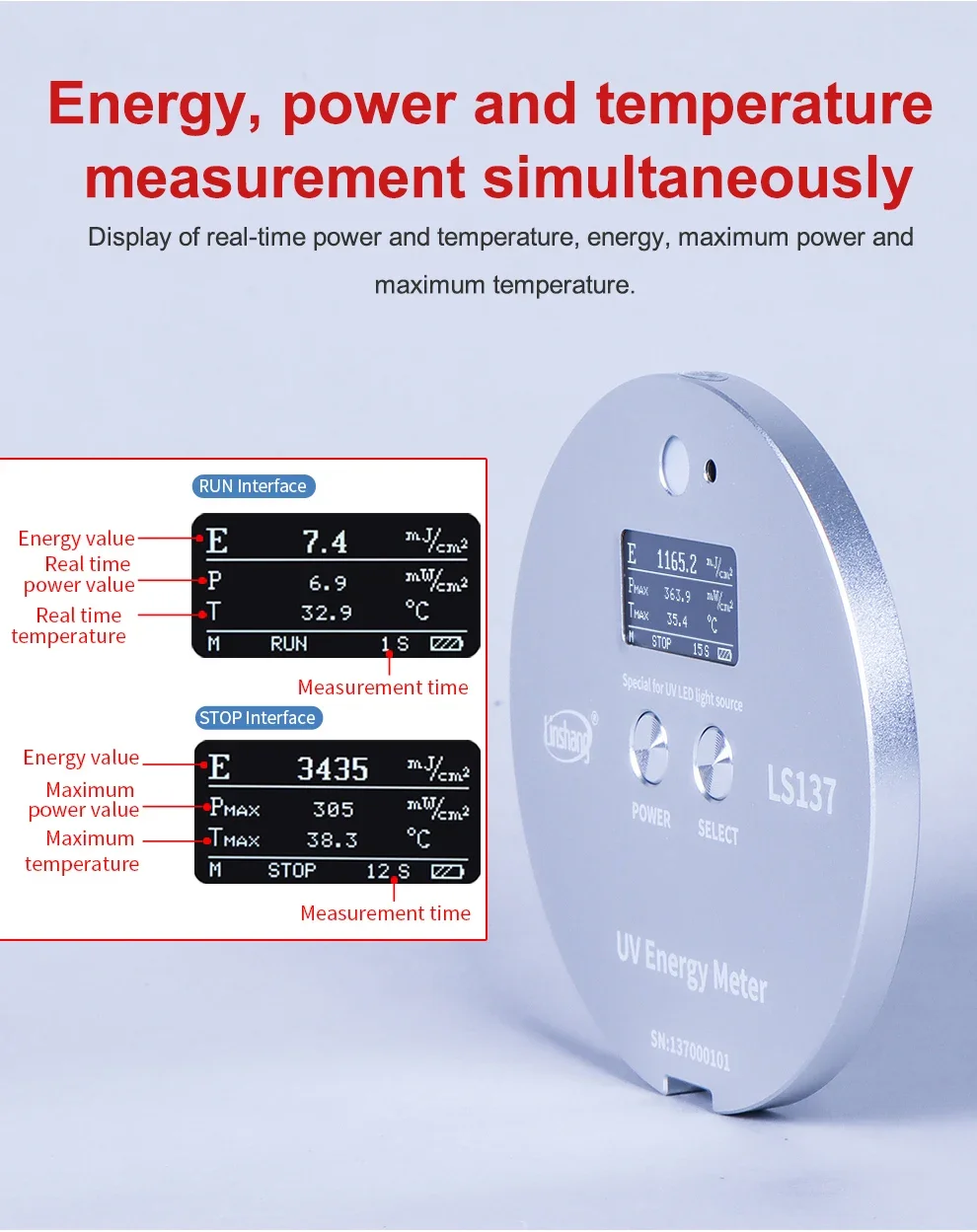

Energy, power and temperature are measured simultaneously

Display of real-time power and temperature, energy, maximum power and maximum temperature.

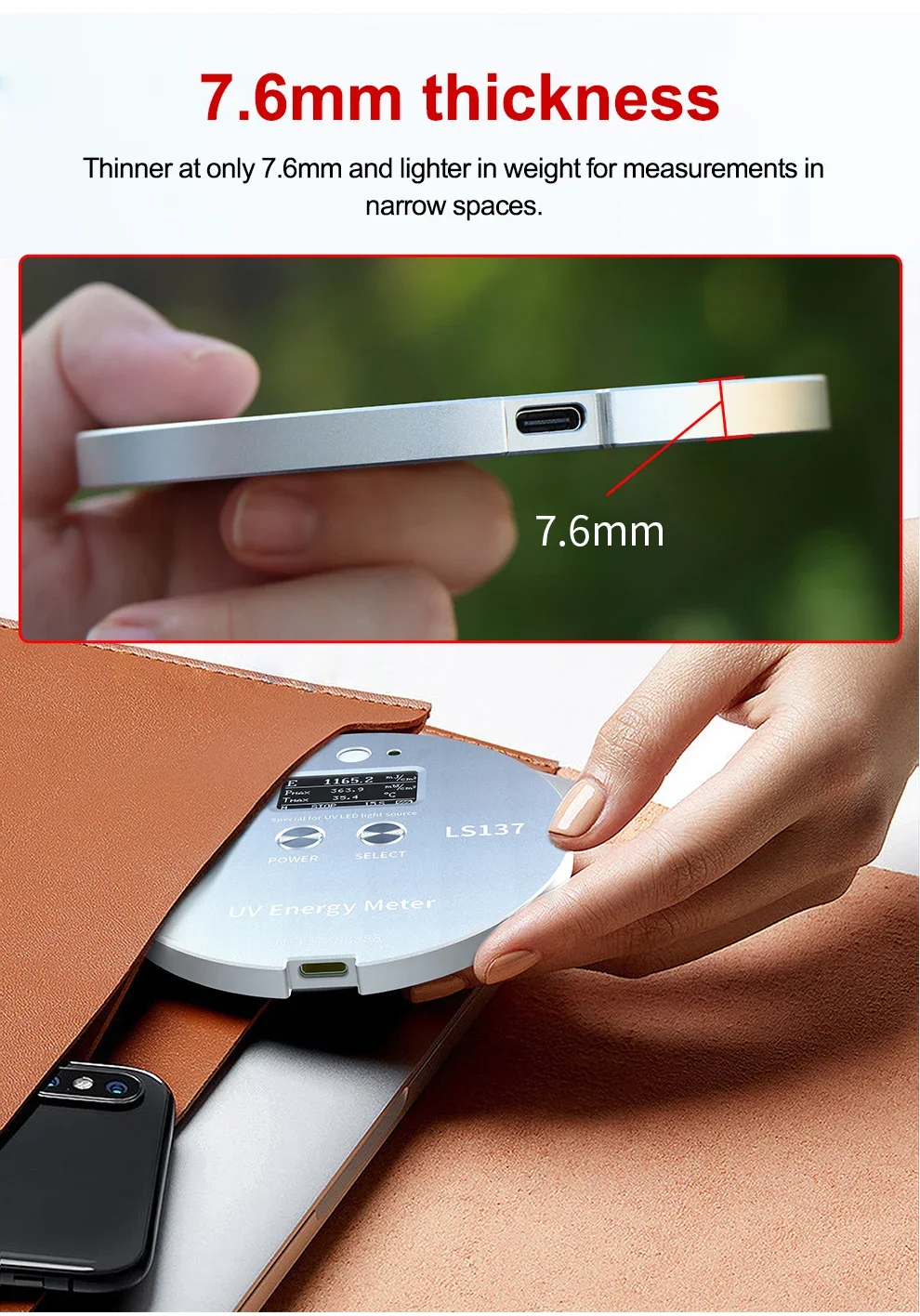

Ultra-thin design

Thinner at only 7.6mm and lighter in weight for measurements in narrow spaces.

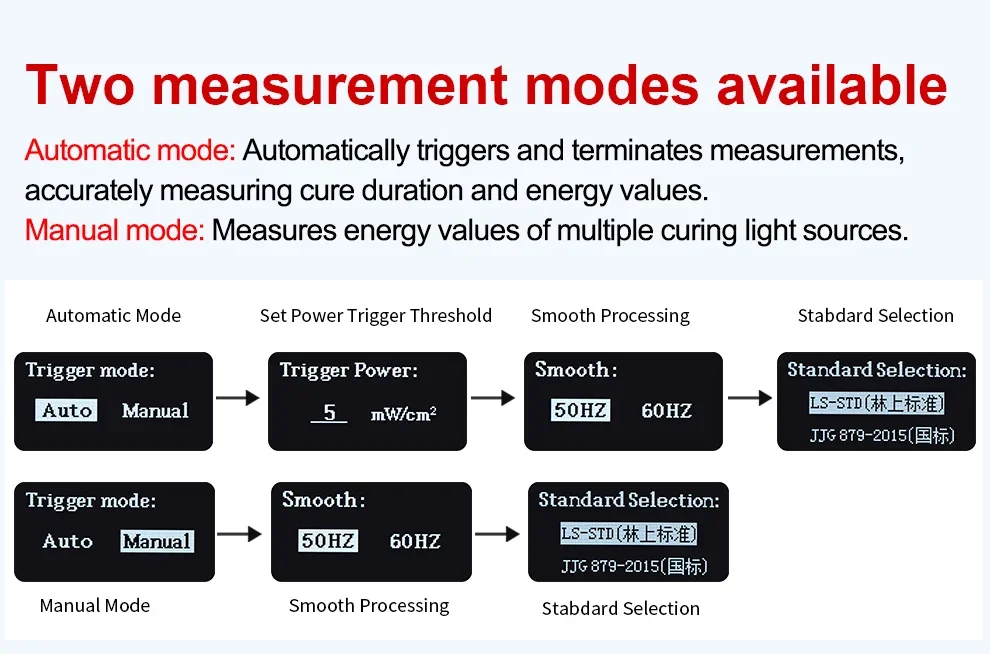

Automatic and manual measurement modes can be selected.

Automatic mode: Automatically triggers and terminates measurements, accurately measuring cure duration and energy values.

Manual mode: Measures energy values of multiple curing light sources.

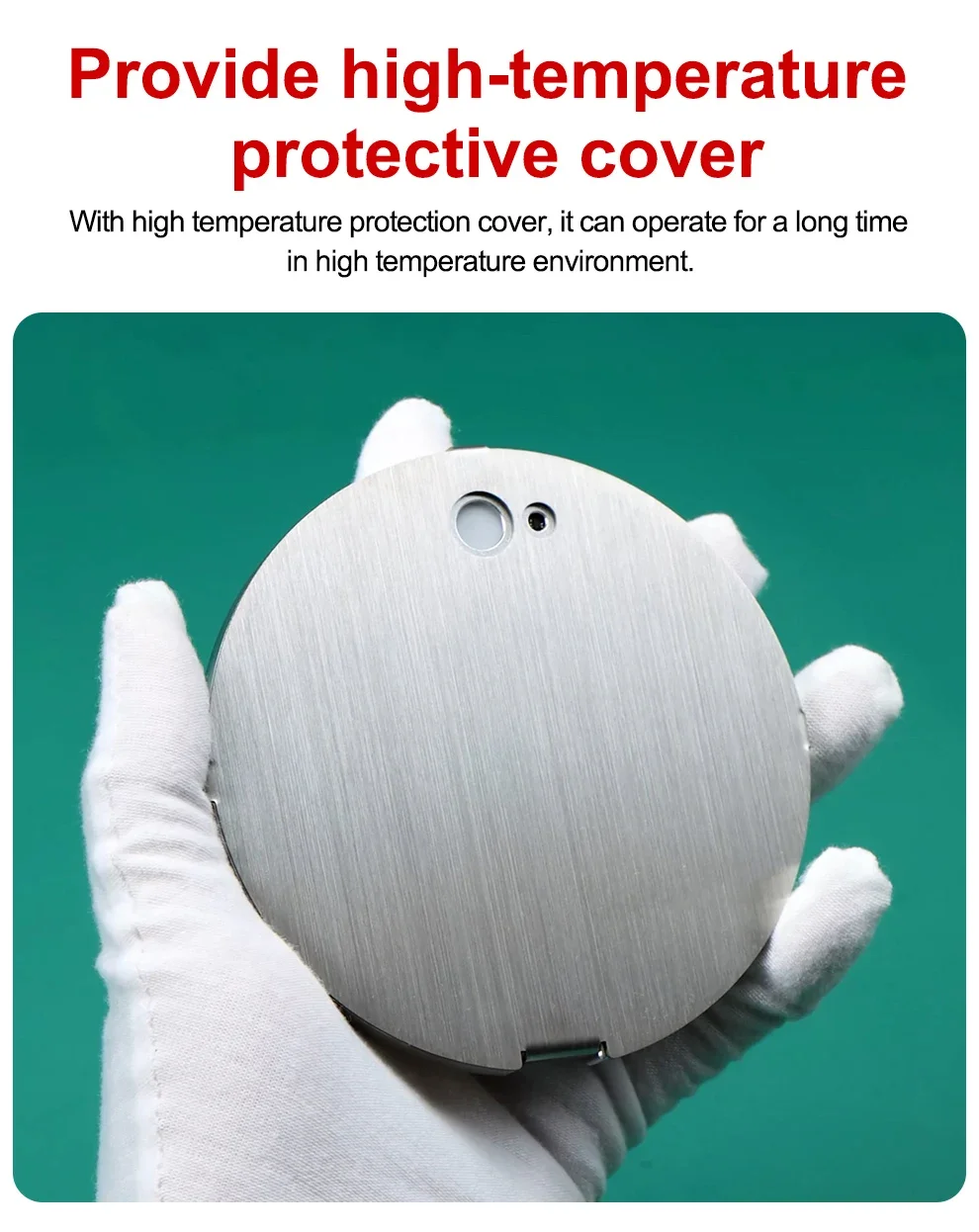

Provide high temperature protection cover

With high temperature protection cover, it can operate for a long time in high temperature environment.

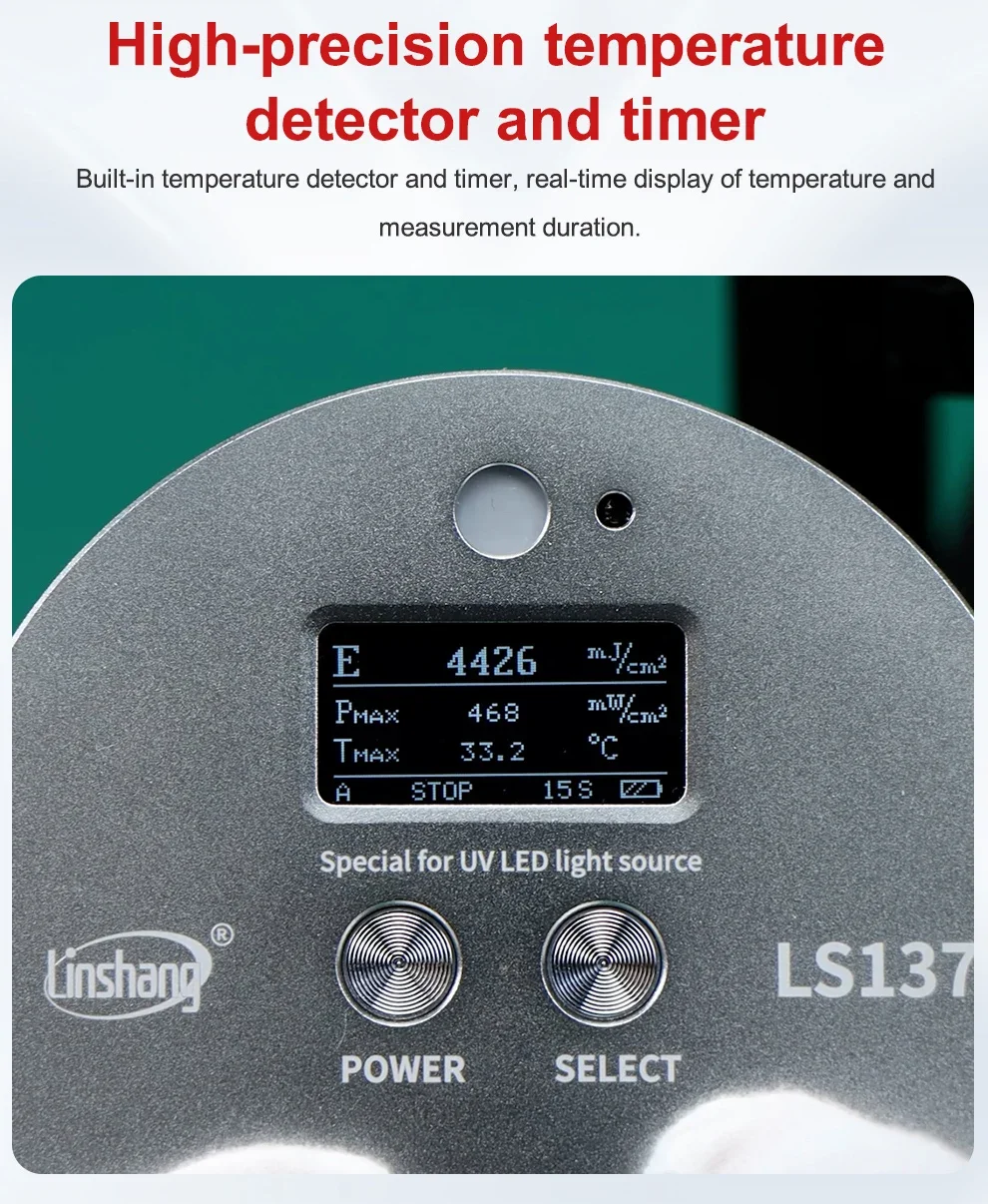

High-precision temperature detector and timer

Built-in temperature detector and timer, real-time display of temperature and measurement duration.

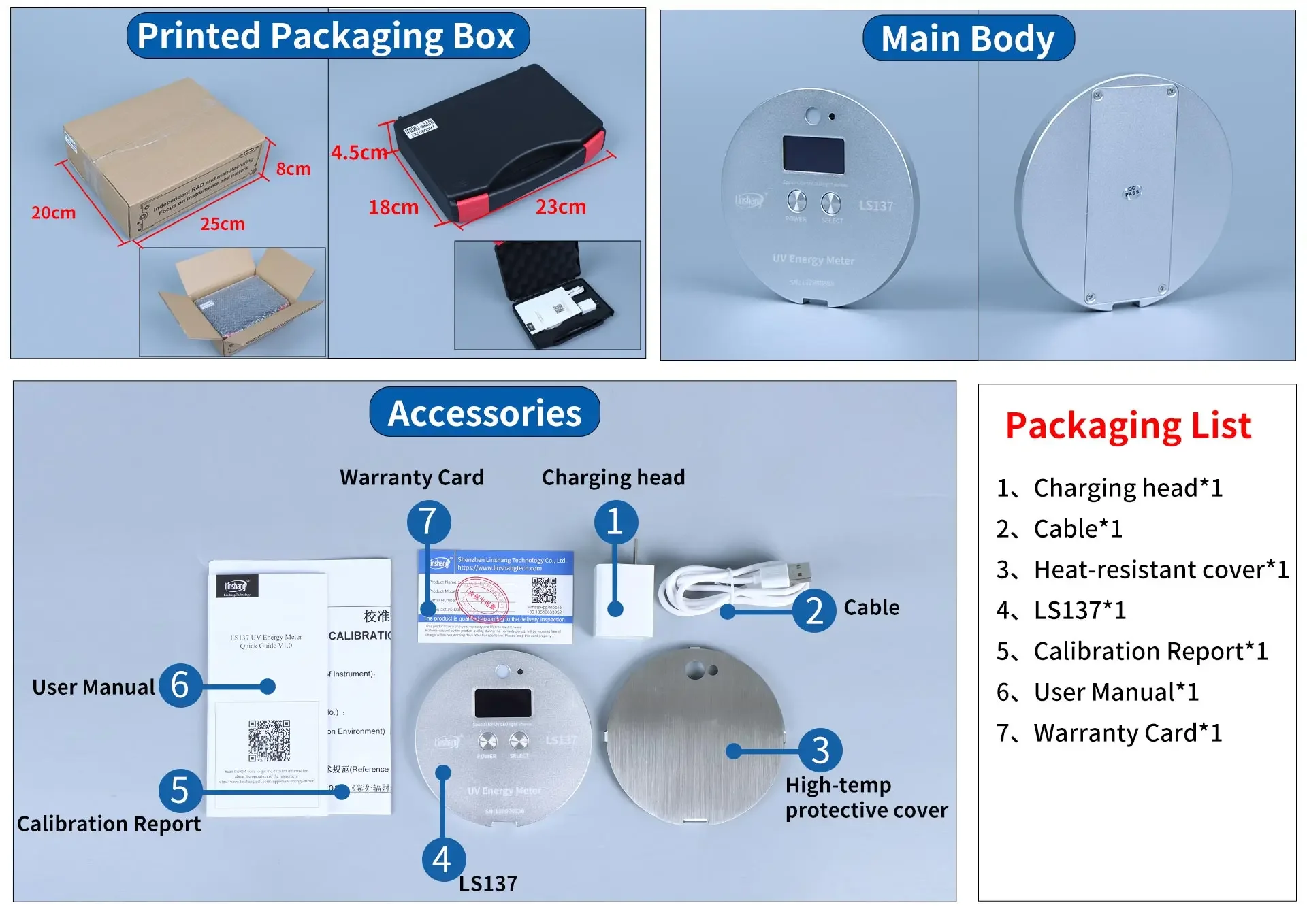

1. LS137 UV energy meter *1

2. USB cable *1

3. DC5V power adapter *1

4. User manual *1

5. Certificate/Warranty card *1

6. High temperature protective cover *1

7. Plastic engineering box *1

Note

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-2cm measuring deviation due to manual measurement.
