Product Description
Price inquiry with CS before ordering Six Motor Automatic Ai9 Ai20 Ai30 Ai6c+ Ai 5 Fiber Optic fusion Splicer Machine

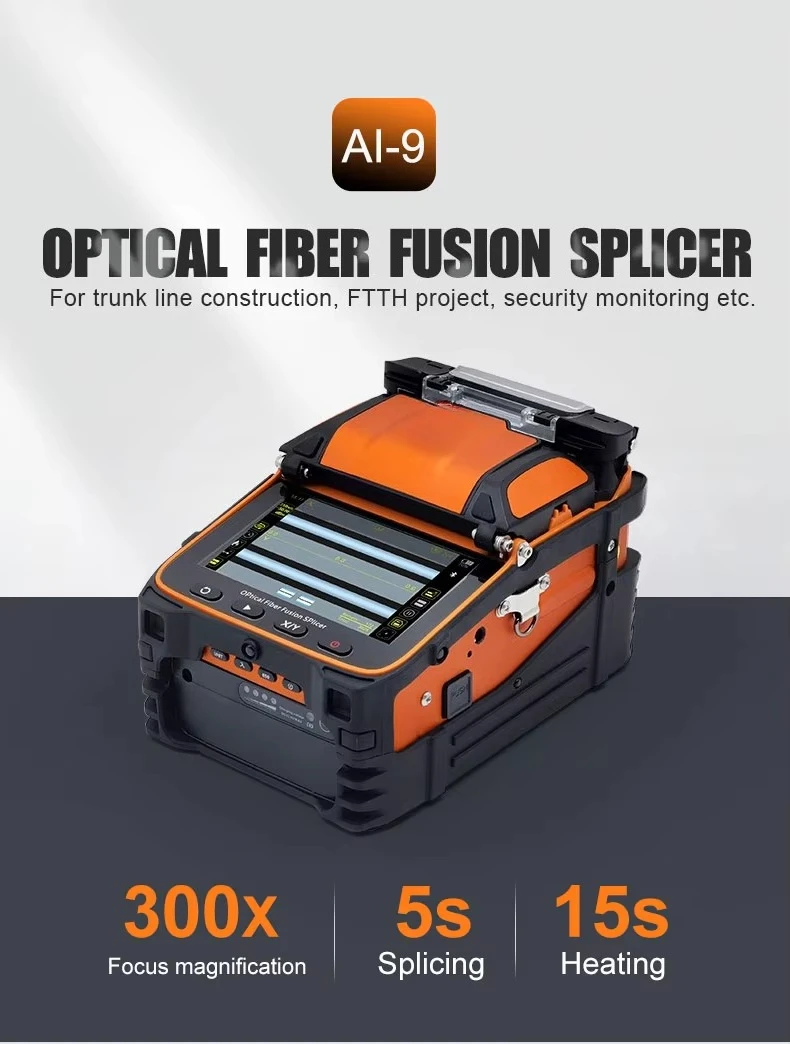

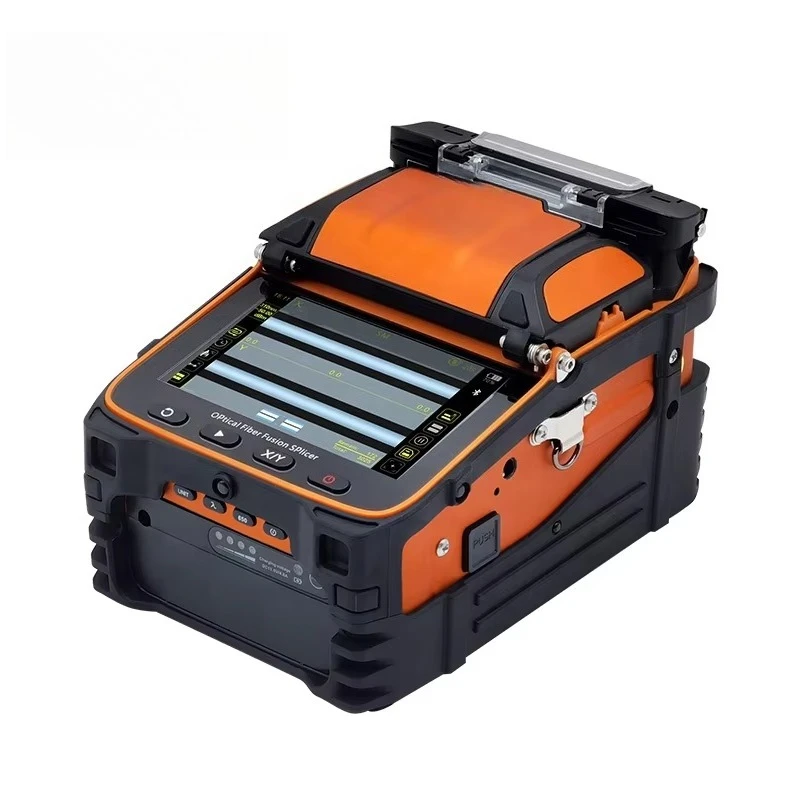

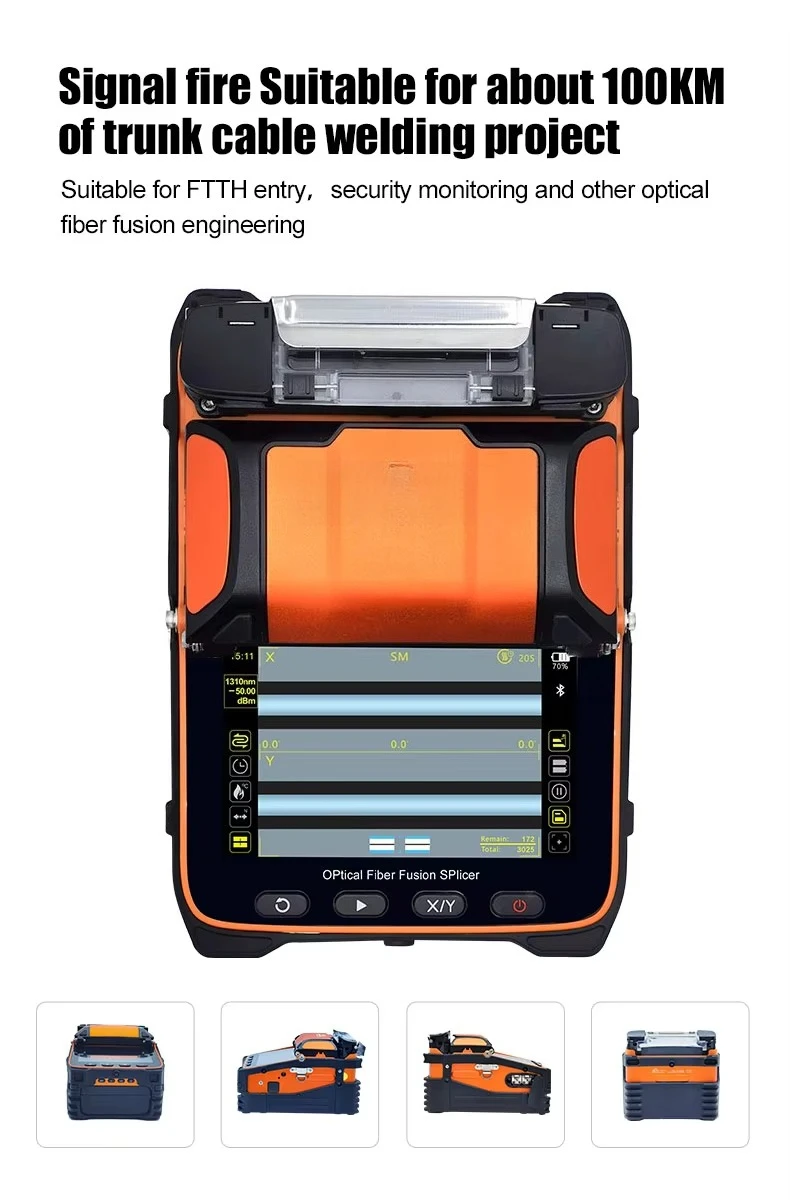

Price inquiry with CS before ordering Six Motor Automatic Ai9 Ai20 Ai30 Ai6c+ Ai 5 Fiber Optic fusion Splicer MachineProduct DescriptionSignal Fire AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project,security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high
resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of

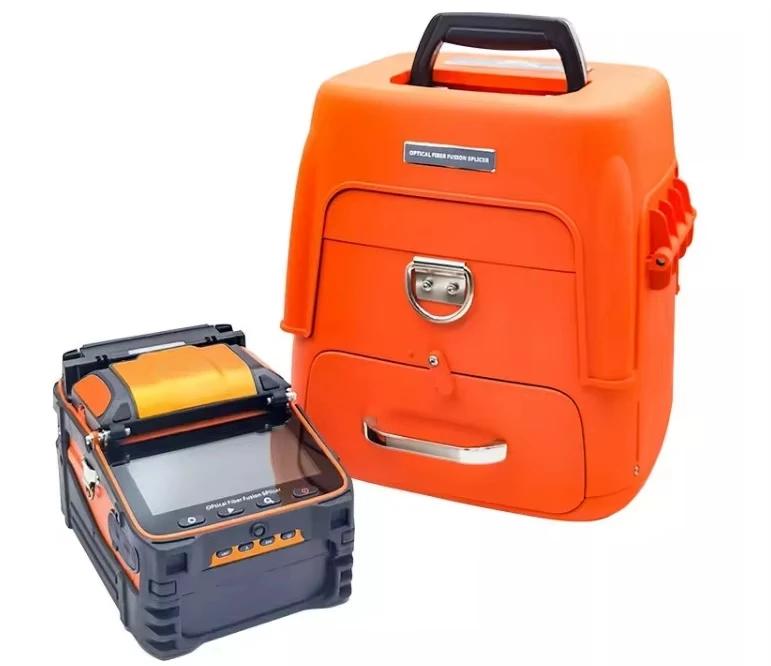

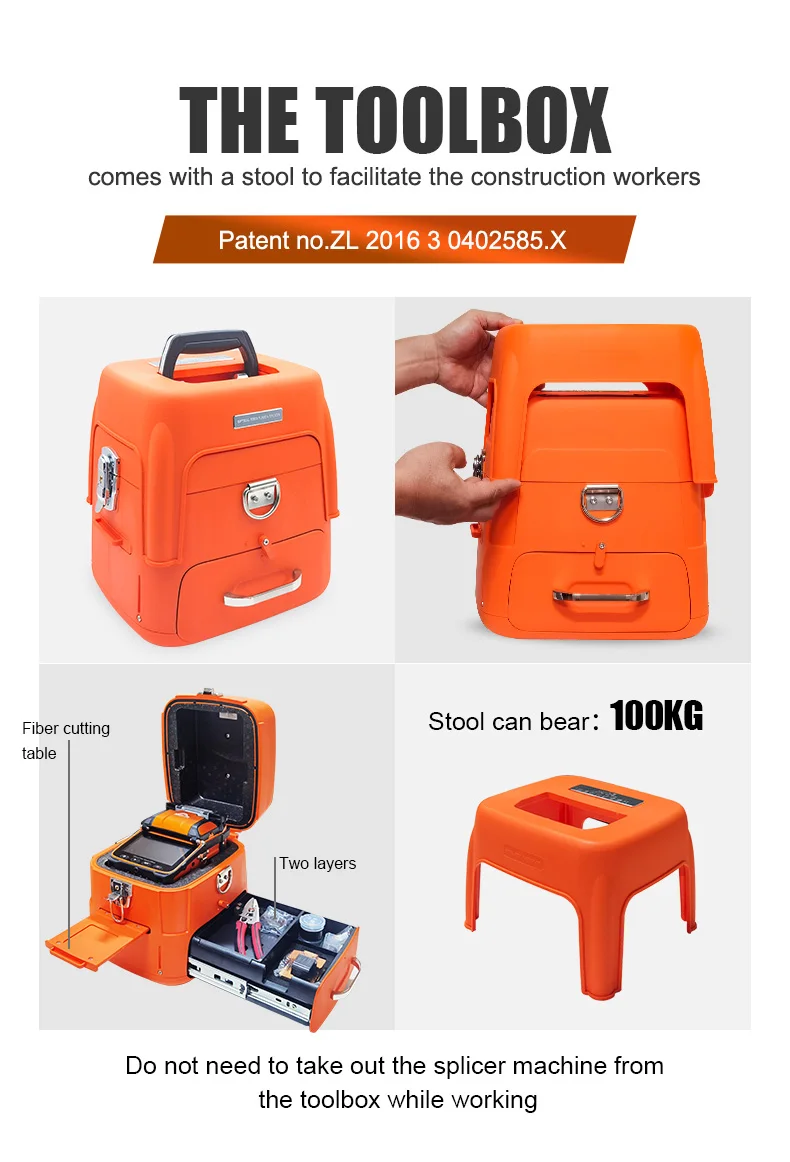

rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion
splicer will bring you a reliable and comfortable user experience.
Specification| Model | single fiber ai9 fusion splicer |
| Fiber alignment | Core/cladding alignment / Manual alignment |
| Splicing time | 5S |
| Heating time | 15S |

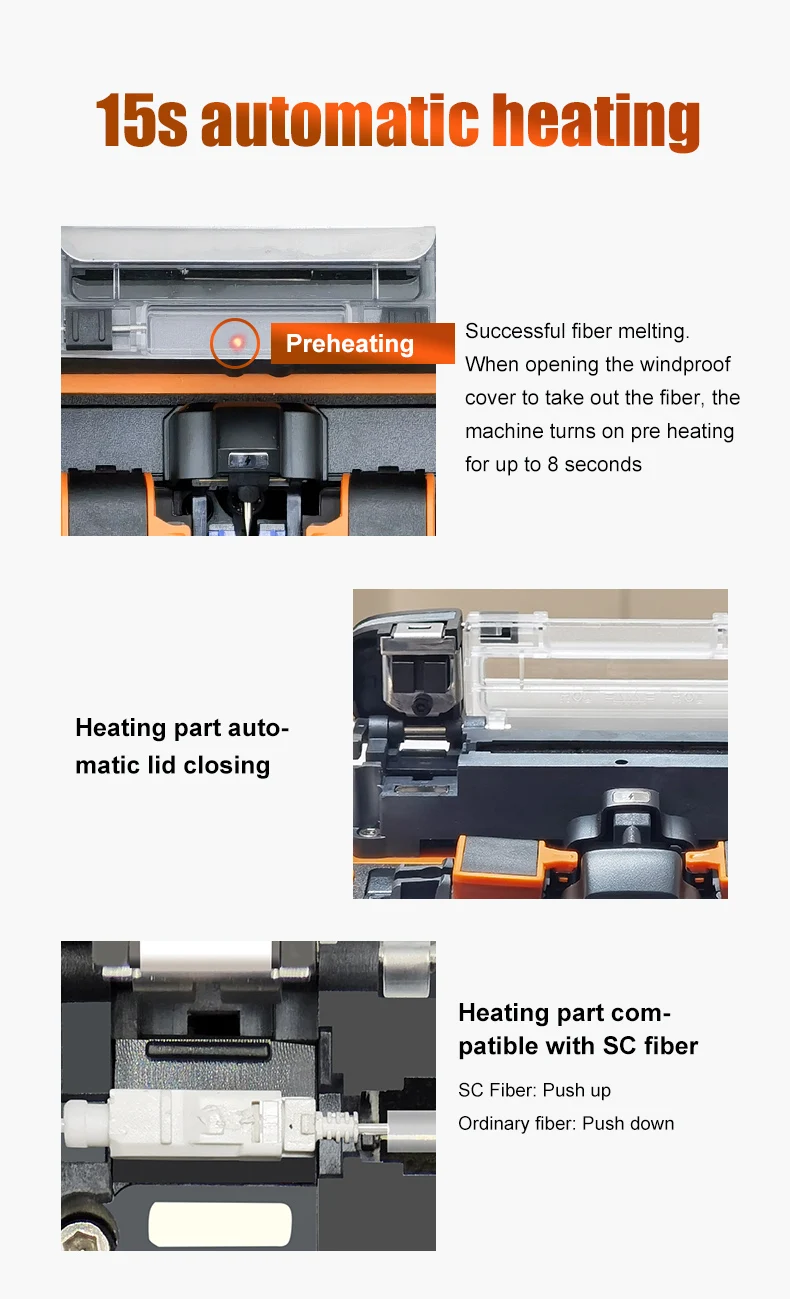

| Heating mode | Automatic heating (Preheating) |

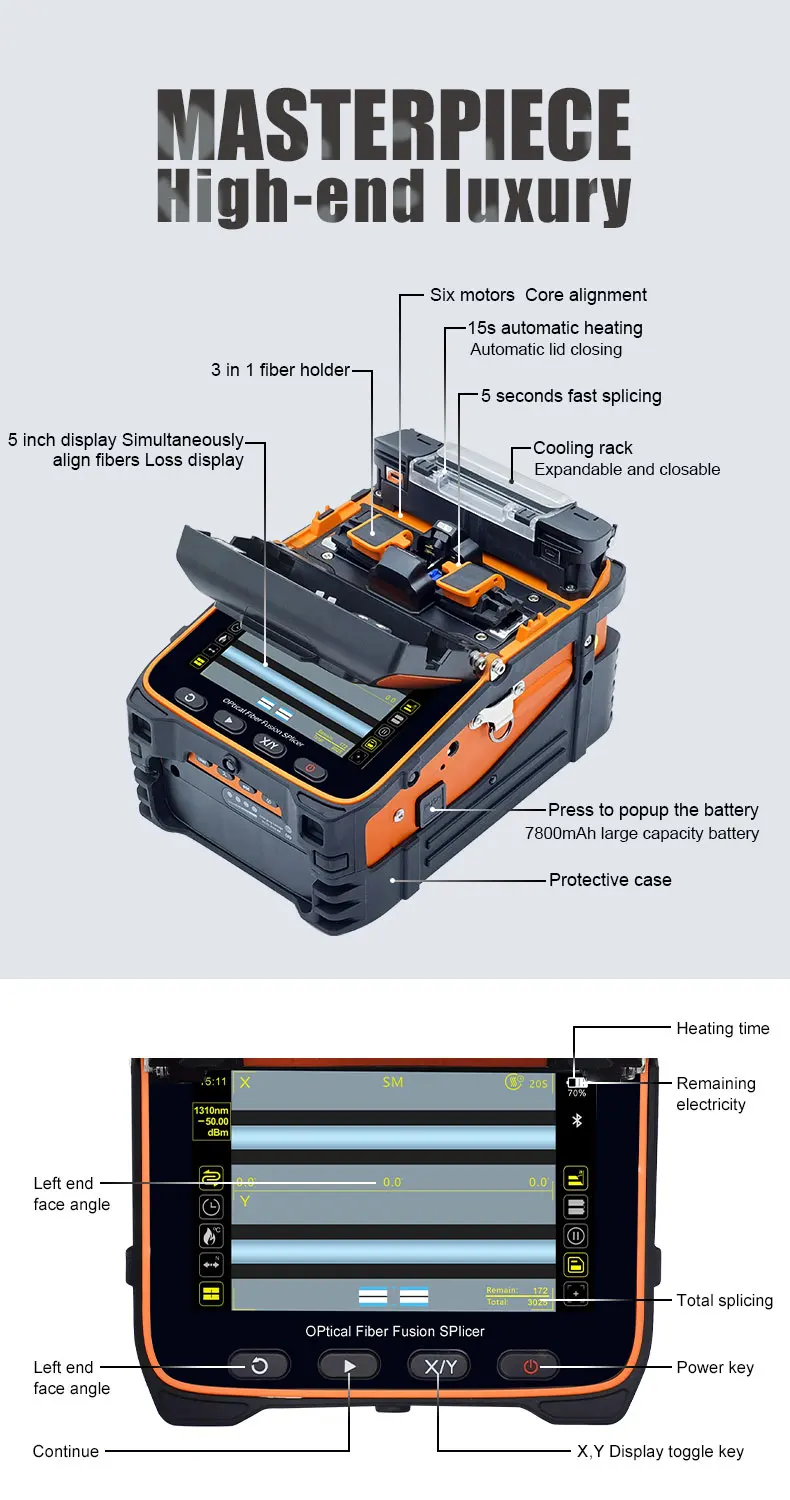

| Focus mode | Six motors Auto focus |
| Applicable Fibers | SM[G.652&G.657),MM (G.651) ,DS(G.657), NZDS (G.655) |
| Splice Loss | 0.025dB (SM),0.01dB (MM) 0.04dB (DS/NZDS) |
| Control technology | Real-time control and calibration of fusion ARC |
| Return loss | Better than 60DB |
| Fiber diameter | Cladding Diameter: 80-150um Coating Diameter: 100-1000um |
| Fiber Cleave Length | Coating less than 250um: 8-16mm Coating less than 250-1000um:16mm |
| Built-in lighting | easy for night operation |
| Tension Test | easy for night operation |

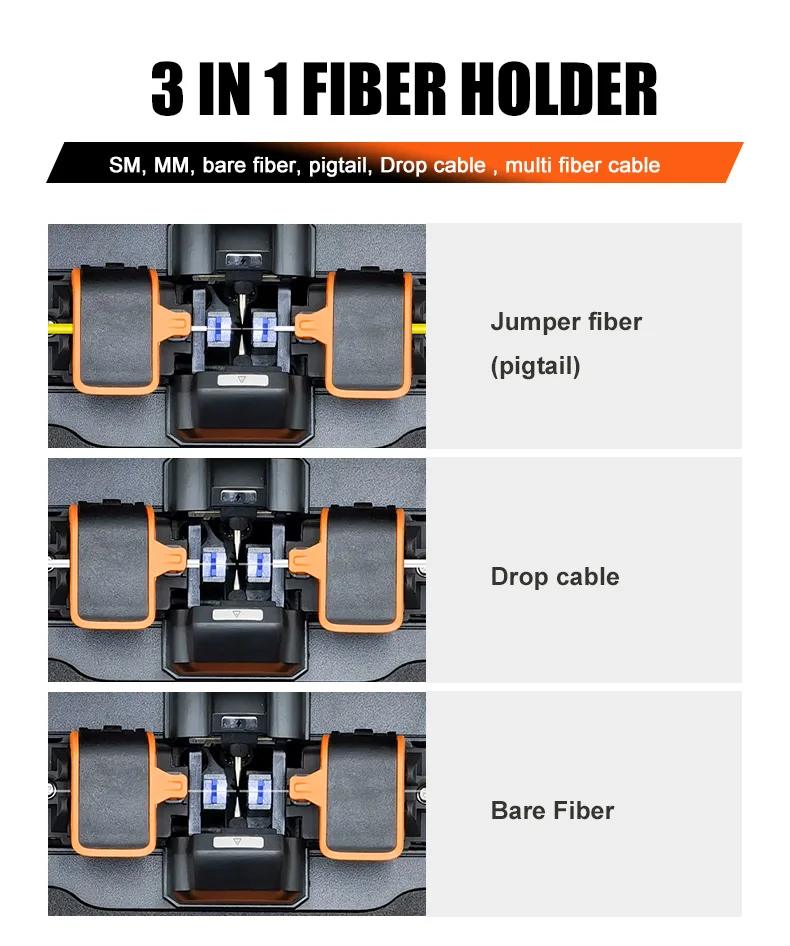

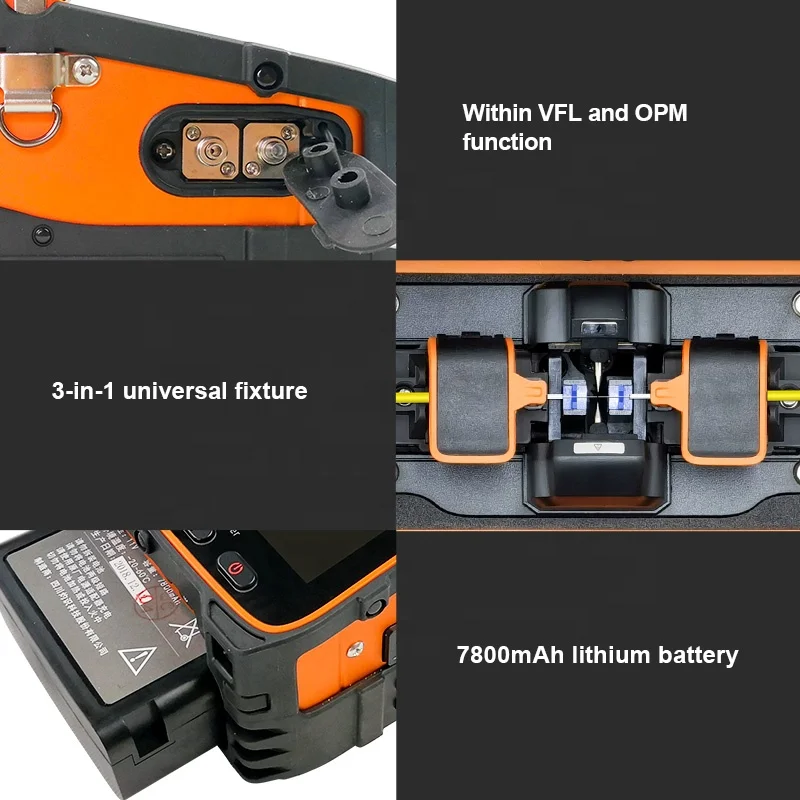

| Fiber holders | 3in 1 fiber holder, SM. MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
| Magnification | 300 for X or Y view, 150 for X or Y view |
| Screen | 5 inch TFT color display |
| Splicing Mode | Normal / high precision splicing |
| Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |

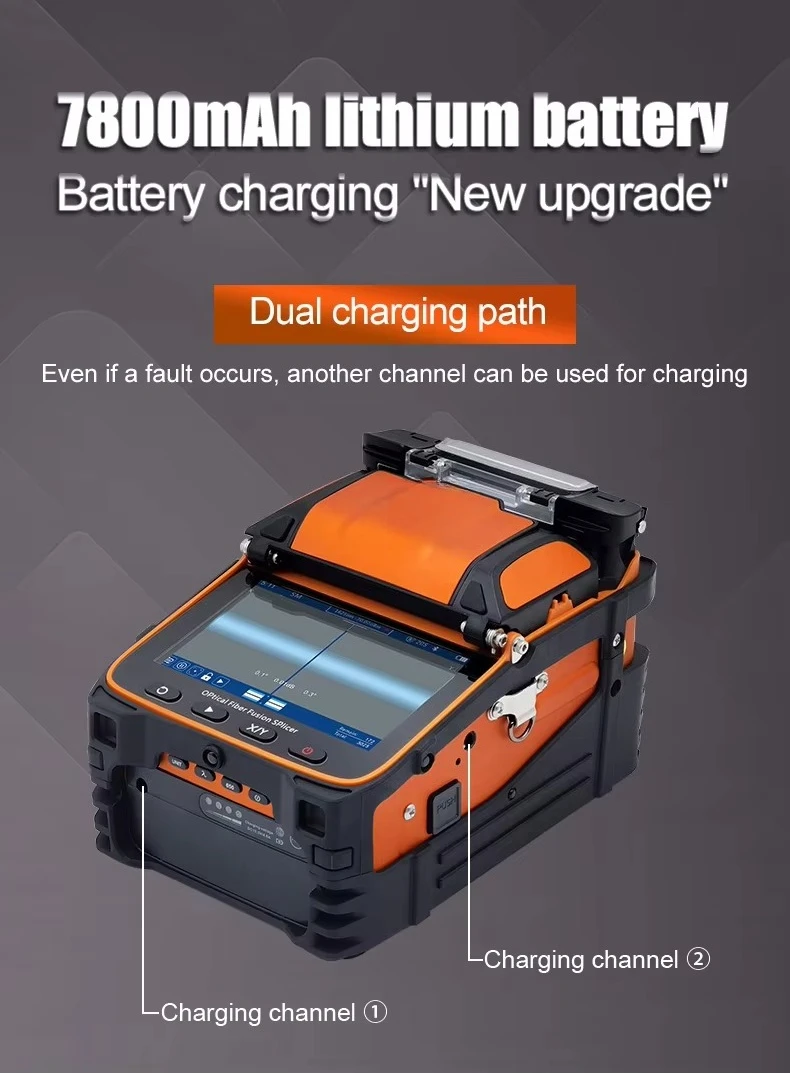

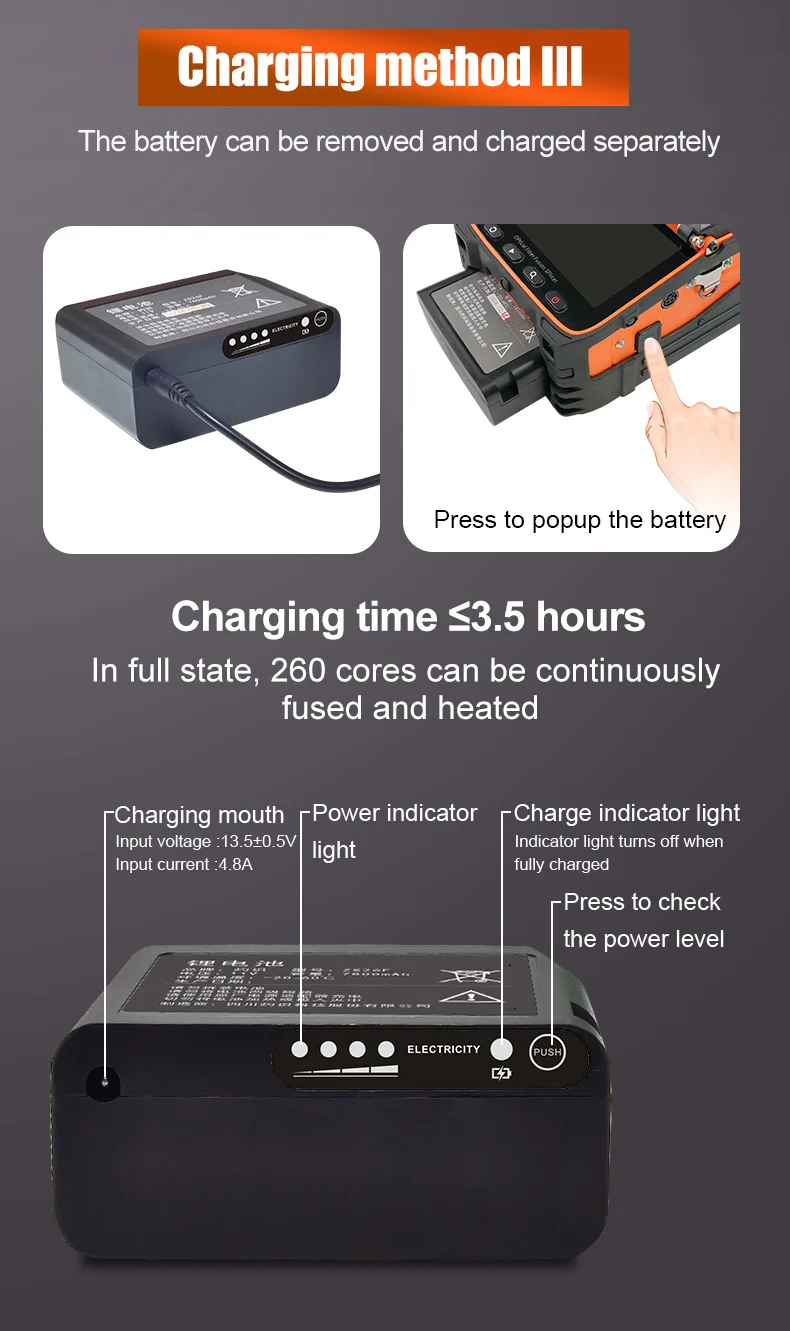

| Bult-in battery | 7800 mA high-capacity lithium battery, charging time≤3.5 hours, continuous splicing and heating about 260 times |
| Power supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4A. the current power mode can be identified, real-time detection of battery power |
| Operating Conditions | Temperature -15~ +50 C,Working altitude:0 ~ 5000m, Resist max. wind speed:≤15m/s |
| Shrinkable tube | 60mm,40mm |

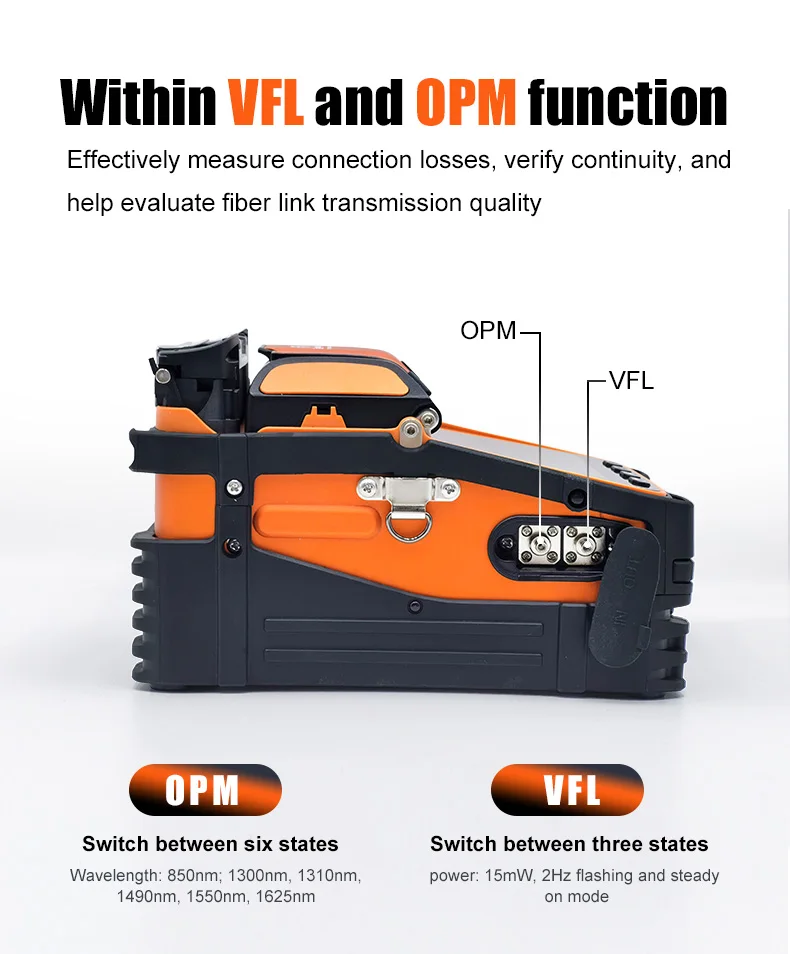

| Visual Fault Locator | Power:15mw.2hzflashing And Constantly Bright Mode |
| Optical Power Meter | Wavelength:850nm,1300nm,1310nm, 1 490nm,1550nm, 1 625nm Measuring Range:-70 ~ + 6db Absolute Error:: <0.3db(-50dbm~+3dbm Range) |
Standard Configuration
| No | Name | Qty |
| 1 | Fusion Splicer | 1 set |
| 2 | Fiber Cleaver | 1pc |
| 3 | fiber Stripper | 1pc |
| 4 | Leather pliers | 1pc |
| 5 | Brush | 1pc |
| 6 | bottle | 1pc |
| 7 | AC Adatpor | 1pc |
| 8 | Li Battery | 1pc |
| 9 | Charger | 1pc |
| 10 | Spare Electrodes | 1pair |

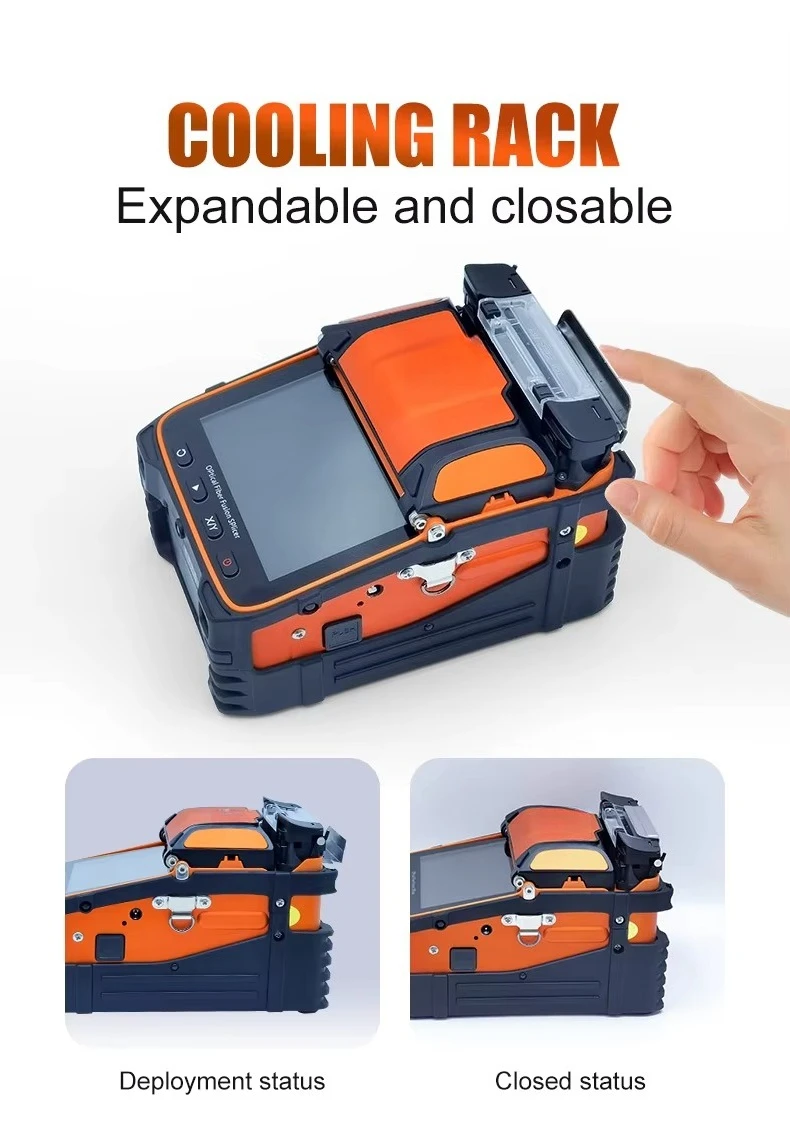

| 11 | Cooling Tray | 1pc |

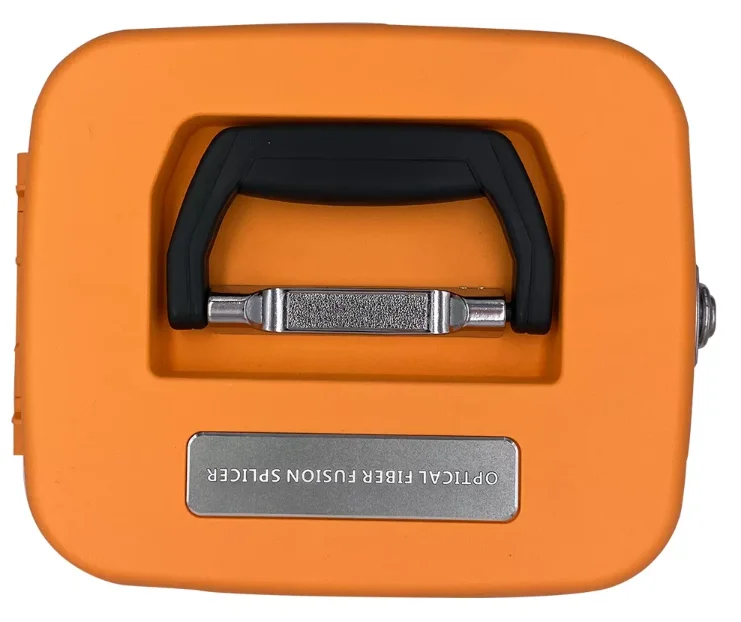

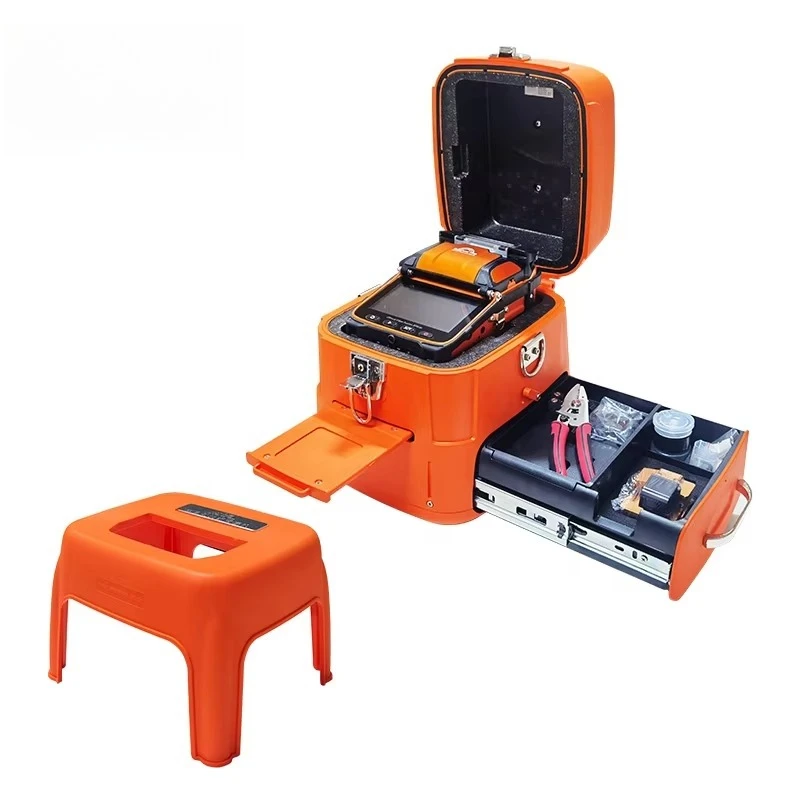

| 12 | Carrying Case | 1pc |
our package can protect the fusion splicer very safely.About Prime Living
