Product Description
LS237 Car Paint Thickness Gauge for Auto Coating Identify Ferrous Putty Type-C Charge with Three Color and Rotatable Screen
LS237 Car Paint Thickness Gauge for Auto Coating Identify Ferrous Putty Type-C Charge with Three Color and Rotatable Screen
Description:

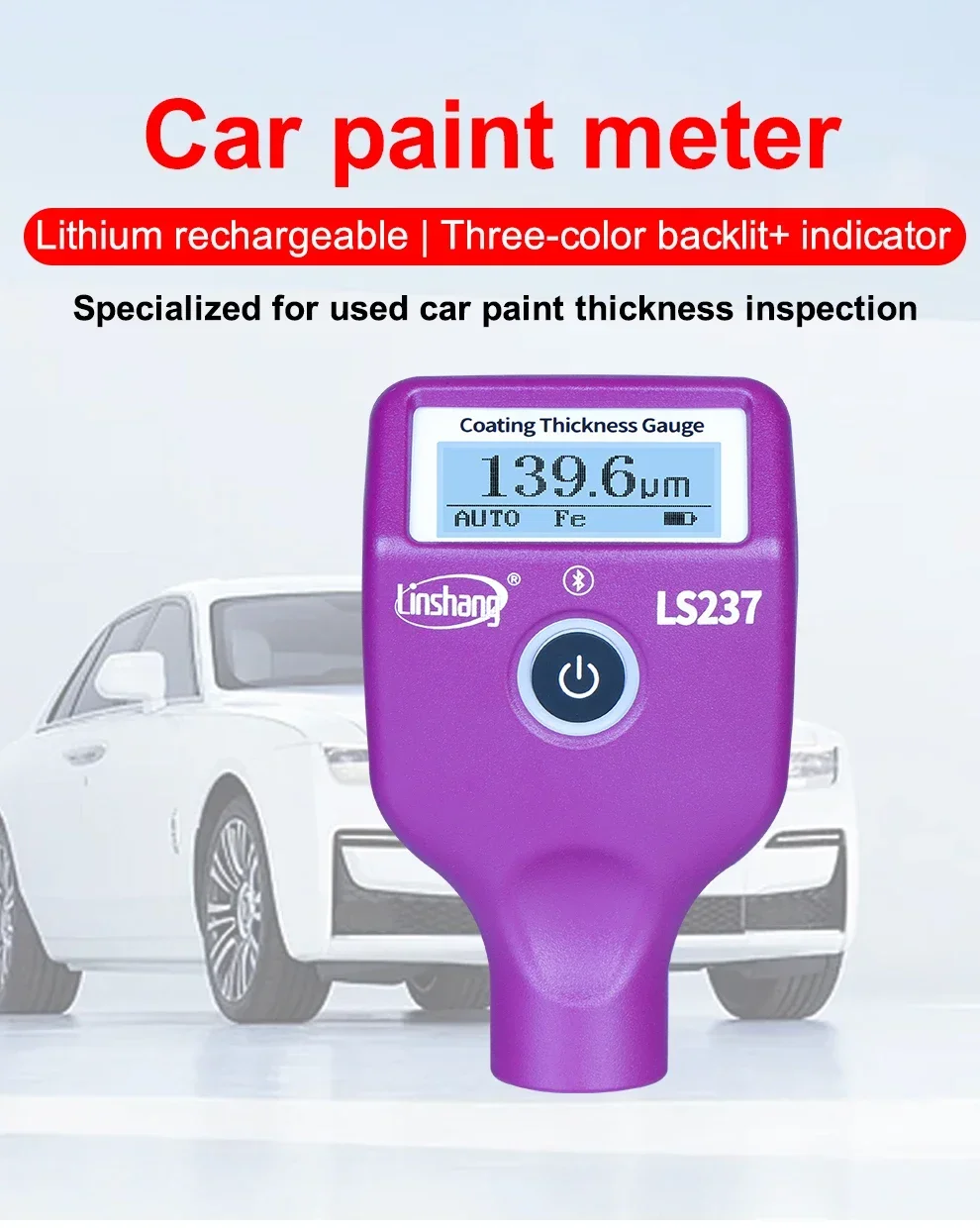

LS237 car paint meter is specialized in automotive paint thickness inspection. The instrument can not only measure the paint thickness above ferrous and aluminum materials, identify non-metallic, but also intelligently identify ferrous putty and iron galvanized. LS237 adopts three-color backlight and three-color indicator display, and according to different paint thicknesses the screen and buttons display different colors of light. LS237 paint film meter also adopts rechargeable lithium batteries to supply, with ultra-low power consumption. It also has Bluetooth function, equipped with APP, support inspection report export and sharing.
Specifications:
1. Probe tip: Ruby
2. Measurement principle: Fe: Hall effect / Al: Eddy current
3. Probe type: Integrated
4. Measuring range: 0.0-3500μm
5. Resolution: 0.1μm: (0μm-99.9μm); 1μm: (100μm-3500μm)
6. Accuracy: ≤±(3%H+2μm), H is the standard value
7. Unit: μm / mil
8. Measuring interval: 0.5 s
9. Minimum measuring area: Ø = 25mm
10. Minimum radius of curvature: Convex: 5mm / Concave: 25mm
11. Minimum substrate thickness: Fe:0.2mm / Al:0.05mm
12. Display: 128×48 dot matrix LCD
13. Power supply: Rechargeable lithium battery 3.7V@1200mAh
14. Range of working temperature: -20℃-50℃
15. Storage temperature range: -20℃-60℃

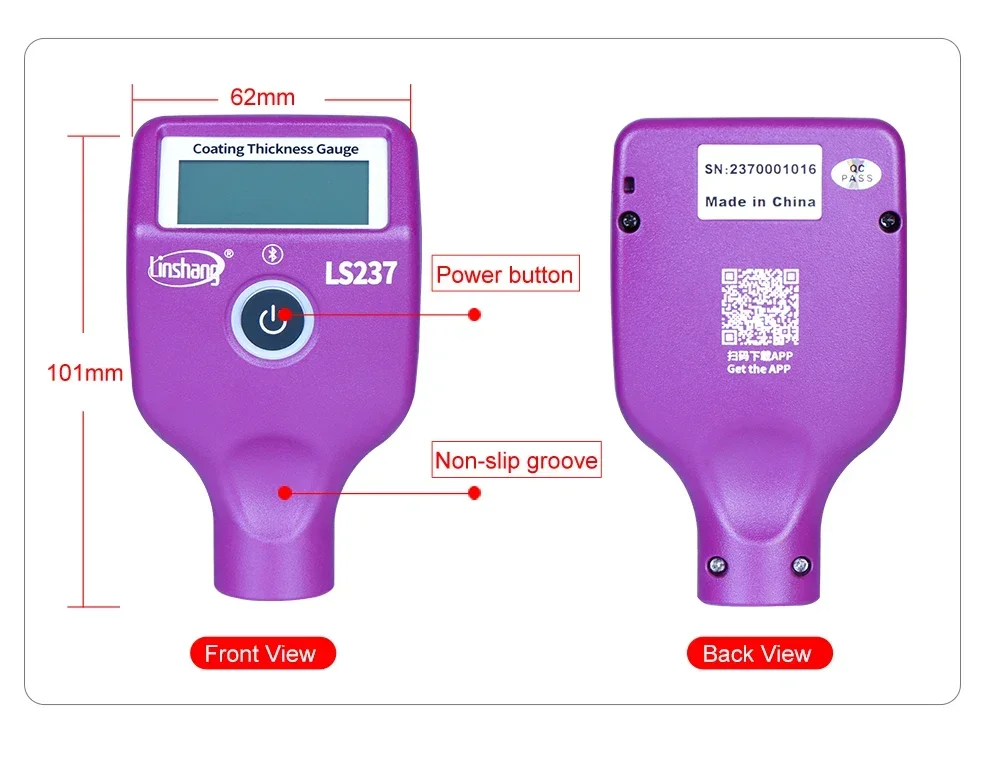

16. Host size: 101*62*28 mm
17. Weight (including battery) : 76g
18. Data transfer: Bluetooth
Features:
1. Depending on the paint thickness, screen backlight and button indicator display different colors.
2. Equipped with cell phone APP to generate vehicle inspection report.
3. Powered by rechargeable lithium battery, charging via Type-C port, ultra-low power consumption.
4. The instrument has a large measuring range of up to 3500μm.
5. It can recognize the ferrous putty, and the screen backlight and button indicator light up red.
6. Rapid detection of ferrous, aluminum, iron galvanized and non-metallic vehicle bodywork.
7. Ultra-fast response speed, 0.5s to complete a measurement.
8. It utilizes the hard-wearing ruby probe to prolong the life of the instrument.
9. The screen can be rotated by short press on the power button, enhancing readability.

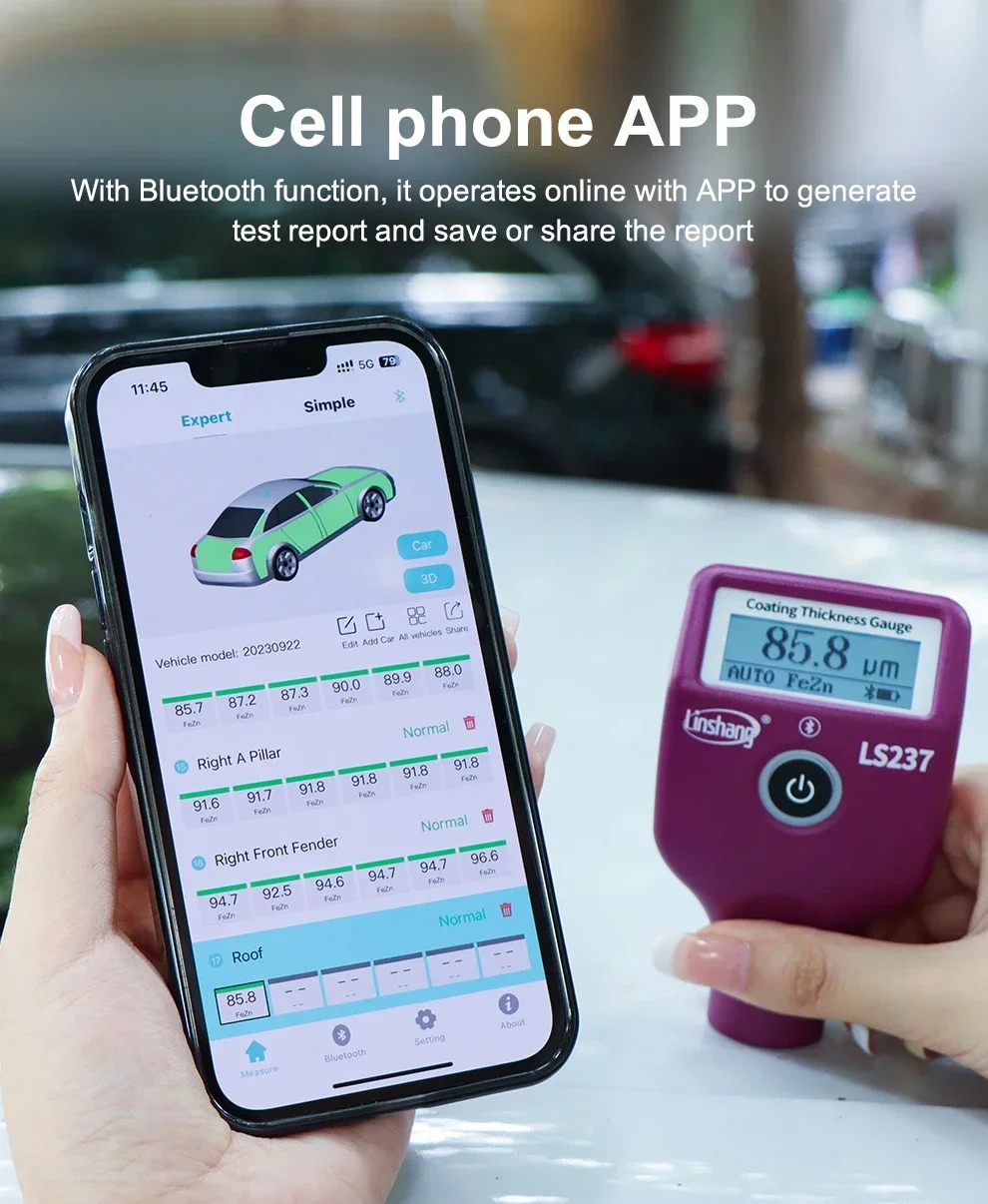

Equipped with APP to generate inspection report
With Bluetooth function, it operates online with APP to generate test report and save or share the report.

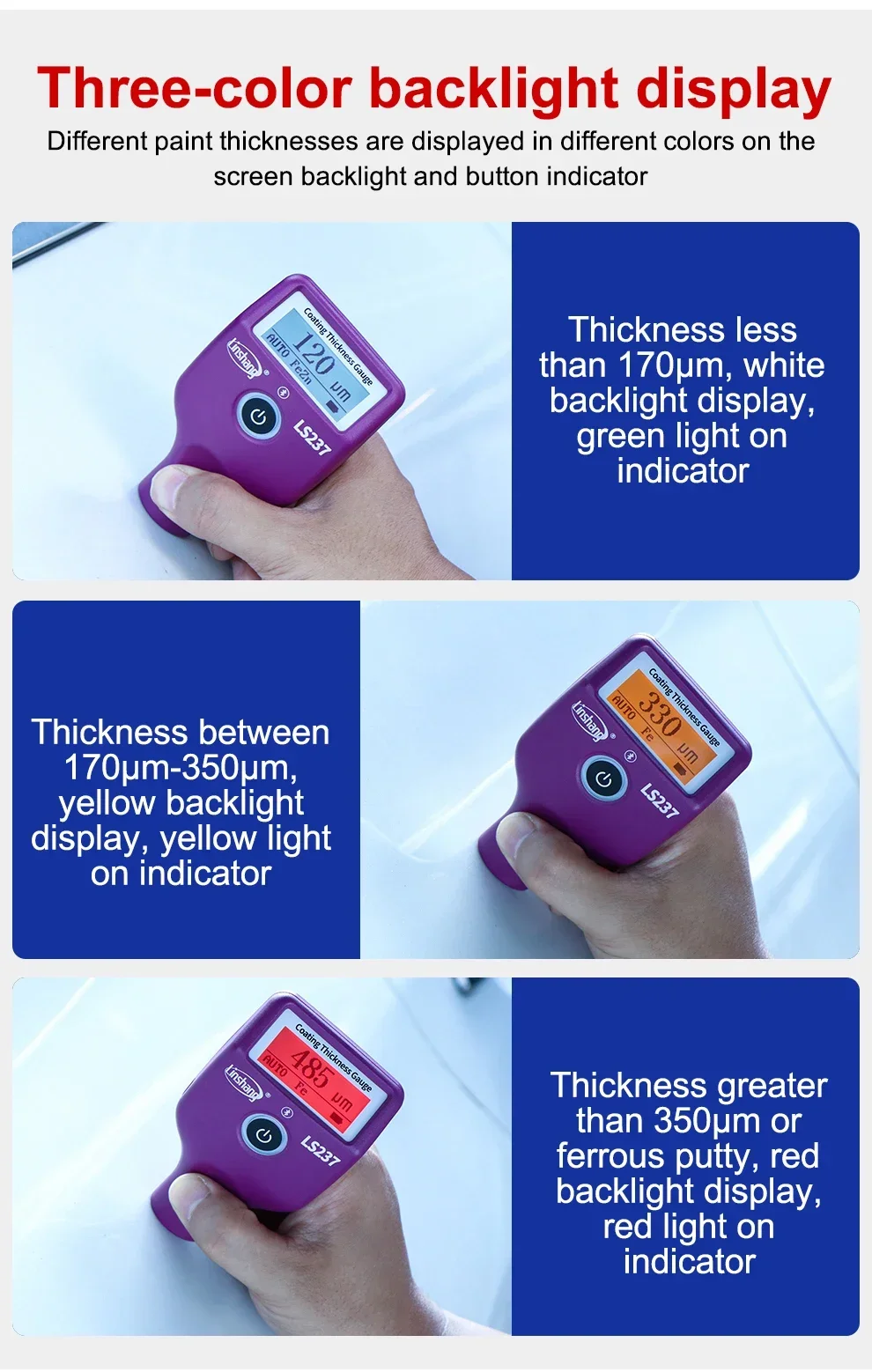

Three colors backlit and indicator display
Different paint thicknesses are displayed in different colors on the screen backlight and button indicator.

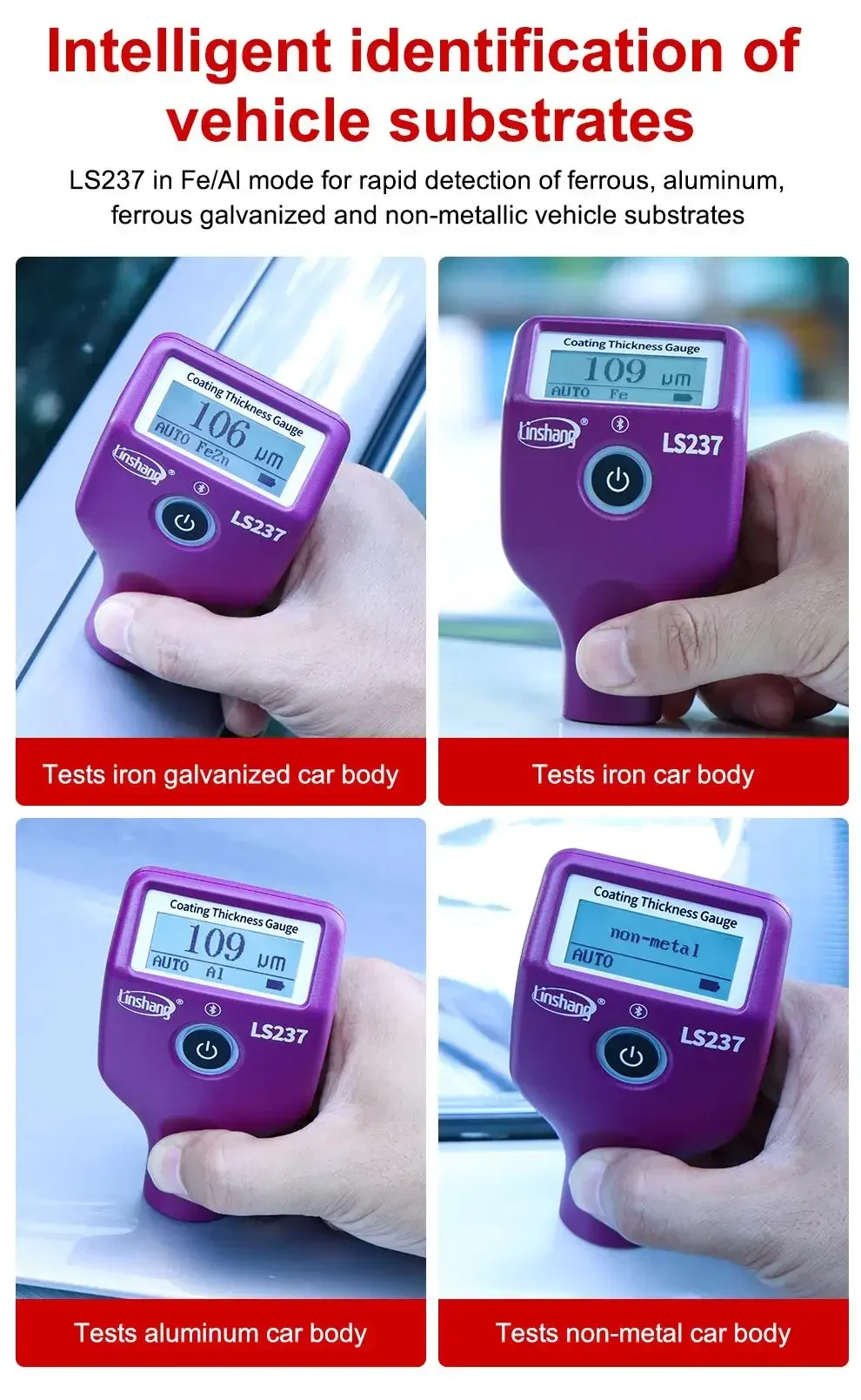

Intelligent identification of vehicle substrates
LS237 in Fe/Al mode for rapid detection of ferrous, aluminum, ferrous galvanized and non-metallic vehicle substrates.

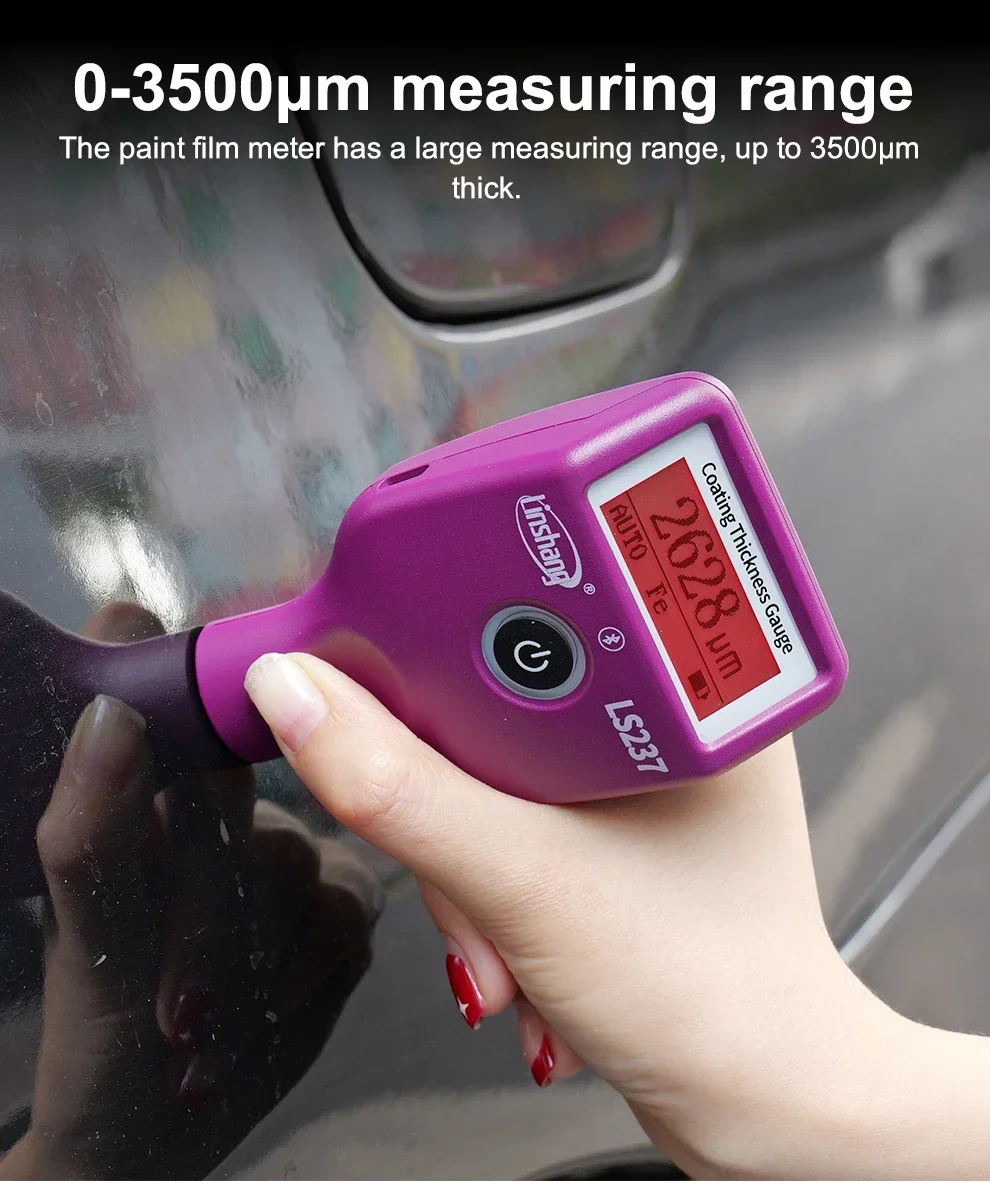

Ultra-large measuring range
The paint film meter has a large measuring range, up to 3500μm thick.

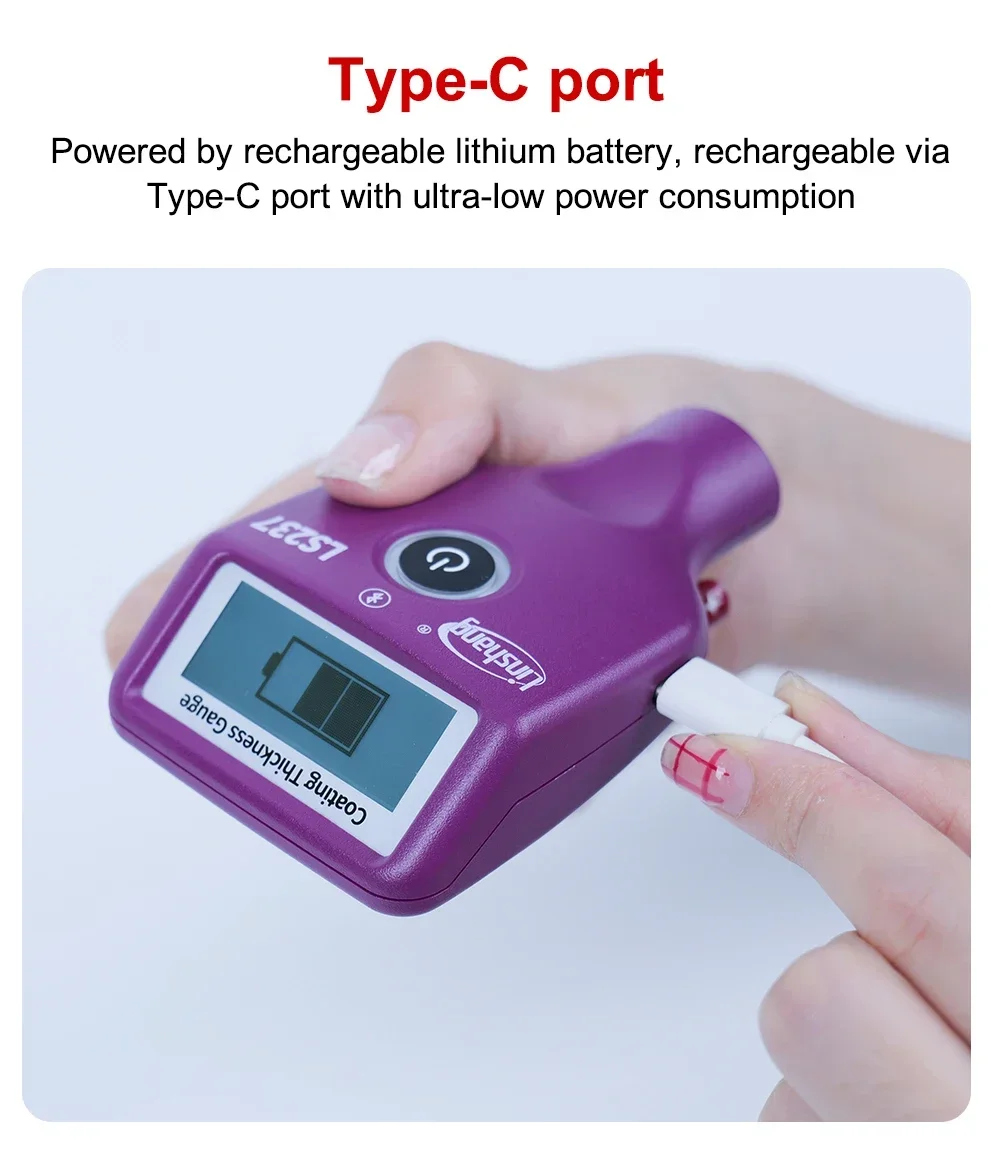

Rechargeable lithium battery power supply
Powered by rechargeable lithium battery, rechargeable via Type-C port with ultra-low power consumption

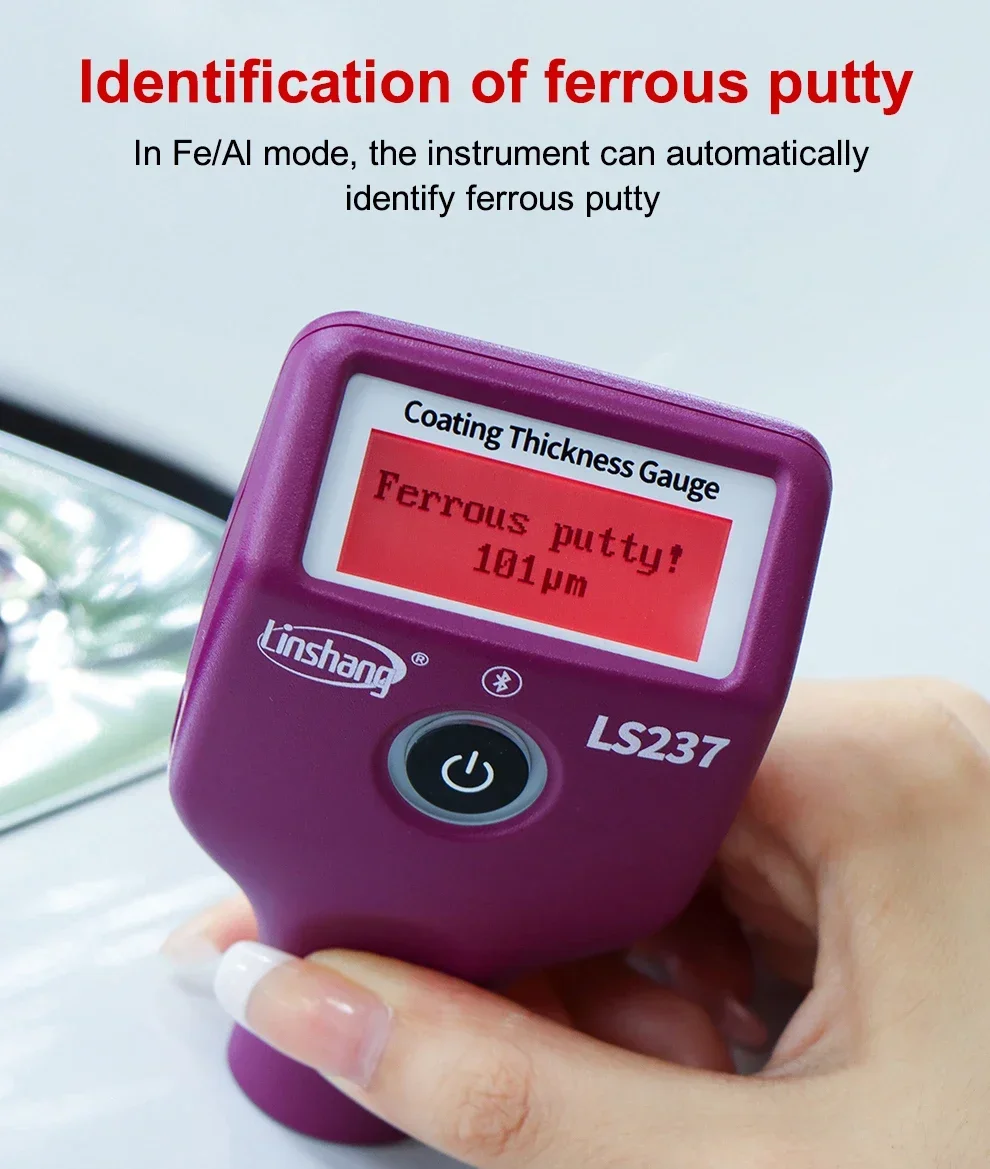

Intelligent identification of ferrous putty
In Fe/Al mode, the instrument can automatically identify ferrous putty.

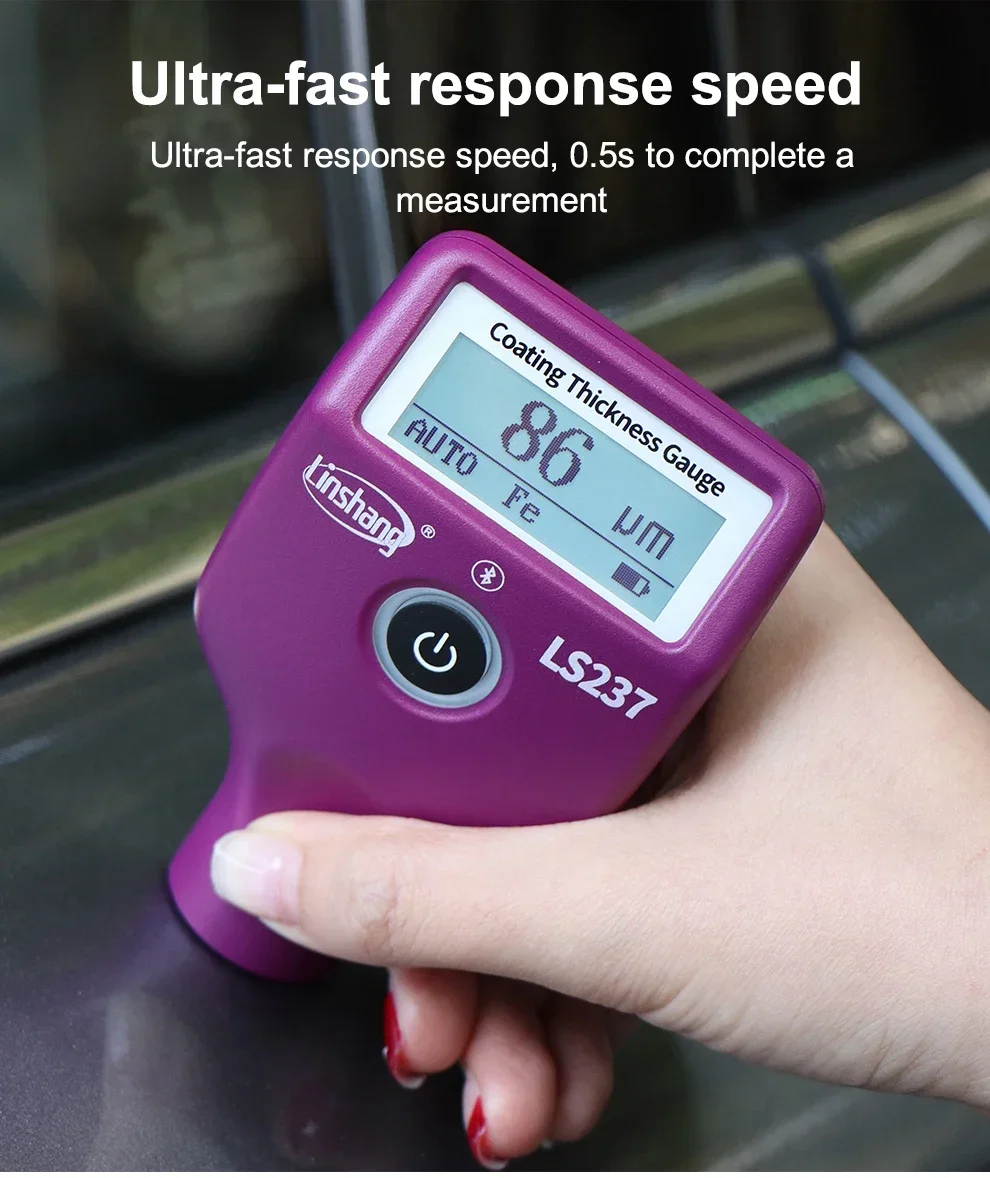

Ultra-fast response speed
Ultra-fast response speed, 0.5s to complete a measurement.

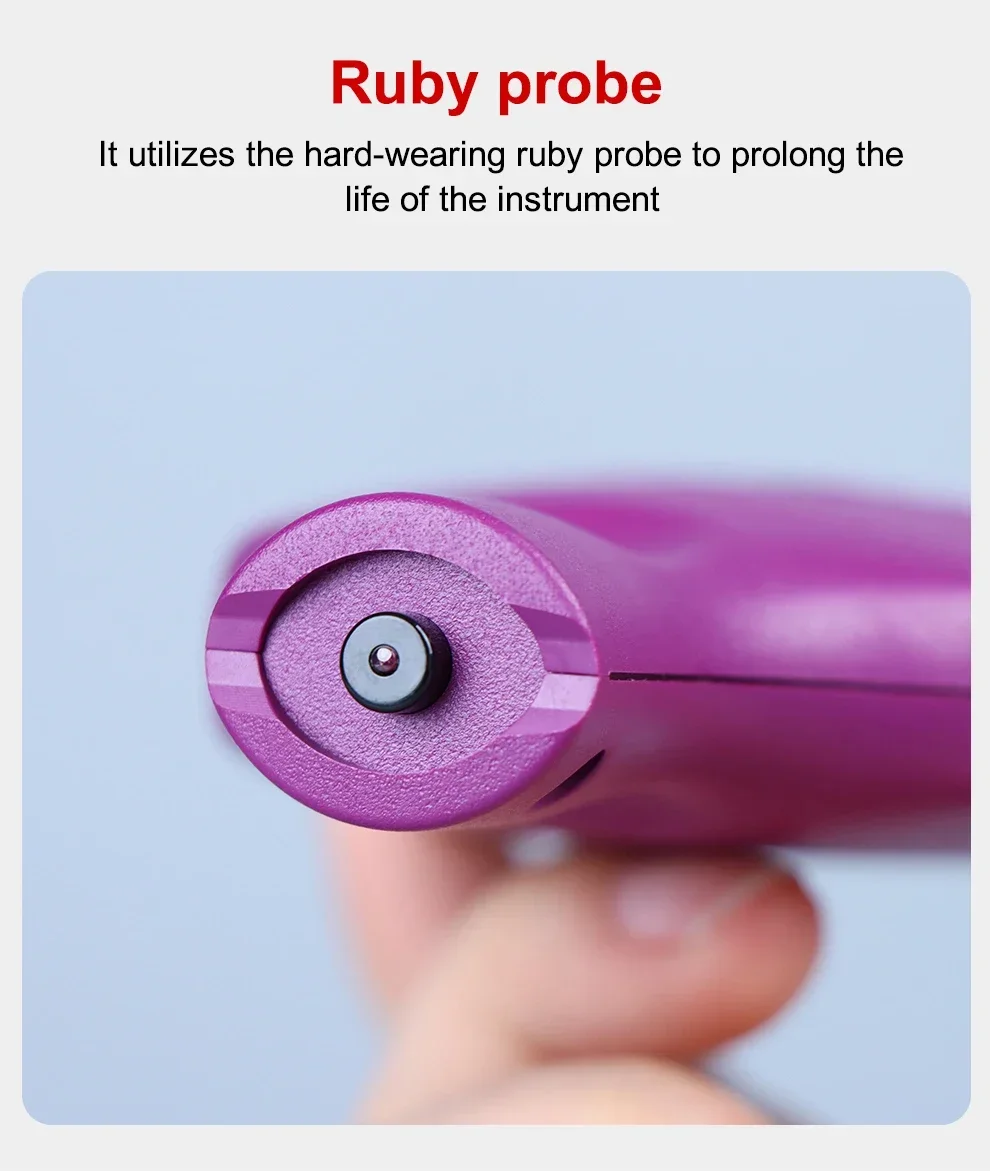

Ruby probe, hard wearing
It utilizes the hard-wearing ruby probe to prolong the life of the instrument.

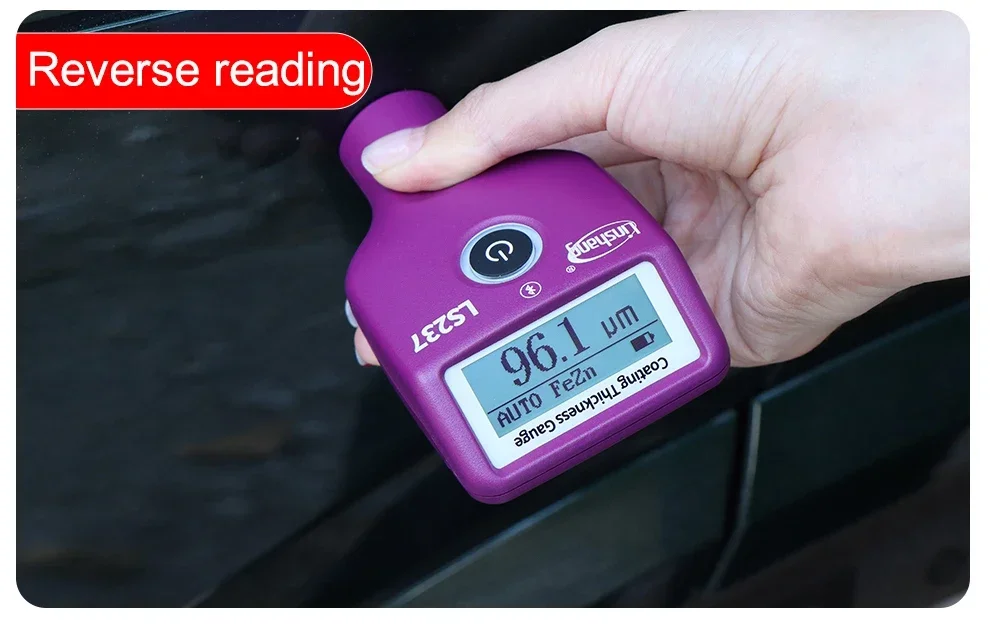

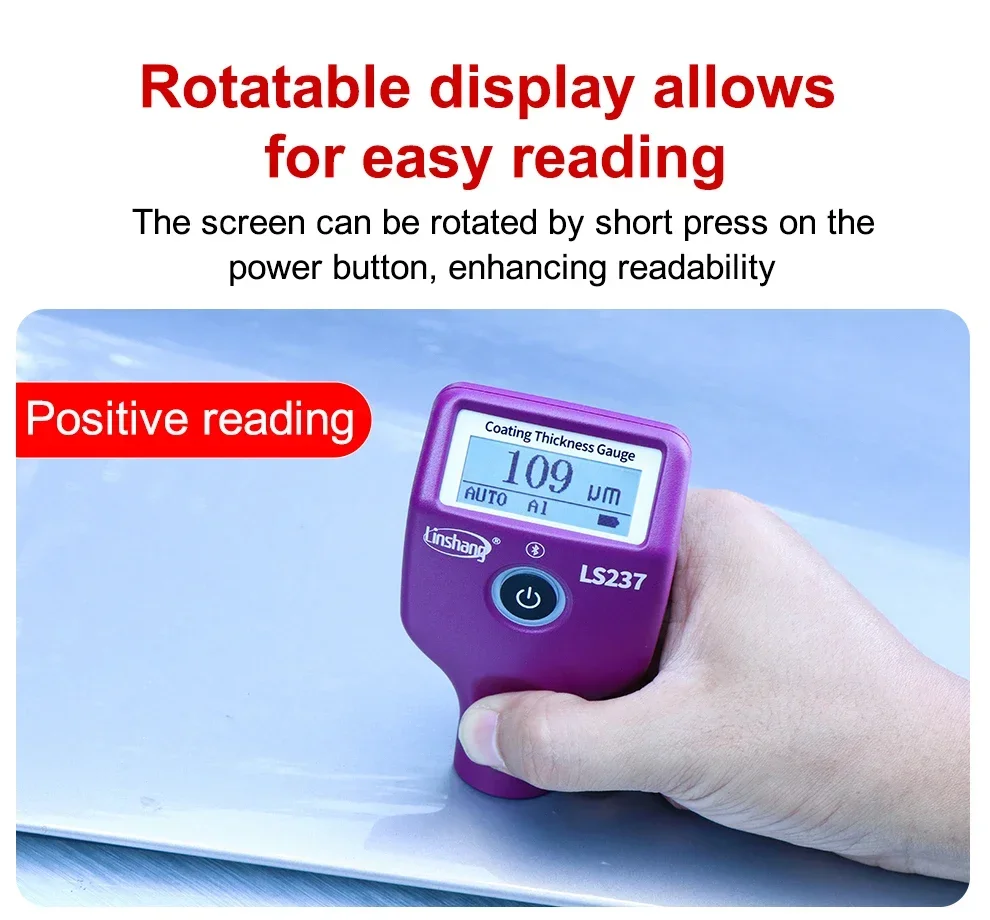

Rotatable display allows for easy reading
The screen can be rotated by short press on the power button, enhancing readability.

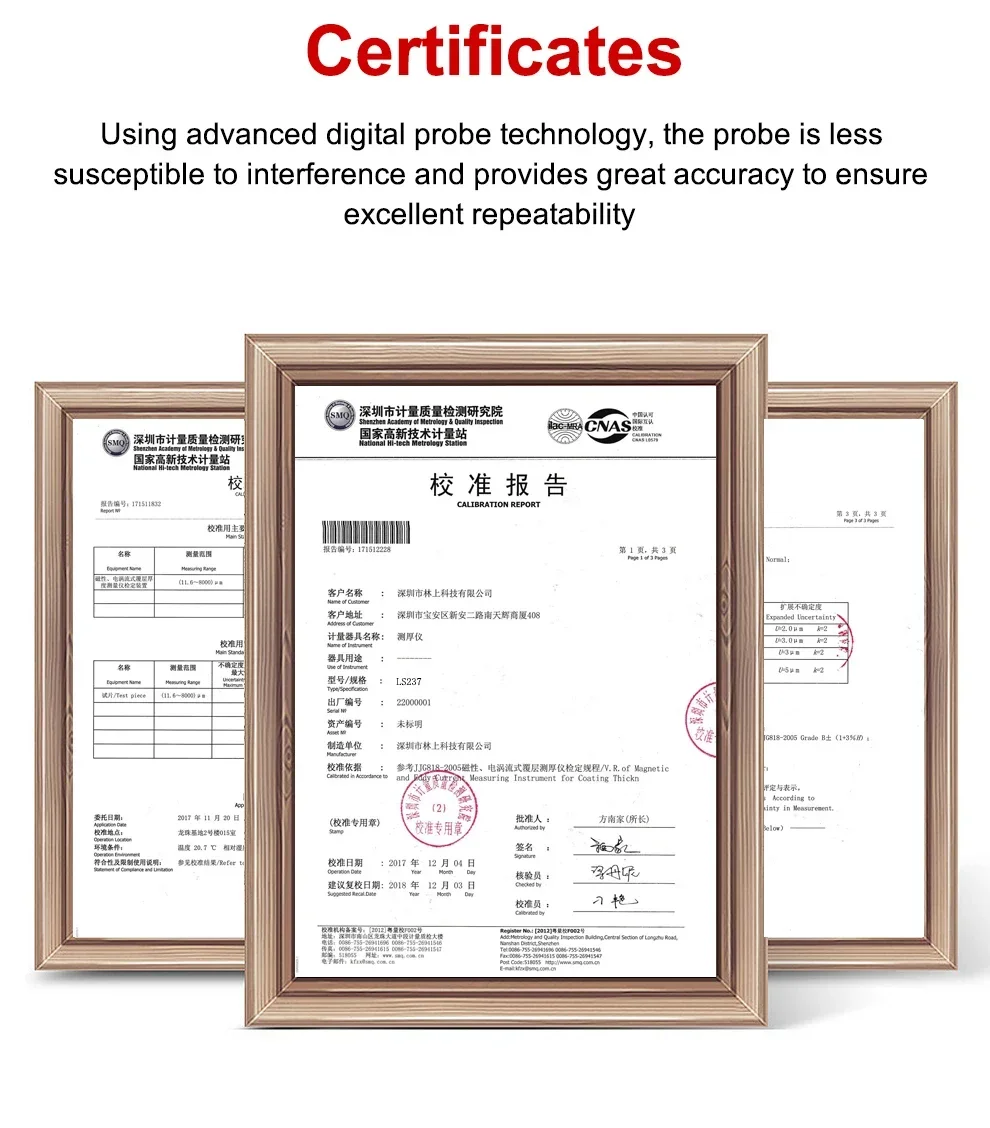

With qualified calibration reports
LS237 can pass the authoritative metrological institute testing, with qualified calibration reports.

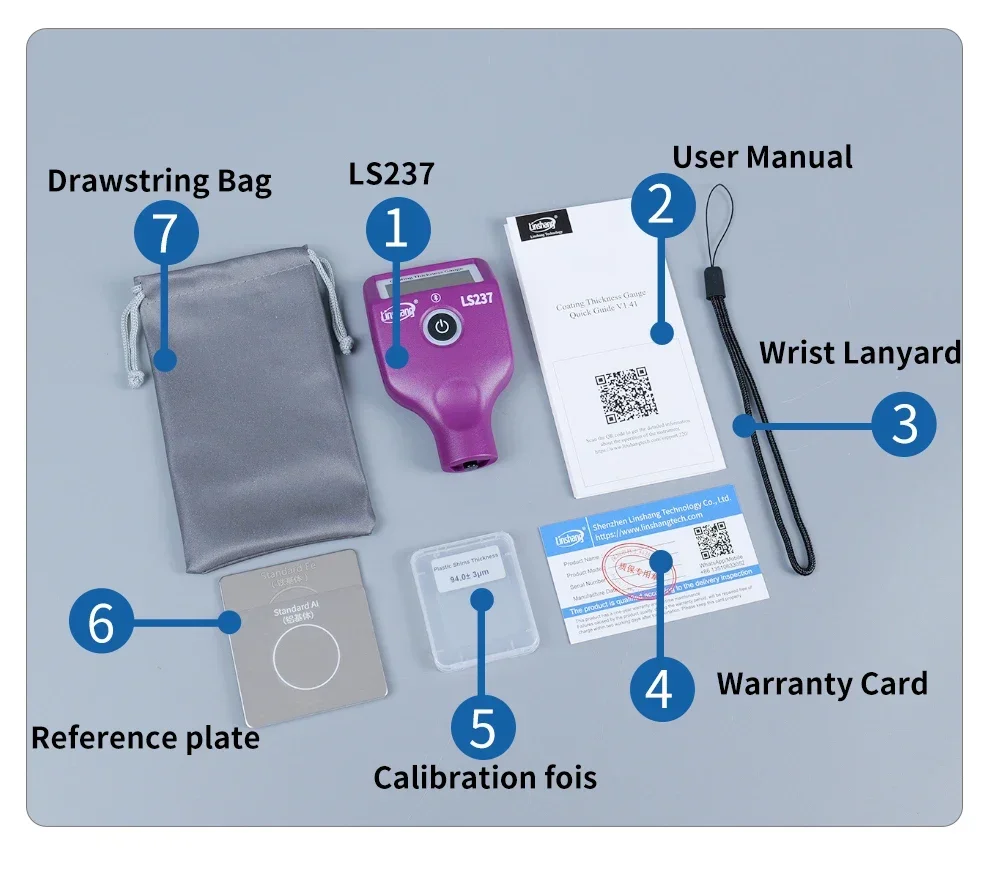

1. Coating thickness gauge*1
2. Fe zero adjustment plate*1
3. Al zero adjustment plate*1
4. Standard film*1
5. User manual*1
6. Certificate/Warranty card*1
7. Drawstring bag*1
8. Wrist lanyard*1
Note
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
Please allow 1-2cm measuring deviation due to manual measurement.
