Product Description
DN100 Mag Flow Meter Electromagnetic Flow Measurement Flow Sensor Transmitter
DN100 Mag Flow Meter Electromagnetic Flow Measurement Flow Sensor TransmitterDN100 mag flow meter electromagnetic flow measurement flow sensor transmitter
Product Description
LD300 electromagnetic flow meter is a velocity instrument for measuring the volume flow of a conductive medium. While performing on-site detection and display, it can output a standard current signal for recording, adjustment and control. It does not have any moving parts to wear down, reducing the need for maintenance or replacement.MACSENSOR Electromagnetic flow meters can realize automatic detection and long-distance signal transmission.

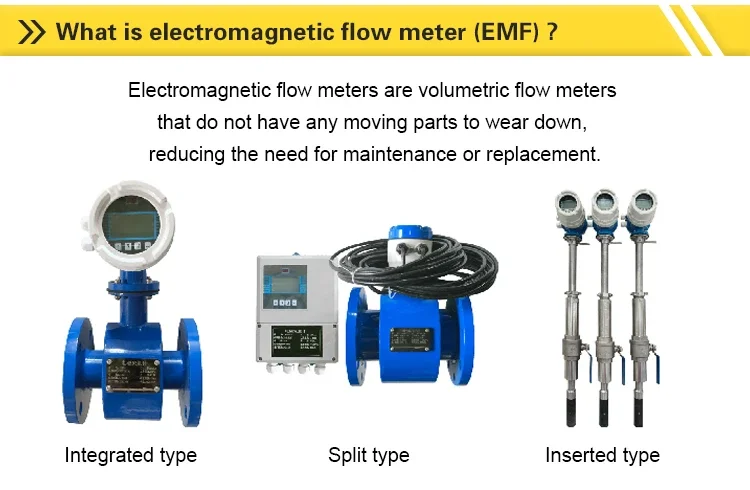

MACSENSOR Electromagnetic flow meters are widely used in the flow measurement of conductive liquids in industries such as environmental protection, steel, petroleum, chemical, coal, metallurgy, mining, papermaking, water supply and drainage, food, and medicine. It has integrated type, split type and insertion type.

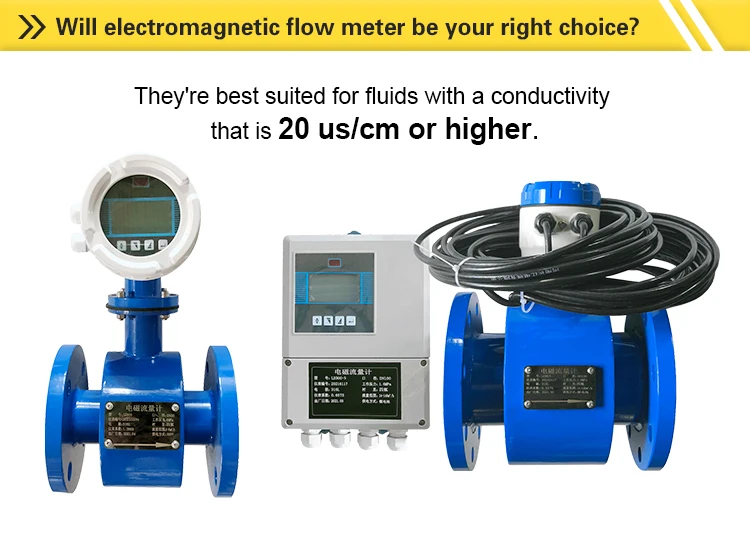

Electromagnetic meters have many advantages for wide applications, but they're best suited for fluids with a conductivity that is 20 us/cm or higher. That means they're not the best for: Low-velocity applications Petroleum-based fluids, like oil.If your project is in these cases or not sure, don't worry! Justcontact our sales team for other product solutions. Send an inquiry now to get quick help!Detail Show of LD300 electromagnetic water flow meter
Technical specification for LD300 series of electromagnetic flow meter
| Model | Integrated type: LD300 Split type: LD300-S Insertion type:LD300-P |
| DN size(mm) | DN6-3000mm(for LD300, LD300-S) DN100-3000mm(for LD300-P) |
| Maximum flow speed | 0.5~10m/s |
| Output signal | Analog output; 0~10mA, load resistance: 0~1. 5KΩ; 4~20mA, load resistance: 0~750KΩ; Frequency output; Alarm Output; Pulse output; RS232/RS485 |
| Power Supply | AC power supply, voltage range: 85VAC~250VAC; DC 24V power supply, voltage range: 20VDC- -36VDC; Self-powered 3.6V power supply |
| Working temperature | -20~60°C . |
| Accuracy | 0.5% (for LD300, LD300-S) 1. 5% (for LD300-P) |
| Conductivity of the measured medium | ≥20μs/cm |
| Measuring parameters | Instantaneous flow, flow rate, forward and reverse accumulated flow Alarm display (excitation open circuit alarm, empty pipe alarm, flow over limit alarm). Four membrane touch switches for data setting. |
| Network function | HART , MODBUS, GPRS, PROFIBUS optional |
| IP rating | IP65 standard;IP 67, IP68 by customized for the transmitter of the separated versions only. |

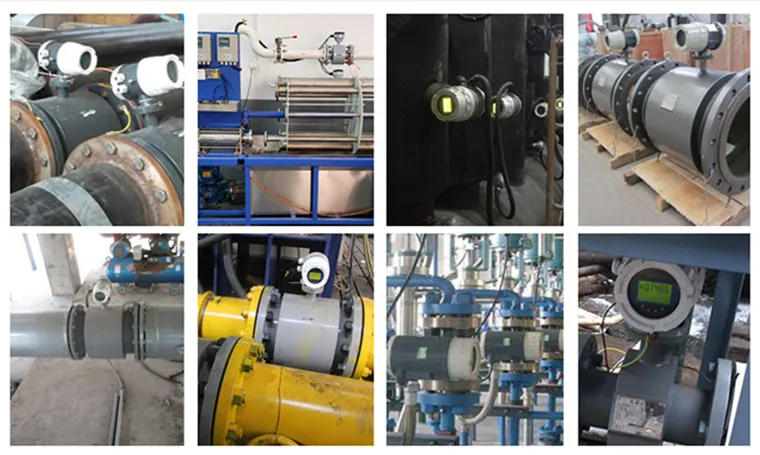

Project cases of electromagnetic water flow meters
The price is just for reference. Each product will be customized based on your project demand, please send an inquiry to get the optimized product solutions and best price.
