Thickness Meter LS221 Coating Gauge Mil Gage Dry Film 0-5000μm for Ferrous Non-f

Product Description

Description

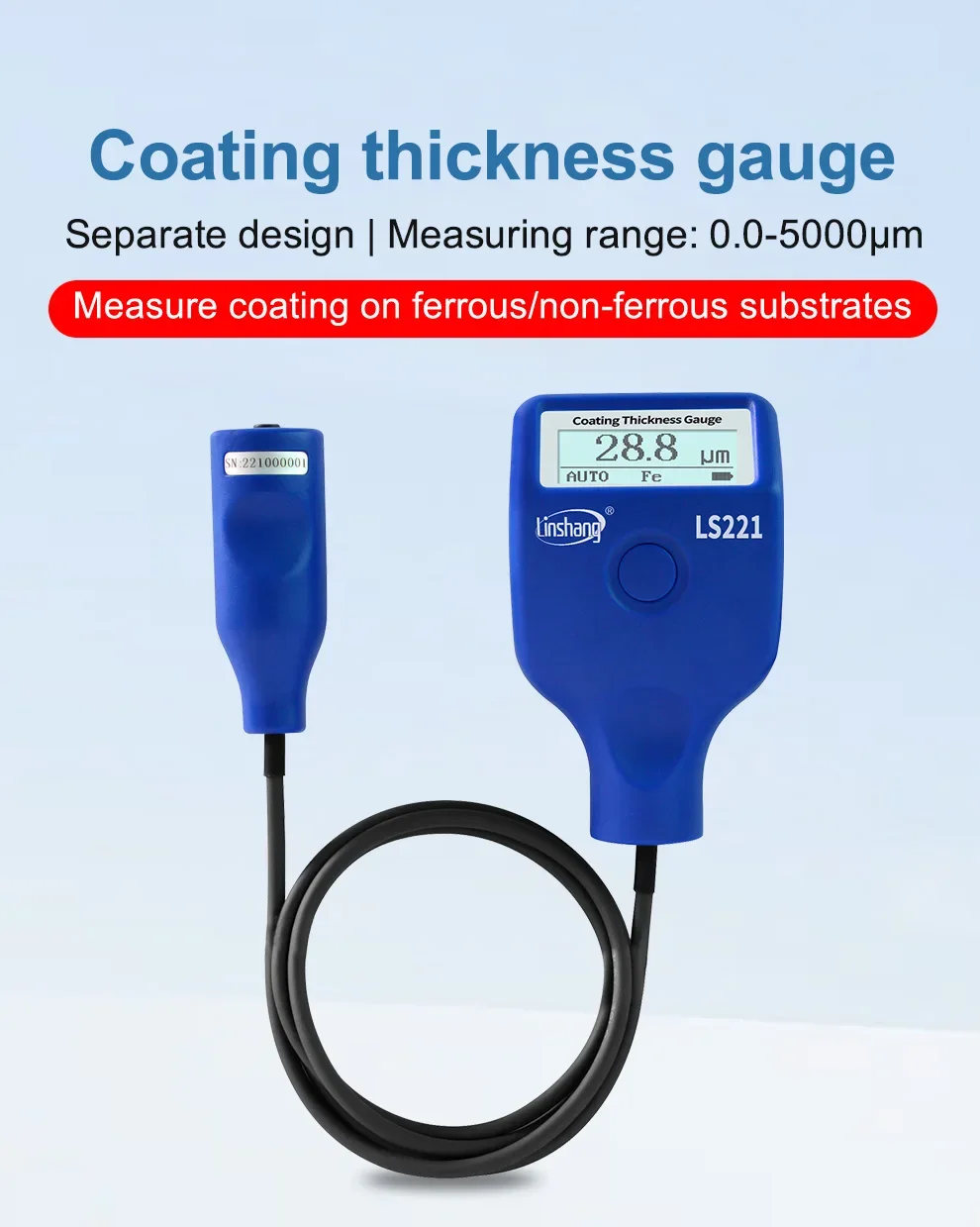

LS221 coating thickness gauge measures both the thickness of non-ferromagnetic coatings on ferromagnetic metal substrates and the thickness of non-conductive coatings on non-magnetic metal substrates. The host and the probe adopt separate design, which is convenient to check the data while testing under complex test conditions. LS221 is widely used in the metal fabrication industry, paint industry, hardware industry, marine industry, aerospace industry and other fields. Using advanced digital probe technology, the probe provides excellent test accuracy and less susceptibility to interference.

Specifications:

1. Probe tip: Ruby fixed

2. Measuring principle: Ferrous: Hall Effect / Non-Ferrous : Eddy current

3. Probe type: External cable probe

4. Measuring range: 0.0-5000μm

5. Resolution: 0.1μm: 0μm -99.9μm; 1μm: 100μm-999μm; 0.01mm: 1.00mm-5.00mm

6. Accuracy: ≤±(3%H+2μm), H is the standard value

7. Unit: μm / mil

8. Measuring interval: 0.5s

9. Minimum measuring area: Ø = 25mm

10. Minimum curvature: Convex:5mm / Concave:25mm

11. Minimum substrate thickness: Fe:0.2mm / NFe:0.05mm

12. Display: 128×48 dot matrix LCD

13. Power supply: 2pcs of 1.5V AAA alkaline battery

14. Operation temperature range: 0℃-50℃

15. Storage temperature range: -20℃-60℃

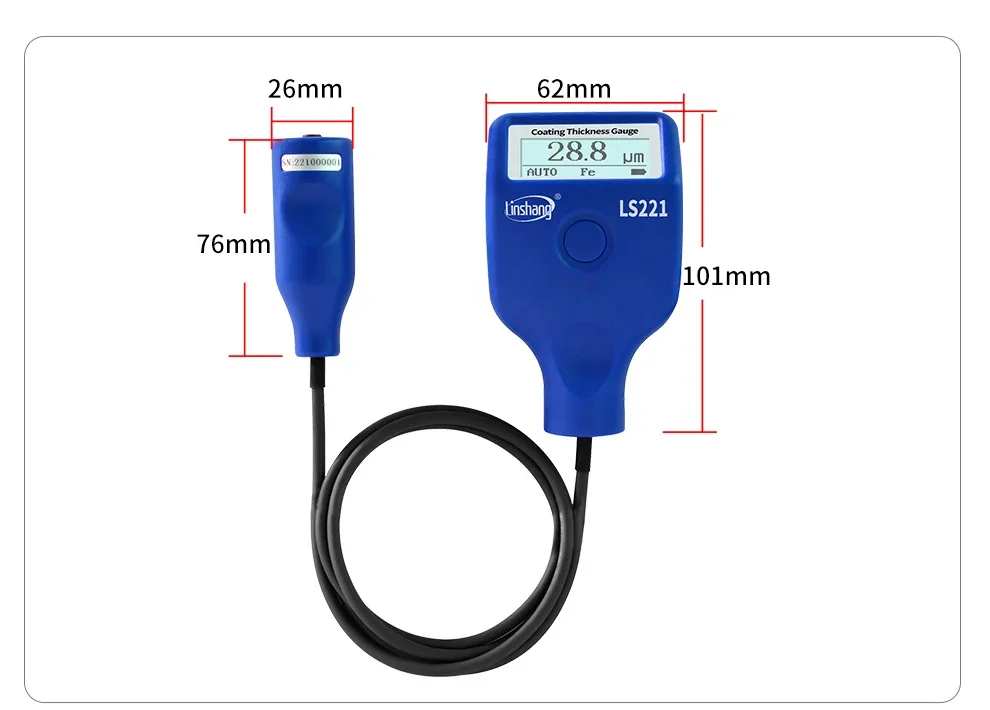

16. Host size: 101*62*28 mm

17. Probe size: 71*26*22 mm

18. Weight (with battery) : 114 g

Features:

1. Automatic recognition of magnetic or non-magnetic substrates and automatic substrate conversion.

2. Use advanced digital probe technology, providing excellent test accuracy.

3. It has three measurement modes: Fe mode, NFe mode and Fe/NFe mode.

4. Adopt separate design, which is convenient to check the data while testing under complex test conditions.

5. The test response speed is very high and the data can be measured in 0.5 seconds.

6. Wear-proof ruby probe tip for long-term use with strong corrosion and abrasion resistance.

7. Just reset zero, no calibration required to ensure measurement accuracy.

8. It can pass the authoritative metrological institute testing with good repeatability.

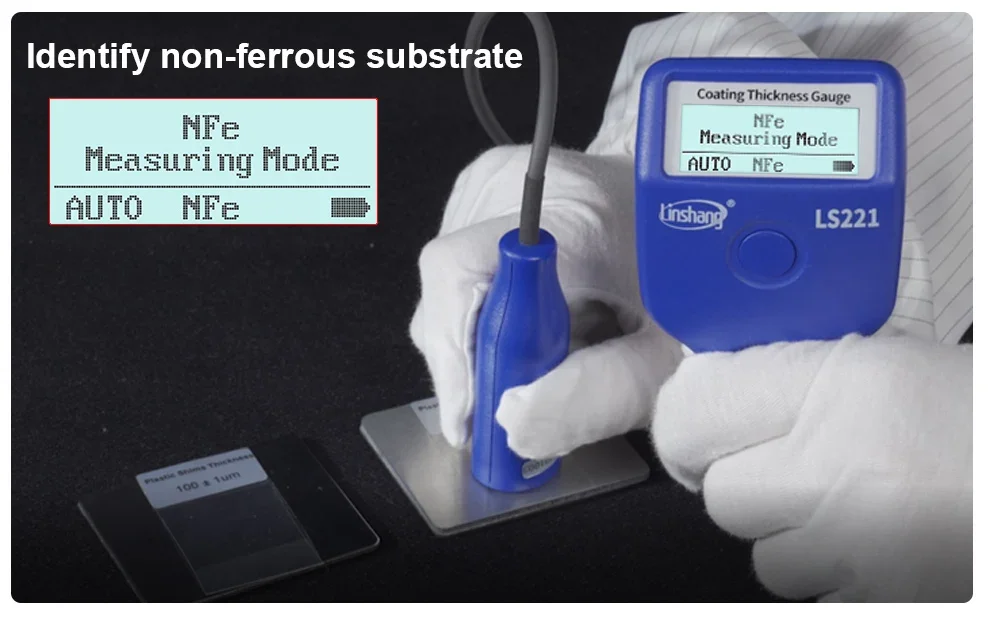

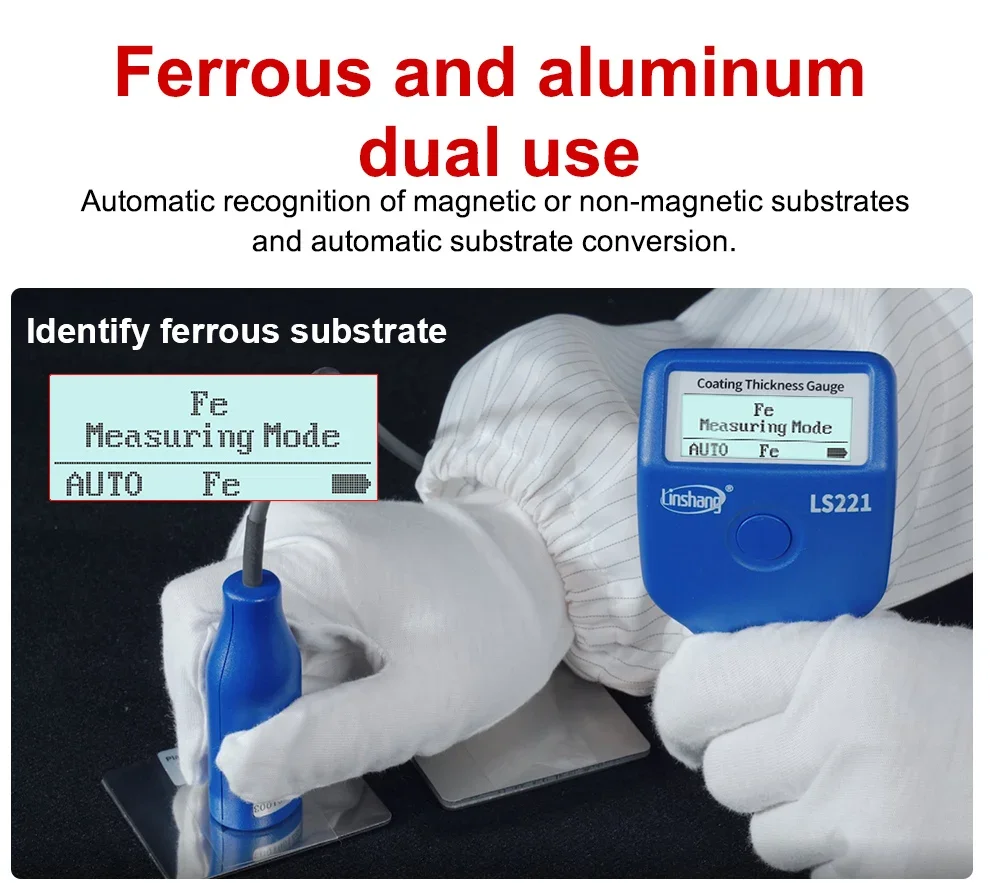

Ferrous and aluminum dual use

Automatic recognition of magnetic or non-magnetic substrates and automatic substrate conversion.

Wide range of applications

It is widely used in the metal fabrication industry, paint industry, hardware industry, marine industry, aerospace industry and other fields.

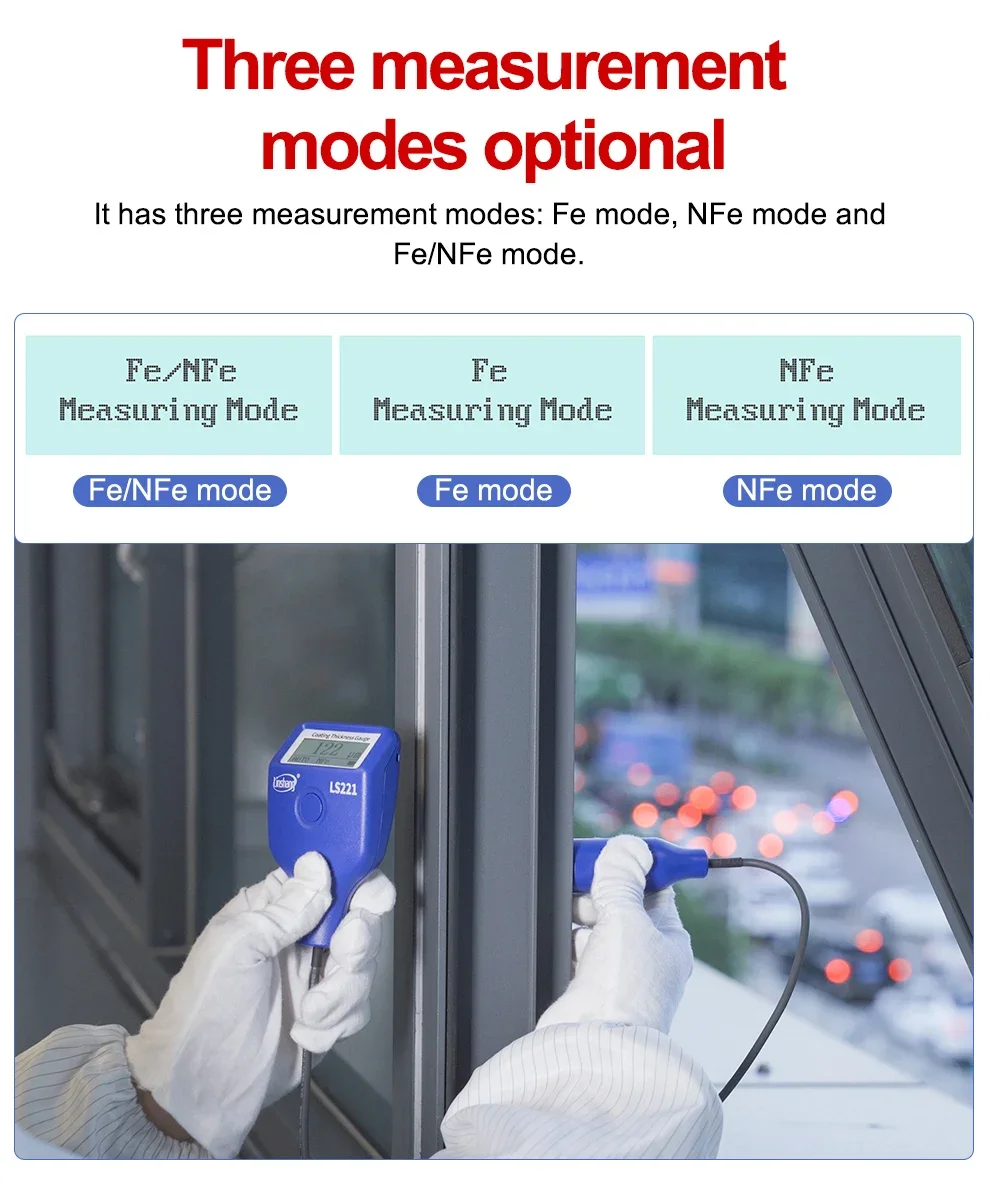

Three measurement modes optional

It has three measurement modes: Fe mode, NFe mode and Fe/NFe mode.

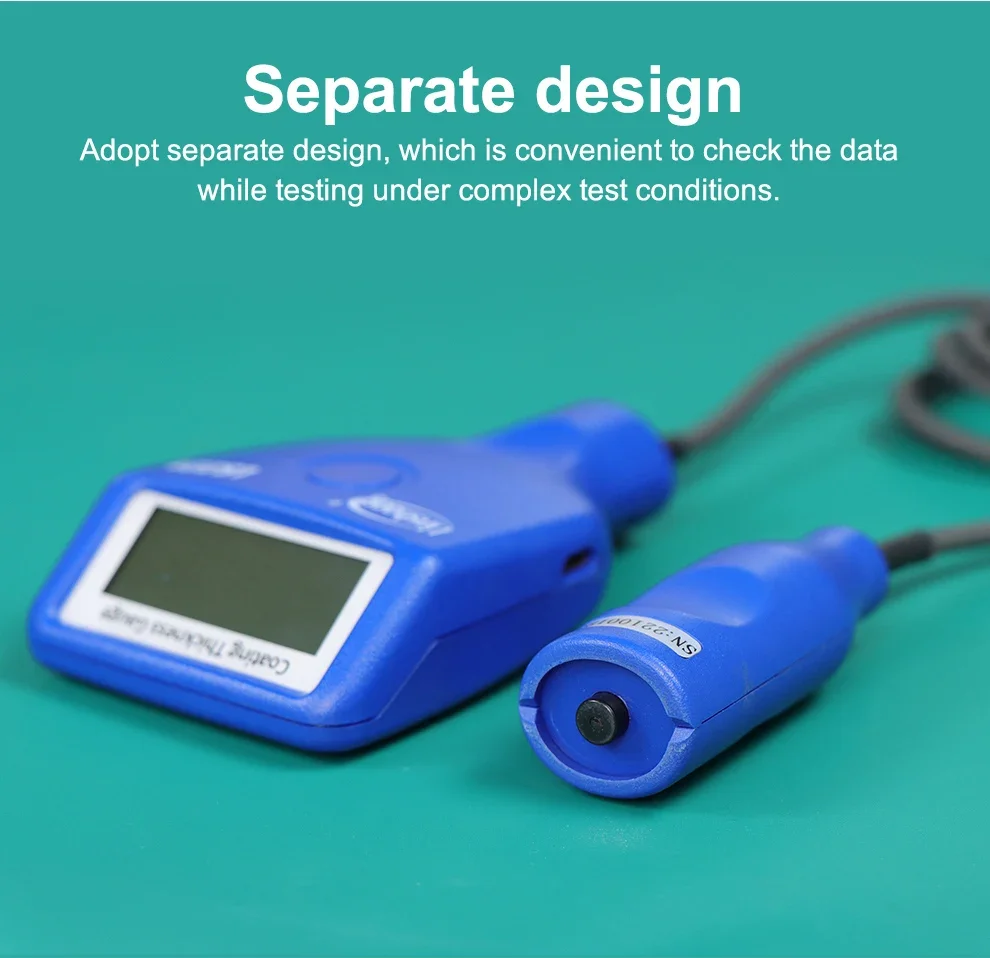

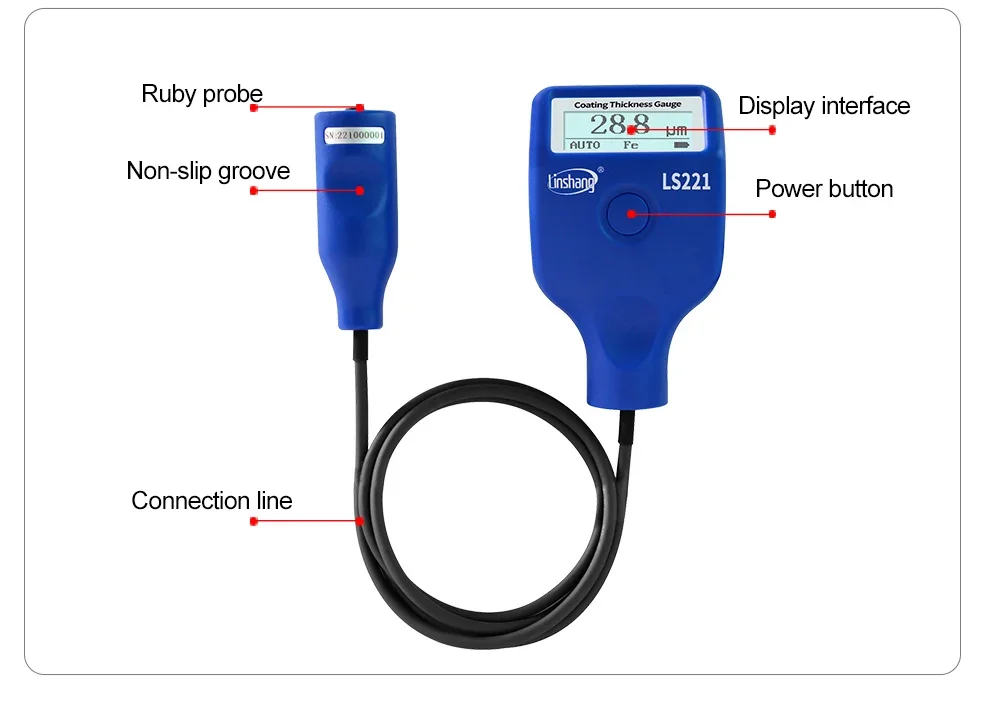

Adopt separate design

Adopt separate design, which is convenient to check the data while testing under complex test conditions.

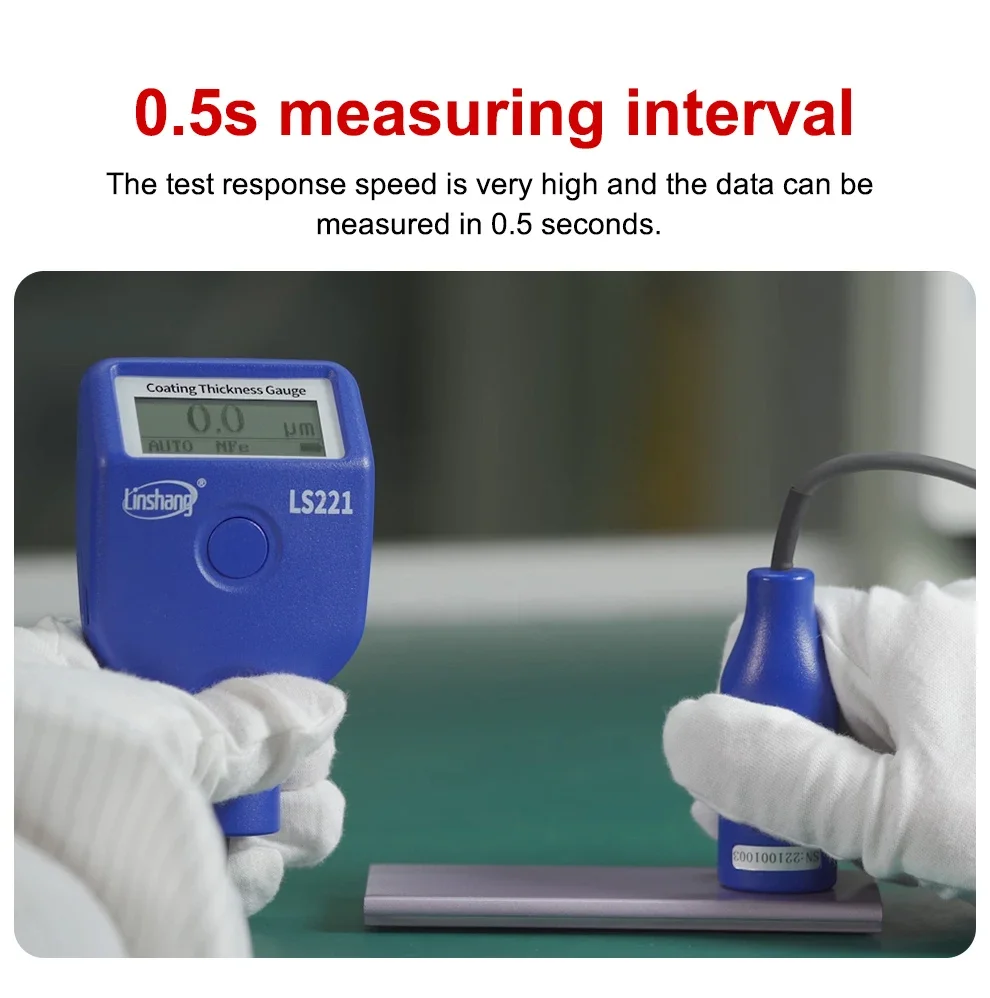

High response speed

The test response speed is very high and the data can be measured in 0.5 seconds.

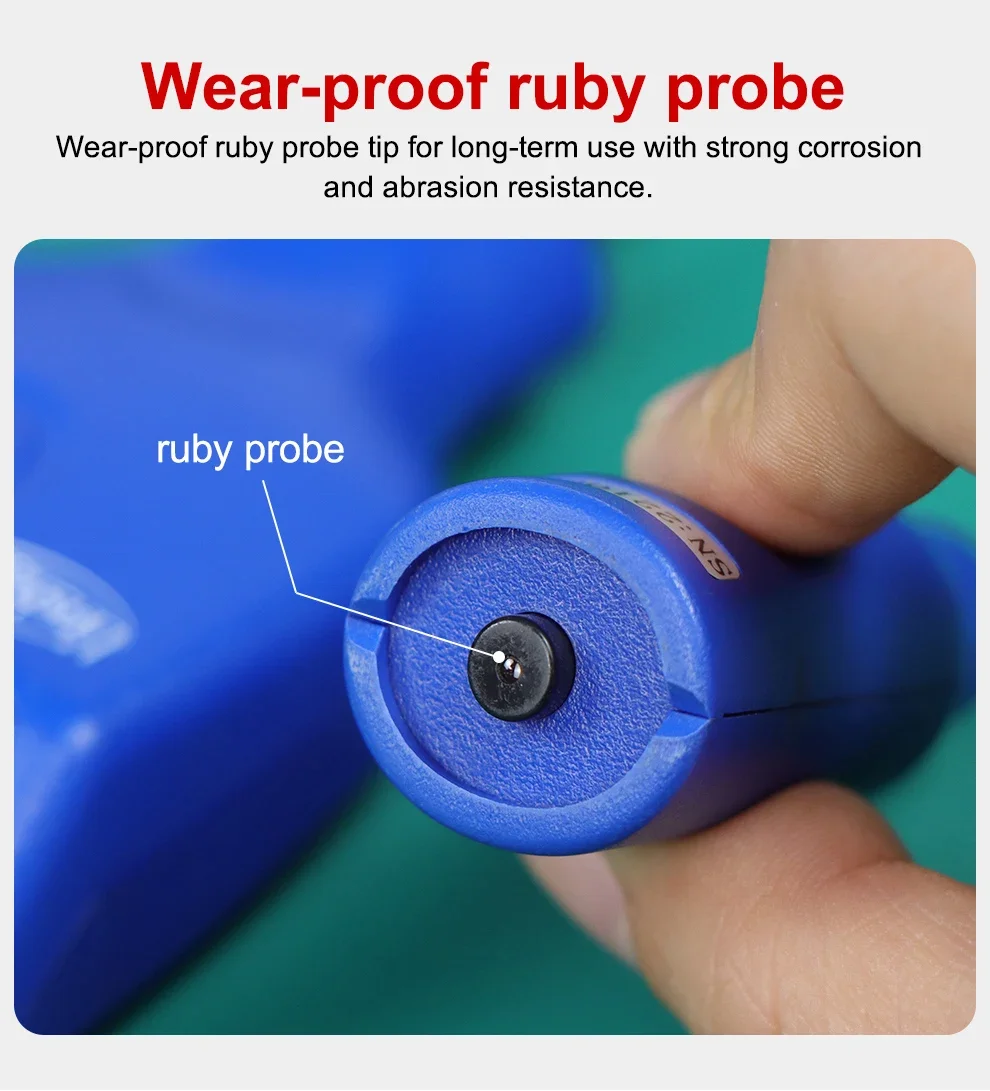

Wear-proof ruby probe

Wear-proof ruby probe tip for long-term use with strong corrosion and abrasion resistance.

Precise measurement and good repeatability

It can pass the authoritative metrological institute testing with good repeatability.

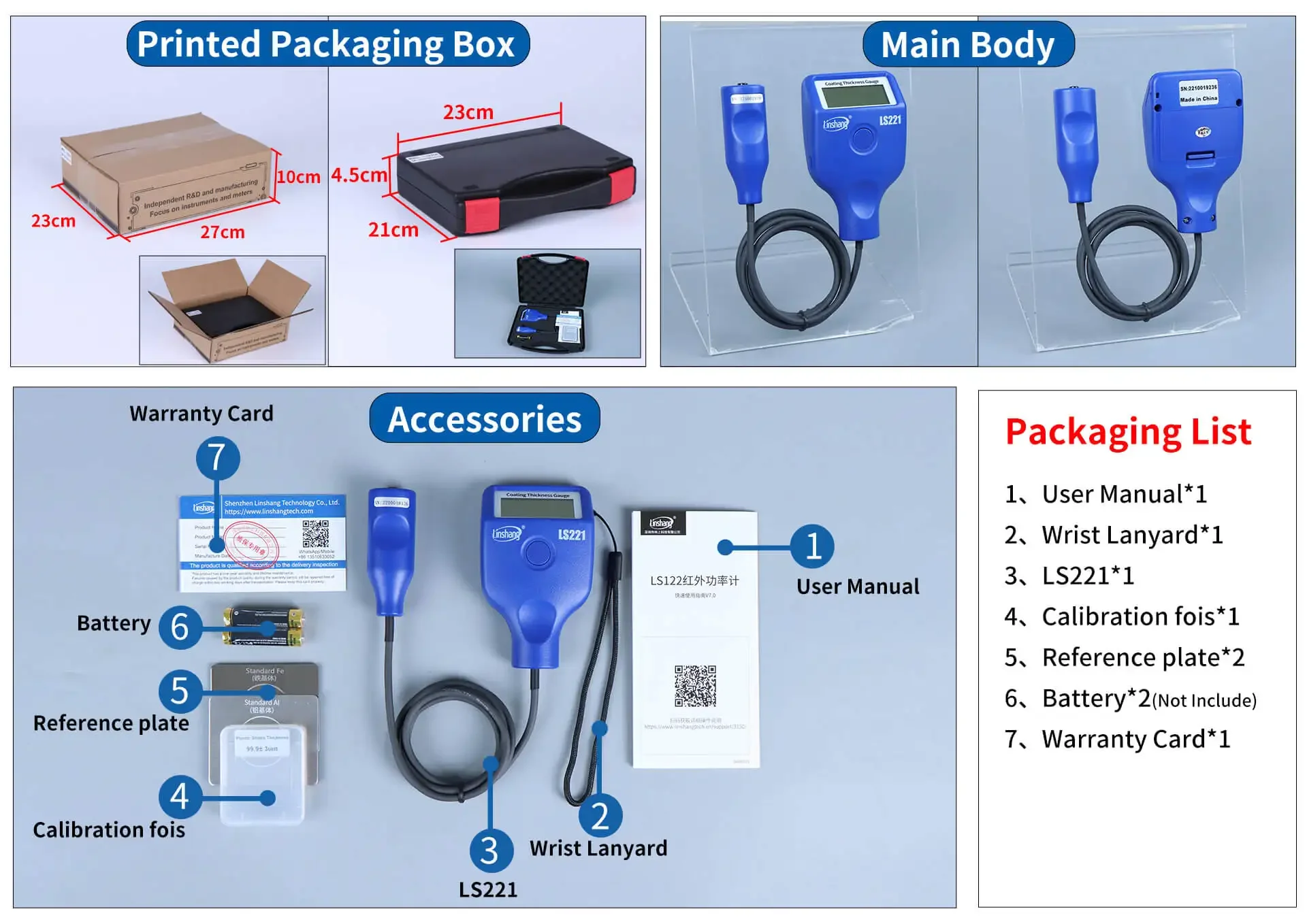

1. LS221 coating thickness gauge*1

2. Fe plate of zero adjustment*1

3. NFe plate of zero adjustment*1

4. User manual*1

5. Standard film*1

6. Certificate/Warranty card*1

Note

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-2cm measuring deviation due to manual measurement.
