Product Description
Portable Ultrasonic Leeb Hardness Tester with Calibration Block 170-960 HLD 9 Hardness Units for Steel Iron Bronze Copper LS256
Portable Ultrasonic Leeb Hardness Tester with Calibration Block 170-960 HLD 9 Hardness Units for Steel Iron Bronze Copper LS256Product DescriptionUltrasonic Hardness Tester for Metal Coatings Plating UCI Method Multi Scale HL HV HB HS HRA HRB HRC TestingDescriptions：Ultrasonic Hardness Tester uses the Ultrasonic Contact Impedance (UCI) method for hardness testing, capable of measuring a wide range of metal materials. Its minimal indentation ensures almost no surface damage, making it suitable for coatings, plating, and hardened layers as well. Multiple hardness scales are built in, allowing easy conversion between Leeb (HL), Vickers (HV), Brinell (HB), Shore (HS), and Rockwell (HRA, HRB, HRC).Features： 1. Compact all-in-one design, ready to use in 1 second.2. Dual probes measure both flat and irregular surfaces.
3. Non-destructive testing with minimal indentation using UCI.
4. Built-in selection for testing multiple metal materials.
5. High-precision measurement up to ±4%HV.
6. Supports multiple hardness scales: HL, HV, HB, HS, HRA, HRB, HRC.
7. Bluetooth-enabled with app connectivity and user calibration.Specifications
| Hardness Scales | HV、HRC、HRB、HRA、HS、HL、HB |
| Measurement Range | HV(50-1700), HL(170-960), HRC(20-70), HRB(13-100), HRA(60-85.8), HS(26.4-99.5), HB(30-651), HRE(20-70), HRF(60-100) |
| Resolution | 1HV, 0.1HRC |
| Accuracy | ±4%H+10HV，±2.5HRC (Probe fixture stand test, H as the standard value) |
| Repeatability | 3%H+8HV，2HRC (Probe fixture stand test, H as the standard value) |
| Test Force | 20N |
| Operating Current | 60mA |
| Display | 240 * 240 dot matrix IPS |
| Power supply | Rechargeable lithium battery 3.7V@1000mAh, full charge for over 5000 continuous measurements |
| Charging Port | USB(Type-C) |
| Size | 185*43*45 mm |
| Weight | 245 g |
| Supply Voltage | DC5V |
| Working Temperature Range | -10~50℃，0~85%RH (no condensation) |
| Storage Temperature Range | -10~60℃，0~85%RH (no condensation) |
| No. | Description | Quantity | Unit |
| 1 | Ultrasonic Hardness Tester | 1 | Set |
| 2 | USB Data Cable | 1 | pcs |
| 3 | Standard hardness block | 1 | pcs |
| 4 | User Manual | 1 | pcs |
| 5 | Calibration Report | 1 | pcs |

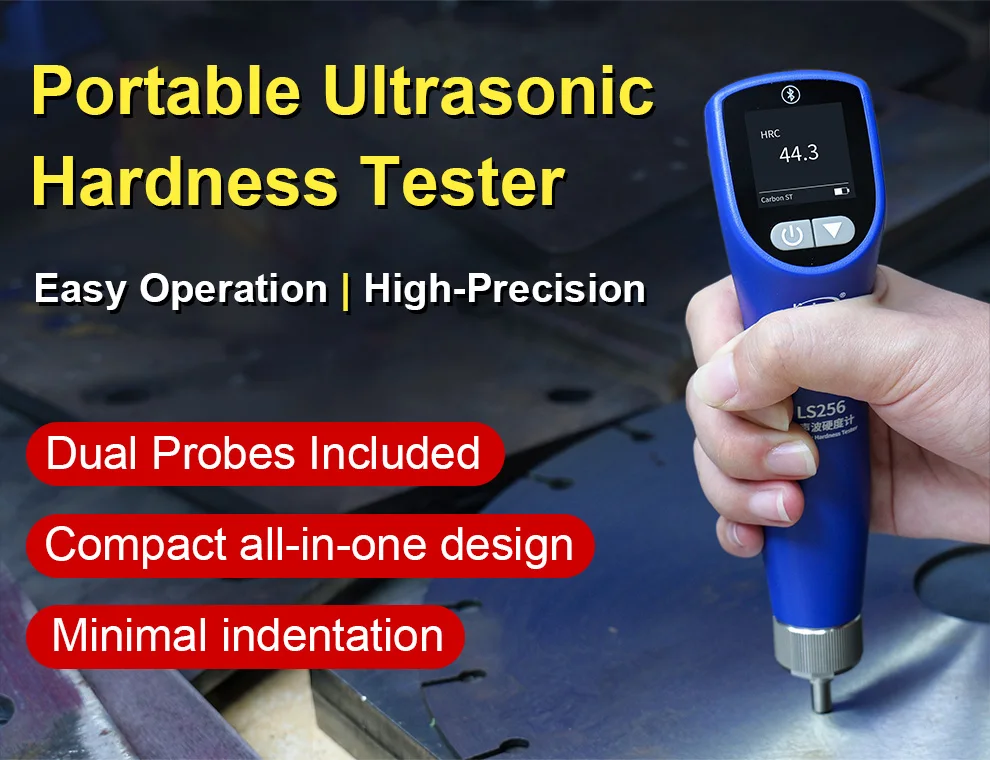

Portable Ultrasonic Hardness TesterEasy Operation | High-PrecisionDual Probes Included
Compact all-in-one design
Minimal indentation
Suitable for Various Metal MaterialsWidely used in automotive industry, stamping dies, precision machinery parts, pressure vessel pipes, and more

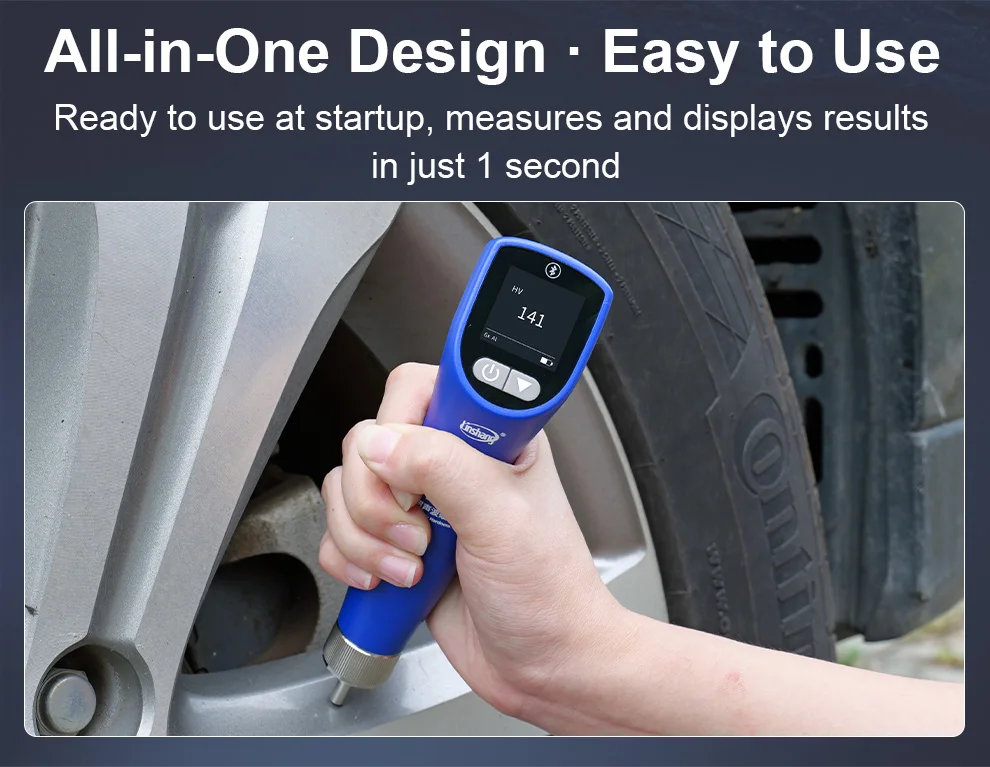

All-in-One Design · Easy to UseReady to use at startup, measures and displays results in just 1 second

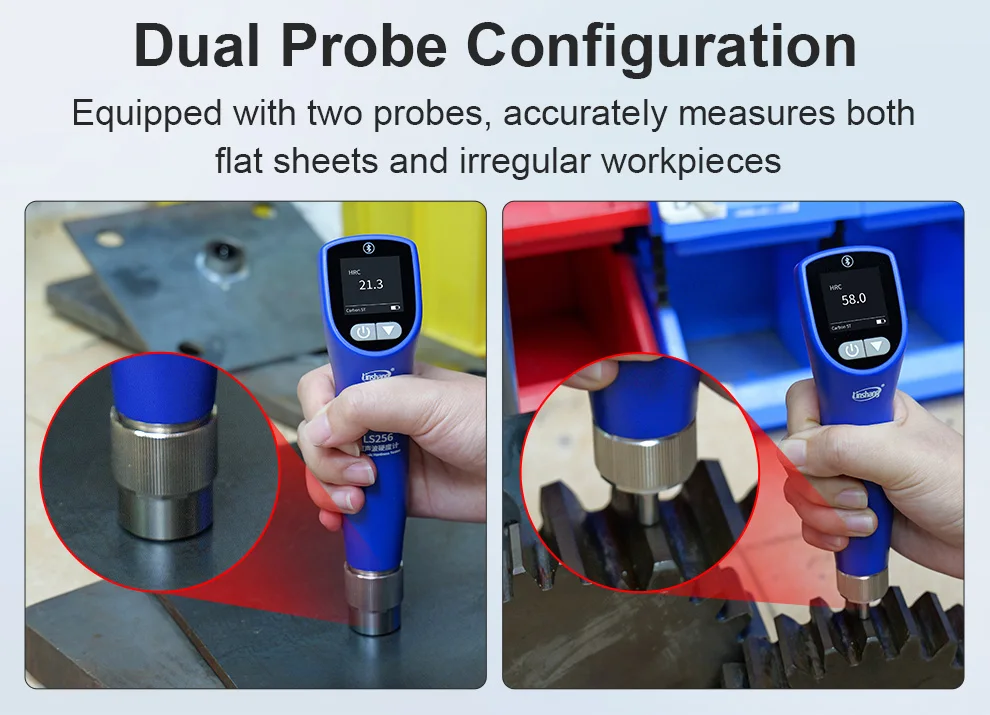

Dual Probe ConfigurationEquipped with two probes, accurately measures both flat sheets and irregular workpieces

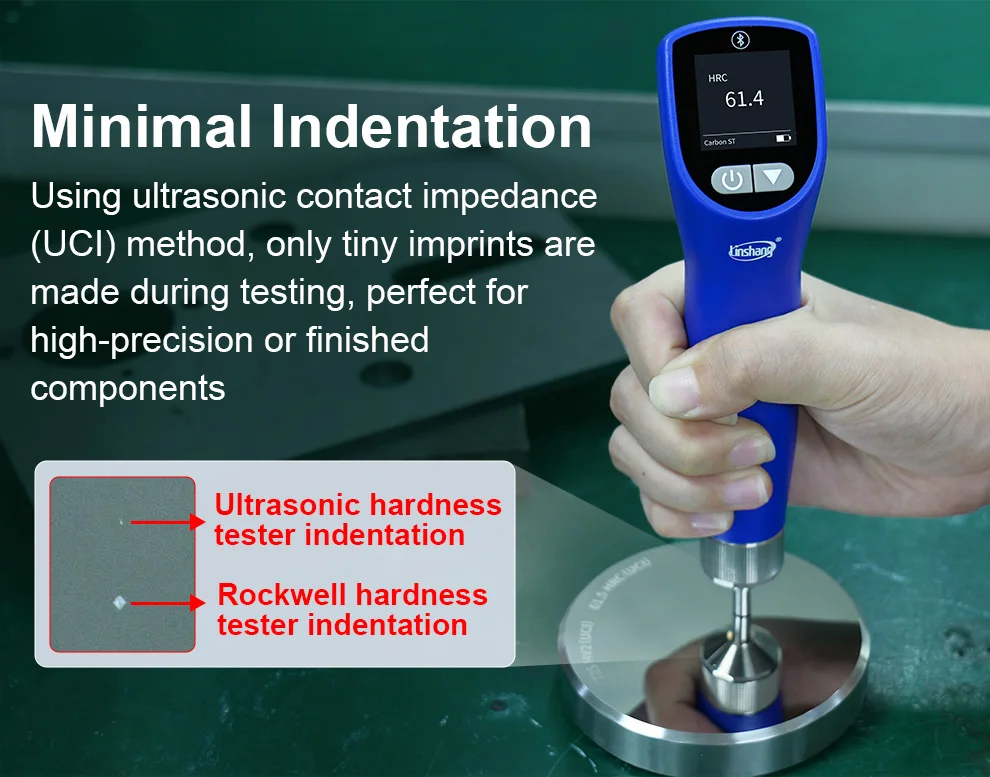

Minimal IndentationUsing ultrasonic contact impedance (UCI) method, only tiny imprints are made during testing, perfect for high-precision or finished components

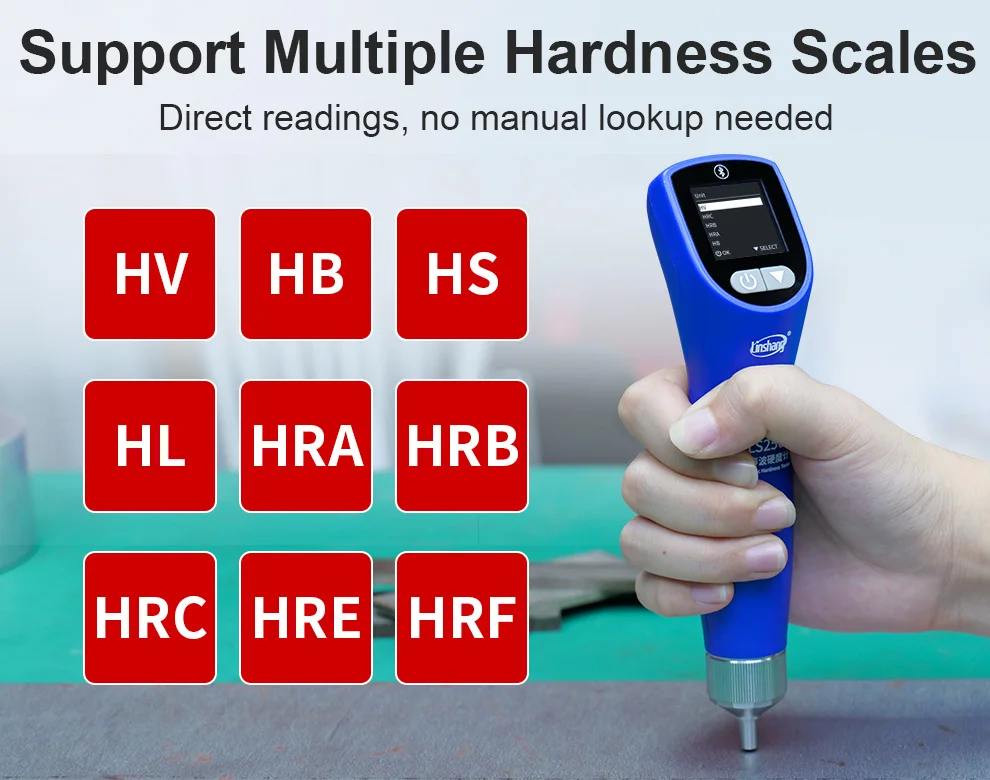

Support Multiple Hardness ScalesDirect readings, no manual lookup needed

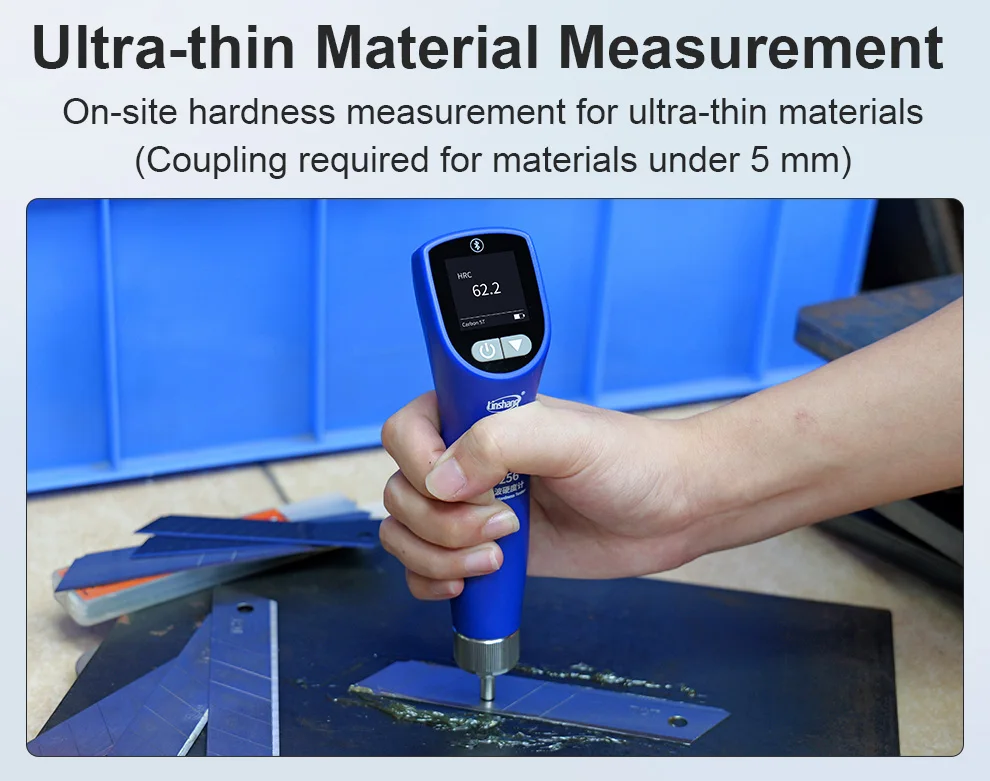

Ultra-thin Material MeasurementOn-site hardness measurement for ultra-thin materials. (Coupling required for materials under 5 mm)

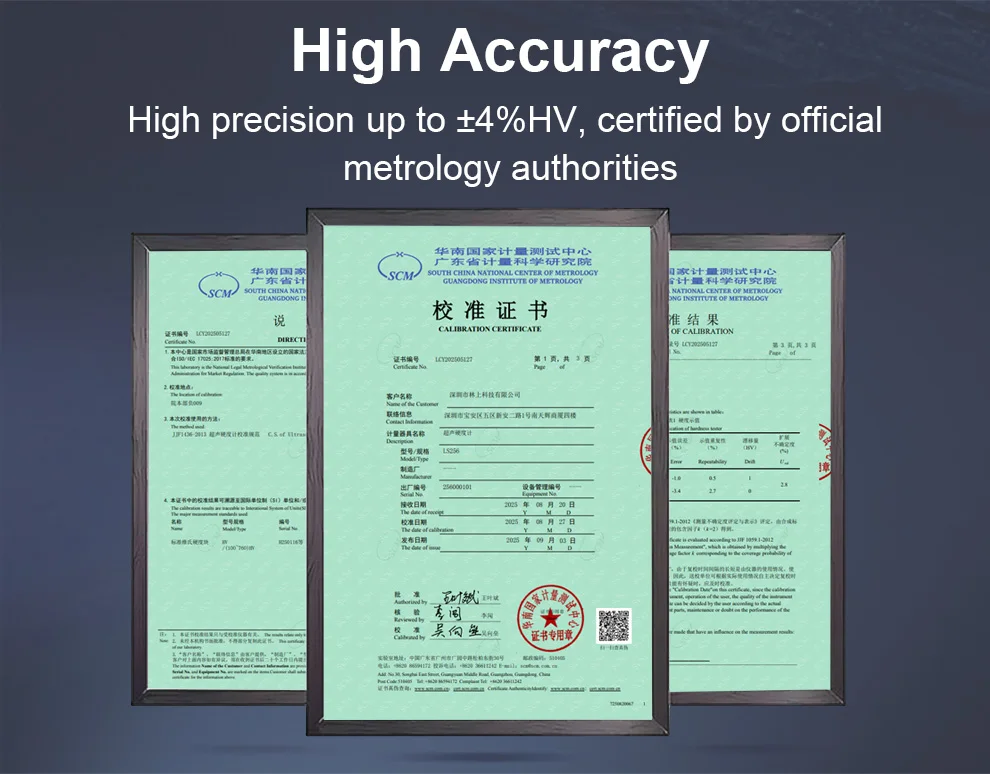

High AccuracyHigh precision up to ±4%HV, certified by official metrology authorities

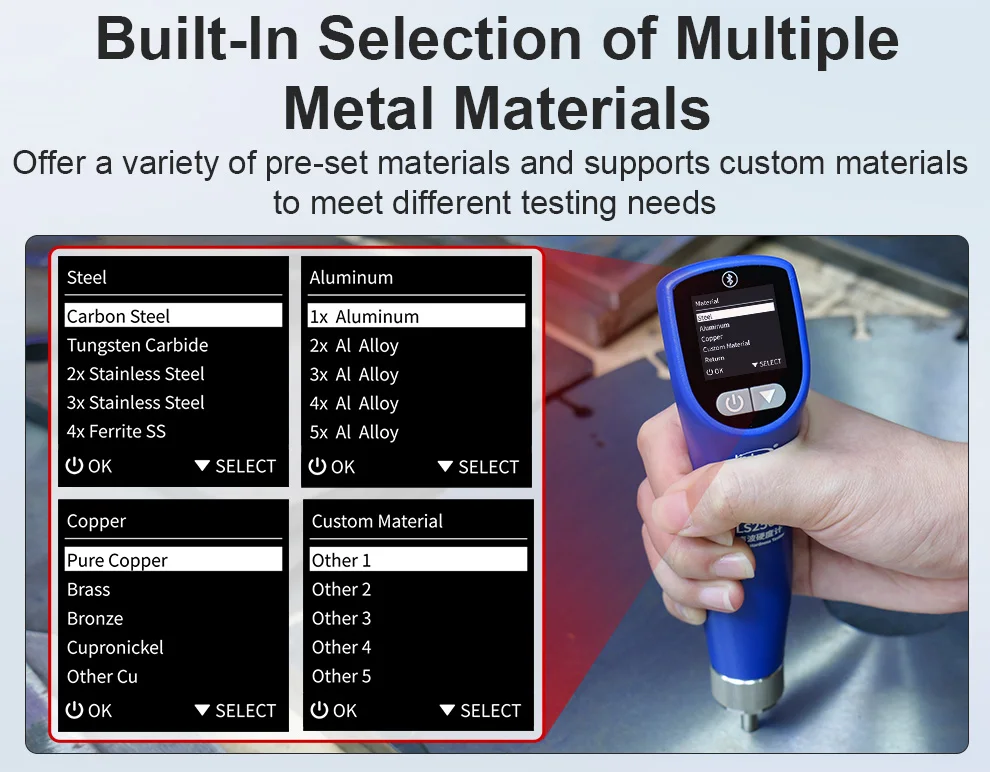

Built-In Selection of Multiple Metal MaterialsOffer a variety of pre-set materials and supports custom materials to meet different testing needs

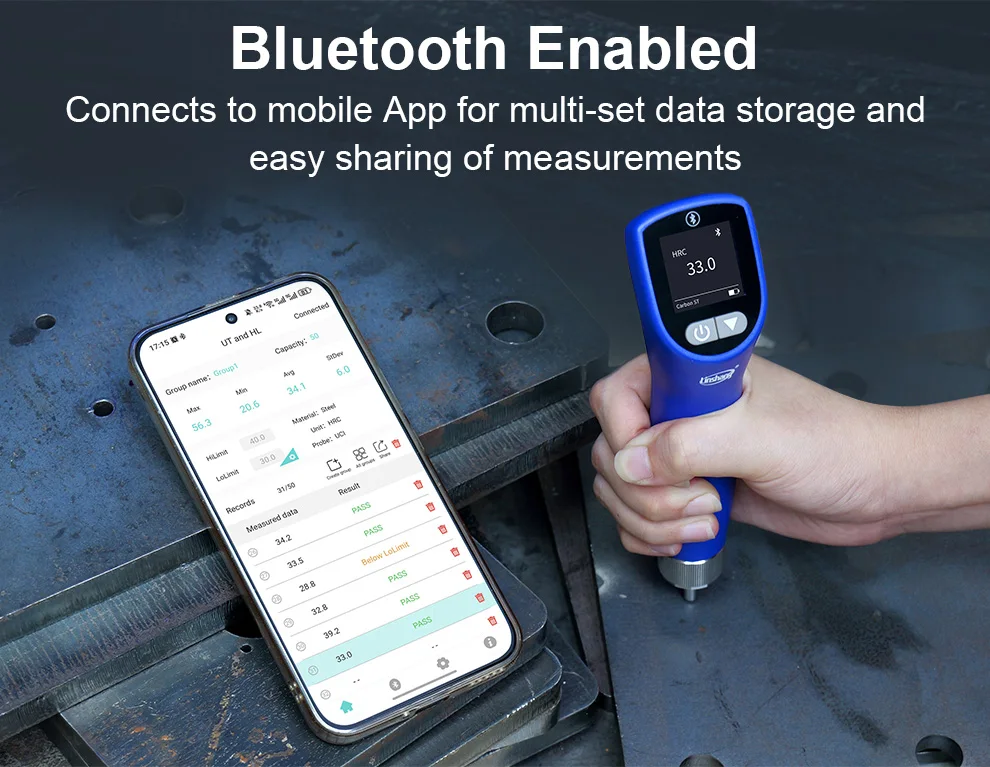

Bluetooth EnabledConnects to mobile App for multi-set data storage and easy sharing of measurements

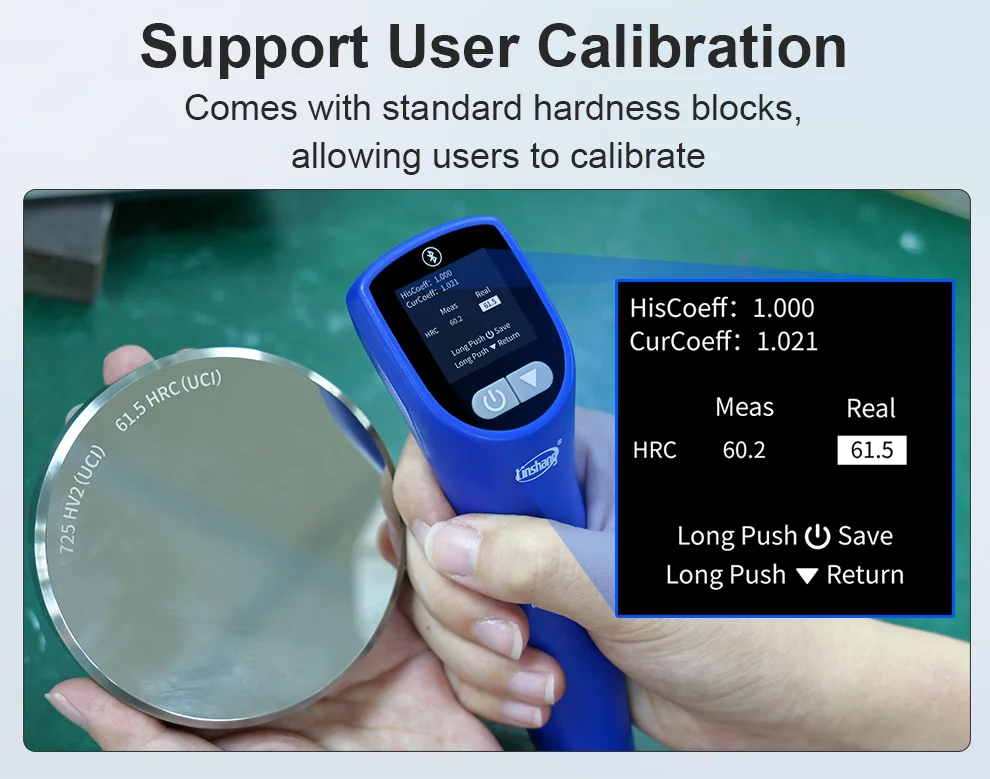

Support User CalibrationComes with standard hardness blocks, allowing users to calibrateAbout Prime Living
