Product Description

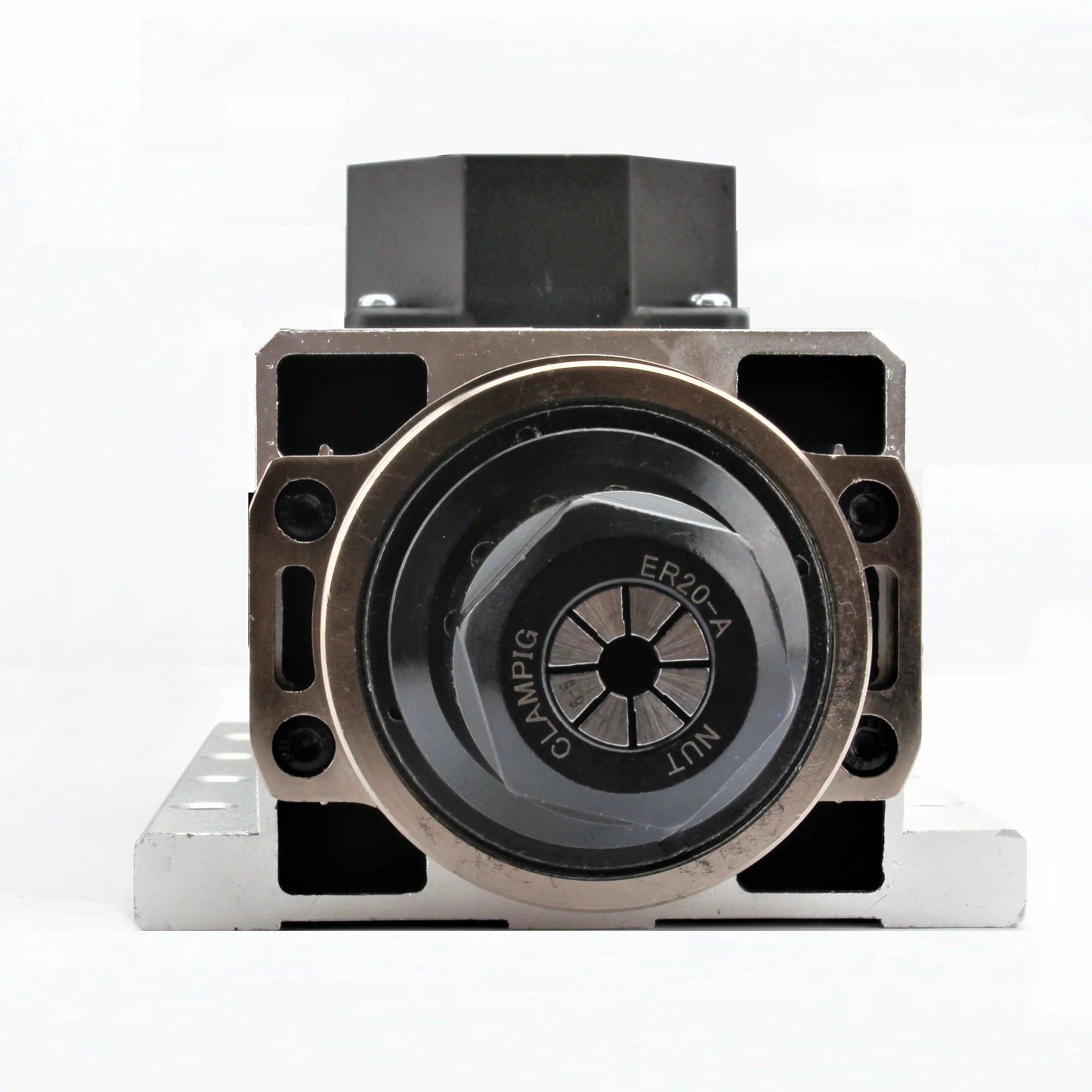

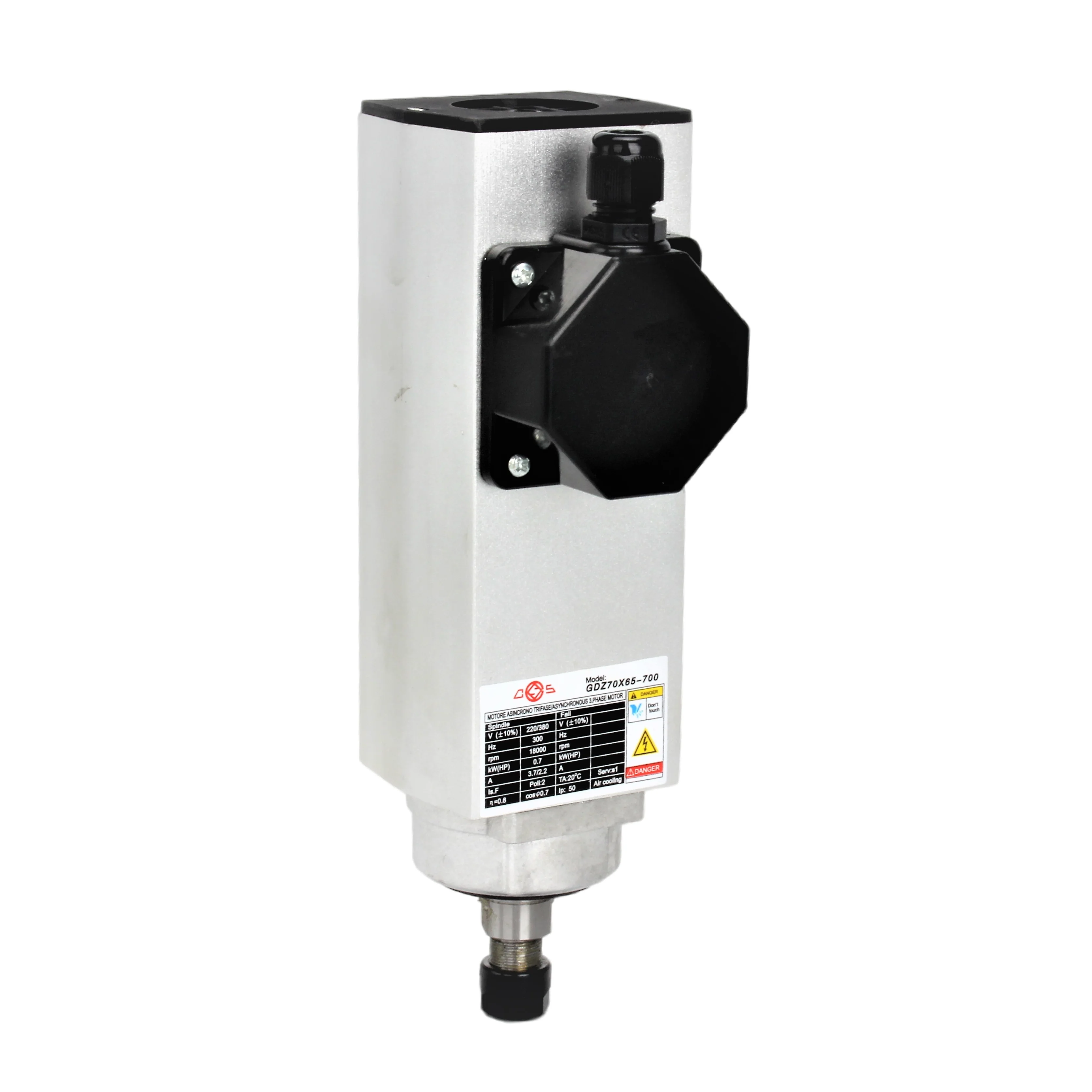

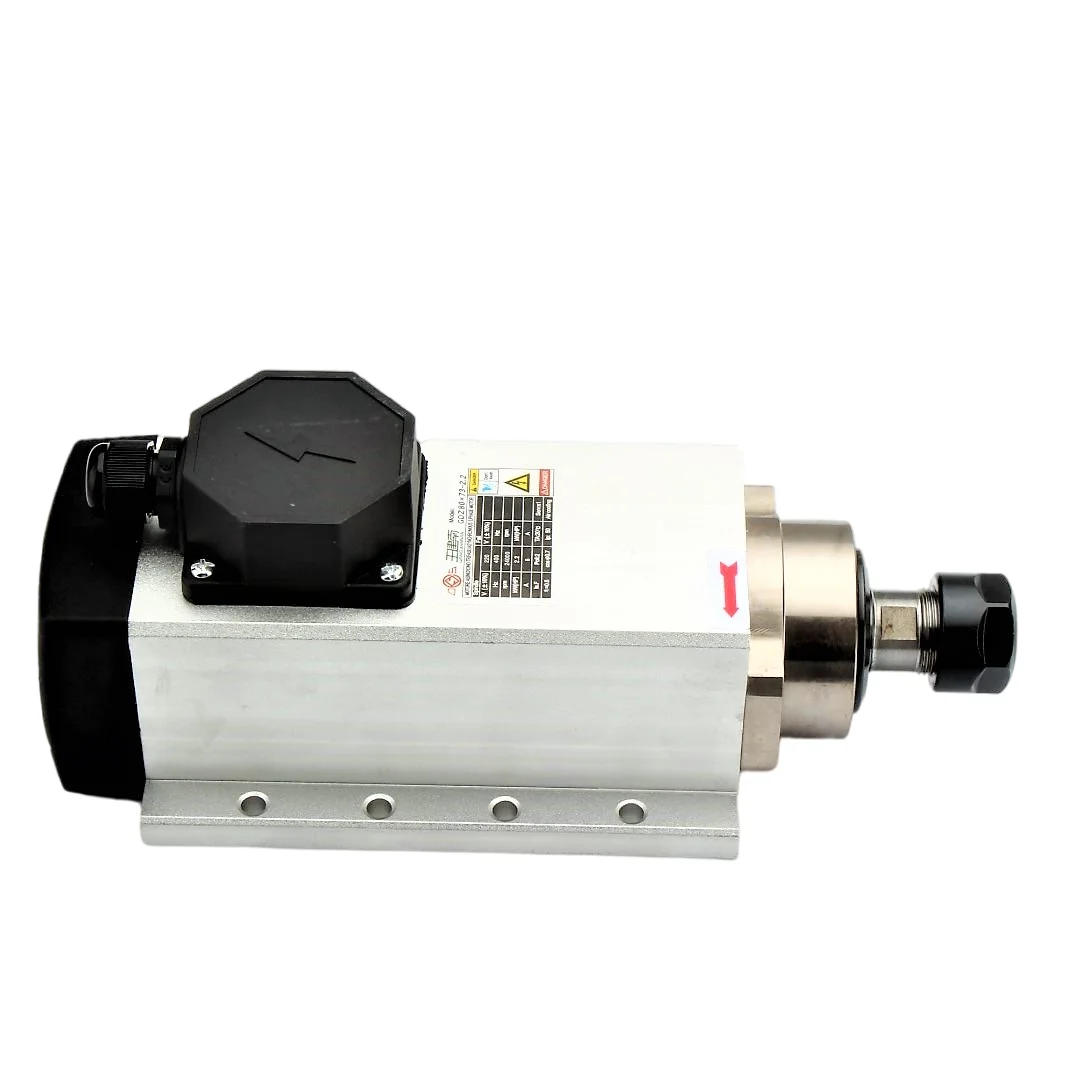

Main Spindle Motor square Flange Fan Cooling 2.2KW ER25 220V/380V 18000 Rpm Main Spindle
Main Spindle Motor square Flange Fan Cooling 2.2KW ER25 220V/380V 18000 Rpm Main Spindle
| Type | Product | Length | Diameter | Chuck model |
| Square air cooling | 1.5KW | Square | ER20 | |
| 1.5KWFlash | Square flange | ER11 | ||
| 2.2KW | square | ER25 | ||
| 2.2KWFlash | Square flange | ER20 | ||
| 3.5KW | Square | ER25 | ||
| 3.5KWFlash | With mounting flange | ER20 | ||
| 4.5KWFlash | With mounting flange | ER32 | ||
| 6.0KWFlash | With mounting flange | ER32 | ||
| 6.0KW | Square | ER32 |
| Fault | Cause of failure | Exclusion method |
| The motorized spindle does not operate after startup | No output or wrong setting of frequency converter | Check whether the output setting of the frequency converter is correct |
| Plug not connected | Check the plug and wiring | |
| Poor plug connection | ||
| Stator wire package burnt out | Replace wire package | |
| Shut down after several seconds of operation | Water ingress damages the insulation of wire package | Drying wire package |
| Edge damage of wire package caused by high temperature | Replace wire package | |
| Overcurrent protection caused by phase loss movement | Check the motor wiring | |
| Startup time is too short | Extended acceleration time | |
| After starting and running for a few seconds, the motor smokes or the shell is hot | The frequency converter has no output voltage and frequency, which is different from the nameplate voltage and frequency of motorized spindle | Check the reference frequency of the frequency converter |
| Wrong setting parameters of frequency converter | Reset frequency converter | |
| Waterway problem | Check whether the waterway is unblocked | |
| Nut looseness during start-up | Wrong direction of rotation | Change the rotation direction according to the nameplate |
| High noise and vibration | Serious bearing wear | Replace the bearing |
| Damage to part accuracy affects balance | Check dynamic balance | |
| Large spindle runout | Replace the spindle | |
| Nut looseness during shutdown | Downtime is too short | Extended downtime |
