UT70 USB Tester Digital Voltmeter Ammeter Capacity Measurement Waveform Display

Product Description

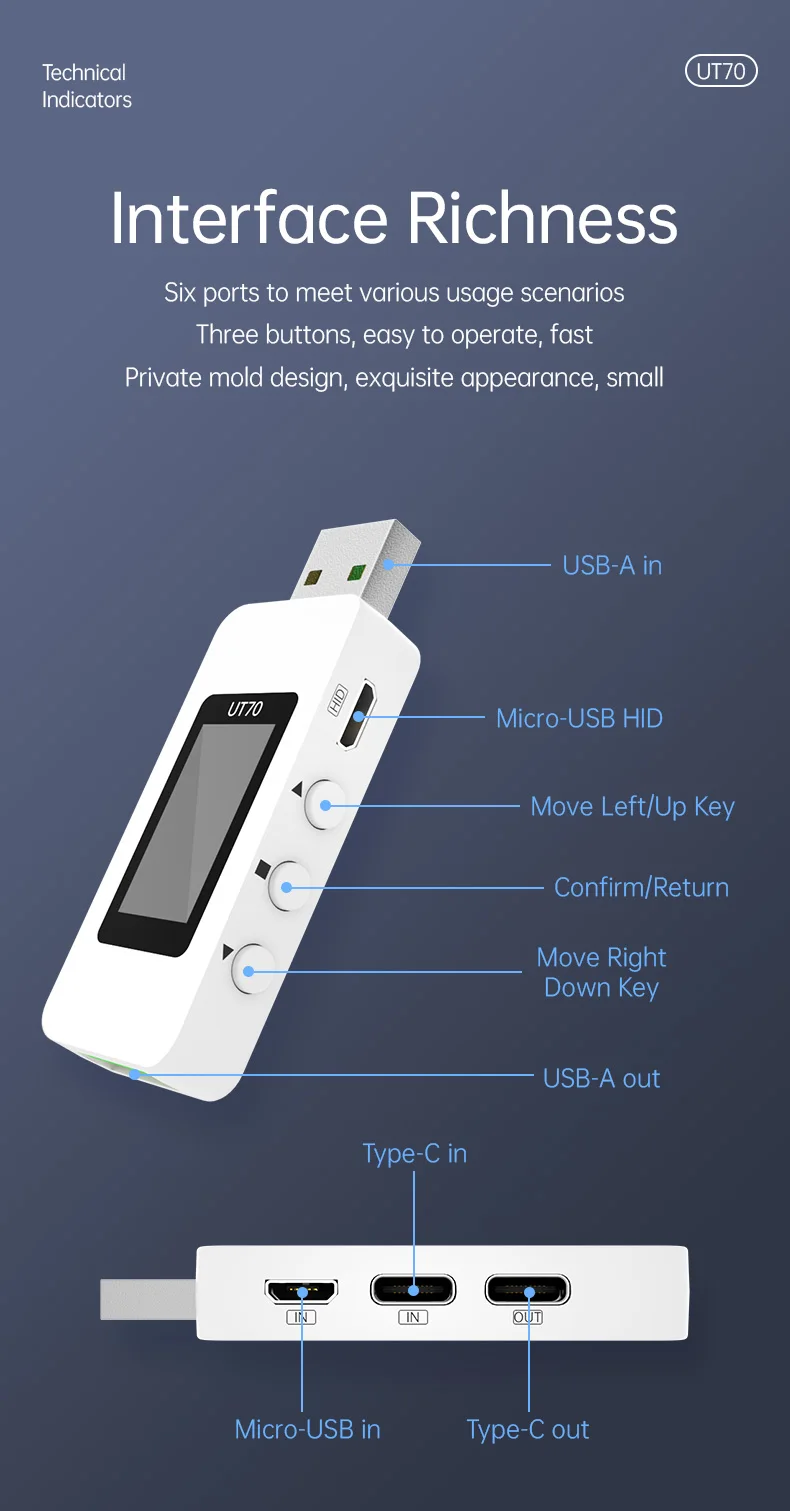

USB tester (UT70) integrates 5 measuring interfaces (Type-C, USB-A, Micro-USB full coverage), adopts 0.96 inch HD IPS screen, dedicated 16-bit ADC chip, dedicated PD protocol physical chip, real-time monitoring of voltage, current, power, electricity, capacity, waveform curve, fast charge protocol, etc

Product model: ATK-PTUT70

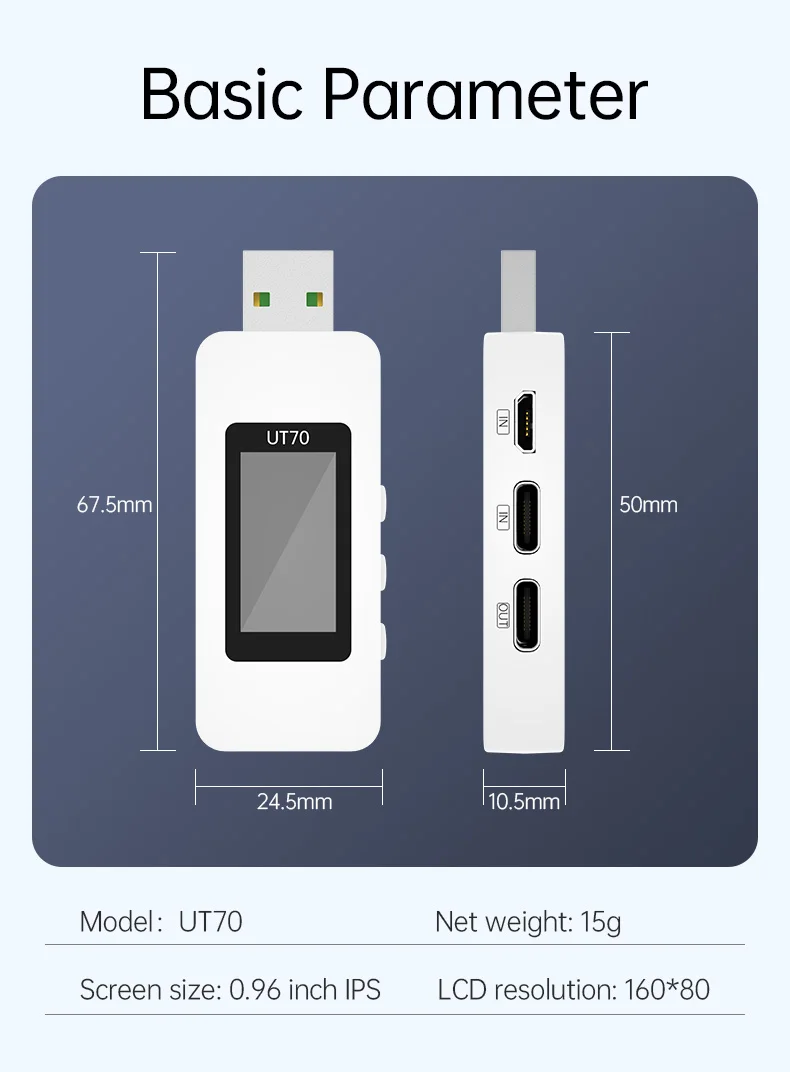

Product size: 67.5mm*24.5mm*10.5mm
Screen size: 0.96 inch IPS screen
Operating voltage: DC 3.6 ~ 28V
Working current: 33mA
Operating temperature: -20 ~ 70℃
Maximum sampling rate: 1000Hz
Minimum display resolution: 0.1mV /mA
Current sampling accuracy: ±(1.0‰+2)A
Voltage sampling accuracy: ±(1.2‰+2)A
Current monitoring range: 0 ~ 7A
Voltage monitoring range: 0 ~ 28V

1, built-in 16Bit high-precision alloy resistance
2, programmable sampling rate 4/10/50/200/500/1000Hz
3,0 ~28V wide voltage measurement
4,0 ~7A high current measurement

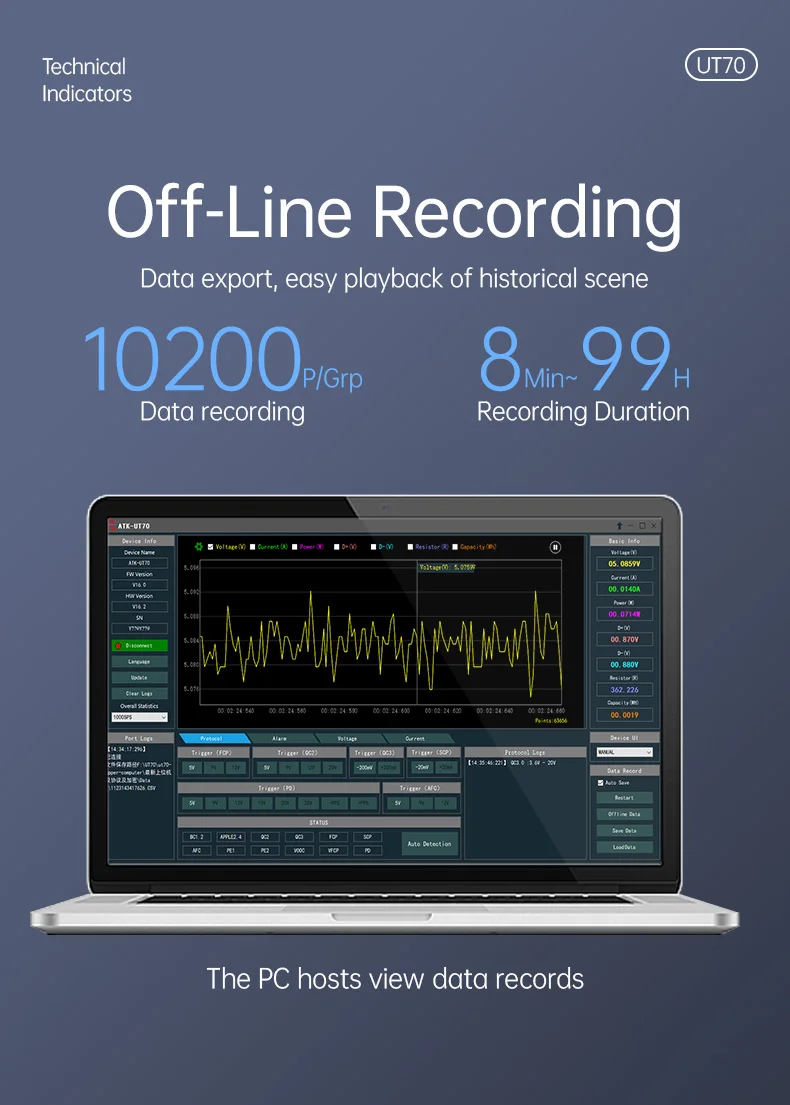

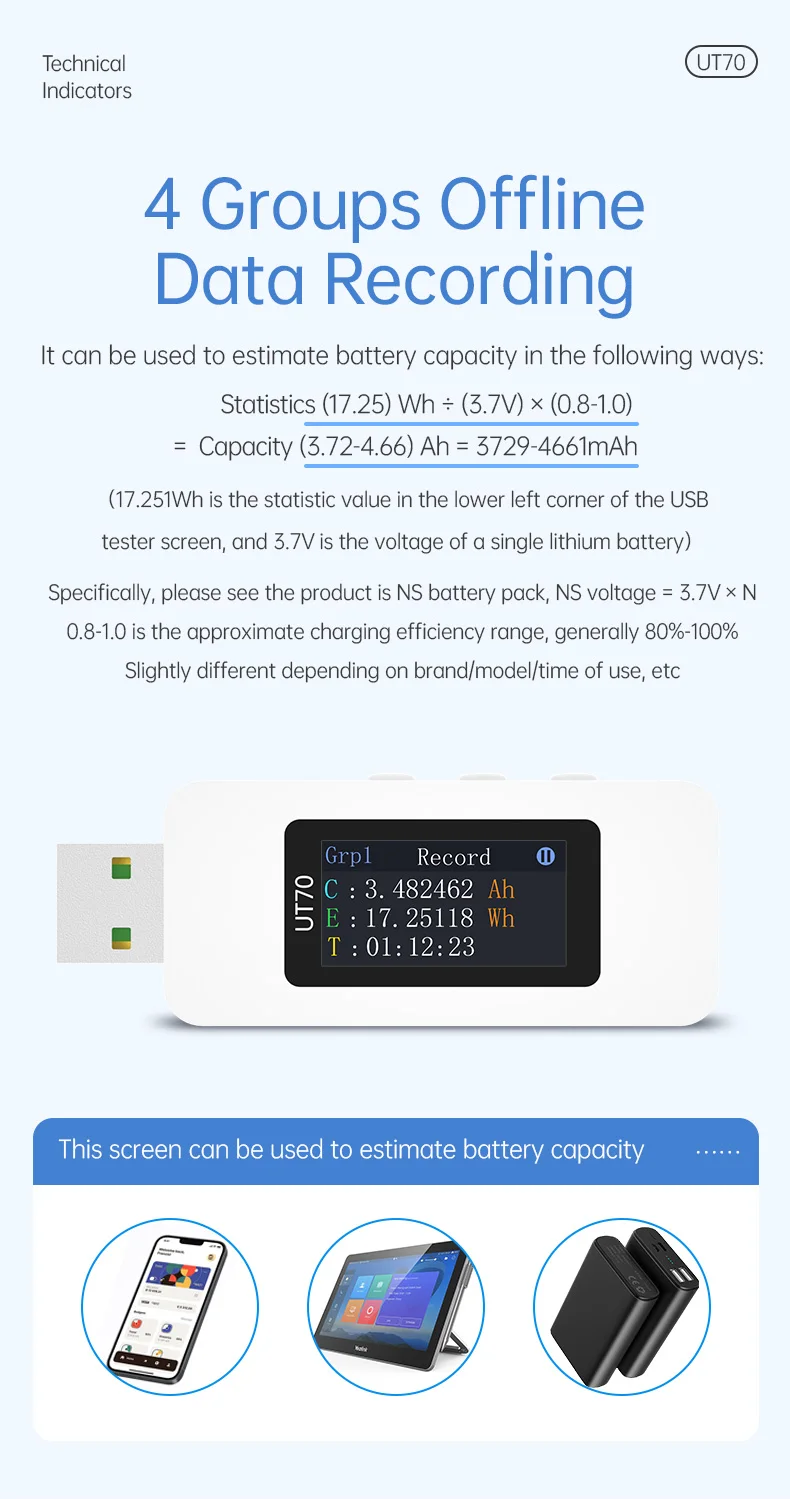

5, offline data record storage, supports a maximum of 5 groups of data records
6, programmable start and stop conditions/recording time of offline data recording
7, automatic detection of QC/PD/SCP/FCP/AFC and other fast charge protocols
8, manually trigger QC/PD/SCP/FCP/AFC and other fast charge protocols
9. TYPE-C E-Marker cable /Dash cable detection and identification
10, QC/PD/SCP/FCP/AFC/ and other protocols online monitoring function

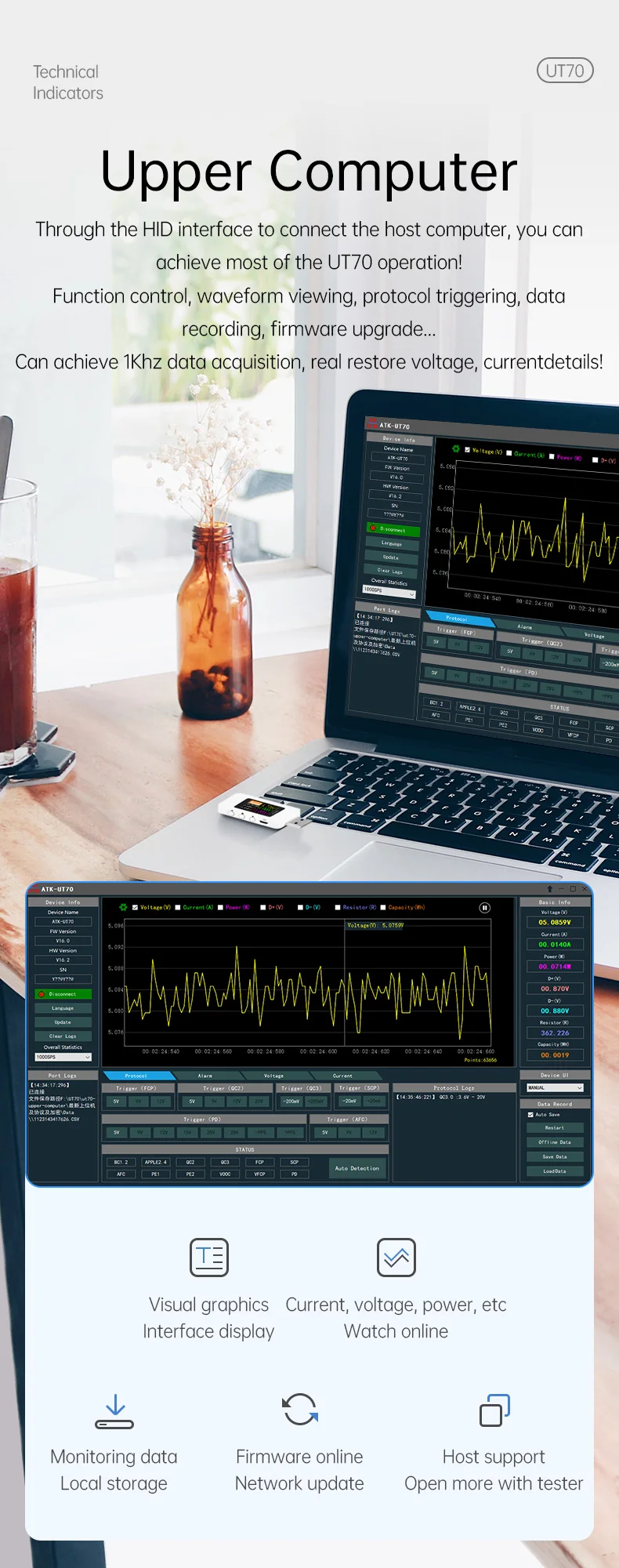

11, communication with the upper computer using USB-HID interface, no driver installation
12, the upper computer is simple to use, rich in functions, online drawing various waveforms
