Product Description

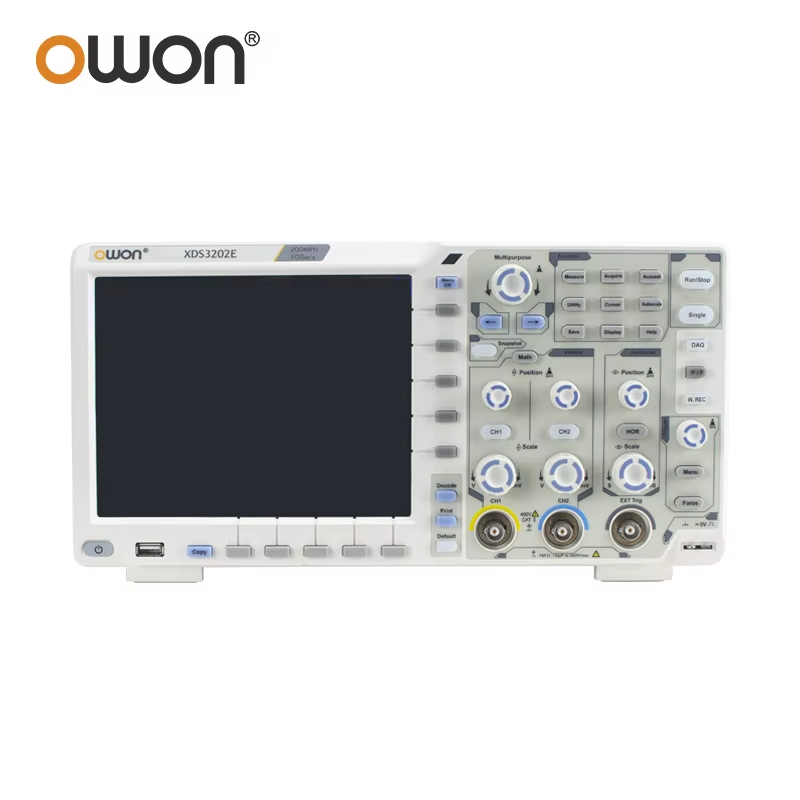

XDS3202E 8 Bits Dual Channel Digital Oscilloscope 200MHz 1GS/s 40M Record Length 56,000 wfms/s 8 inchs 2 +1External Options
XDS3202E 8 Bits Dual Channel Digital Oscilloscope 200MHz 1GS/s 40M Record Length 56,000 wfms/s 8 inchs 2 +1External Options
OWON XDS3202E 8 Bits Dual Channel Digital Oscilloscope 200MHz 1GS/s 40M Record Length 56,000 wfms/s 8 inchs 2 +1External Options
Attention: For more options, please contact us
External optional accessories include
Multimeter pen
Q9 line plastic head
Q9 wire metal head 20M
Q9 wire metal head 60M
Lithium ion battery 13200MA/3.7V
Capacitor expansion module
Convenient bag
Internal optional features
WIFI
Multimeter DMM
＋Performance Specifications
Model | XDS3202E | |
Bandwidth | 200MHz | |
Sample Rate | 1GS/s | |
Vertical Resolution (A/D) | 8bits | |
Record length | 40M | |
Waveform Refresh Rate | 56,000 wfms/s | |
Horizontal Scale (s/div) | 1ns/div - 1000 | |
step by 1 - 2 - 5 | ||
Rise Time (at input, typical) | ≤1.7ns | |
Channel | 2 + 1 (external) | |
Display | 8" color LCD, 800 x 600 pixels (optional 1024 x 768 pixels IPS display) | |
Input Impedance | 1MΩ ± 2%, in parallel with 15pF ± 5pF (*, **50Ω ± 2%) | |
Channel Isolation | 50Hz : 100 : 1, 10MHz : 40 : 1 | |
Max Input Voltage | 1MΩ ≤ 300Vrms; 50Ω ≤ 5Vrms | |
DC Gain Accuracy | ±3% | |
DC Accuracy | average≥16：±(3% reading + 0.05 div) for △V | |
Probe Attenuation Factor | 0.001X - 1000X, step by 1 - 2 - 5 | |
LF Respond (AC, -3dB) | ≥10Hz (at input, AC coupling, -3dB) | |
Sample Rate / Relay Time Accuracy | ±1ppm | |
Interpolation | sin(x) / x | |
Interval (△T) Accuracy (full bandwidth) | Single: ±(1 interval time + 1ppm x reading + 0.6ns); | |
Input Coupling | DC, AC, and GND | |
Vertical Sensitivity | 1mV/div - 10V/div (at input) | |
Trigger Type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional) | |
Bus Decoding | I2C, SPI, RS232, and CAN (optional) | |
Trigger Mode | Auto, Normal, and Single | |
Vertical Range | ±2V ( 1mv/div - 50mv/div), ±20V ( 100mv/div - 1V/div), ±200V (2V/div - 10V/div) | |
Line / Field Frequency (video) | NTSC, PAL and SECAM standard | |
Cursor Measurement | △V, and △T between cursors, △V and △T between cursors, and auto- cursors | |
Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count | |
Waveform Math | ＋, －, ×, ÷, FFT,FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject) | |
Waveform Storage | 100 waveforms | |
Lissajou's | Bandwidth | full bandwidth |
Phase Difference | ±3 degrees | |
Communication Interface | USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional) | |
Frequency Counter | available | |
Power Supply | 100V - 240V AC, 50/60Hz, CAT II | |
Power Consumption | ＜24W | |
Fuse | 2A, T class, 250V | |
Battery (optional) | 3.7V, 13200mAh | |
Dimension (W x H x D) | 340 x 177 x 90 mm | |
Weight | 2.60 kg±200g |
＋Multimeter (optional) Specifications
Full Scale Reading | 3¾ digits (max 4000 count) | Diode | 0V -1V |
Input Impedance | 10MΩ | Continuity Test | <50 (±30) beeping |
Capacitance | 51.2nF - 100uF: ±(3% ± 3 digits) | ||
Voltage | VDC: 400mV, 4V, 400V: ±(1 ± 1 digit); max input: DC 1000V | ||
Current | DC: 40mA, 400mA: ±(1.5% ± 1 digit); 10A: ±(3% ± 3 digits) | ||
Impedance | 400Ω: ±(1% ± 3 digits),4KΩ - 40MΩ: ±(1% ± 1 digit) |
＋Optional Module / Function
battery | |
WIF | WiFi |
DMM | digital multimeter |
TOU | Touch screen(capacitor-type) |
＋Free Decoding Kit
RS232 | RS232 |
SPI | SPI |
I2C | I2C |
CAN | CAN trigger / decoding |

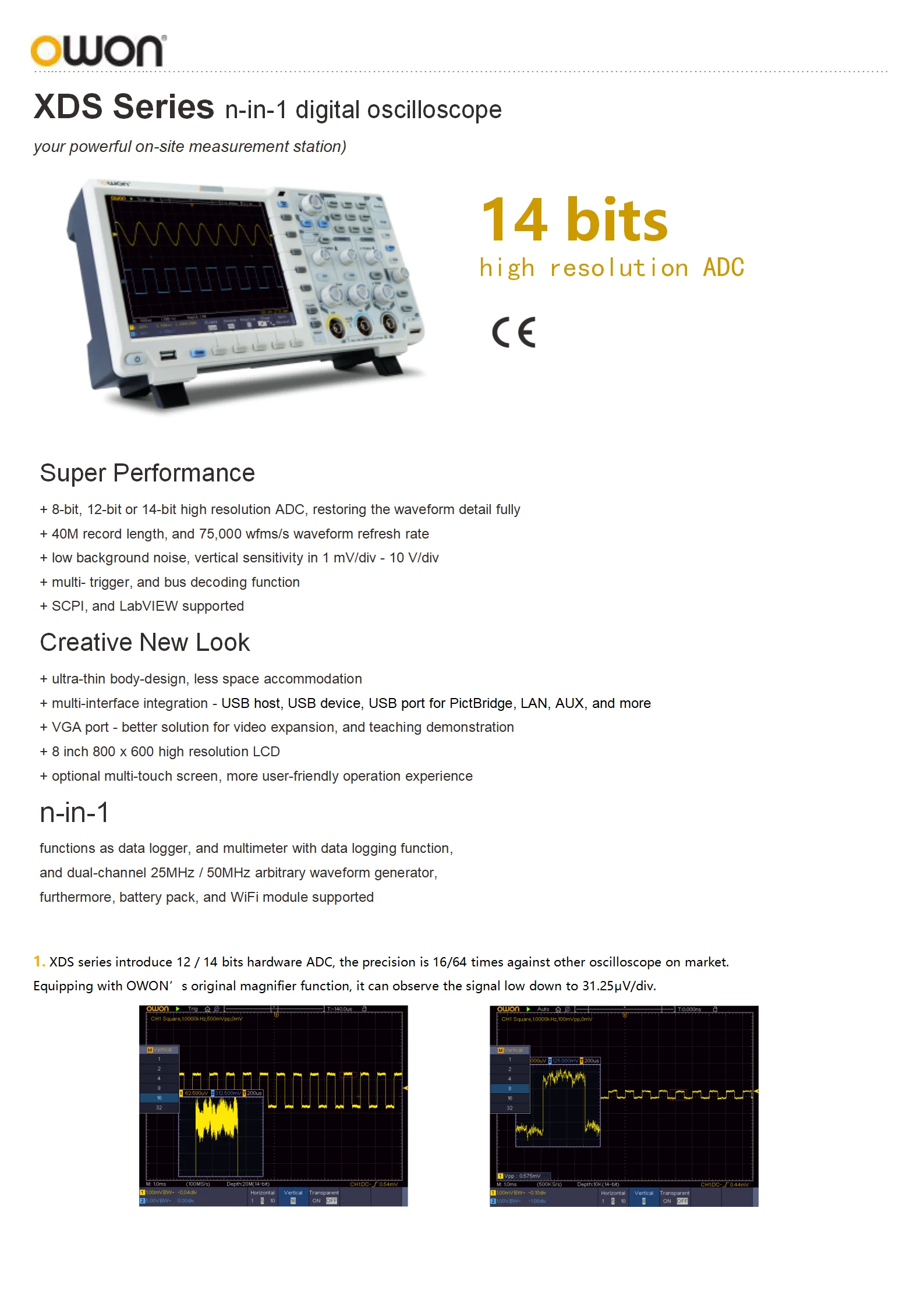

XDS3204E n-in-1 digital oscilloscope
Super Performance
+ 40M record length, and 70,000 wfms/s waveform refresh rate
+ low background noise, vertical sensitivity in 1 mV/div - 10 V/div
+ multi- trigger, and bus decoding function
+ SCPI, and LabVIEW supported

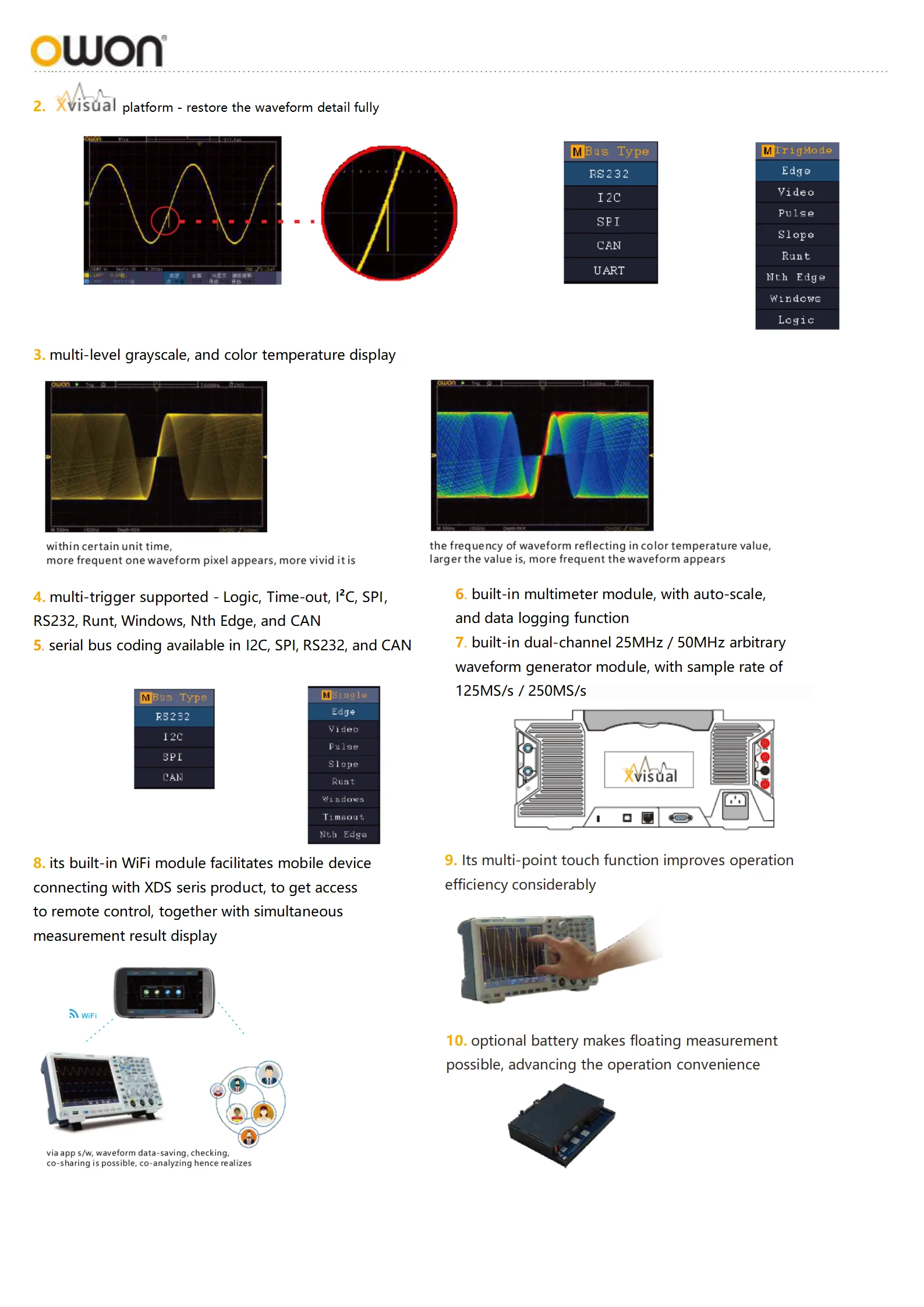

Creative New Look
+ ultra-thin body-design, less space accommodation
+ multi-interface integration -
USB host, USB device, USB port for PictBridge, LAN, AUX, and more
+ VGA port - better solution for video expansion,
and teaching demonstration
+ 8 inch 800 x 600 high resolution LCD
＋Performance Specifications
Model | XDS3204E | |
Bandwidth | 200MHz | |
Sample Rate | 1GS/s | |
Vertical Resolution (A/D) | 8bits | |
Record length | 40M | |
Waveform Refresh Rate | 70,000 wfms/s | |
Horizontal Scale (s/div) | 1ns/div - 1000s/div, step by 1 - 2 - 5 | |
Rise Time (at input, typical) | ≤1.7ns | |
Channel | 2 + 1 (external) | |
Display | 8" color LCD, 800 x 600 pixels (optional 1024 x 768 pixels IPS display) | |
Input Impedance | 1MΩ ± 2%, in parallel with 15pF ± 5pF | |
Channel Isolation | 50Hz : 100 : 1, 10MHz : 40 : 1 | |
Max Input Voltage | 1MΩ ≤ 300Vrms; 50Ω ≤ 5Vrms | |
DC Gain Accuracy | ±3% | |
DC Accuracy | average≥16：±(3% reading + 0.05 div) for △V | |
Probe Attenuation Factor | 0.001X - 1000X, step by 1 - 2 - 5 | |
LF Respond (AC, -3dB) | ≥10Hz (at input, AC coupling, -3dB) | |
Sample Rate / Relay Time Accuracy | ±2.5ppm | |
Interpolation | sin(x) / x | |
Interval (△T) Accuracy (full bandwidth) | Single: ±(1 interval time + 1ppm x reading + 0.6ns); | |
Input Coupling | DC, AC, and GND | |
Vertical Sensitivity | 1mV/div - 10V/div (at input) | |
Trigger Type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional) | |
Bus Decoding | I2C, SPI, RS232, and CAN (optional) | |
Trigger Mode | Auto, Normal, and Single | |
Vertical Range | ±2V ( 1mv/div - 50mv/div), ±20V ( 100mv/div - 1V/div), ±200V (2V/div - 10V/div) | |
Line / Field Frequency (video) | NTSC, PAL and SECAM standard | |
Cursor Measurement | △V, and △T between cursors, △V and △T between cursors, and auto- cursors | |
Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count | |
Waveform Math | ＋, －, *, / ,FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject) | |
Waveform Storage | 100 waveforms | |
Lissajou's | Bandwidth | full bandwidth |
Phase Difference | ±3 degrees | |
Communication Interface | USB Host, USB Device, Trig Out (Pass/Fail), LAN port, VGA port (optional) | |
Frequency Counter | available | |
Power Supply | 100V - 240V AC, 50/60Hz, CAT II | |
Power Consumption | ＜15W | |
Fuse | 2A, T class, 250V | |
Battery (optional) | 3.7V, 13200mAh | |
Dimension (W x H x D) | 340 x 177 x 90 mm | |
Weight | 2.60 kg |
